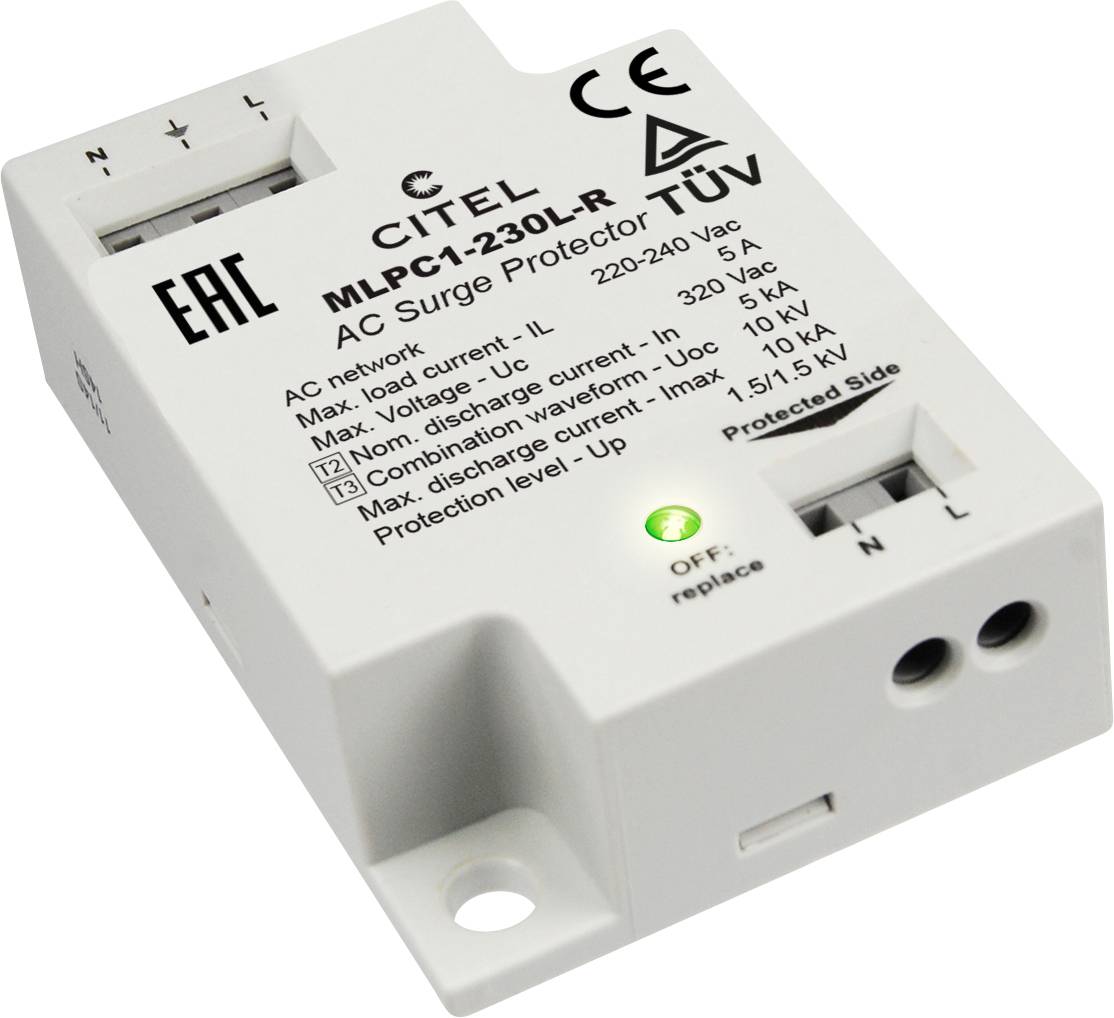

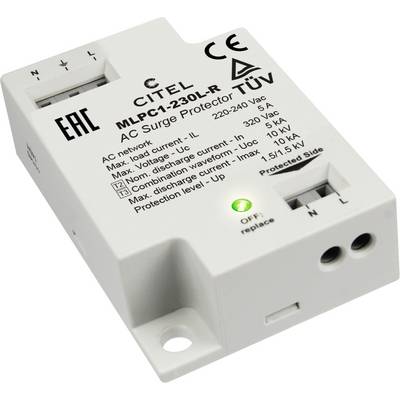

Citel 831211 MLPC1-230L-R Surge protection (built-in) Surge protection for: Junction box 10 kA 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Surge protection AC type 2+3 for TT and TNS networks 2-pin
- Circuit separation in the event of a fault
- Contacts as spring-loaded terminal
- Spring-loaded terminals max. 1.5 mm²
Technical specifications
- Max load current (for serial or V wiring): 5 A.
- Product type
Surge protection (built-in)
- Surge protection for
Junction box
- Leakage current
10 kA
- Nominal voltage
230 V
- Operating temperature
-40 °C/+85 °C
IP20
- Manufacturer part #
831211
- Factory colour
White
- Dim
(L x W x H) 59 x 40 x 17 mm
- Length
59 mm
- Width
40 mm
- Height
17 mm
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2357935 Citel 831211 MLPC1-230L-R Surge protection (built-in) Surge protection for: Junction box 10 kA 1 pc(s)
Description
Overvoltage protection for single-phase circuits and LED systems, protective circuit consisting of medium and fine protection, interruption of the circuit in the event of a fault.
This text is machine translated.
This text is machine translated.
Features
- Compact type 2+3 surge protection
- For safety class I equipment
- Easy to Set Up
- Connection via lift clamps or spring-loaded terminals
- Status signaling: Device defect - disconnection from the mains and circuit separation
- Complies with EN 61643-11 standards
- Particularly suitable for end circuits: E.g. LED lighting with protection class I or protection class II.
- Optimized coordination (MLPCH)
