Clamp set SPAX 4009422556629 Connector
EAN:
Part number:
Item no:
Number (Package size 40 pc(s))
Total (€ 19.32 / piece)
€ 19.32
plus VAT.
Only 2 Set(s) available
Highlights & Details
SPAX TERRACE STICK PRO FOR CA. 1 QM 40 STICKS INCL. SCREWS HKB M
- Dimensions: L x W x H = 60 x 20 x 8 mm
- With aluminum base construction: 3 mm wall thickness for coniferous wood floors, 4 mm wall thickness for hardwood floors
- The freely projecting board end may survive a maximum of 40 mm over the last substructure
- Prevention of jams due to the ventilation platform effect
- Covered mounting of patio boards on wood and aluminum
- Not suitable for: Siberian larch, Cumaru, Bongossi, Massaranduba, wood composite boards (WPC)
Technical specifications
- Dimensions: L x W x H = 60 x 20 x 8 mm
- Product type
Clamp set
- Content

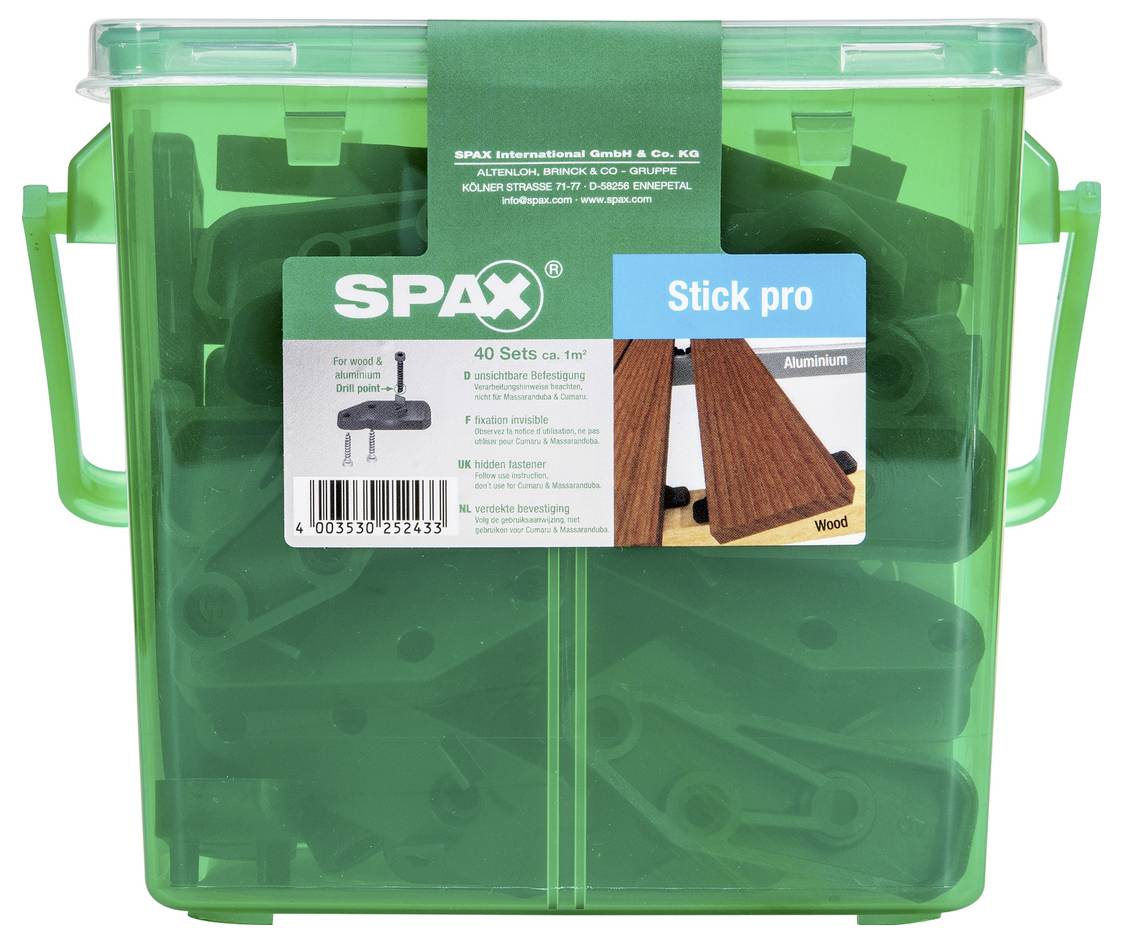

40 pc(s)
- Width
20 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3742559 Clamp set SPAX 4009422556629 Connector
Description
The SPAX STICK PRO covered connector provides for a flawless look. The stick's high mechanical strength gives the wooden and aluminum patio boards a high stability and load capacity. The large bearing surface of the SPAX STICK PRO makes it virtually impossible to squeeze the substructure.
This text is machine translated.
This text is machine translated.
Features

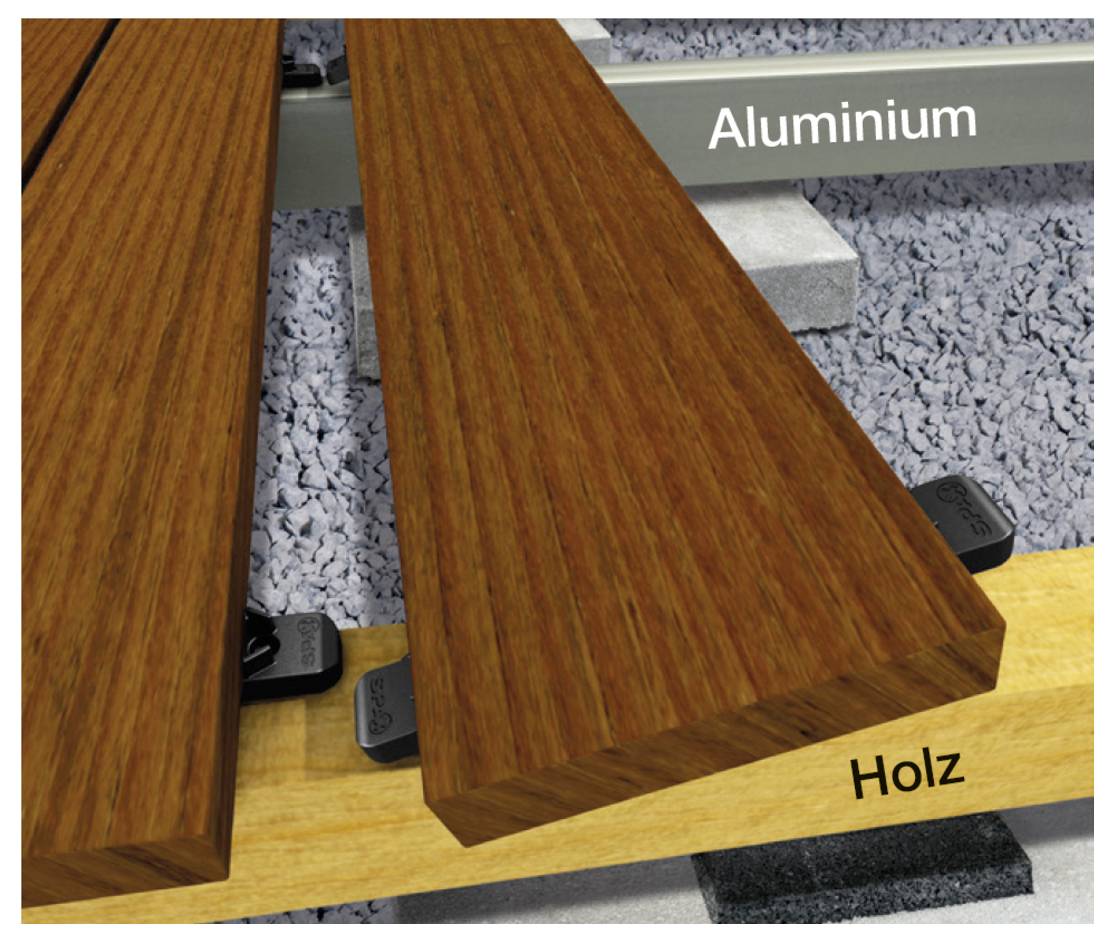

- Covered fixing of terrace boards on wood and aluminum
- Prevention of jams due to the ventilation platform effect
- The fixing screw in the substructure can also be released in the installed state
- Suitable for: Wood target up to max. 25 mm thick boards, Douglas, pine, European larch, oak, Garapa, Bangkok, Ipe (max. 21 x 130mm), Thermal wood (if necessary Observe manufacturer information)
- For very hard import timber, a pre-drilling with Ø 3 mm is recommended as well as a maximum distance of 40 cm of the substructure
- Not suitable for: Siberian larch, Cumaru, Bongossi, Massaranduba, wood composite boards (WPC)
- Please note enclosed installation instructions!
- Floor width for tropical wood < 130 mm
- Thickness of the terrace area max. 25 mm, however at least 20 mm

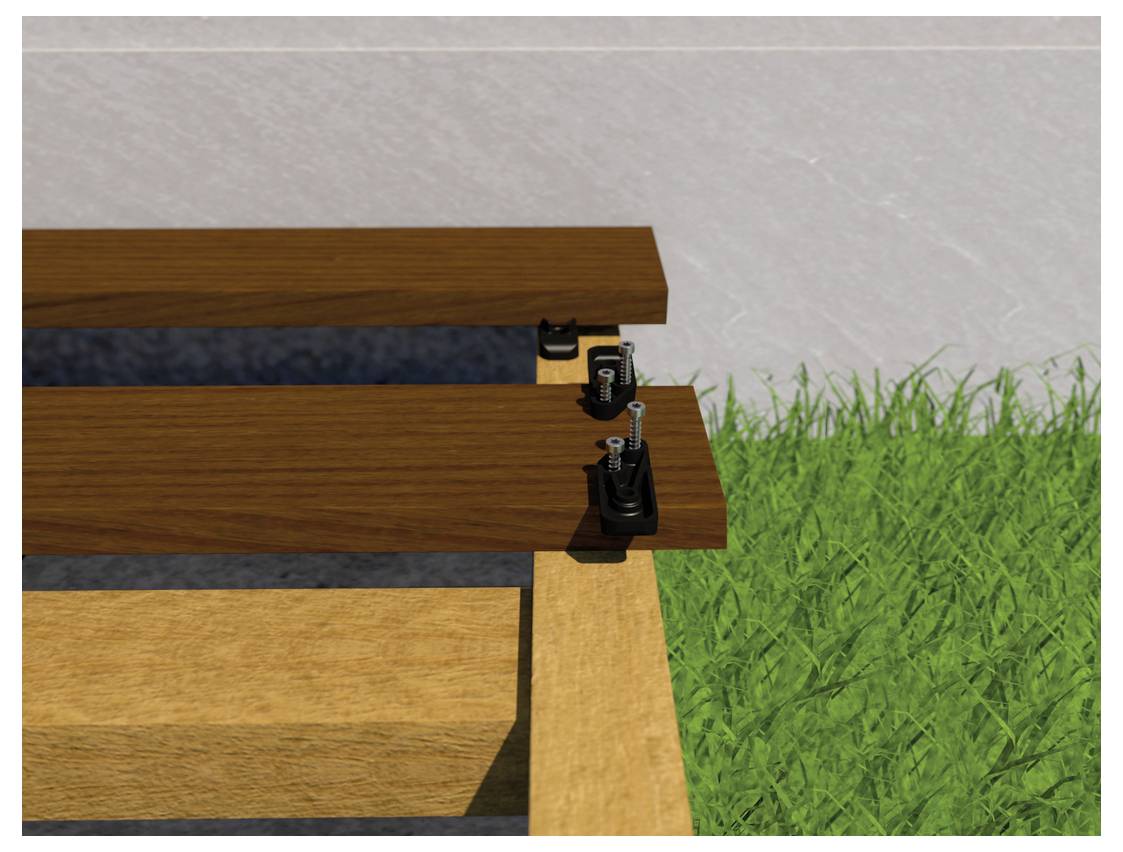

- The freely projecting board end may survive a maximum of 40 mm over the last substructure

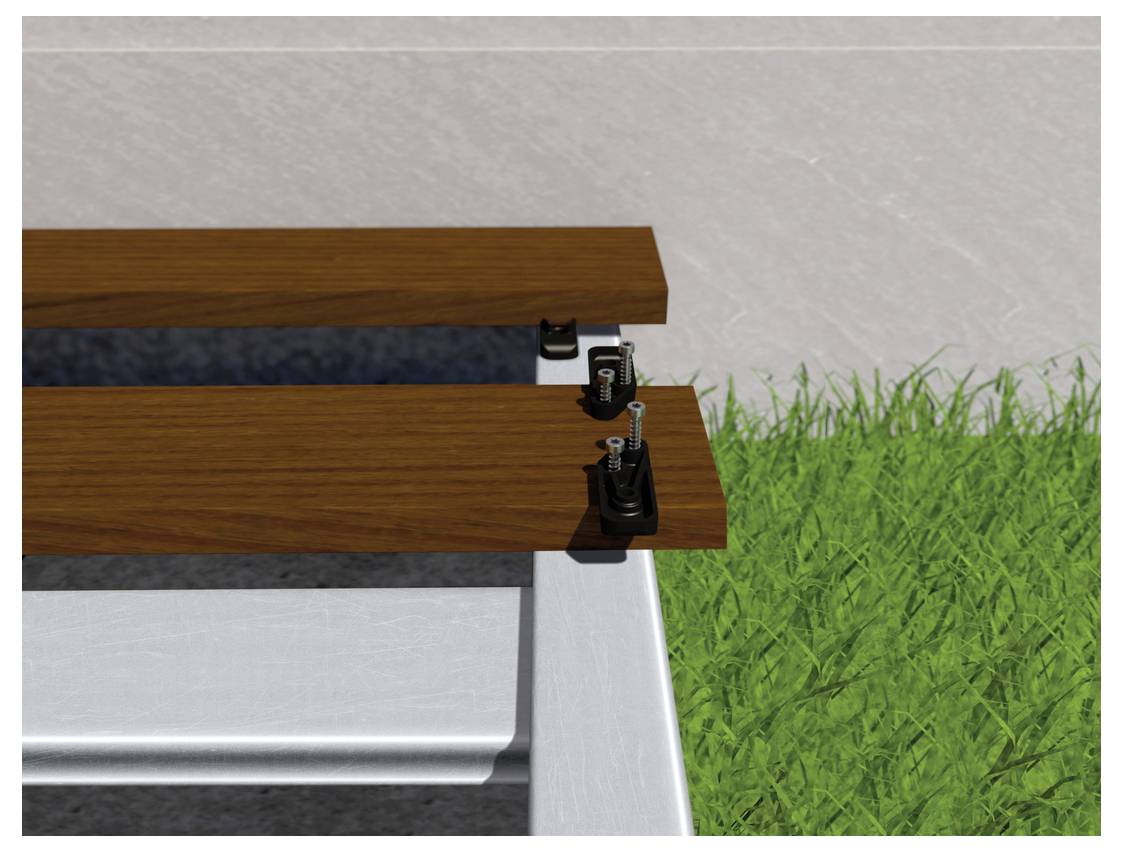

- With aluminum substructure:
- 3 mm wall thickness with coniferous wood flooring,
- 4 mm wall thickness in hardwood floors

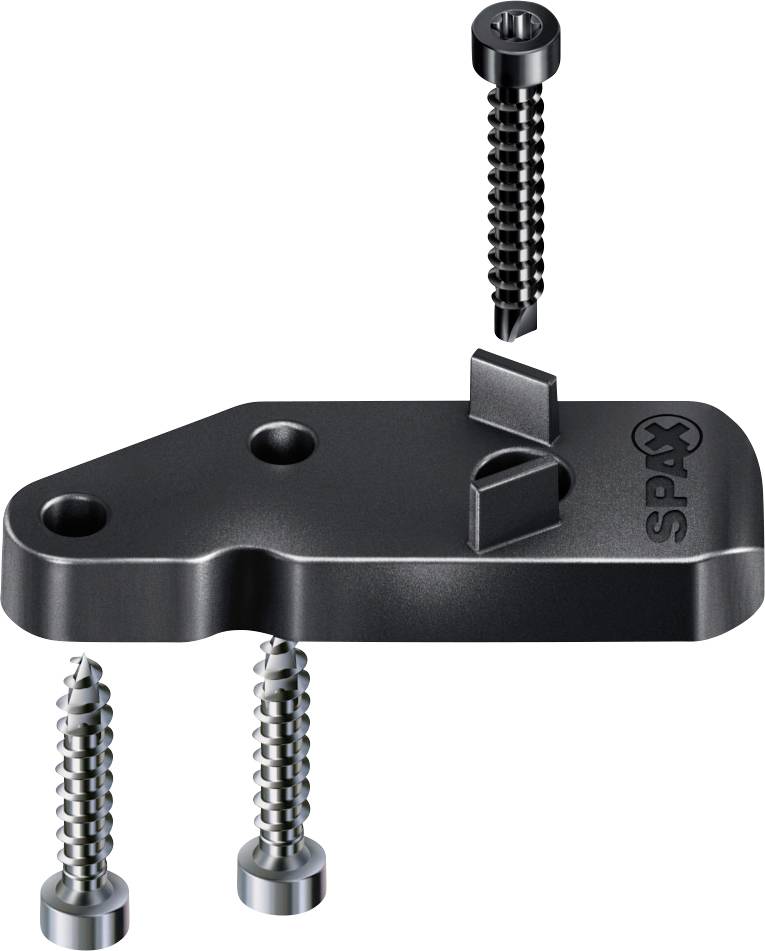

- Mounting: Move the die with the installed Stick PRO under the already attached area, set the width of the joint with the spacer, attach only the protruding Stick PRO with black stainless steel screw in the substructure.
