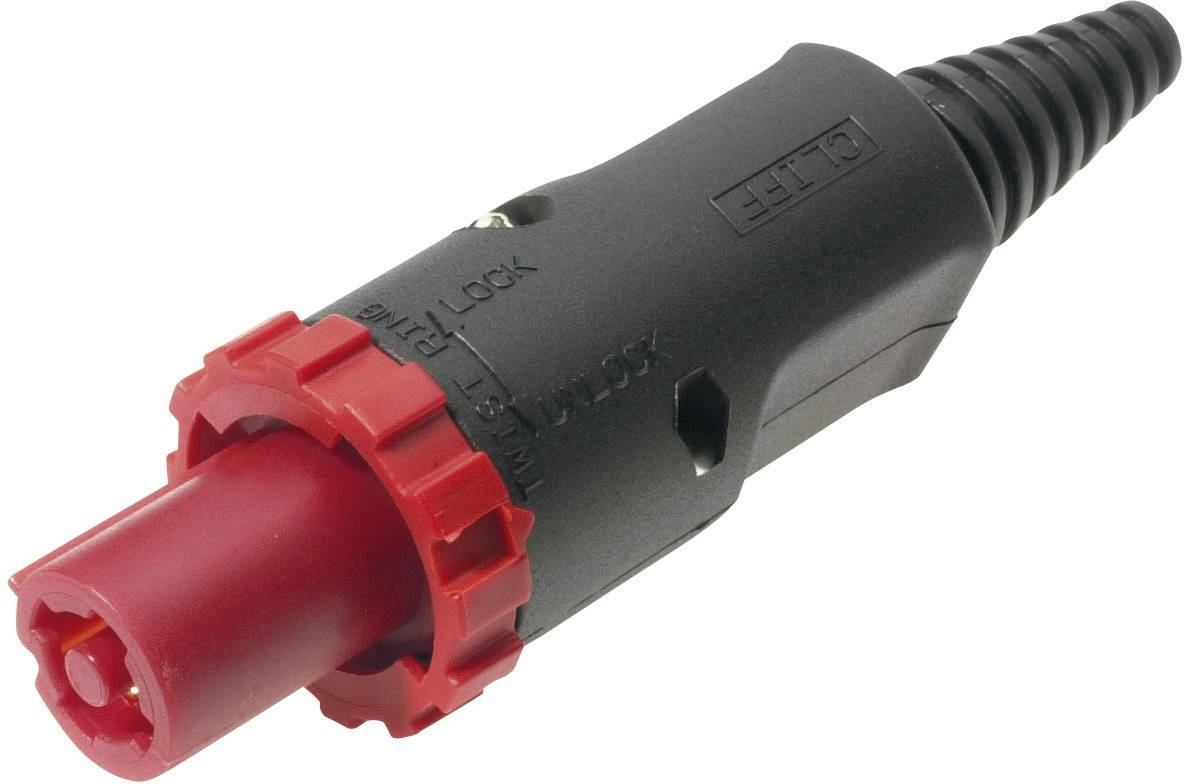

Cliff FCR2067 Mains connector FC Plug, straight Total number of pins: 3 + PE 20 A Red 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Mains connector
Connector type
Plug, straight
Total no. of pins
3 + PE
Connection
Screws
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.12
3
5% = € 0.75
€ 14.37
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.12 / piece)
€ 15.96
-5 %
€ 15.12
plus VAT.
14-day return policy included
Highlights & Details
Touch-safe CLIFFCON® connector – 4-pin
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
Mains connector
- Connector type
Plug, straight
- Total no. of pins
3 + PE
- Connection
Screws
- Nominal voltage
250 V AC
- Factory colour
Red
- Content
1 pc(s)
- Nominal current
20 A
- Nominal current - rounded value
20 A
- Type
Cable plug 180°
- Manufacturer part #
FCR2067
- Cable Ø (max.)
6 mm²
- Cable Ø range
6 mm² (max)
- Contact resistance
< 3 mΩ
- Contact material
Gold plated
- Certification marks
EN60065, IEC348 and EN61010-1
- Number of pins
3
- RoHS-compliant
Yes
- Series
FC
- Temperature range
-20 - +80 °C
- Type
FCR2067
- Leading contact (PE)
Yes
- Nominal voltage (details)
250 V AC
- Nominal current (details)
20 A
- Cross section
6 mm²
- Pins
4
- Connection
Screws
Documents & Downloads
Datasheet
Datasheet 736230 Cliff FCR2067 Mains connector FC Plug, straight Total number of pins: 3 + PE 20 A Red 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 736230 Cliff FCR2067 Mains connector FC Plug, straight Total number of pins: 3 + PE 20 A Red 1 pc(s) Piece
Description
The 4-pin CLIFFCON® connectors are available in blue for applications up to 120 VAC (speakers, amplifiers, battery chargers, in-vehicle use). The red connectors are suitable for use up to 250 VAC. The connectors are intended for applications for which a touch-safe connector system with high-quality, reliable locking is required. The connectors in the Cliffcon® range are robust and durable multi-pin plugs and sockets. Designed for high-performance applications, the connectors include touch-safe contacts and a simple lock, and comply with the safety requirements of IEC 65/348. With integrated strain relief.
Hints
Only connectors of the same colour are compatible!
