Buy Cliff FCR20673 Mains connector FC Plug, right angle Total number of pins: 3 + PE 20 A Red 1 pc(s) Piece

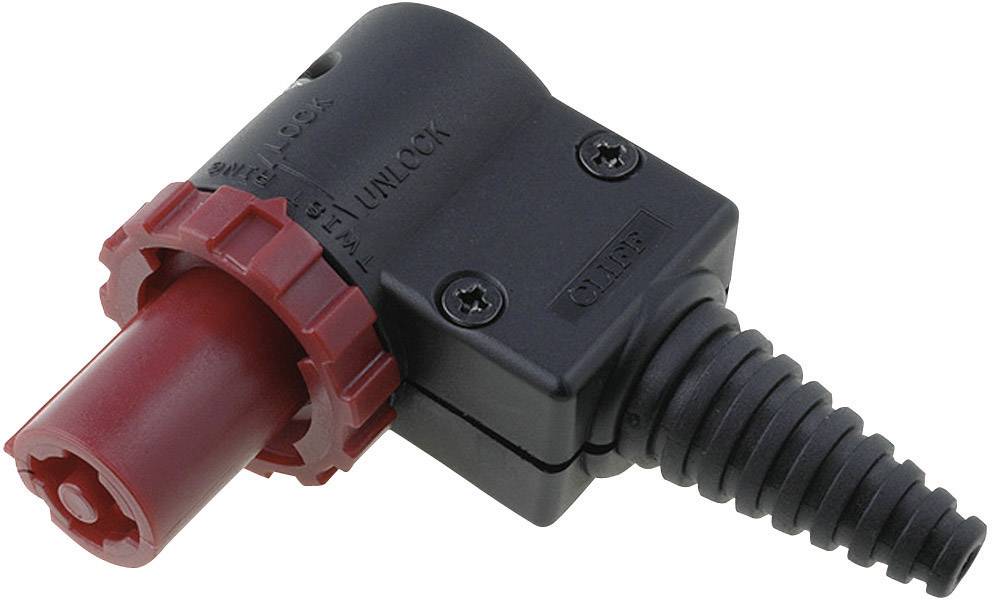

A black and red cable connector with a twist-lock mechanism and flexible protective cap.

Packaging type

Piece

Product type

Mains connector

Connector type

Plug, right angle

Total no. of pins

3 + PE

Connection

Screws

Datasheet (PDF)

Fast track dispatch on Mon, 28 Sep

47 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 19.32 / piece)

€ 19.32

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Touch-safe CLIFFCON® connector – 4-pin

Our service for you

Technical specifications

Packaging type: Piece

Product type: Mains connector

Connector type: Plug, right angle

Total no. of pins: 3 + PE

Connection: Screws

Nominal voltage: 250 V AC

Factory colour: Red

Content: 1 pc(s)

Nominal current: 20 A

Nominal current - rounded value: 20 A

Type: Cable plug 90°

Manufacturer part #: FCR20673

Cable Ø (max.): 6 mm²

Cable Ø range: 6 mm² (max)

Contact resistance: < 3 mΩ

Contact material: Gold plated

Certification marks: EN60065, IEC348 and EN61010-1

Number of pins: 3

RoHS-compliant: Yes

Series: FC

Temperature range: -20 - +80 °C

Type: FCR20673

Leading contact (PE): Yes

Nominal voltage (details): 250 V AC

Nominal current (details): 20 A

Cross section: 6 mm²

Pins: 4

Connection: Screw

Documents & Downloads

Datasheet

Datasheet 736218 Cliff FCR20673 Mains connector FC Plug, right angle Total number of pins: 3 + PE 20 A Red 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 736218 Cliff FCR20673 Mains connector FC Plug, right angle Total number of pins: 3 + PE 20 A Red 1 pc(s) Piece

Description

The 4-pin CLIFFCON® connectors are available in blue for applications up to 120 VAC (speakers, amplifiers, battery chargers, in-vehicle use). The red connectors are suitable for use up to 250 VAC. The connectors are intended for applications for which a touch-safe connector system with high-quality, reliable locking is required. The connectors in the Cliffcon® range are robust and durable multi-pin plugs and sockets. Designed for high-performance applications, the connectors include touch-safe contacts and a simple lock, and comply with the safety requirements of IEC 65/348. With integrated strain relief.
