club3D AV Adapter Adapter DisplayPort 1.4 - HDMI [HDMI - DisplayPort] 3840 x 2160 Pixel
EAN:
Part number:
Item no:
club3D DisplayPort™1.4 to HDMI™ 4K120Hz/8K60Hz HDR active adapter St./B.
Highlights & Details
- Upstream DisplayPort connection to host:
- Complies with VESA DisplayPort™ v1.4 specification
- Supports DSC1.1/1.2a or uncompressed video
- Supports DSC 1.1/1.2a decoder
- Supports 8/10/12-bit color depth
- Supports RGB pixel format
- Downstream HDMI connection to display
- Meets HDMI™ specification max. 8K (780x4320) @60Hz
- Supports dynamic metadata HDR10+
- Supports HPD (DisplayPort Hot Plug Detect)
- Supports HDCP 1.4 as well as HDCP 2.3
- Supports 8/10/12-bit color depth output
- Supports 1 to 32 channels LPCM 192kHz audio output
- Supports HBR audio with up to 1536kHz
- Uses:
- For host devices such as laptops, desktops, video converter adapters
- Docking stations, projectors, games and display systems such as TV*, digital
- Signage, VR/AR systems
- Perfect for host devices that are equipped with a DP1.4 graphics card
- DP video signal output for games and commercial applications
- supported**
- Supported resolutions:
- Supports resolutions/timing up to 4k120Hz/8K60Hz
Technical specifications
- Product type
AV Adapter
- Connection type
DisplayPort
HDMI
- No. of A connectors
1 x
- Type A
DisplayPort plug
- No. of B connections
1 x
- Type B
HDMI socket
- Video resolution
3840 x 2160 Pixel
- Cable length
21 cm
- Factory colour
Black
- Connector version
straight
- Version
Adapter
- Cable use
AV
- Weight
51 g

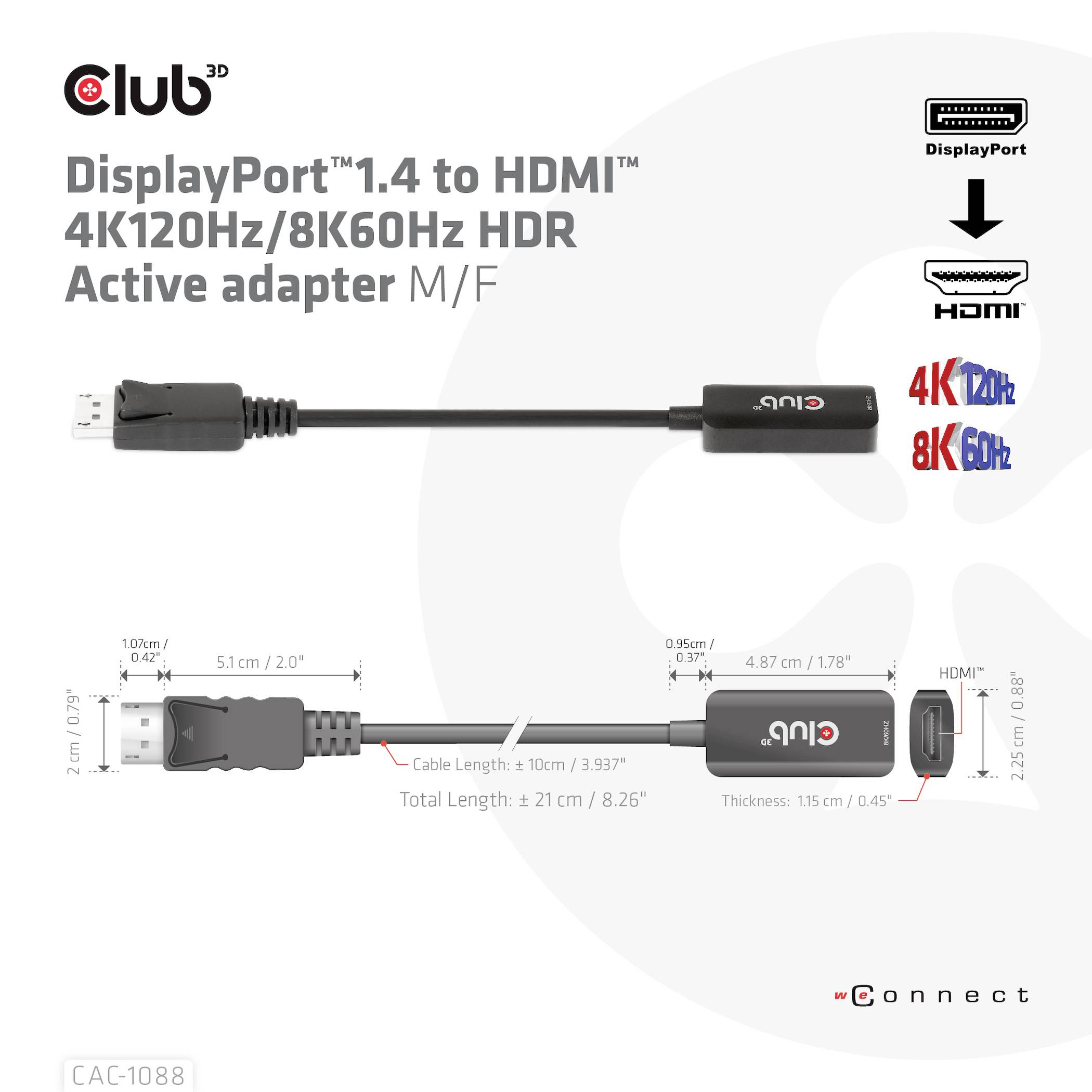

- Length
49 mm
- Width
22.5 mm
- Height
11.5 mm
- Dim
(L x W x H) 49 x 22.5 x 11.5 mm
- Port
1 port
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3190706 club3D AV Adapter Adapter DisplayPort 1.4 - HDMI [HDMI - DisplayPort] 3840 x 2160 Pixel
Description
Displayport1.4 to HDMI 4K120Hz/8K60Hz HDR active adapter pcs./B.

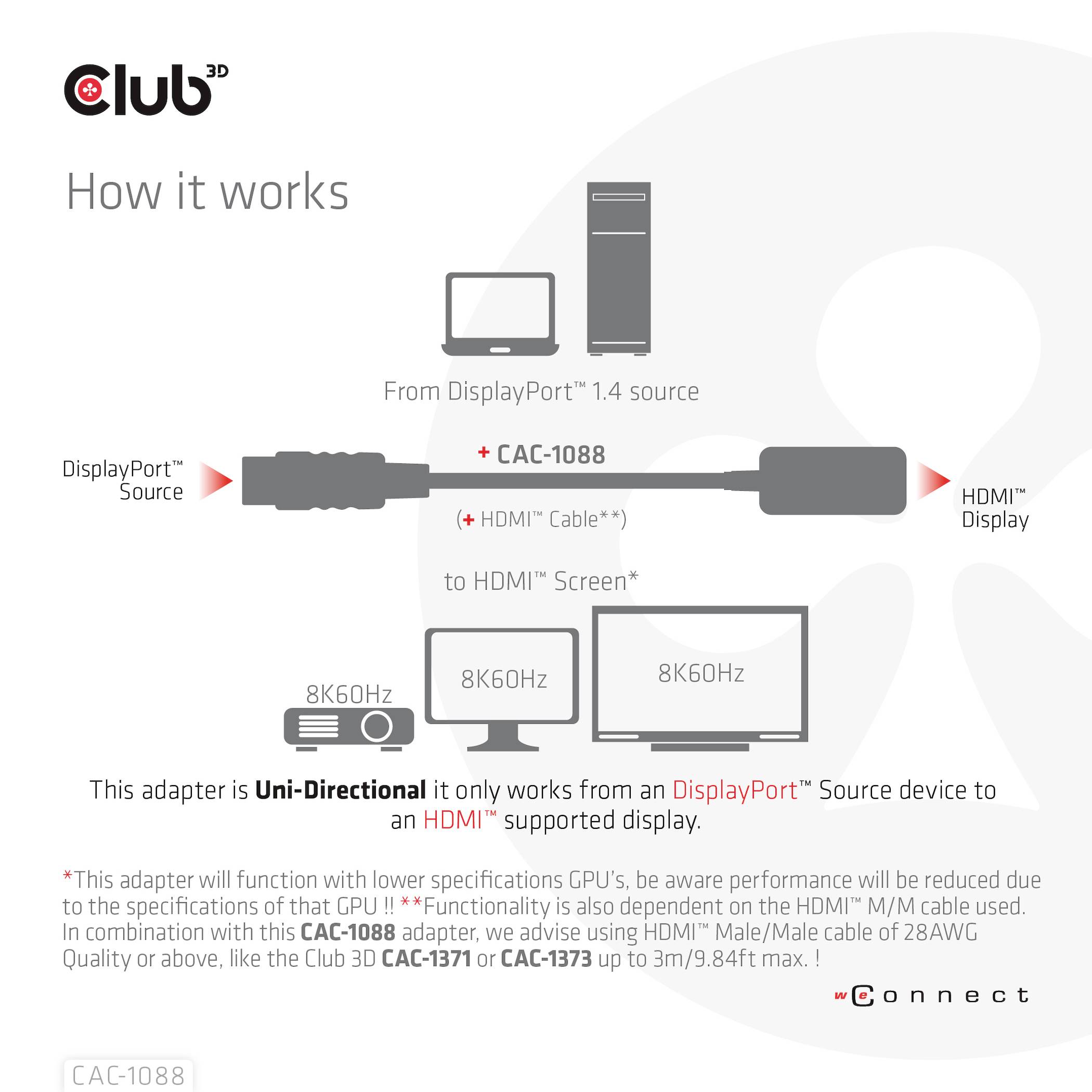

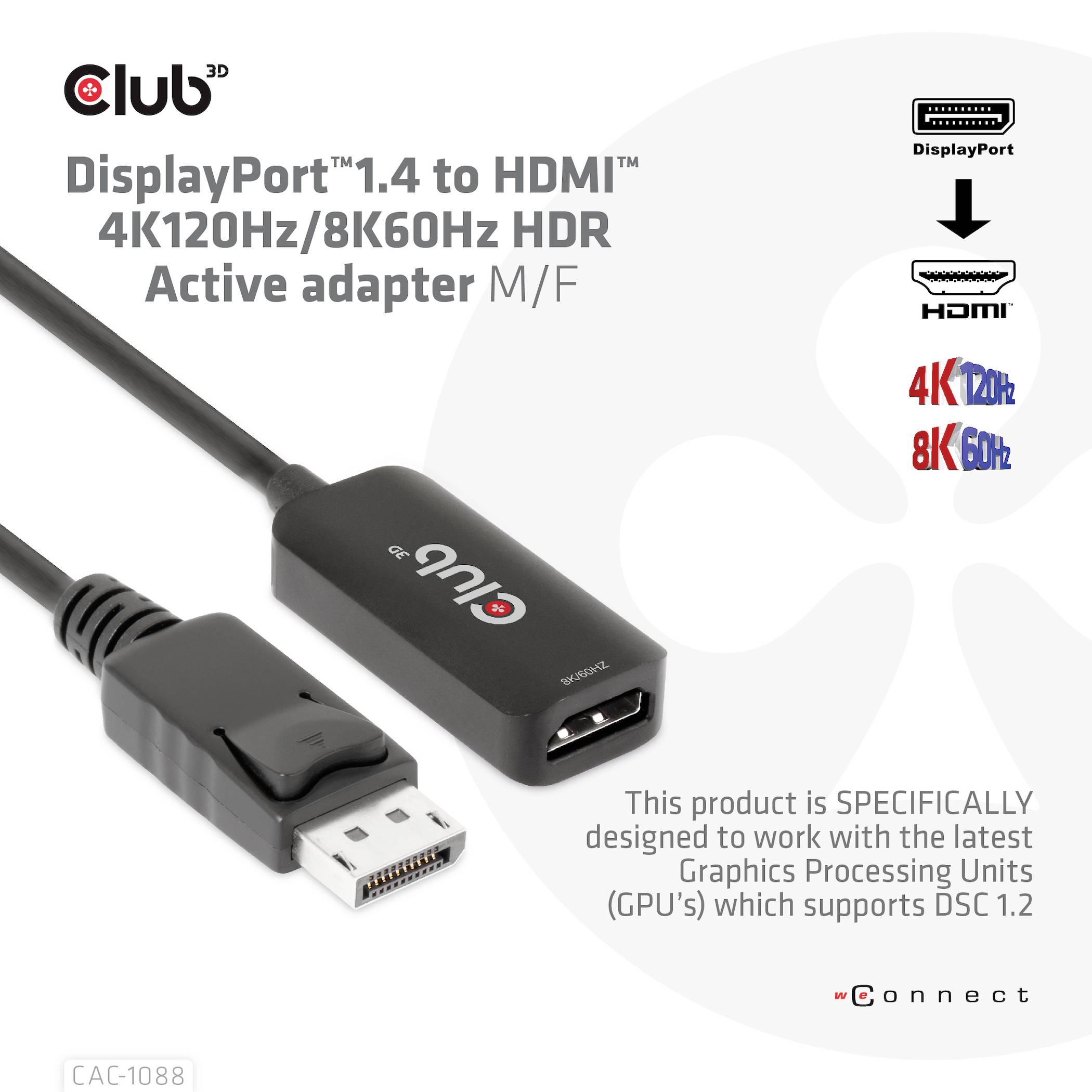

The Club 3D CAC-1088 is the perfect solution for connecting to all HDMI™ 4K120Hz/8K60Hz capable displays*. If you have a DisplayPort™ 1.4 enabled PC or other device that lacks the new HDMI™ 4K120Hz/8K60Hz specification, the club3D CAC-1088 is an easy way to upgrade your device and connect it to your new TV*.
With its DP1.4 DSC video compression technology, this adapter is able to convert DP1.4 video signals into HDMI™, supports video resolutions up to 8K (7680 x 4320) @60Hz ** and produces true-to-life colors and movements with HDR, WAS provides the ultimate visual experience for the user. The adapter DOES NOT need AN external power cable.
This text is machine translated.
Features
- 0.21 m
- DisplayPort Straight Male
- HDMI Straight Female
- High Dynamic Range video (HDR) support
- Black
