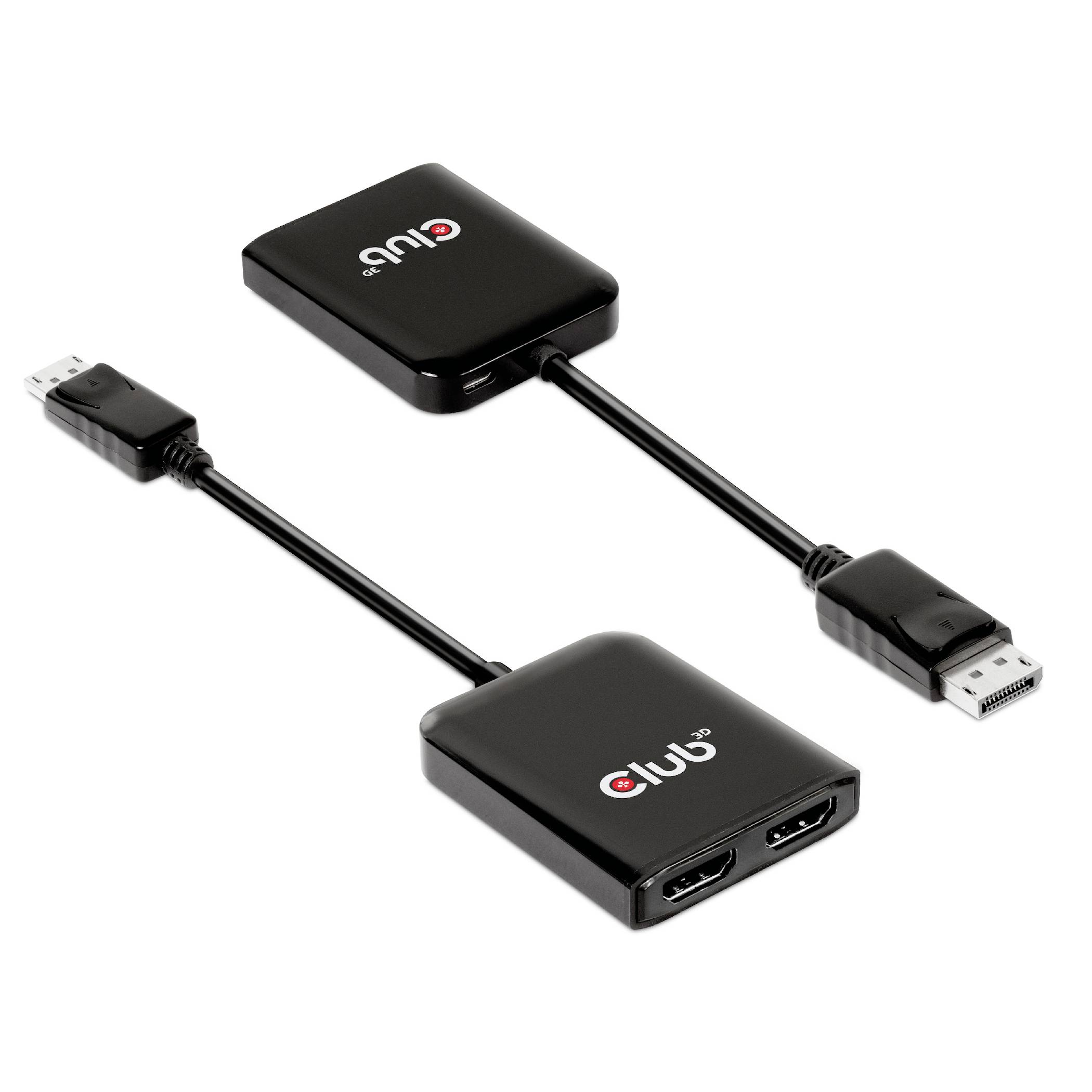

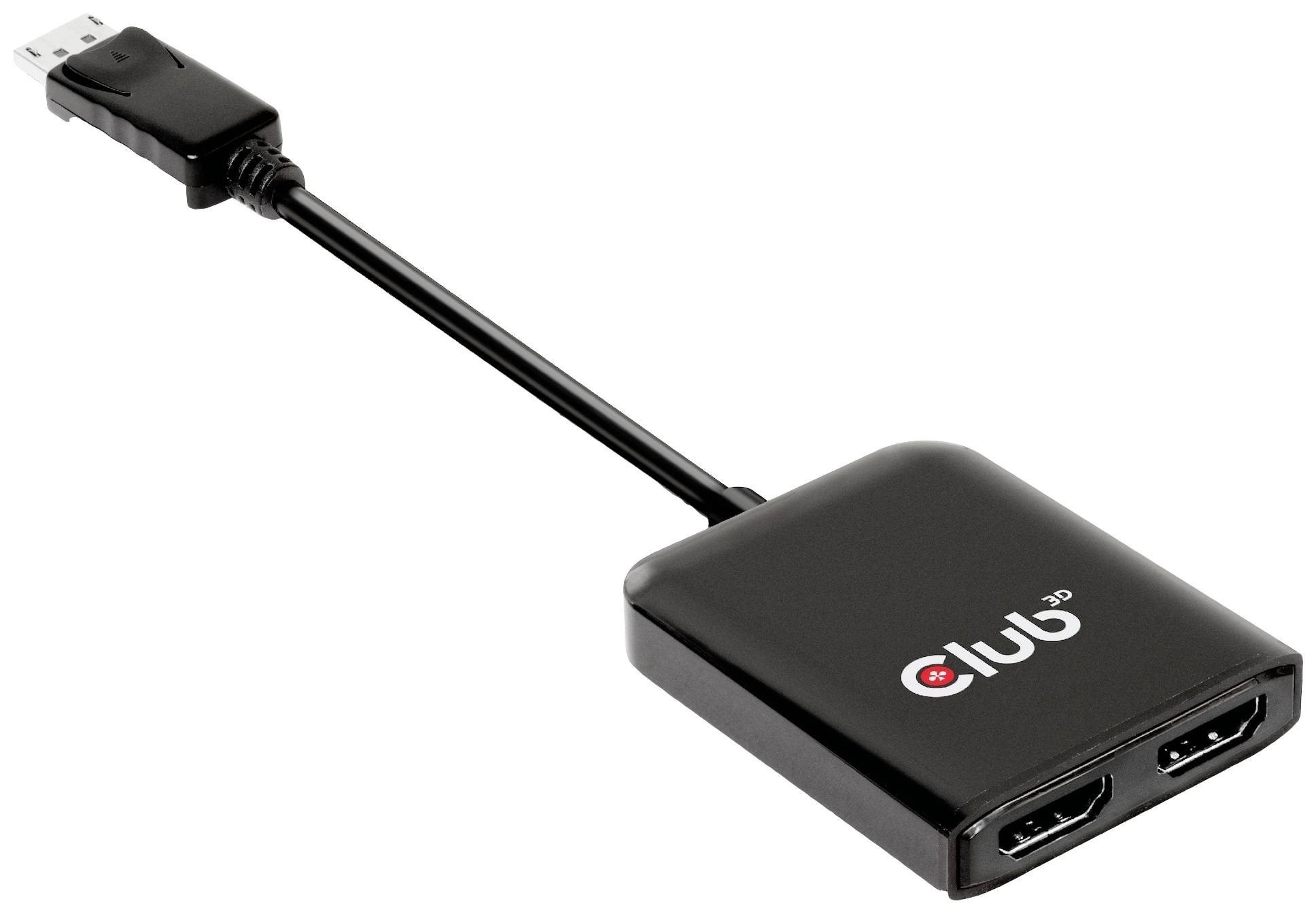

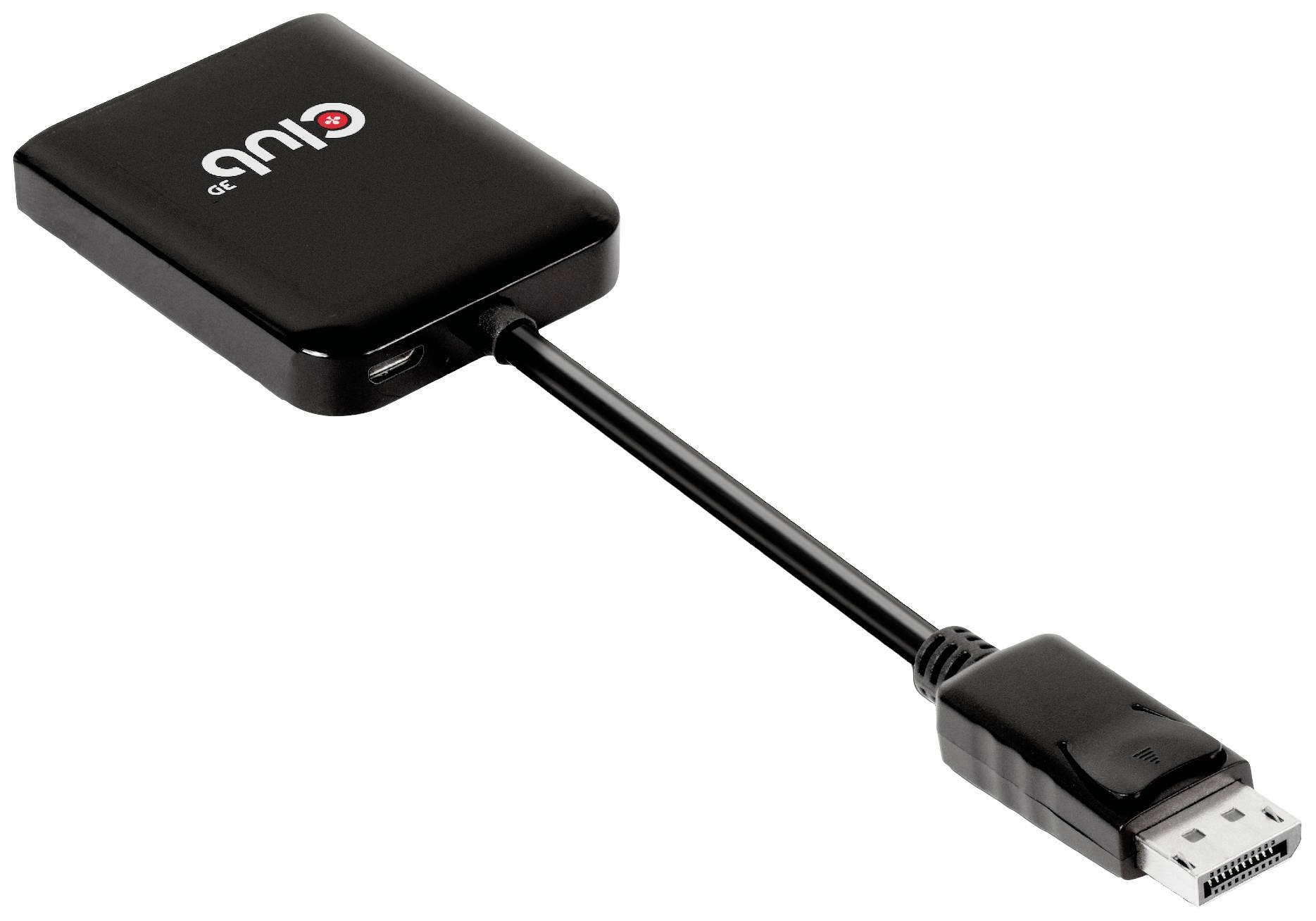

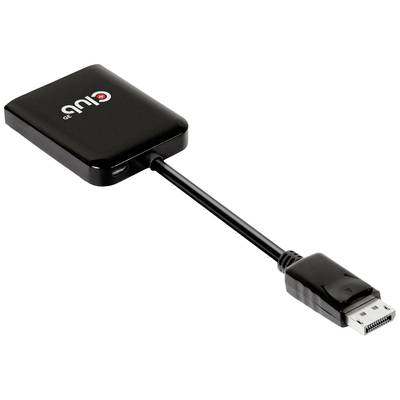

club3D AV Adapter Multi Streaming Transport Hub [HDMI - DisplayPort] 3840 x 2160 Pixel
EAN:
Part number:
Item no:
club3D CSV-7200H video splitter DisplayPort 2x HDMI
Highlights & Details
- Compliant with DisplayPort™ v1.4, DisplayPort™ v1.2, VESA DDM Standard, HDMI™ 4K60Hz
- Supports HDCP 1.4 and HDCP 2.2 content protection
- Supports Main Link Rates of 8.1Gbps (HBR3),5.4Gbps (HBR2), 2.7Gbps (HBR) and (1.62Gbps RBR) from the source
- Supports up to two HDMI™ 4K60Hz outputs
- Supported outputs resolution:
- Up to 3840*2160p @ 60Hz single or Dual displays (Note: If the source is DP1.4 and supports DSC1.2)
- 1x 3840*2160P/30Hz + 1x 1920*1080P/60HZ(DP1.2)
- Supports the transmission of audio and video signals
- Works with AMD*, Nvidia™, and Intel™ HD graphics solutions
- Plug and Play - no drivers needed
- Functionality may vary depending on GPU and operating system
- Power supply via the USB-bus
Technical specifications
- Product type
AV Adapter
- Connection type
DisplayPort
HDMI
- No. of A connectors
1 x
- Type A
DisplayPort plug
- No. of B connections
2 x
- Type B
HDMI socket
- Video resolution
3840 x 2160 Pixel
- Cable length
0 mm
- Factory colour
Black
- Connector version
straight
- Version
Adapter
- Cable use
AV
- Weight
50 g

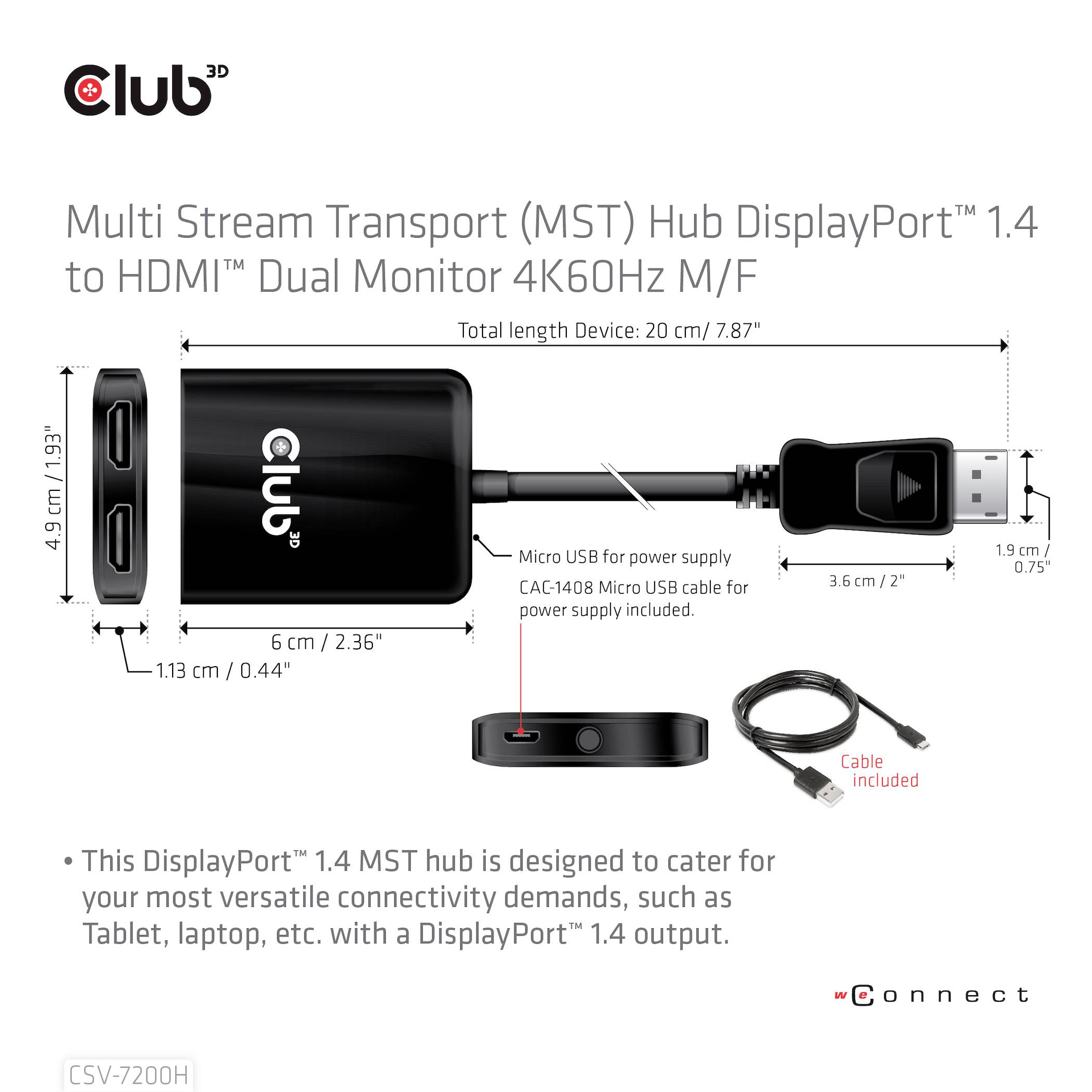

- Length
60 mm
- Width
49 mm
- Height
11.3 mm
- Dim
(L x W x H) 60 x 49 x 11.3 mm
- Port
2 ports
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3190699 club3D AV Adapter Multi Streaming Transport Hub [HDMI - DisplayPort] 3840 x 2160 Pixel
Description
Multi Stream Transport (MST) Hub DisplayPort 1.4 to HDMI Dual Monitor 4K60Hz pcs./B.
The Club 3D CSV-7200H Multi Stream Transport (MST) Hub DisplayPort™ 1.4 on Dual monitor HDMI 4K60Hz pcs Is an integrated solution that allows you to play content simultaneously on two different displays via MST. The two screens can either display the same content in parallel, or the existing screen is expanded to offer a panorama view or two different contents, which offer the user an optimum visual experience. With its multi-display capabilities, this hub can be an alternative to conventional docking stations as a suitable portable product. It is the perfect solution for host products with DP1.2 / 1.4 graphics cards for gaming and commercial applications.
