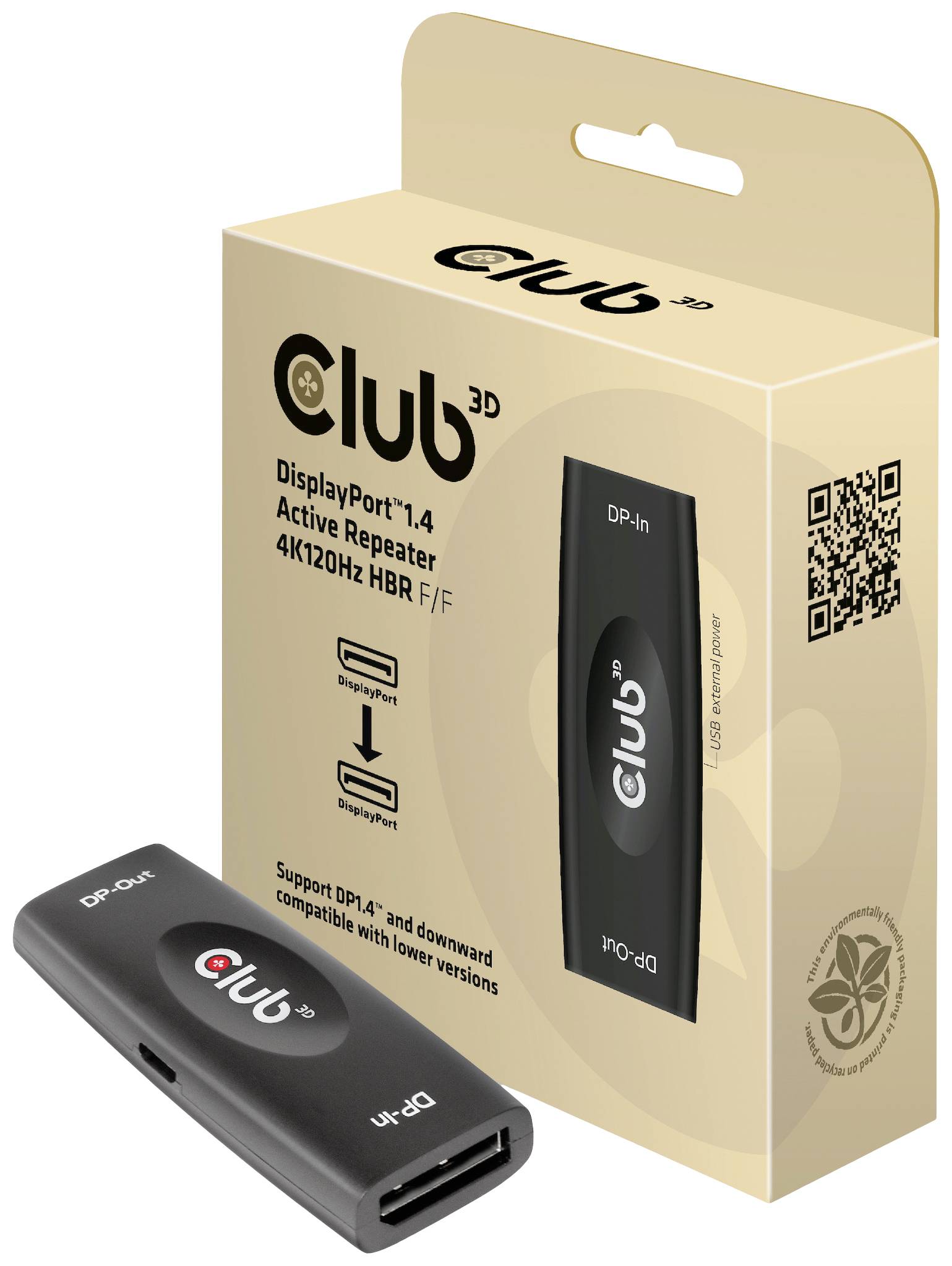

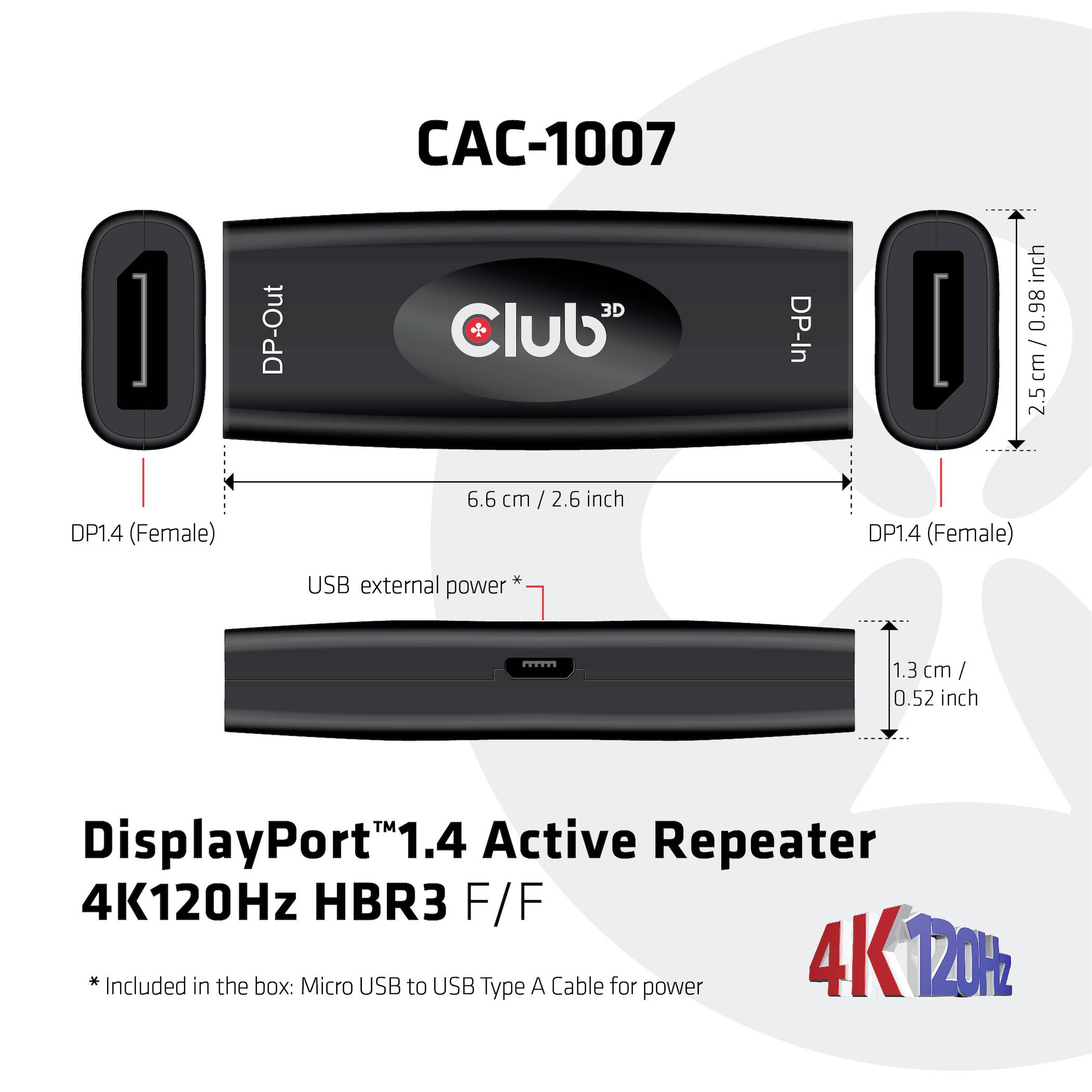

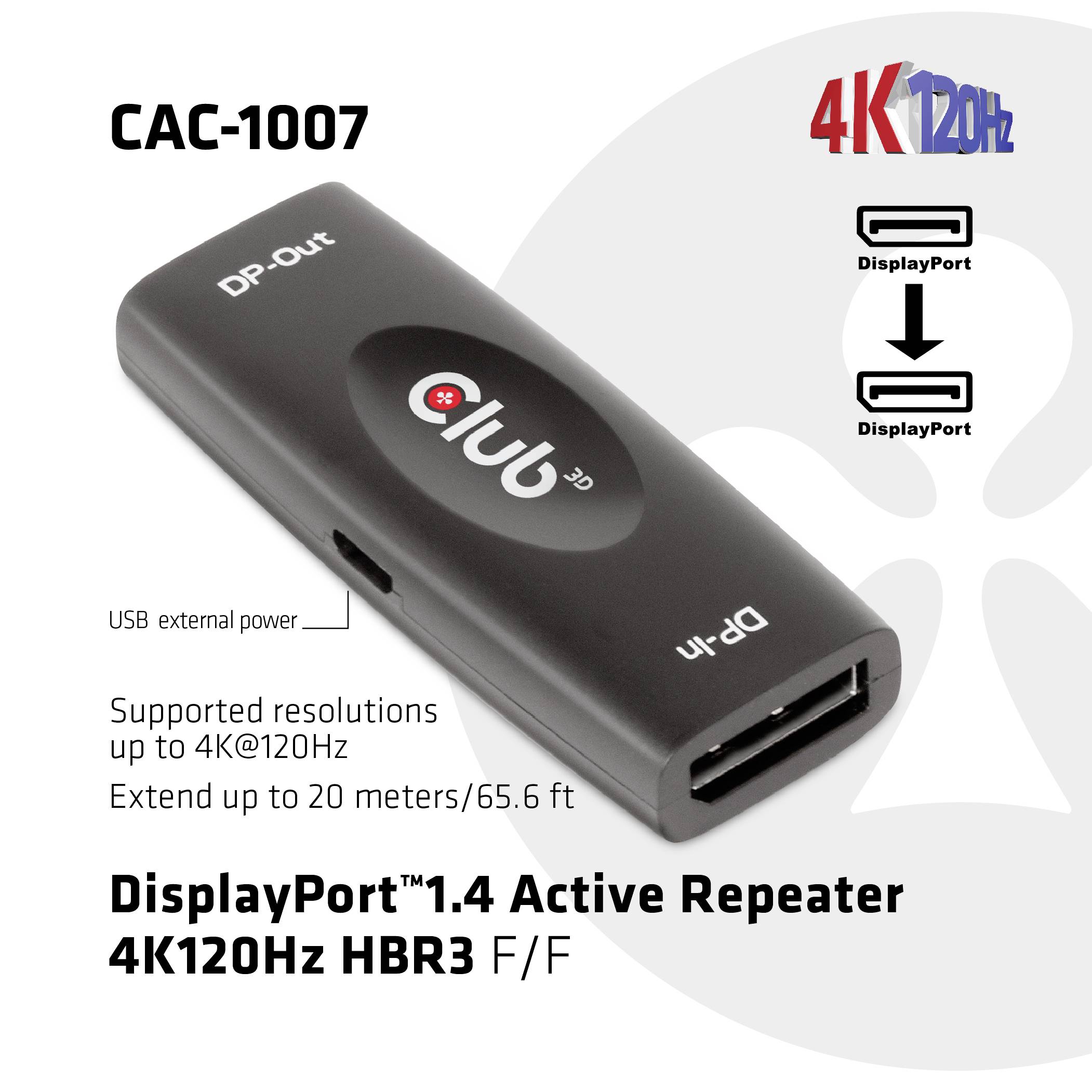

club3D CAC-1007 DisplayPort Adapter [1x DisplayPort socket - 1x DisplayPort socket] Black 0 mm
EAN:
Part number:
Item no:
Highlights & Details
club3D CAC-1007 DisplayPort Adapter [1x DisplayPort socket - 1x DisplayPort socket] Black 0 mm
- Supports DP™1.4 and is backward compatible with older versions
- Transmission speed 1.62 Gbps / 2.7 Gbps / 5.4Gbps / 8.1 Gbps
- Supports DisplayPort™ 1.4 HBR3 with max. Video resolution 4K@120Hz.
- Extends the distance: Max. 20m (10m IN, 10m OUT) with 28AWG or higher cable
- Supports cascading functions for up to 3 levels
Technical specifications
- Product type
TV/monitor Adapter
- Connection type
DisplayPort
- No. of A connectors
1 x
- Type A
DisplayPort socket
- No. of B connections
1 x
- Type B
DisplayPort socket
- Cable length
0 mm
- Factory colour
Black
- Video resolution
3840 x 2160 Pixel
- Connector version
straight
- Cable use
TV/monitor
- Version
Adapter
- Range of use
Monitors/TV adapters
- Resolutions (max.)
UHD 4K @ 120 Hz
- DisplayPort version
DisplayPort 1.4
- Signal flow direction
Unidirectional (uni)
- Cable specs
DisplayPort 1.4
- Connections
USB-C® plug
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3190630 club3D CAC-1007 DisplayPort Adapter [1x DisplayPort socket - 1x DisplayPort socket] Black 0 mm
Description

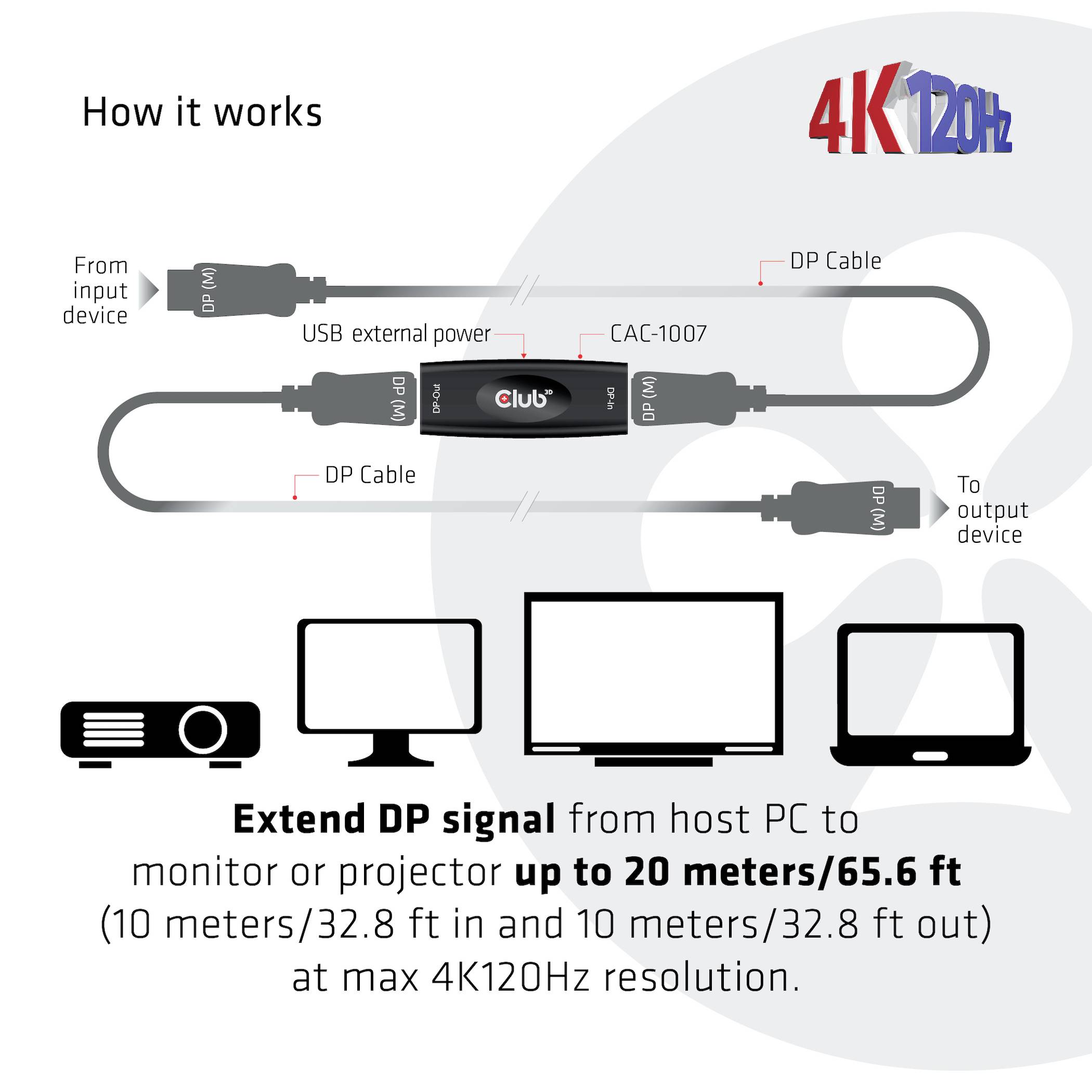

The Club 3D CAC-1007 is a DisplayPort™ 1.4 repeater/signal amplifier that provides a convenient solution for users who have their DP™ signal from host PC to monitor or projector up to 20 meters (10 meters IN and 10 meters out) at maximum 4K120Hz resolution for cables with 28 AWG or better extended.
The adapter is powered via a micro USB to USB type A cable (included in delivery).
This text is machine translated.
The adapter is powered via a micro USB to USB type A cable (included in delivery).
This text is machine translated.
Features
- 4k
- 120 hz
- active
- repeaters
- Signal amplifier
- USB
