Buy club3D CAC-1080 DisplayPort Adapter [1x DisplayPort plug - 1x HDMI socket] Black 0 mm

DisplayPort 1.4 to HDMI 2.0b adapter, shown with packaging and cable with connectors. Supports 4K UHD and HDR.

'Club 3D' Adapter Packaging Made from Recycled Paper. Text: 'This environmentally friendly packaging is made from recycled paper.'

'Illustration showing how a cable connects a laptop or desktop computer to a projector, monitor, or television.'

A monitor displays a harbour at night. Text at the top: Supports up to 4K UHD at 60Hz. Bottom right: Connection with laptop, PC, Mac.

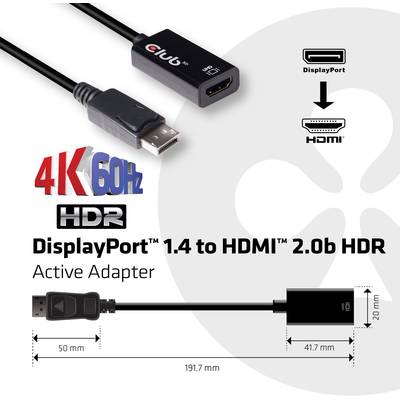

'DisplayPort 1.4 to HDMI 2.0b HDR Adapter, supports 4K 60Hz.' Adapter connections and dimensions clearly illustrated.

1/5

Datasheet (PDF)

Fast track dispatch on Thu, 16 Jul

19 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 36.97 / piece)

€ 36.97

plus VAT.

Report legal concerns

Highlights & Details

club3D CAC-1080 DisplayPort Adapter [1x DisplayPort plug - 1x HDMI socket] Black 0 mm

DisplayPort™ 1.4 receiver, up to 5.4 Gbps Linkrate, HBR2/HBR/RBR
DisplayPort™ to HDMI™ stereoscopic 3D transport
Maximum audio sampling rate of 192 kHz x 8 channel or 768 kHz x 2 channel

Technical specifications

Product type: TV/monitor Adapter

Connection type: DisplayPort

No. of A connectors: 1 x

Type A: DisplayPort plug

No. of B connections: 1 x

Type B: HDMI socket

Cable length: 0 mm

Factory colour: Black

Video resolution: 4096 x 2160 Pixel

Shielding: Partial shielding

: 32

Cable use: TV/monitor

Version: Adapter

Range of use: Monitors/TV adapters

Cable specs: HDMI 2.0b

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1997867 club3D CAC-1080 DisplayPort Adapter [1x DisplayPort plug - 1x HDMI socket] Black 0 mm

User & Safety Instructions

User & Safety Instructions 1997867 club3D CAC-1080 DisplayPort Adapter [1x DisplayPort plug - 1x HDMI socket] Black 0 mm

Description

The Club 3D CAC-1080 is a DisplayPort™ 1.4 to HDMI™ 2.0b active signal converter. It supports HDR video quality for the playback of Deep Color media content. The DisplayPort™ receiver supports up to 5.4 Gbps per track over 4 tracks. The HDMI™ output is fully compatible with the HDMI™ specification version 2.0b. The CAC-1080 is backward compatible with previous DisplayPort™ and HDMI™ versions, but this can affect functionality and/or supported features such as HDR.

Resolution support
The CAC-1080 supports UHD resolutions up to 4096 x 2160p at 60Hz.

Color formats
It supports RGB / YCbCr video formats with a color depth of 16 BPC (or 48 bits per pixel) as long as it fits in the DisplayPort™ and HDMI™ tape bandwidth. The CAC-1080 also supports pixel encoding of RGB or YCbCr4:4:4 in YCbCr 4:2:0 and YCbCr 4:2:0 pass-through functions. In addition, HDR with Deep Color up to 12 bpc with 4K 60Hz is supported by the conversion of RGB /YCbCr 4:4:4 via DisplayPort™ Link to YCbCr 4:2:0 at HDMI™ output with a horizontal extension to CEA timings.

Note: For HDR to work, the source system must support DisplayPort™ 1.4 and the screen must support HDR and/or HDMI™ 2.0 a or b.

This text is machine translated.
