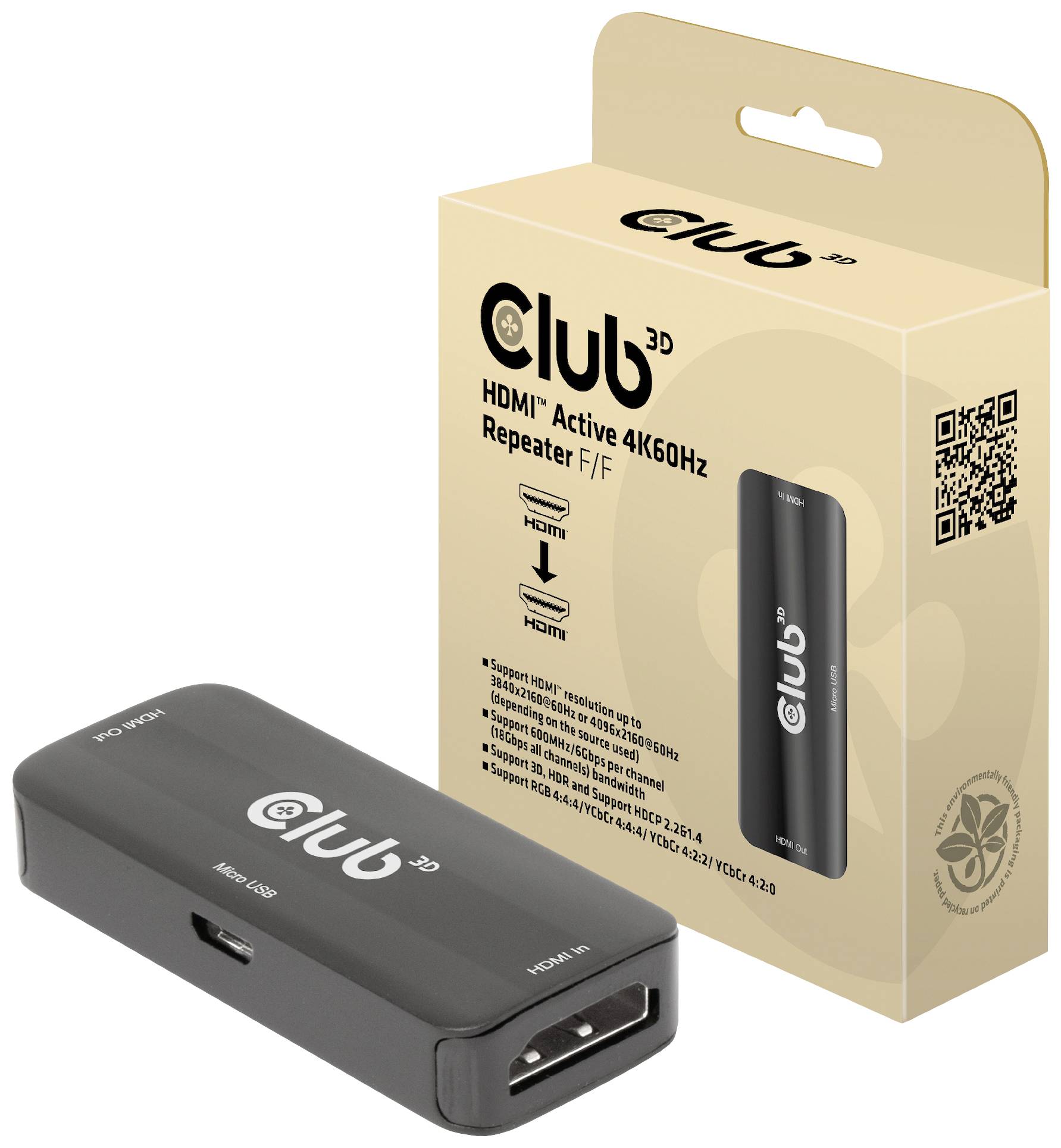

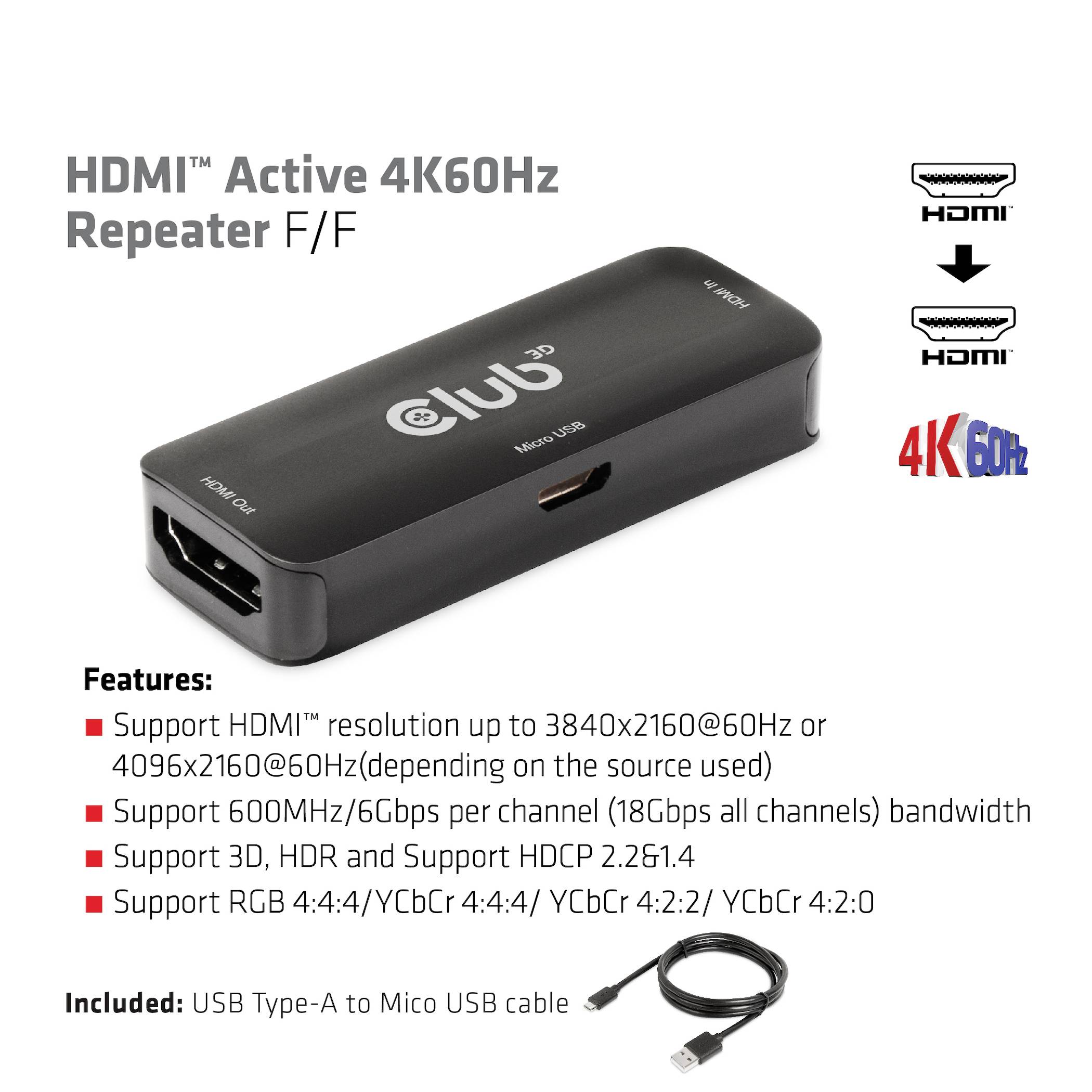

The image shows an 'HDMI Active 4K60Hz Repeater' with female ports, supporting 4K resolution, 3D, HDR, HDCP 2.2 and RGB 4:4:4. Includes USB cable.

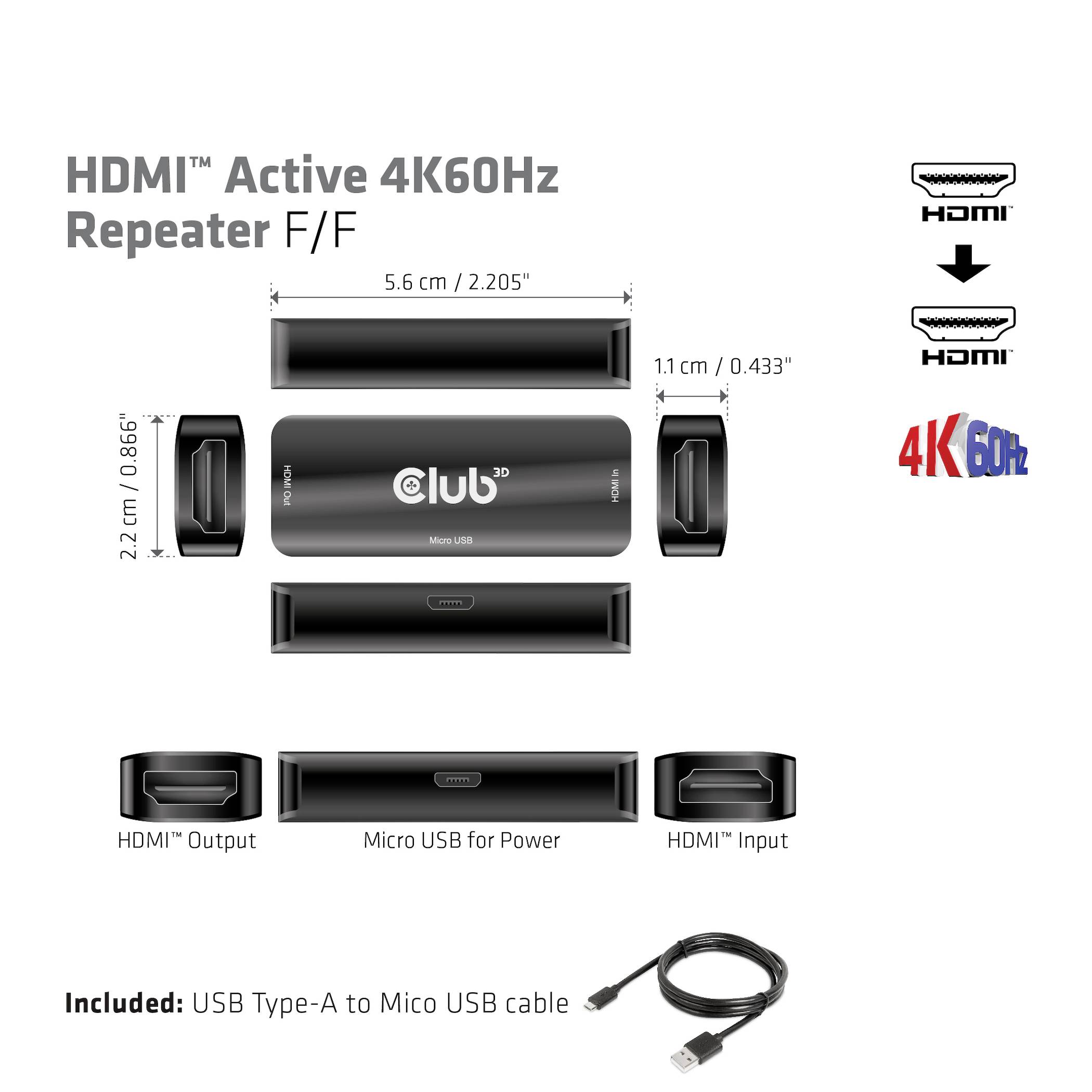

'HDMI Active 4K60Hz Repeater F/F' with dimensions 5.6x2.2x1.1 cm. Includes Micro USB for power supply, HDMI input and output. Comes with USB cable.

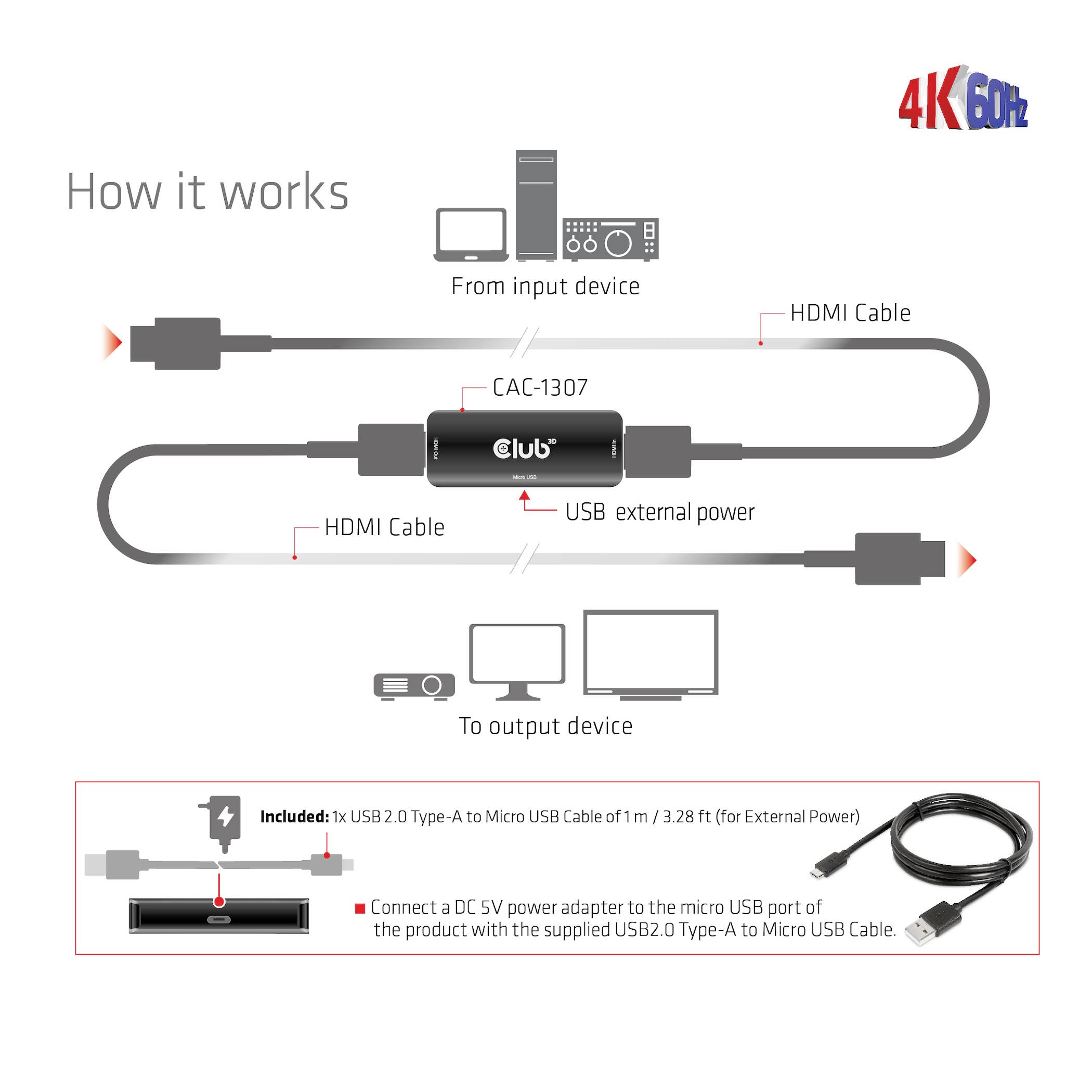

'Diagram shows the function of an adapter: input device connected via HDMI cable, external USB power supply, output to screen.'

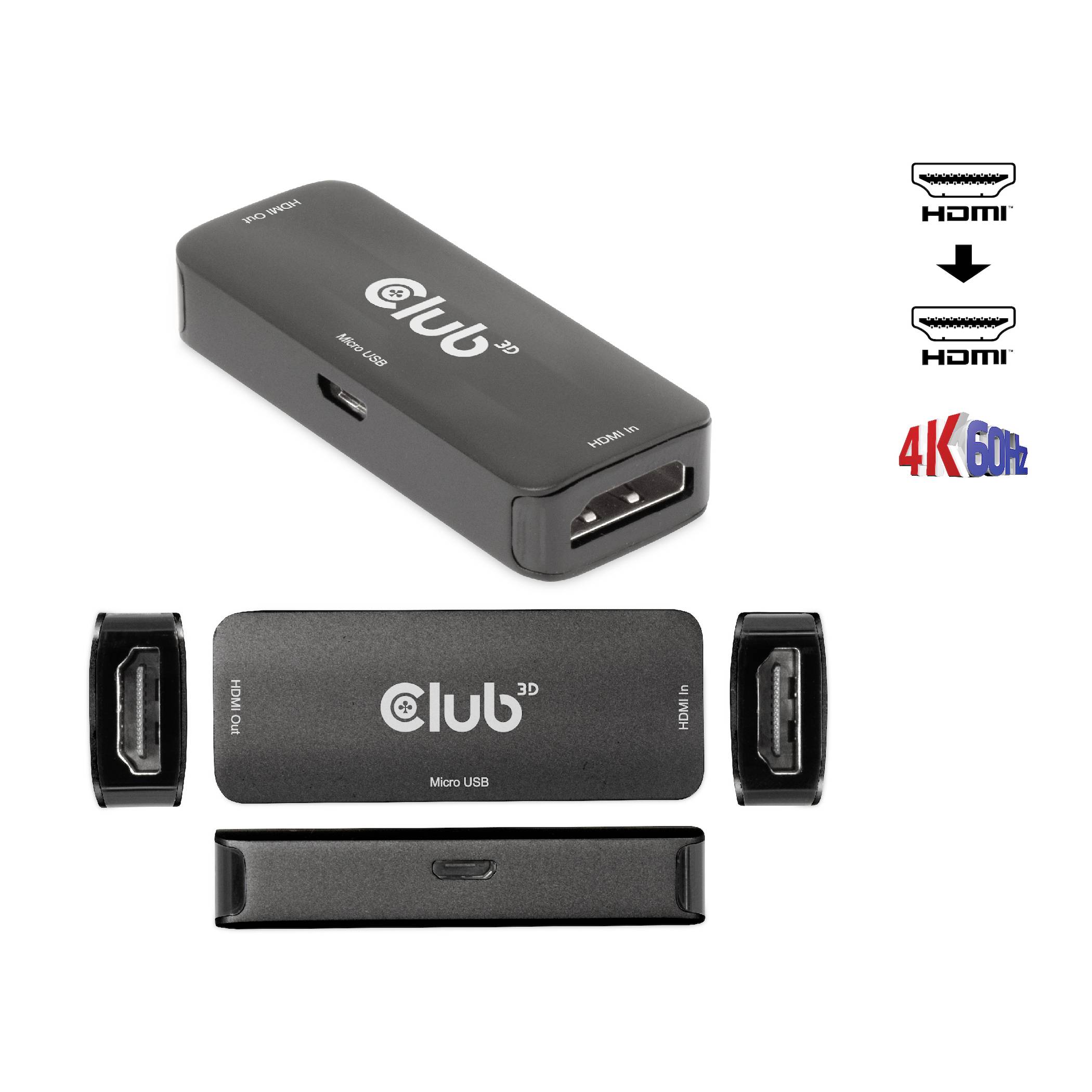

A black HDMI adapter from Club 3D, showing HDMI ports and support for 4K at 60 Hz.

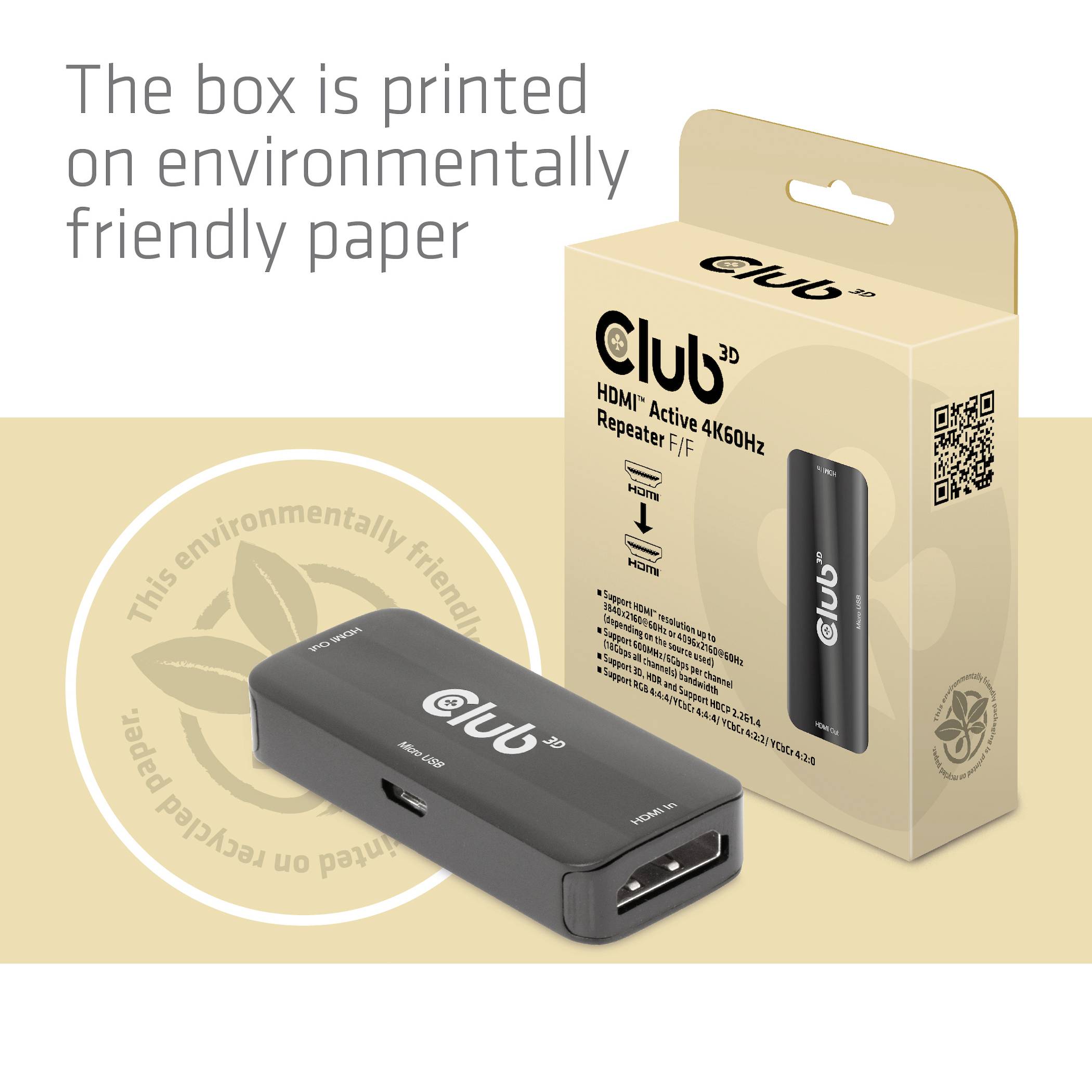

An HDMI repeater in dark grey beside its packaging on environmentally friendly paper. Text: 'The box is printed on environmentally friendly paper'.

1/9

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

club3D CAC-1307 HDMI™, Micro USB Repeater

Highlights & Details

Supports HDMI™ resolution up to 3840x2160@60Hz or
4096 x 2160@60Hz (depending on source used)
Supports 600MHz/6Gbps per channel (18 Gbps all channels) bandwidth
Support of 12 bits per channel (36 bits for all channels) for deep colors
Supports RGB 4:4:4/YCbCr 4:4:4/ YCbCr 4:2:2/ YCbCr 4:2:0
Supports 3D, HDR
Supports HDCP 2.2&1.4
Supports 5V power supply via Micro USB connection (cable in
Included in the delivery)

Technical specifications

Product type: Repeater

Interfaces (input): HDMI™
Micro USB

Interfaces (output): HDMI™

Resolution (max.): 3840 x 2160 p

Factory colour: Black

Weight: 17.1 g

Length: 56 mm

Width: 22 mm

Height: 11 mm

Dim: (L x W x H) 56 x 22 x 11 mm

No. of outputs: 1 x

No. of inputs: 2 x

Supported monitors: 1

Power supply (LOV): via USB

Type A: HDMI plug

Type B: HDMI plug

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3190710 club3D CAC-1307 HDMI™, Micro USB Repeater

Description

The Club 3D CAC-1307 HDMI™ active 4K60HZ repeater extends any HDMI™ cable by regenerating the HDMI™ signal before sending the outputs to the HDMI™ monitor or projector. The active HDMI™ Repeater eliminates the digital noise (sparkle) in your picture. The input of the active HDMI™ repeater is connected to an HDMI™ device such as a DVD player or a satellite set-top box with an HDMI™ output using a long HDMI™ cable (plug to plug). The output of the active HDMI™ repeater is connected to a second HDMI™ cable (plug to plug) to get from the output to any HDMI™ display or projector with an HDMI™ connector. The device is placed as close as possible to the display (max. 5 m/16.4 ft distance) to remove noise generated by a long HDMI™ cable.
