Buy club3D CAC-1520 Network adapter 2.5 GBit/s USB C® (USB 2.0), USB C® (USB 3.2 1st gen), RJ45

USB-C to Ethernet Adapter by Club 3D in packaging. Adapter and cable visible, packaging text: 'USB 3.2 Gen 1 Type C'.

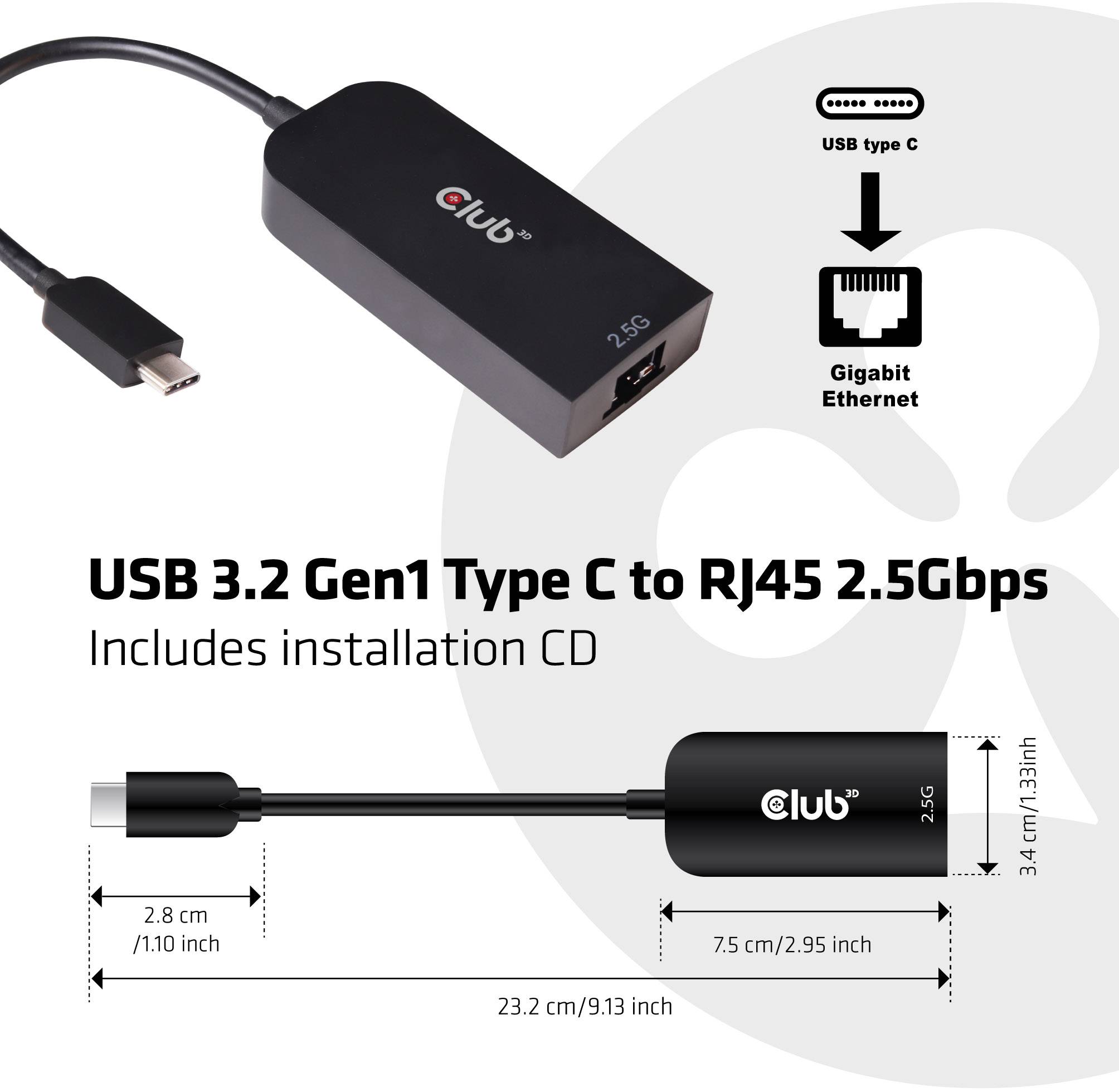

USB-C to RJ45 Adapter with 2.5Gbps Transfer Rate, Including Installation CD. Shows Product Dimensions and Connection Types.

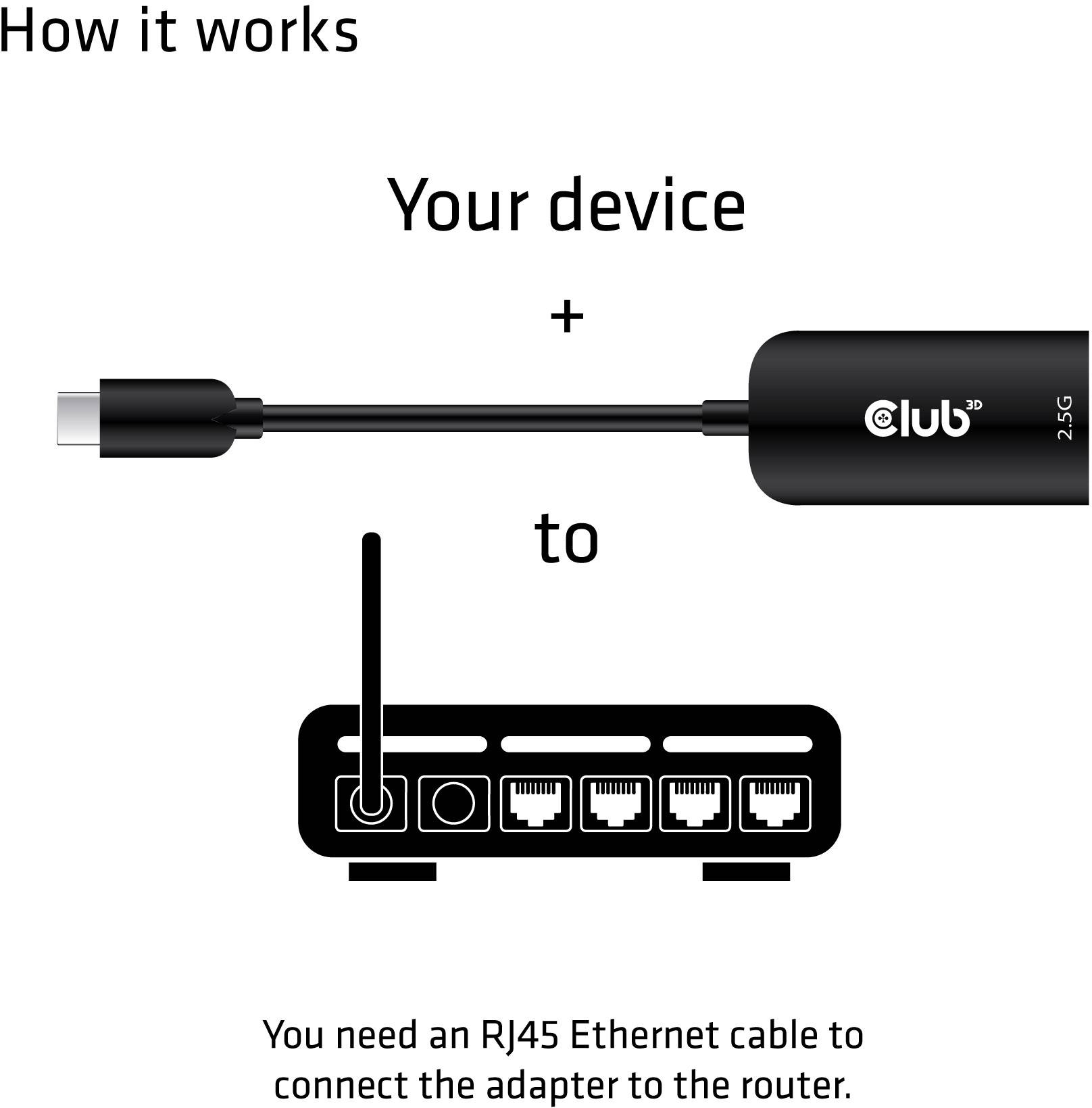

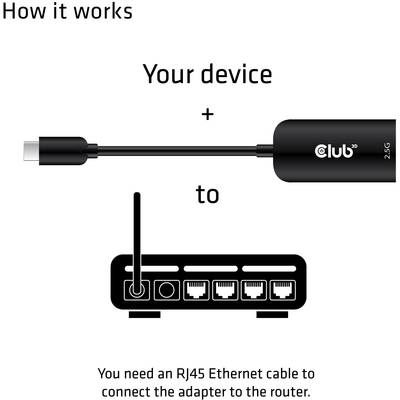

An adapter connects a device to a router via an RJ45 Ethernet cable to enable network access.

A USB 3.2 Gen1 Type-C to HDMI adapter with environmentally friendly packaging made from recycled paper is shown.

1/4

Datasheet (PDF)

Fast track dispatch on Tue, 29 Sep

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 34.45 / piece)

€ 34.45

plus VAT.

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Club3D USB 3.2 Gen1 type C to RJ45 2.5Gb

Highlights & Details

• supports USB 3.2 Gen 1 Type C port and 2.5 Gbps RJ45 output
• supports 10 M / 100 M / 1 G / 2.5 G bandwidth
• supports twisted-pair crossover detection and auto-correction
• USB bus power supply (no external power supply required)
• supports USB 3.2 Gen1, USB 2.0 and USB 1.1 (if lower USB versions are used, the Ethernet speed will be affected)
• supports WOL (Wake-On-LAN) full duplex flow (10 M / 100 M / 1 G / 2.5 G Rate) auto negotiation
• supports Windows 8 / Windows 10 / Mac OSX 10.6 to 10.13 Note: Driver software installation is required
• Power consumption 4.75 V ~ 5.25 V
• Normal operating power: 80 mA 10 M 130 mA 100 M 300 mA 1 G 460 mA 2.5 G.

Technical specifications

Product type: Network adapter

Interfaces: USB C® (USB 2.0)
USB C® (USB 3.2 1st gen)
RJ45

No. of Gigabit LANs: 1 x

No. of LAN ports: 1 x

Transfer rate: 2.5 GBit/s

No. of USB 3.0 ports: 1 x

LAN transfer rate: 2500 MBit/s

Version: Adapter

Factory colour: Multicolour

Type A: RJ45 8p8c plug

Type B: RJ45 8p8c plug

Cable use: USB 3.2 1st Gen (USB 3.0)

Connection type: USB 3.2 Gen 1 (USB 3.0)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2102055 club3D CAC-1520 Network adapter 2.5 GBit/s USB C® (USB 2.0), USB C® (USB 3.2 1st gen), RJ45

User & Safety Instructions

User & Safety Instructions 2102055 club3D CAC-1520 Network adapter 2.5 GBit/s USB C® (USB 2.0), USB C® (USB 3.2 1st gen), RJ45

Description

The Club 3D USB 3.2 Gen1 type C to RJ45 2.5Gbps Ethernet adapter enables a fast Ethernet network connection for desktops, notebooks or Ultrabooks with a standard USB 3.1 Gen 1 type C port.

This adapter is the best solution for the latest products that are delivered without onboard Ethernet port.

It is the perfect accessory for your journeys and is also supplied with power via USB, so that you do not need an external power supply.

This text is machine translated.
