club3D CSV-1550 USB-C® / DisplayPort Adapter Black 0.13 m
EAN:
Part number:
Item no:
club3D CSV-1550 USB-C® / DisplayPort Adapter Black 0.13 m
Technical specifications
- Product type
TV/monitor Adapter
- Connection type
USB-C®
DisplayPort
- Type A
USB-C® plug
- Type B
DisplayPort socket
DisplayPort plug
- Cable length
0.13 m
- Factory colour
Black
- Video resolution
3840 x 2160 Pixel
- Cable use
TV/monitor
- Version
Adapter
- Range of use
Monitors/TV adapters

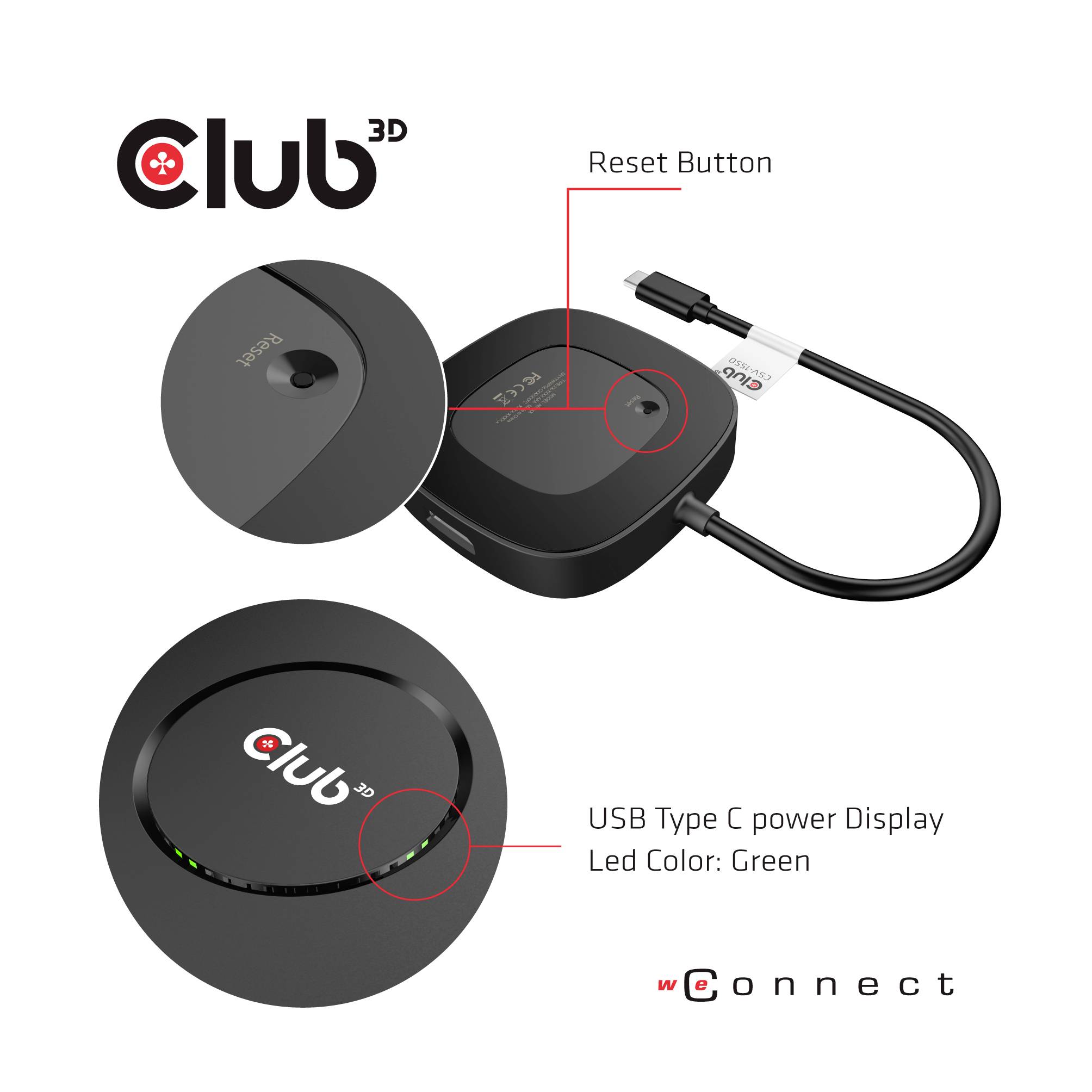

- Control LEDs
Yes

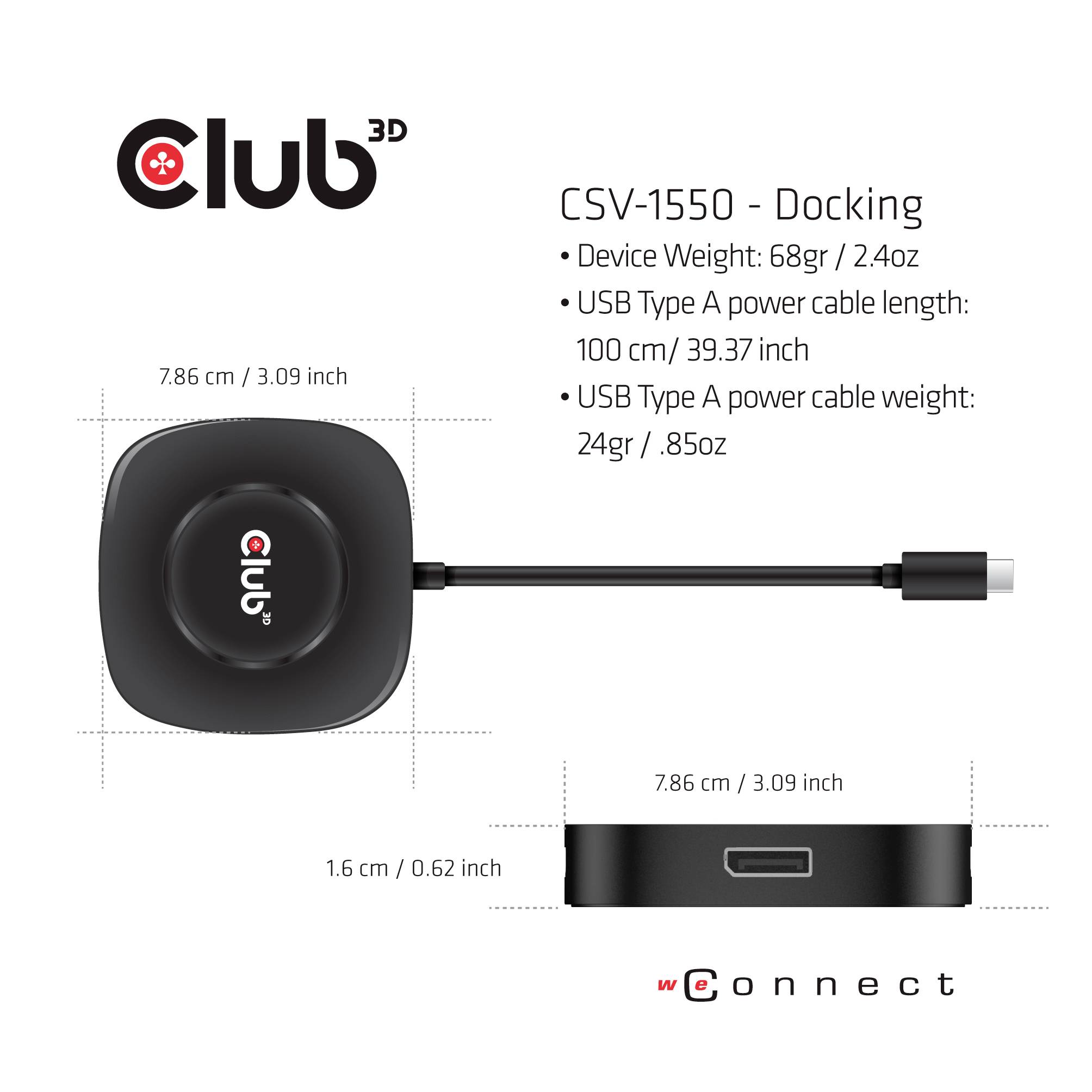

- Depth
79 mm
- Height
17 mm
- Width
79 mm
- Display resolution
3840 x 2160 Pixel
- Frame rate
60 Hz
- Design height
17 mm
- Video modes
480p
720p
1080i
1080p
2160p
- Weight
68 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2901492 club3D CSV-1550 USB-C® / DisplayPort Adapter Black 0.13 m
Description
CSV-1550 - The Club 3D USB Type C 3.2 Gen 1 Multi Stream Transport(MST)Hub DisplayPort™ 1.4 Triple Monitor 4K60Hz with DSC 1.2 is an integrated solution that allows you to view the content on three different monitors/displays simultaneously with the MST mode, The three screens can display different content in parallel or simply by expanding the available screen a panorama view of the content is created, WAS enables the user a maximum visual experience. With its multi-display capabilities, this hub can be used as a suitable and disturbance-free portable alternative solution for the conventional docking stations.
It is the perfect solution for host products with DP1.2 / 1.4 graphics cards that support all DP Alt mode video signal outputs for gaming and commercial applications. The MST Hub is powered directly via the host via the USB type C 3.2 Gen 1 connector.
This text is machine translated.
It is the perfect solution for host products with DP1.2 / 1.4 graphics cards that support all DP Alt mode video signal outputs for gaming and commercial applications. The MST Hub is powered directly via the host via the USB type C 3.2 Gen 1 connector.
This text is machine translated.
Features
- Connection 1: Display port male
- Connection 2: DisplayPort female
- Cable length: 0.13 m. Product color: Black
