club3D CSV-2511 USB-C® (USB 3.2 2nd Gen) changeover switch bidirectional operation, LED display
EAN:
Part number:
Item no:
Highlights & Details

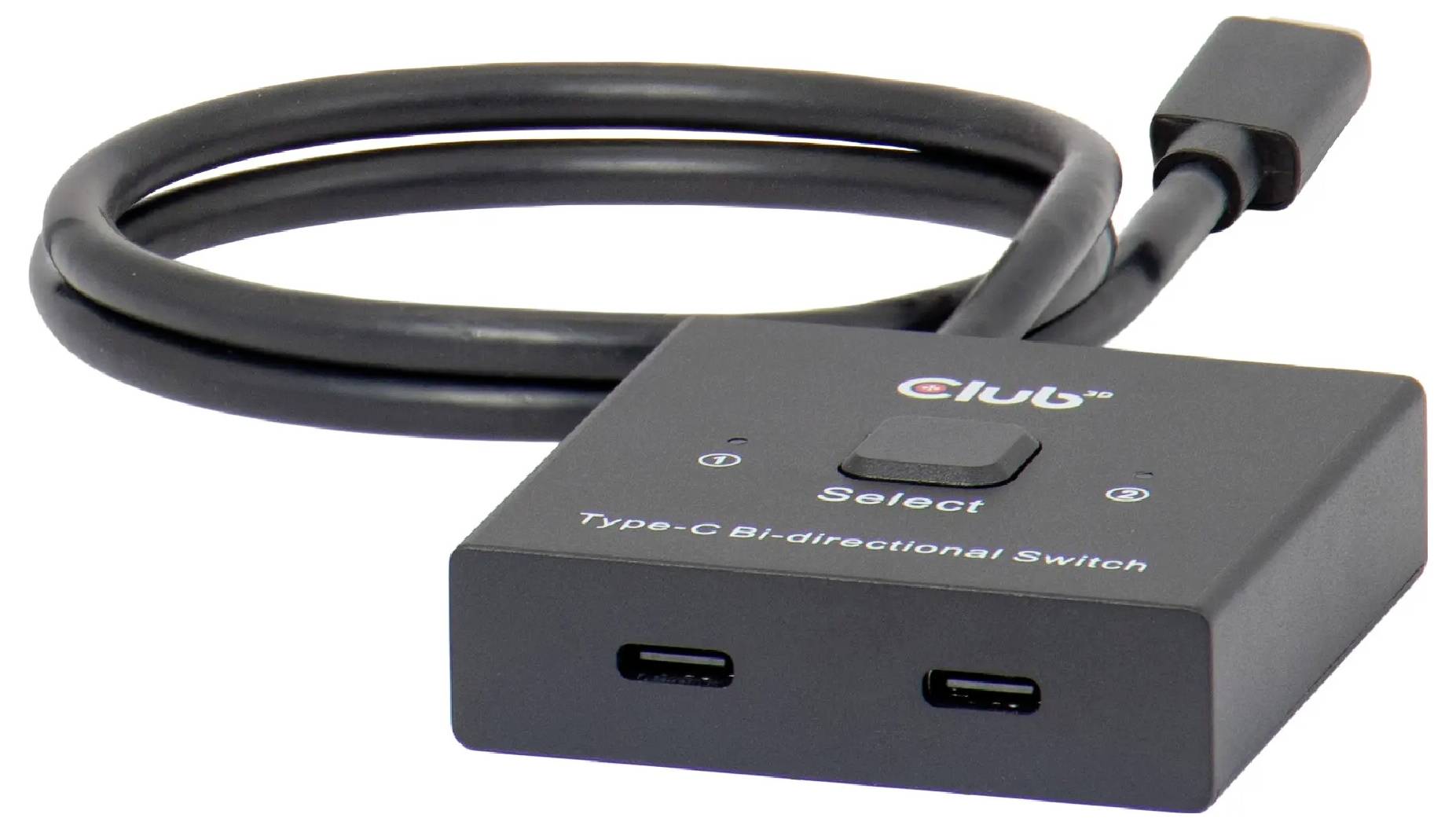

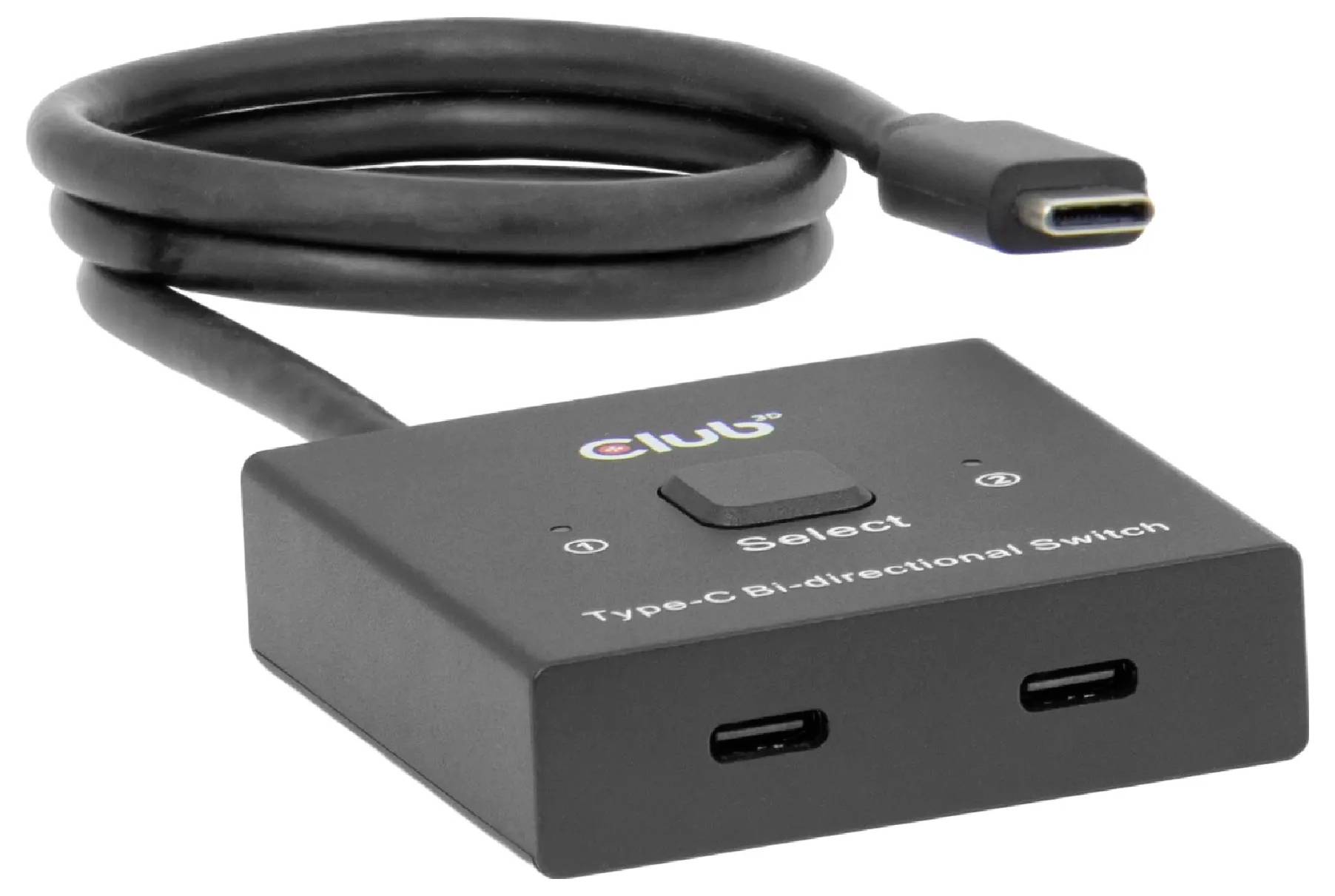

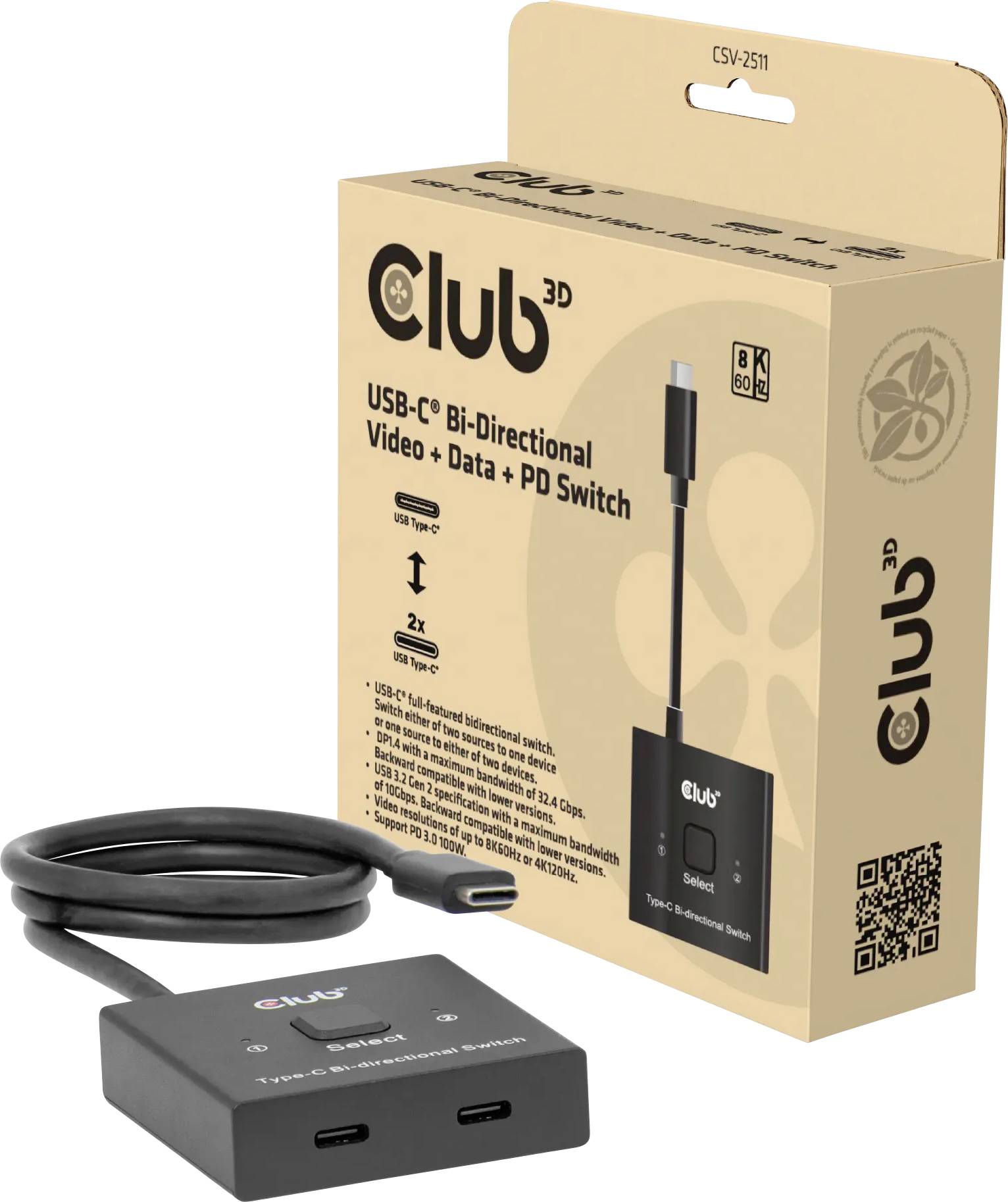

club3D CSV-2511 USB-C® Bi-directional video + data + PD switch
- • Full-featured USB-C® bi-directional switch. Connect one of two sources to one device or a source to one of two devices.
- • DP1.4 offers a maximum bandwidth of 32.4 Gbps It is backward compatible with lower versions.
- • The USB-3.2 Gen2 specification provides a maximum bandwidth of 10 Gbps It is backward compatible with lower versions.
- • Video resolutions up to 8K60Hz or 4K120Hz.
- • PD 3.0 max 100W charging.
- • HDCP transmission.
- • Shift key allows you to quickly switch between two video sources or monitors. Blue LED indicators on both sides indicate which port is currently selected.
- • Power is supplied via USB-C®: Simply plug in any standard USB-C power adapter®. The power consumption is very low at 0.1 W (5 V, 0.02 A).
- • For optimal performance, use the USB Type C cable® CAC-1571 with a length of less than one meter. It supports DP1.4, USB 3.2 Gen 2 and 5 A. The longer the cable, the less stable the signal is.
Technical specifications
- Cable length 0.5 m.
- Connector dimensions: USB-C® 3.62 x 1.2 x 0.63cm
- Product type
USB-C® (USB 3.2 2nd Gen) changeover switch
- Supported monitors
2
- Interfaces (input)
USB C®
- Interfaces (output)
USB C®
- No. of inputs
1 x
- No. of outputs
2 x
- Switch function
Key
- Distributor/switch features
bidirectional operation
LED display
- Factory colour
Multicolour
- Power supply (LOV)
via USB
- Width
55 mm
- Height
15 mm
- Depth
55 mm
- Weight
61 g
- Resolutions (max.)
UHD 8K @ 60 Hz
UHD 4K @ 120 Hz
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3443642 club3D CSV-2511 USB-C® (USB 3.2 2nd Gen) changeover switch bidirectional operation, LED display
Description
The bidirectional USB-C switch CSV-2511 allows you to connect two displays to one USB-C device and switch between displays, or you can connect two USB-C devices to one display and switch between the devices (laptops, Macs, desktops, tablets). The switch delivers a resolution of up to 8K, a data transmission of up to 10 Gbps and a PD3.0 charging of max. 100 W. It is compatible with all USB-C® hosts and can be used with Thunderbolt devices.
• Working from home and in the office: Switch your monitor between your work laptop and your home PC with just one button.
• Dual MONITOR SETUP: Use a computer and switch between two screens – perfect for presentations or desktop + TV setups.
• KVM UPGRADE: Combine the switch with your existing docking station or hub for a complete KVM experience with just one keyboard, mouse and monitor. A USB-C® socket-to-socket adaptor is required for devices with connected cables. Ensure perfect compatibility by using our products.
• WORKS WITH MANY DEVICES: It works with all USB-C® computers and also with Thunderbolt™ devices.
• POWER SUPPLY BETWEEN DEVICES: While the switch requires its own 5 V USB-C input®, PD pass-through works between host and dock/display.
