club3D CSV-7330 DisplayPort / Micro USB / HDMI Adapter [2x DisplayPort plug, Micro USB - 3x HDMI socket] Black 14 cm
EAN:
Part number:
Item no:
Highlights & Details
club3D CSV-7330 DisplayPort / Micro USB / HDMI Adapter [2x DisplayPort plug, Micro USB - 3x HDMI socket] Black 14 cm

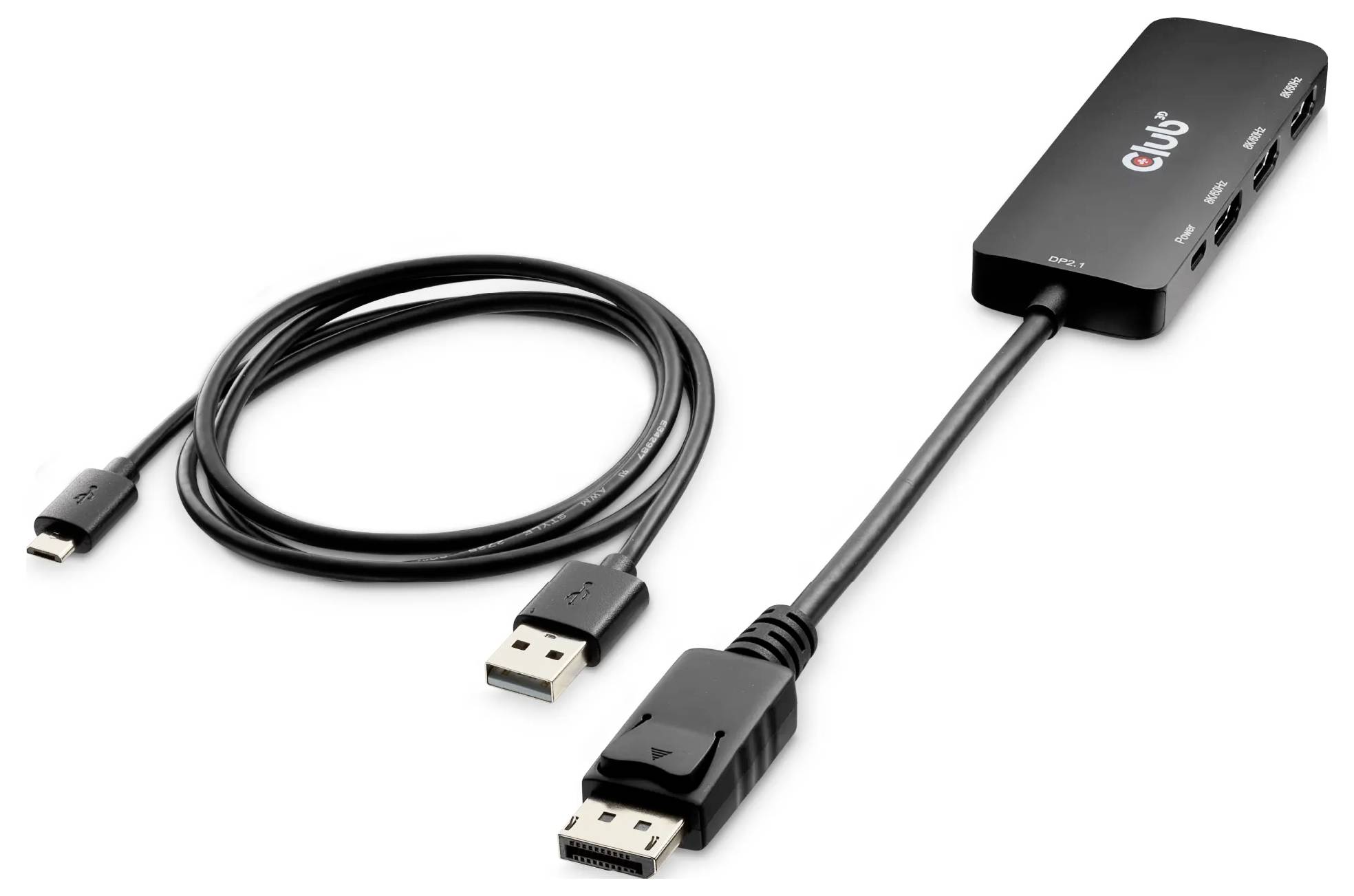

- 1x DisplayPort™ to 3x HDMI Adapter™ at 8K60Hz
- 1x micro USB cable 1m
Technical specifications
- Type of left connector (cable): 20-pin DisplayPort
- Right-hand connector (cable) type: 19-pin HDMI type A, 5-pin micro-USB type B (power only)
- Supported resolution solutions: 2x 8K60Hz, 8K60Hz + 2x 4K120Hz
- OS support: Windows 10 or later
- Supports HDMI max 8K60Hz; output of 6/8/10/12 bit color depth; pixel format RGB / YCbCr4:4:4 / YCbCr4:2:2 /YCbCr4:2:0; HDR, HDCP 2.3, HPD; 5V micro USB power supply
- Product weight: 67g
- Connector dimensions 4.7 x 2 x 1.3 cm/4 x 1.8 x 0.8 cm
- Product type
DisplayPort
- Connection type
DisplayPort
Micro USB
HDMI
- No. of A connectors
2 x
- Type A
DisplayPort plug
Micro USB
- No. of B connections
3 x
- Type B
HDMI socket
- Cable length
14 cm
- Factory colour
Black
- Cable use
DisplayPort
Monitor
TV/monitor
- Version
Adapter
- Range of use
Monitors/TV adapters
- DisplayPort version
DisplayPort 2.1
- HDMI version
HDMI 2.1
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3443985 club3D CSV-7330 DisplayPort / Micro USB / HDMI Adapter [2x DisplayPort plug, Micro USB - 3x HDMI socket] Black 14 cm
Description
DisplayPort to 3x HDMI Adapter™ at 8K60Hz

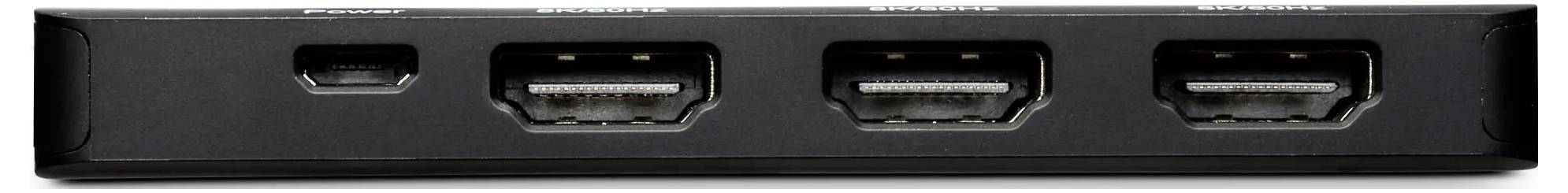

• TRIPLE HDMI OUTPUT™: Connect up to three HDMI displays with a single DisplayPort input™ that supports up to 8K60 Hz resolution or a mix of 8K and 4K screens for an impressive multi-monitor setup.
• EASY TO USE: Plug-and-play functionality without additional drivers; power supply via DisplayPort™ with optional micro-USB for additional power supply when required.
• UNIVERSAL COMPATIBILITY: Works with DP2.1 and is backwards compatible with DP1.4 (the resolution may be limited depending on the host device capabilities).
• MICRO-USB POWERED: Requires an external 5 V power supply via micro-USB for stable operation on all connected displays.
This text is machine translated.
• TRIPLE HDMI OUTPUT™: Connect up to three HDMI displays with a single DisplayPort input™ that supports up to 8K60 Hz resolution or a mix of 8K and 4K screens for an impressive multi-monitor setup.
• EASY TO USE: Plug-and-play functionality without additional drivers; power supply via DisplayPort™ with optional micro-USB for additional power supply when required.
• UNIVERSAL COMPATIBILITY: Works with DP2.1 and is backwards compatible with DP1.4 (the resolution may be limited depending on the host device capabilities).
• MICRO-USB POWERED: Requires an external 5 V power supply via micro-USB for stable operation on all connected displays.
This text is machine translated.
