club3D DisplayPort Cable DisplayPort plug 20.00 m Black CAC-1079 DisplayPort cable
EAN:
Part number:
Item no:
Product type
DisplayPort cable
Connection type
DisplayPort
Version
Cable
Connection type
DisplayPort to DisplayPort
Connections
DisplayPort plug
Highlights & Details

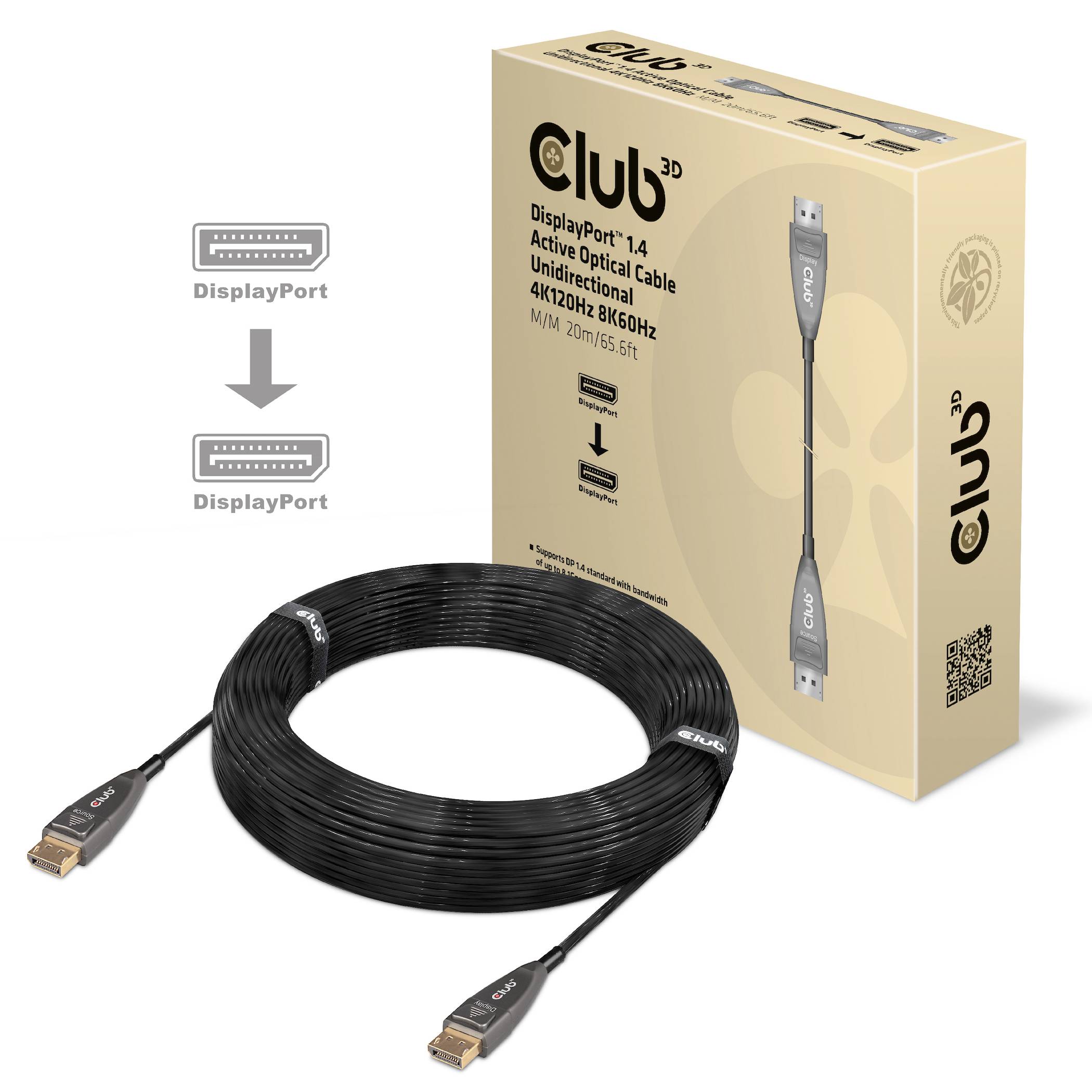

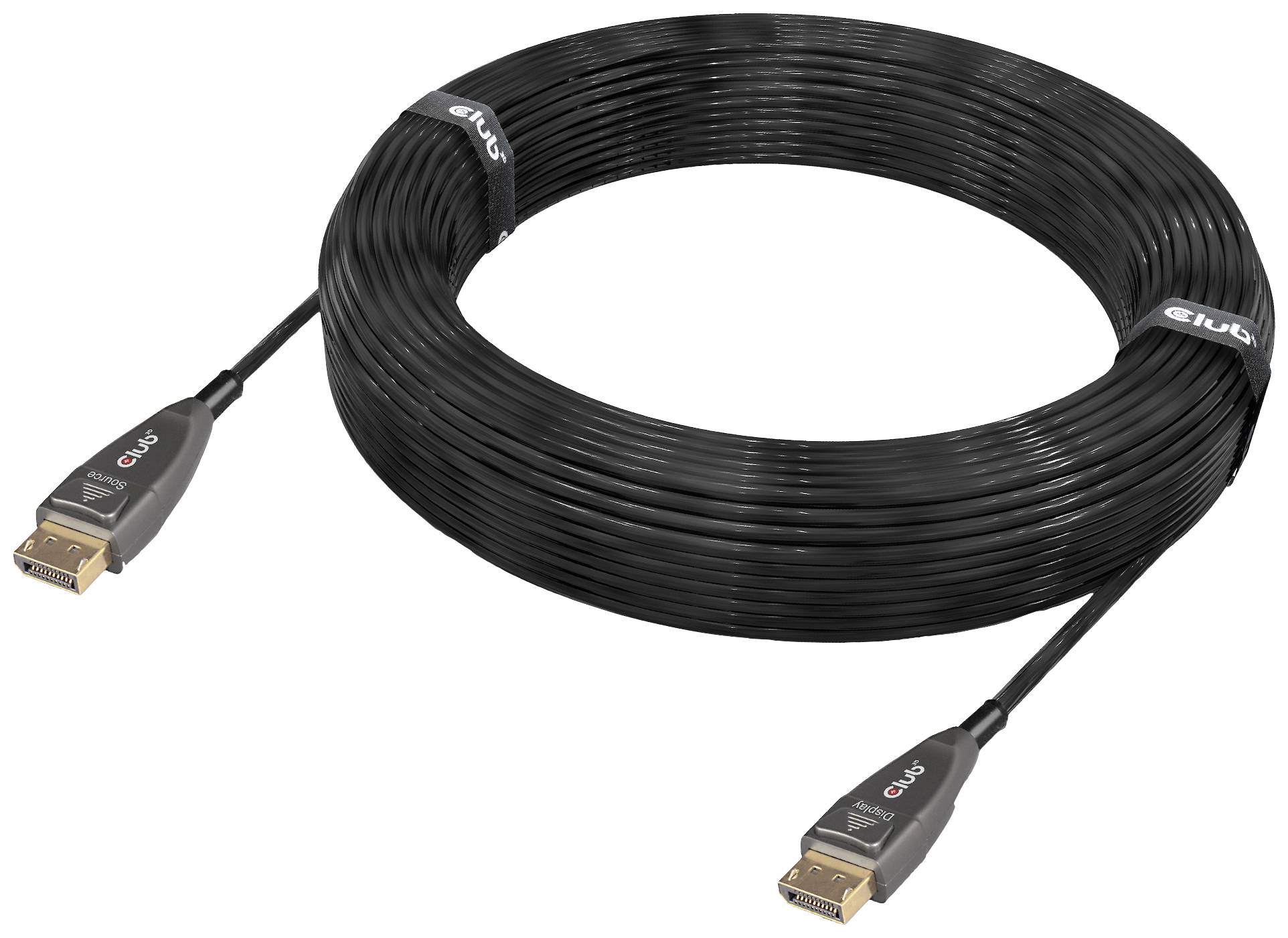

club3D DisplayPort 1.4 active optical cable Unidirectional 4K120Hz 8K60Hz M/M 20m/65.62ft
- 20 m
- DisplayPort Male
- DisplayPort Male
- 7680 x 4320 pixels 120 Hz 32.4 Gbit/s
- Black
Technical specifications
- Product type
DisplayPort cable
- Connection type
DisplayPort
- Version
Cable
- Connection type
DisplayPort to DisplayPort
- Connections
DisplayPort plug
- DisplayPort version
DisplayPort 1.4
- Connector version
straight
- Video resolution
3840 x 2160 Pixel
- Cable length
20.00 m
- Factory colour
Black
- Signal flow
Unidirectional (A→B)
- Cable use
TV/monitor
- Cable design
Round
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3190636 club3D DisplayPort Cable DisplayPort plug 20.00 m Black CAC-1079 DisplayPort cable
Description
The Club 3D CAC-1079 is a unidirectional active DisplayPort™ optical cable that provides support for 8.1Gbps per channel. It supports resolutions of up to 4K at 120Hz just like 8K at 60Hz and HDR formats.
DisplayPort™ 1.4 supports Display Stream Compression 1.2 (DSC),
Forward error correction and extends the maximum number of inLine audio channels to 32.
This optical fiber cable can be used for outdoor displays, LED display boards, home theater displays, conference rooms, medical image display or security systems
This text is machine translated.
DisplayPort™ 1.4 supports Display Stream Compression 1.2 (DSC),
Forward error correction and extends the maximum number of inLine audio channels to 32.
This optical fiber cable can be used for outdoor displays, LED display boards, home theater displays, conference rooms, medical image display or security systems
This text is machine translated.
Features
- Support for 4K at 120Hz or 8K at 60Hz and HDR formats• Supports HBR3, HDCP1.4/2.2
- Supports DP 1.4 standard with bandwidths up to 8.1GPS per channel - total bandwidth 32.4Gbps • Supports resolutions up to 8K at 60Hz and 4K at 144Hz
- Without DSC1.2 maximum resolution supported: - 5K at 60Hz Supported length of 20 meters*
- Maximum pixel clock rate is 810 MHz
- OD 4.8 mm

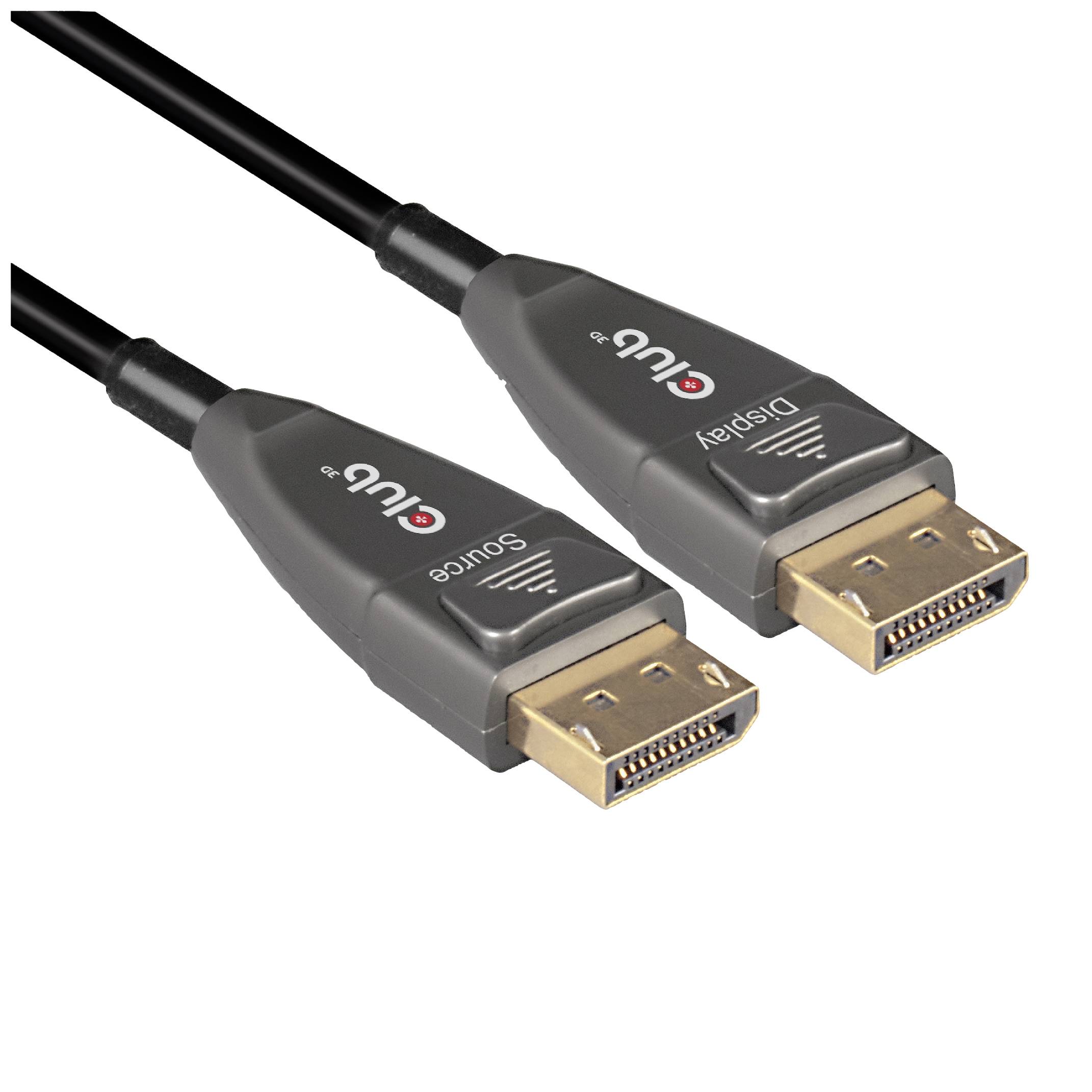

- Unidirectional - Source and display only
- This cable is hybrid, WAS means it is backward compatible with other DisplayPort™ versions
- No external power supply is necessary
- Plug and Play, no driver software is needed
- * Maximum 100 meters - please contact Club 3D
