club3D KVM Switch 4K60Hz KVM changeover switch HDMI, DisplayPort Remote control 3840 x 2160 Pixel
EAN:
Part number:
Item no:

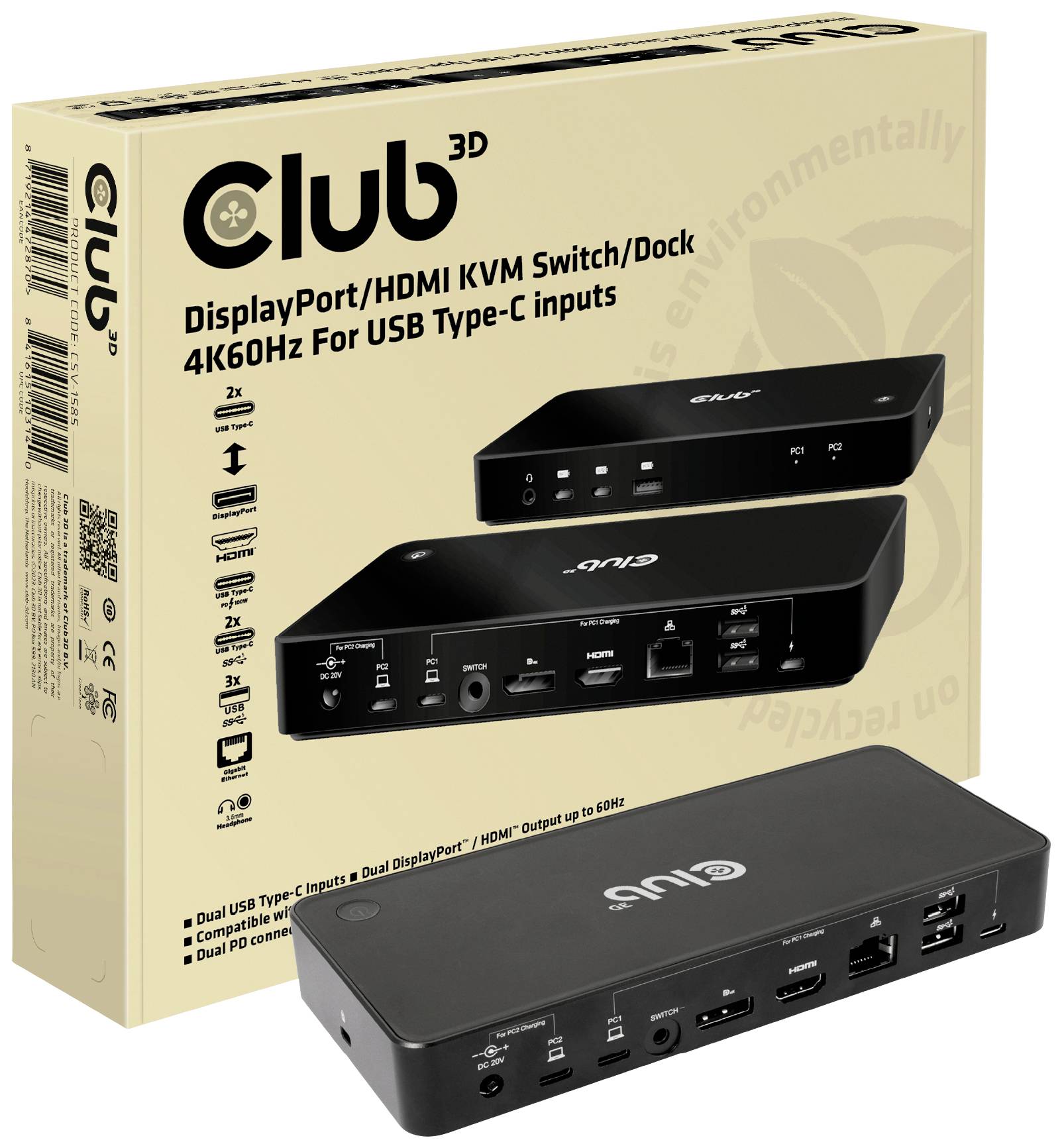

club3D KVM Switch 4K60Hz KVM changeover switch
Highlights & Details
- Two USB Type-C® inputs
- Dual DisplayPort™ / HDMI™ output up to 4K60Hz
- Compatible with DP Alt Mode
- Supports KVM-Function
- Dual PD connections via PS and USB type-C connector
- Support for changing LED displays
Technical specifications
- Product type
KVM changeover switch
- No. of switchable PCs
2
- Video via
HDMI
DisplayPort
- Video resolution
3840 x 2160 Pixel
- Controller
Remote control
- Audio headphones
Yes
- No. of USB 2.0 ports
3 x
- Ethernet ports
1
- Switch function
Key
Remote control
- Power supply (LOV)
mains-powered
- Factory colour
Black
- Weight
592 g
- Length
185 mm
- Width
79 mm
- Height
28 mm
- Dim
(L x W x H) 185 x 79 x 28 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3190671 club3D KVM Switch 4K60Hz KVM changeover switch HDMI, DisplayPort Remote control 3840 x 2160 Pixel
Description
DisplayPort/HDMI KVM Switch/Dock 4K60HZ for USB Type-C inputs

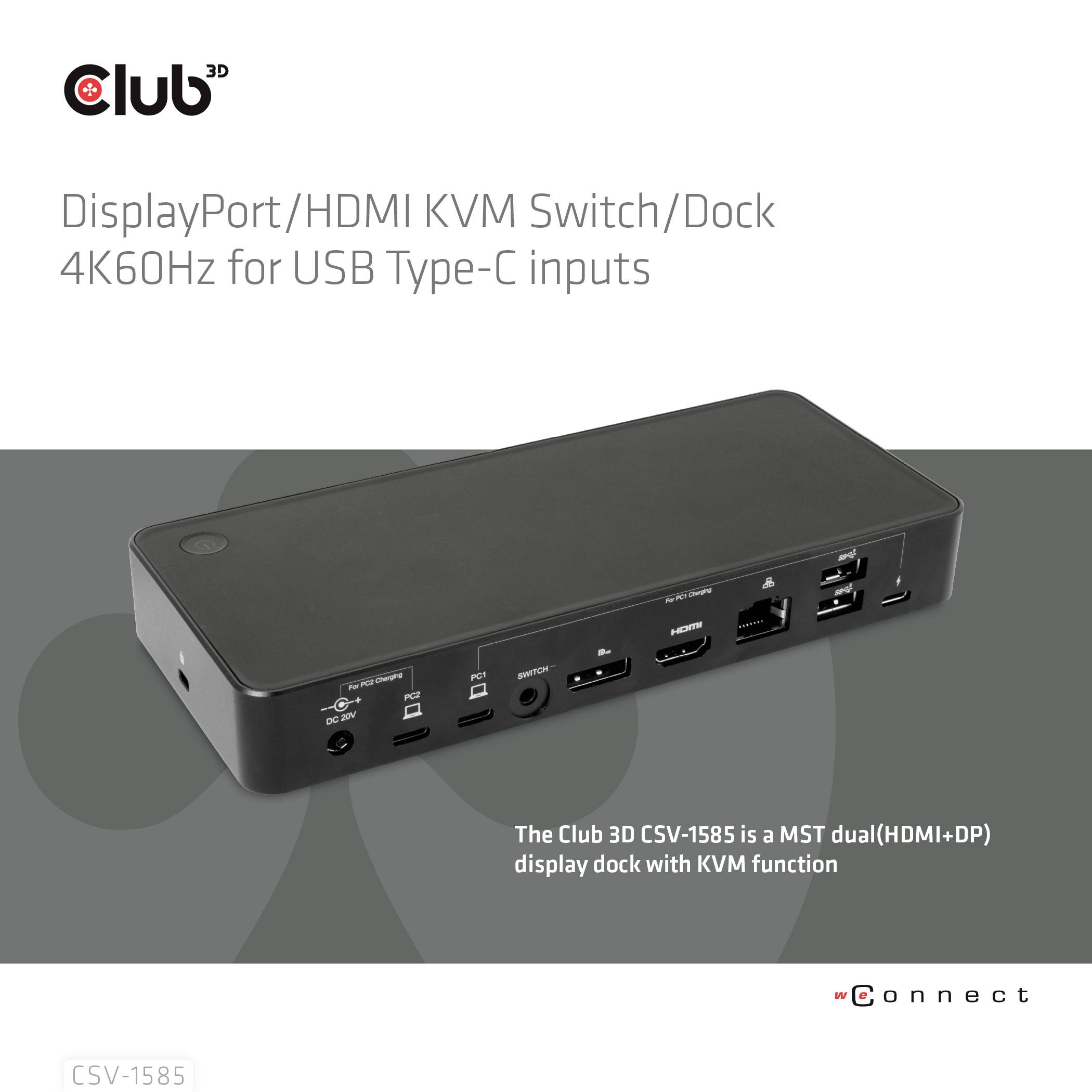

The Club 3D CSV-1585 is a MST Dual (HDMI+DP) display dock with KVM function. Two USB Type C inputs for connecting two different hosts to quickly improve productivity between the two hosts, just click the top button or click the connected

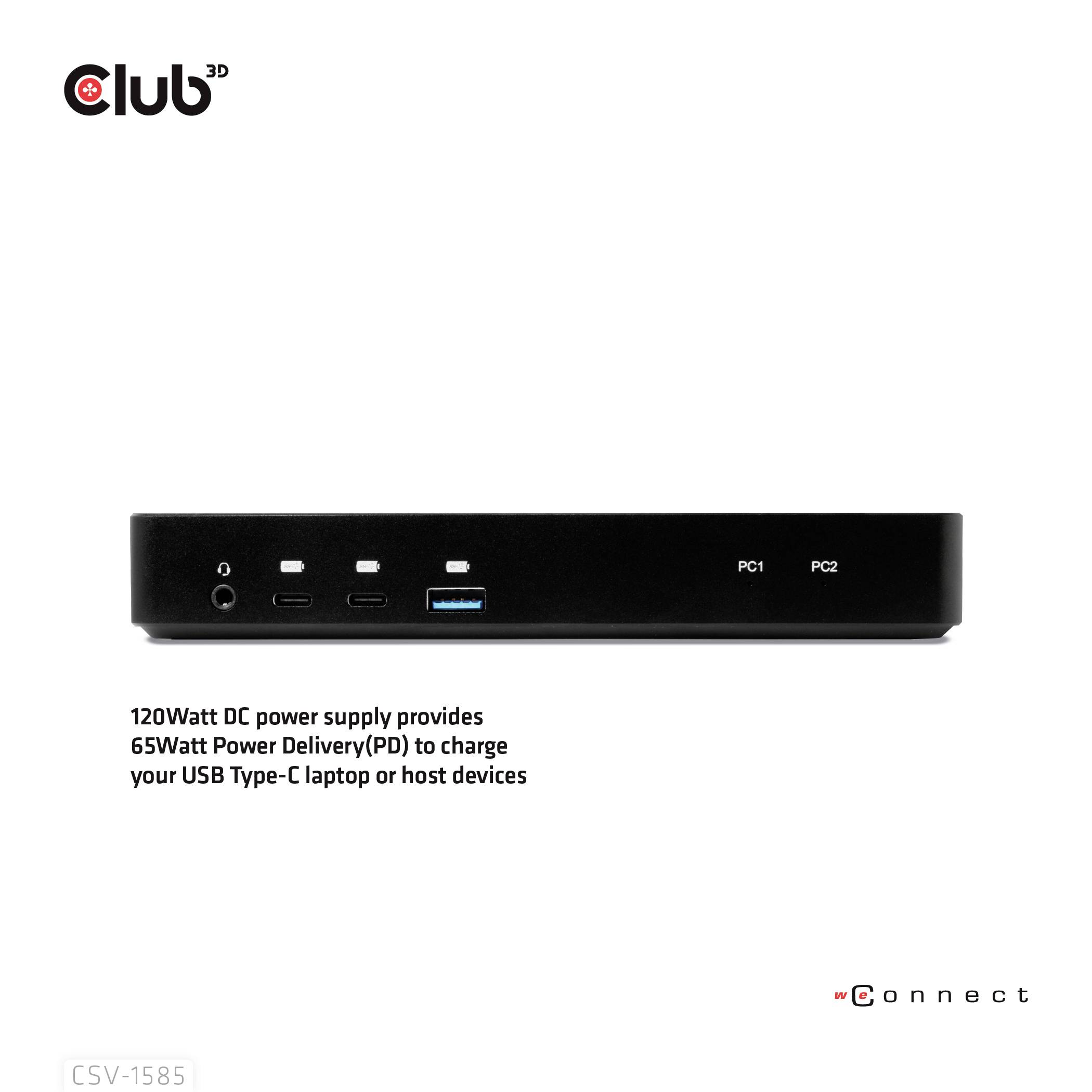

Cable remote control button 3xUSB Type-A+3xUSB Type-C provide adequate connection for external devices with up to 5Gbps data transfer. 120 W DC power supply provides 65 watts of Power delivery (PD) for charging your USB Type C laptop or host device.

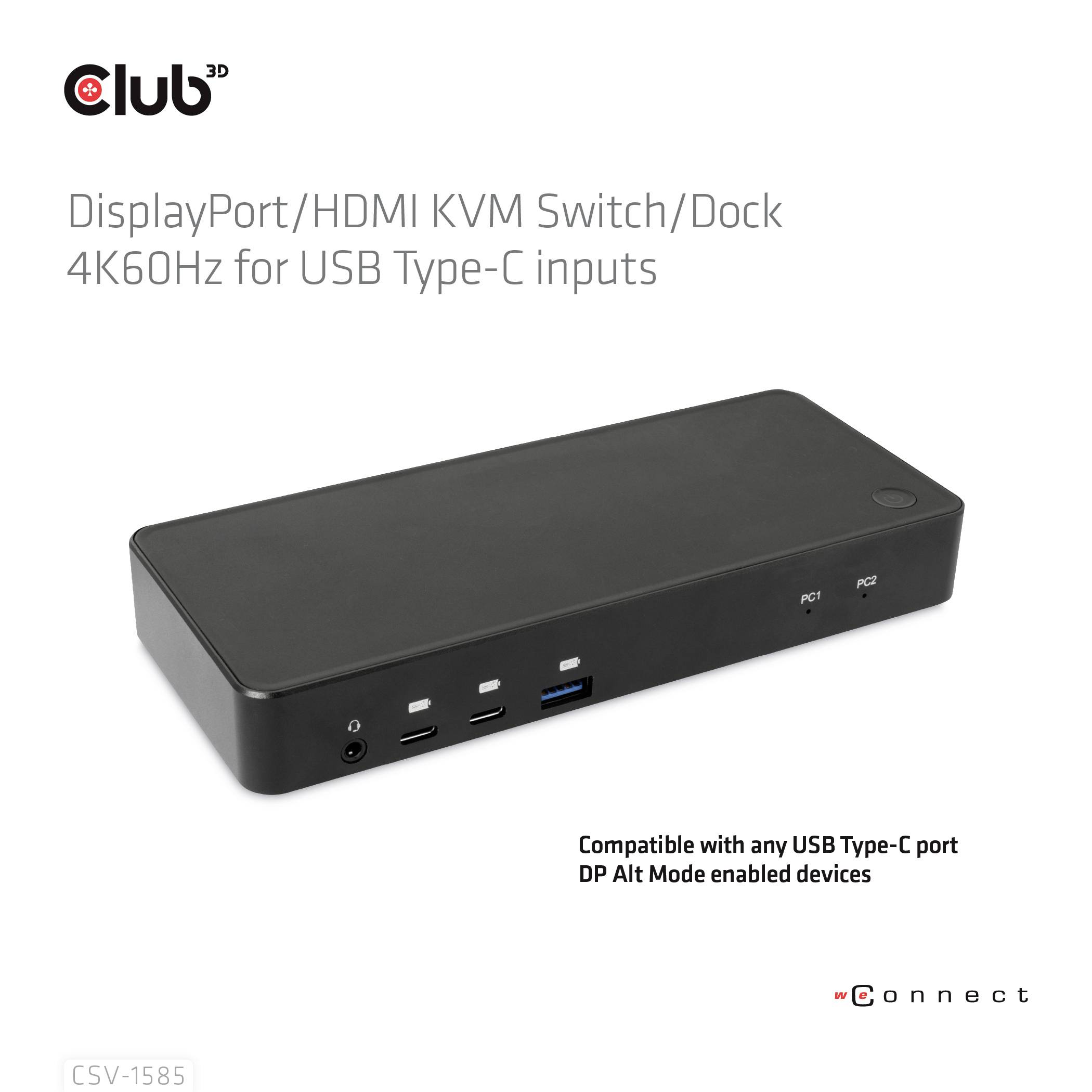

Compatible with all USB Type-C Port DP Alt Mode-enabled devices, such as laptop, desktop PC, tablet, telephone, etc.

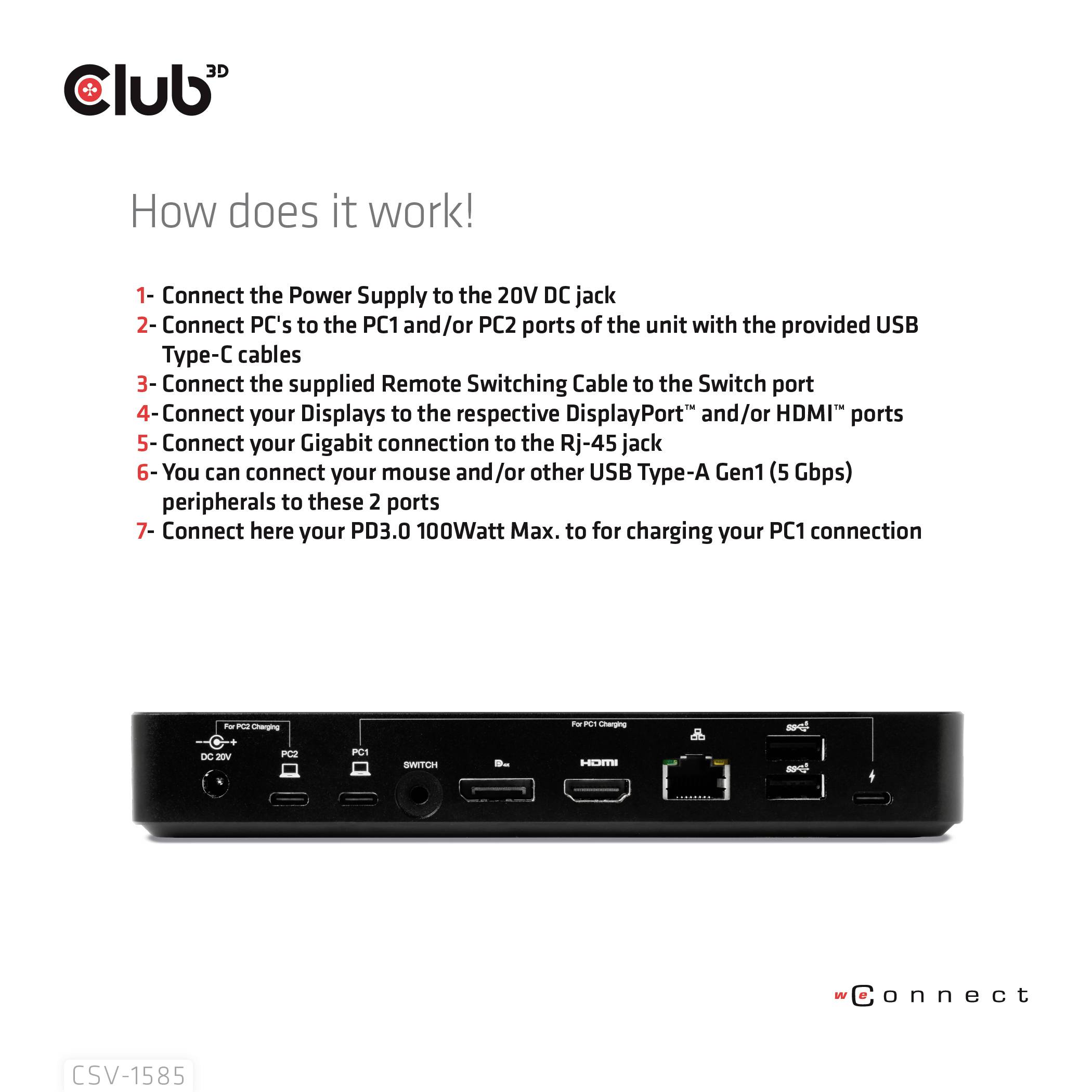

If it supports charging with PC1 and PC2 port, press the Power SWITCH button to change the input power.
With 20V/6A 120W DC power supply to provide power to the docking station, below 65W power charge for PC2 host at the same time. External power supply for PC1 via USB type-C1 connector, the charging power depends on the PD adapter. With Kensington lock. Plug and play
This text is machine translated.

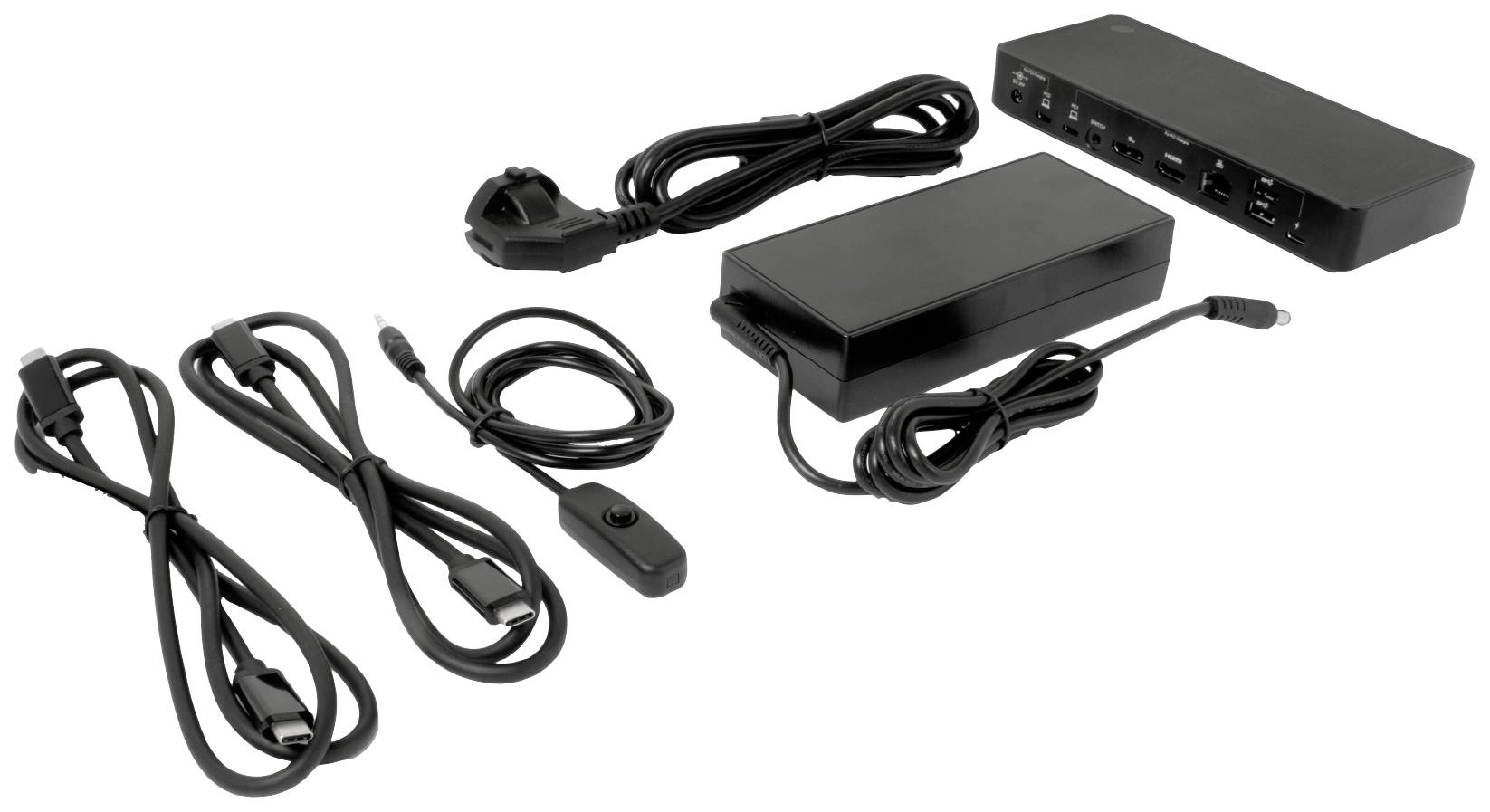

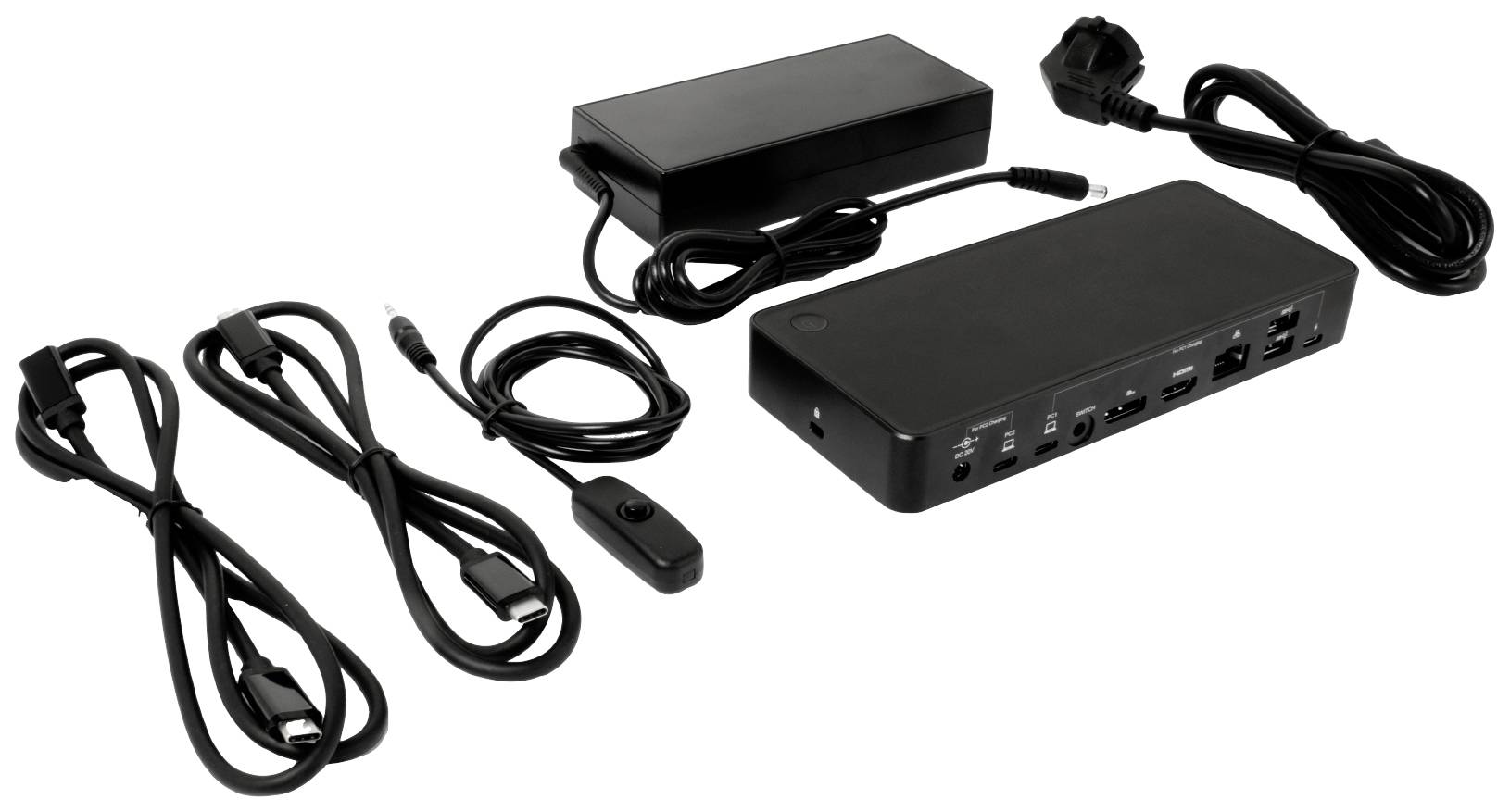

Scope of delivery
- 1x CSV-1585 DisplayPort/HDMI KVM Switch/Dock 4K60HZ for USB Type-C inputs

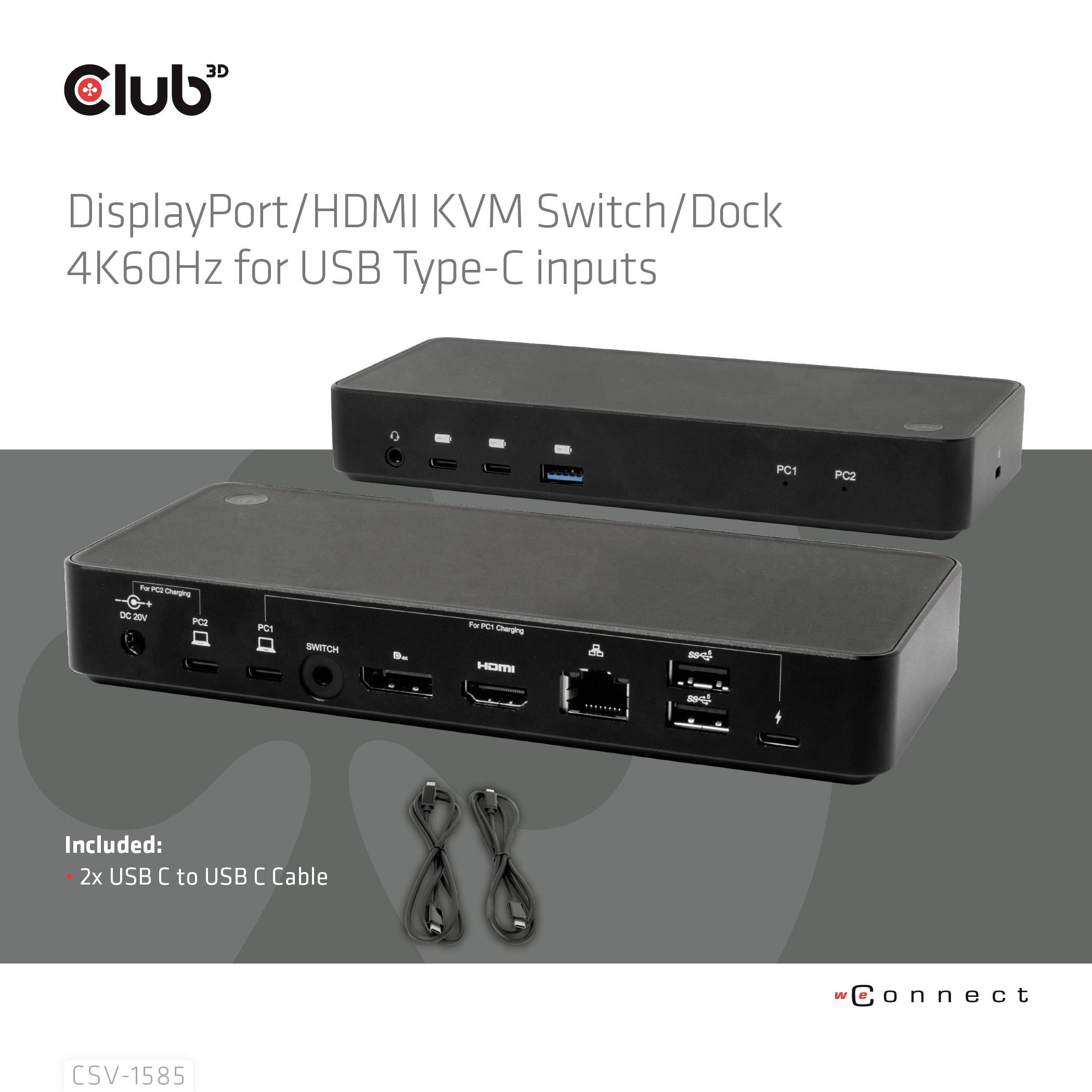

- 2x USB type-C cable Length approx. 1m
- 1x remote control cable Length approx. 1m
- Power supply 100-240VAC/20V/6A DC 120W
