Buy club3D Mini DisplayPort / DisplayPort Adapter cable Mini DisplayPort plug, DisplayPort socket 1.00 m Black CAC-1121 Disp

'Black cable with rectangular plugs at both ends, possibly a data transfer cable.'

A USB cable with a mini-USB plug and an HDMI plug.

A motorcyclist is jumping with a motorcycle in mid-air on a screen. The screen is connected to a small device.

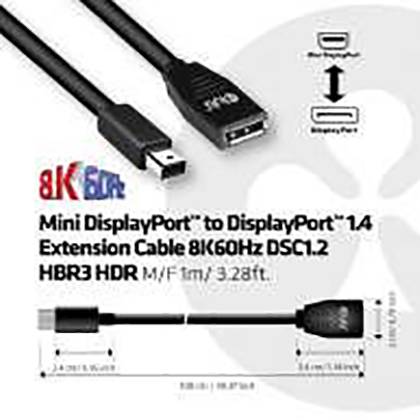

'Mini DisplayPort' to 'DisplayPort' 1.4 Extension Cable, 8K60Hz. Length: 1m. Supports DSC1.2 HBR3 HDR.

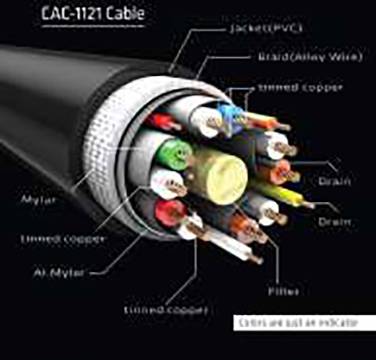

'Cross-section of a CAC-1121 cable with PVC sheath. Shows conductors, copper core, drain wire and filler in detailed labelling.'

1/6

Product type

DisplayPort cable

Connection type

Mini DisplayPort

DisplayPort

Version

Adapter cable

Connection type

Mini DisplayPort to DisplayPort

Connections

Mini DisplayPort plug

DisplayPort socket

Fast track dispatch on Mon, 14 Sep

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 14.28 / piece)

€ 14.28

plus VAT.

Only 3 Piece(s) available

Report legal concerns

club3D Mini DisplayPort™ to DisplayPort™ 1.4 extension cable 8K60Hz DSC1.2 HBR3 HDR St./B. 1 meter 32AWG

Highlights & Details

Complete DisplayPort™ Version 1.4 compliant HBR3, HDR 32.4Gbps
Support for Display Stream Compression (DSC) 1.2
Support for Forward Error Correction
Support for up to 32 inline audio channels
Backward compatible with older DisplayPort standards
Supports resolutions up to 8K @ 60Hz and 4K @ 144Hz
The cable is 32AWG and fully bi-directional

Technical specifications

Product type: DisplayPort cable

Connection type: Mini DisplayPort
DisplayPort

Version: Adapter cable

Connection type: Mini DisplayPort to DisplayPort

Connections: Mini DisplayPort plug
DisplayPort socket

Connector version: straight

Video resolution: 8192 x 4320 Pixel
4096 x 2160 Pixel

Cable length: 1.00 m

Factory colour: Black

Signal flow: Bidirectional (A↔B)

Cable use: TV/monitor

Cable design: Round

: 32

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2207475 club3D Mini DisplayPort / DisplayPort Adapter cable Mini DisplayPort plug, DisplayPort socket 1.00 m Black CAC-1121 Disp

Description

The Club 3D Mini DisplayPort™ on DisplayPort™ 1.4 extension cable 8K60Hz DSC1.2 HBR3 HDR allows you to connect your Mini DisplayPort™ equipped (gaming) PC or laptop with any standard DisplayPort cable to extend the distance to your DisplayPort™ supported TV, monitor, projector or other DisplayPort™ product. DisplayPort™ 1.4 adds support for Display Stream Compression 1.2 (DSC) and Forward Error Correction and extends the maximum number of inline audio channels to 32.

The soft UltraFlex sheath protects the cable from bending and deformation. The cable is 32AWG and fully bi-directional.

This text is machine translated.
