club3D Thunderbolt™ 4 laptop docking station CSV-1583
EAN:
Part number:
Item no:

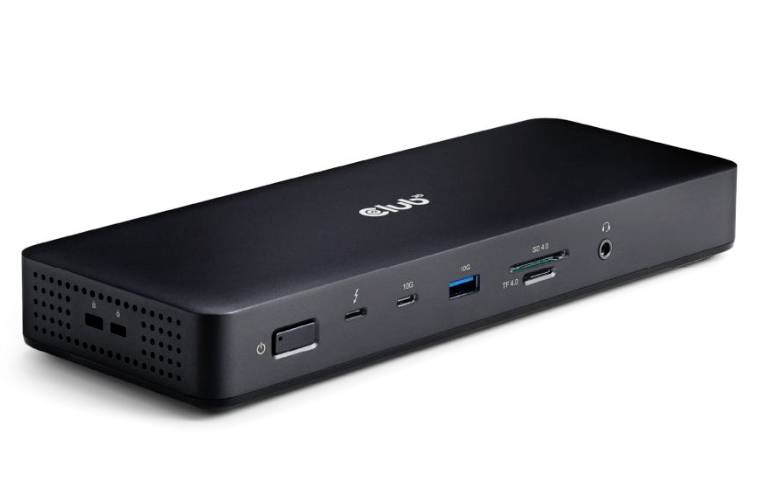

club3D CSV-1583 Thunderbolt™ 4 laptop docking station
Highlights & Details
- Connection A (or inputs): Thunderbolt™ 4 connector

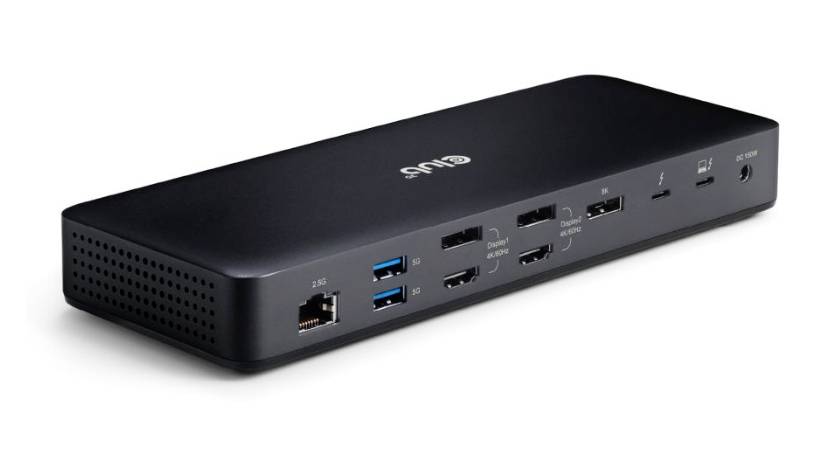

- Connecton B (or outputs): USB-C®, USB 2.0 port A, USB 3.2 1st Gen port A (USB 3.0), HDMI socket, RJ45 socket, Thunderbolt™ 4 port, Headphones/mic combo (3.5 mm jack), DisplayPort socket, SD Card slot
- No. of supported monitors:
- Maximum resolution:
- Key features:
Technical specifications
- Data transfer rate 40 Gbps
- Product type
Thunderbolt™ 4 laptop docking station
- Type A
Thunderbolt™ 4 connector
- Type B
USB-C®
USB 2.0 port A
USB 3.2 1st Gen port A (USB 3.0)
HDMI socket
RJ45 socket
Thunderbolt™ 4 port
Headphones/mic combo (3.5 mm jack)
DisplayPort socket
SD Card slot
- Factory colour
Black

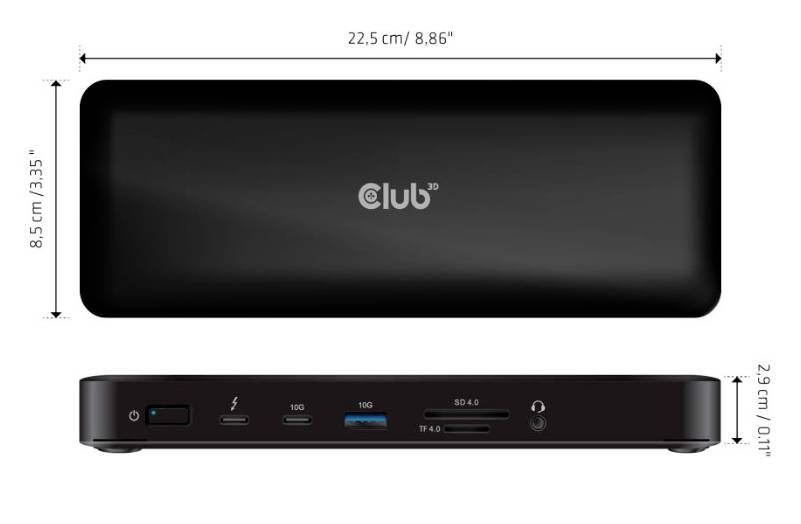

- Width
85 mm
- Height
22 mm
- Depth
225 mm
- Weight
594 g
- Dim
(W x H x D) 85 x 22 x 225 mm
- Screen size diagonal (inches)
1 inch
- No. of DisplayPort
3 x
- No. of HDMI ports
2 x
- No. of USB type A 3.1 / 3.2 1st Gen
3 x
- Keyboard layout
German, QWERTZ
- 10/100/1000 Mbps ports
1 x
- UKCA
yes
- Cable lock slot
yes
- Quantity per pack
1 Stück(e)
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
- DC-in jack
yes
- Card reader integrated
yes
- Thunderbolt 4 ports quantity
4
- Thunderbolt 4 cable length
0.8 m
- Package weight
796 g
- Power cable length
1 m
- Combo headphone/mic port
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3361831 club3D Thunderbolt™ 4 laptop docking station CSV-1583
Description

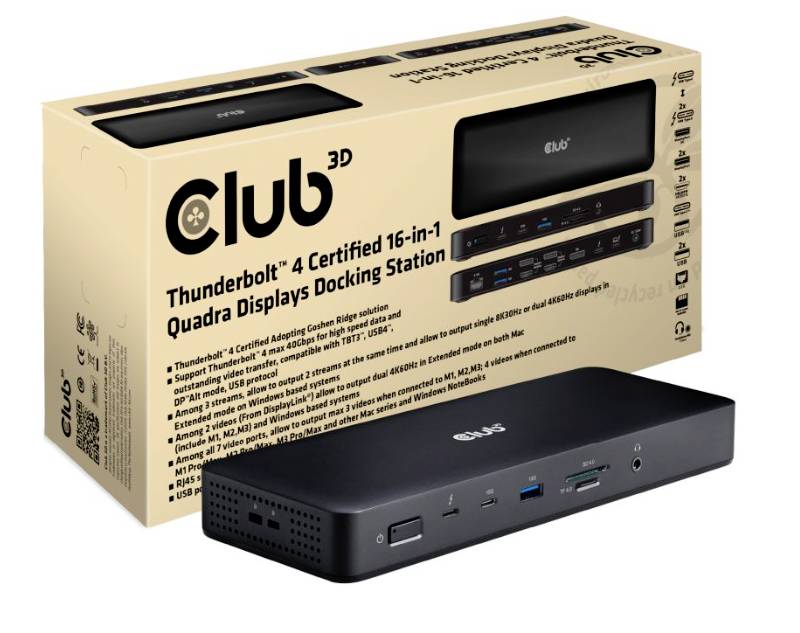

The Club 3D CSV-1583 is a Thunderbolt™ 4 certified 16-in-1 four-display docking station with DisplayLink® that offers the most advanced, efficient and versatile I/O solution with up to 40Gb/s for data and video. Out of the 7 video ports, a maximum of 3 videos can be played when connected to M1, M2 and M3; 4 videos when connected to M1 Pro/Max, M2 Pro/ Max, M3 Pro/Max and other Mac series and Windows notebook notebooks. RJ45 supports a maximum bandwidth of 2.5G. The USB ports support a maximum data transfer of 10G. It also supports the Smart-Power function, which makes possible to distribute the power according to the power consumption of the connected device and thus to use the external power supply completely. Designed for TBT4™/ USB4™-based PCs, it is compatible with PCs in /DP Alt mode.
This text is machine translated.
This text is machine translated.
Features
- Acquisition of the Goshen Ridge solution
- Designed for TBT4™/USB4™ based PCs and compatible with TBT3™/DP Alt Mode PCs
- Supports Thunderbolt™ 4 up to 40Gbps for high-speed data and
- Excellent video transmission, compatible with TBT3™, USB4™, DP™ AltMode, USB protocol
- Between 3 streams, 2 streams can be supported simultaneously, one by one
- Can 8K30Hz or Dual 4K60Hz displays in extended mode on Mac and
- Windows-based systems
- Two further streams can be added via the (DisplayLink®) chipset IM
- Advanced mode on both Mac (including M1, M2, M3) and
- Windows-based systems can print 2x 4K60HZ
- From all 7 video ports, a maximum of 3 videos can be output when they are
- Connected to M1, M2, M3; 4 videos if connected to M1 Pro/Max, M2 Pro/Max
- M3 Pro/Max and other Mac series and Windows notebooks are connected
- RJ45 supports a maximum bandwidth of 2.5G
- USB ports support a maximum data transfer of 10G
- SD/TF supports SD4.0 with max. 312MBps
- Self-power supply via DC-power supply with max. 96 W for host, max. 140 W for host and dock
- Supports Smart Power, which makes possible the power for PC and hub in real-time
- According to the consumption of the connected devices to be flexibly distributed
- Compatibility Details:
- Support for TBT4™/USB4™/TBT3™/DP Alt-Mode hosts
- Support for Windows 10 or higher, Mac 13.5.2 (restrictions
- May vary with different Apple-own silicones)
- It supports both the Kensington anti-theft lock and the standard nano anti-theft lock (which requires only 70% of the physical space)
