Name: club3D USB 3.2 1st Gen (USB 3.0) Adapter [1x USB-A, USB-C® - 1x HDMI socket, VGA socket] Adapter USB Typ C/A - HDMI / VG
Brand: club3D
SKU: 3190659

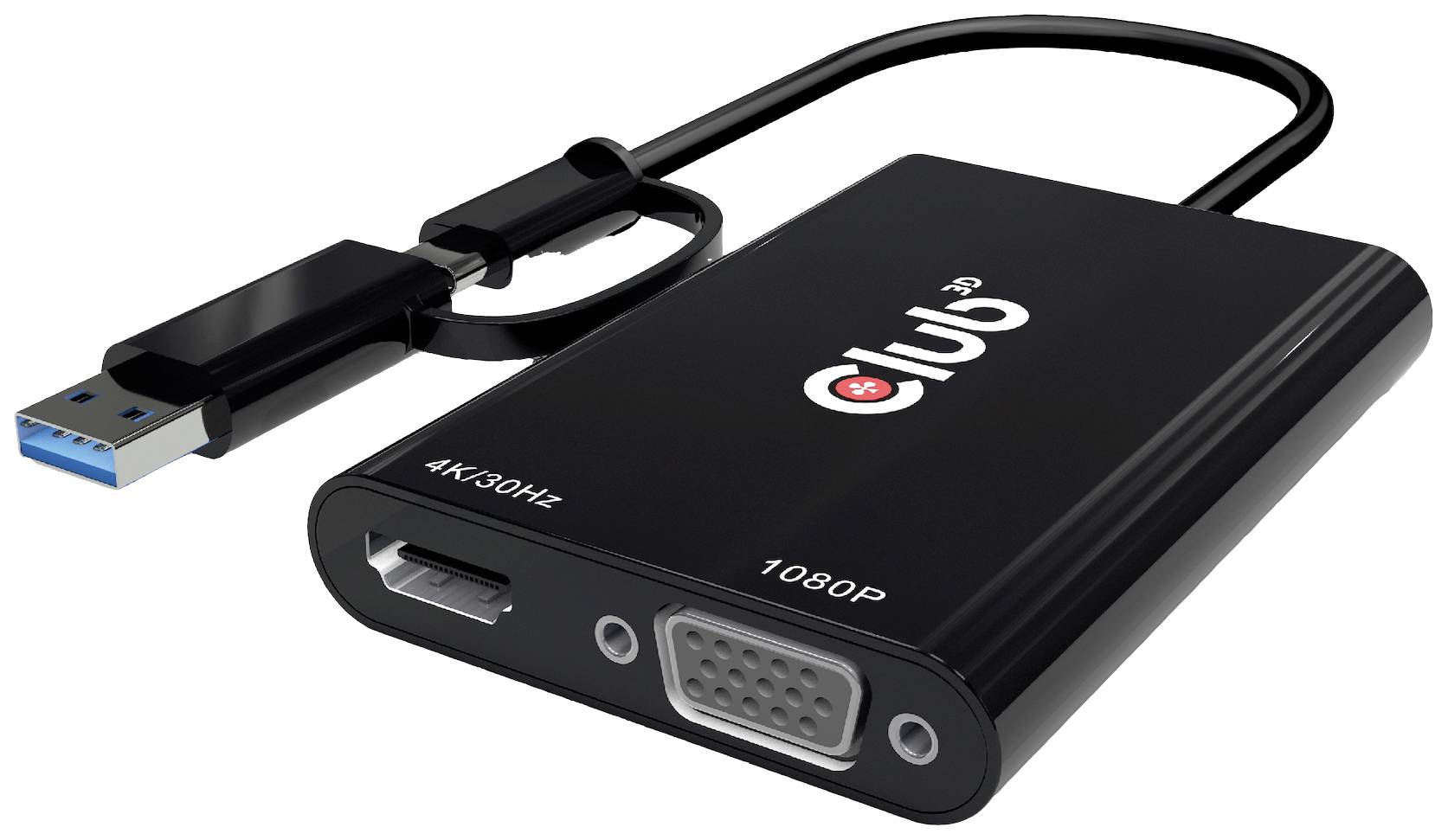

A black adapter with a USB connection and VGA port. Markings of '4K@30Hz' and '1080P' are visible.

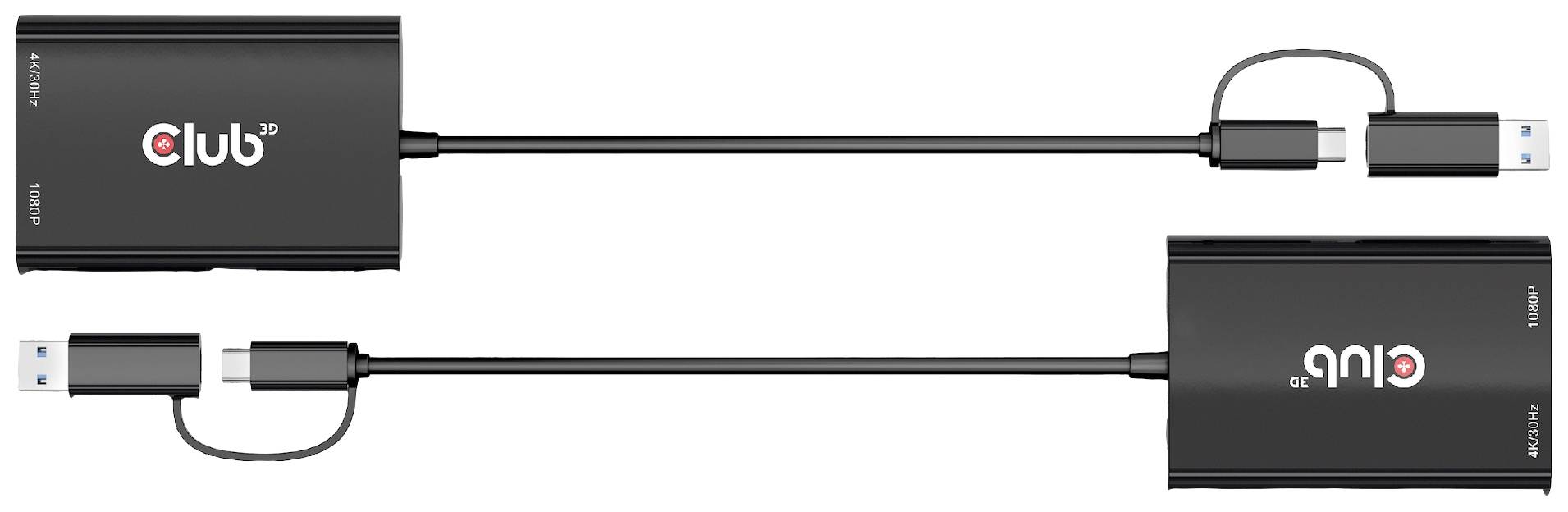

Two black USB cable adapters from Club 3D, connecting USB 3.0 to HDMI and USB-C to HDMI. The adapters have the same design.

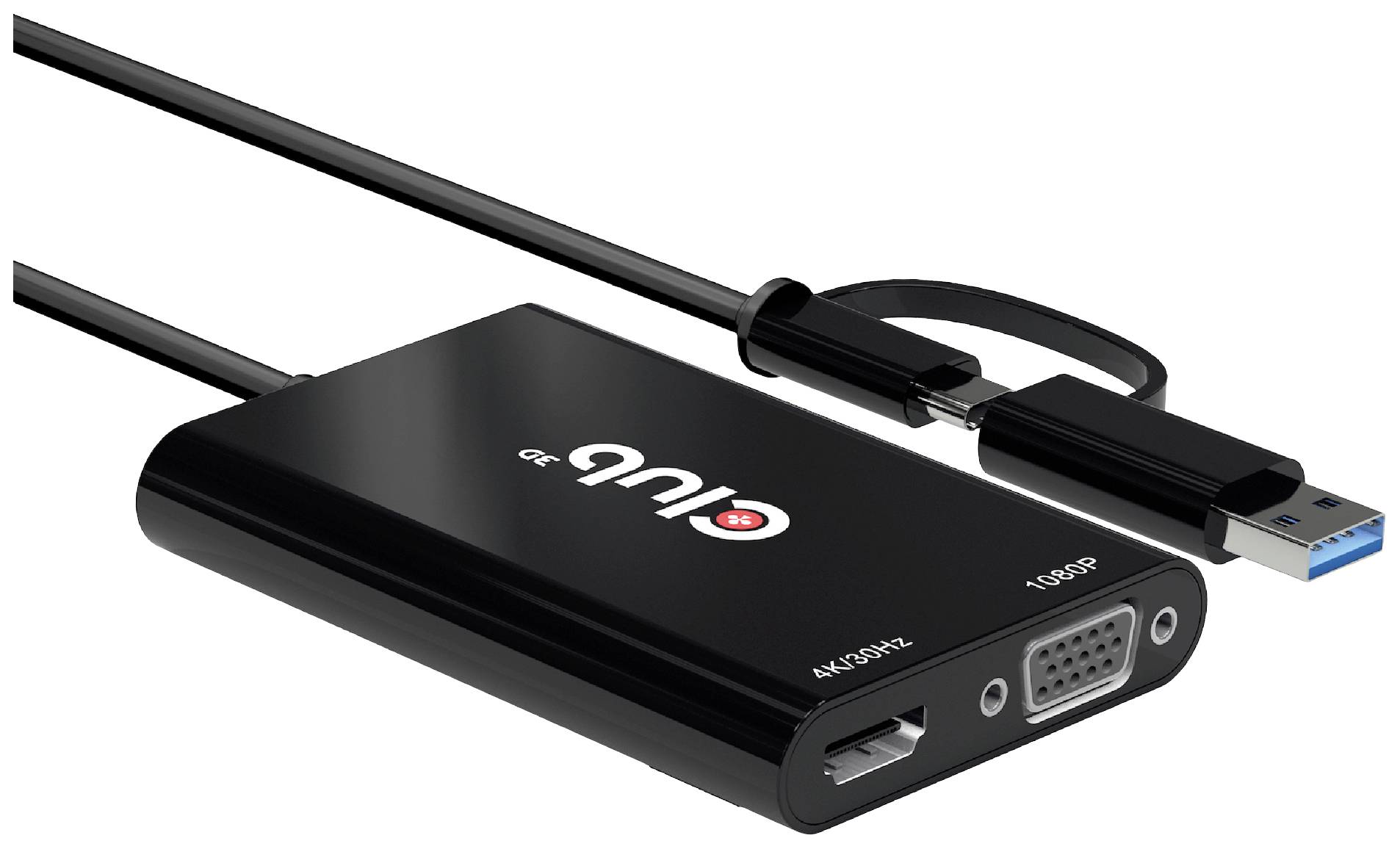

External black USB 3.0 adapter with HDMI and VGA ports by Club 3D for screen expansion.

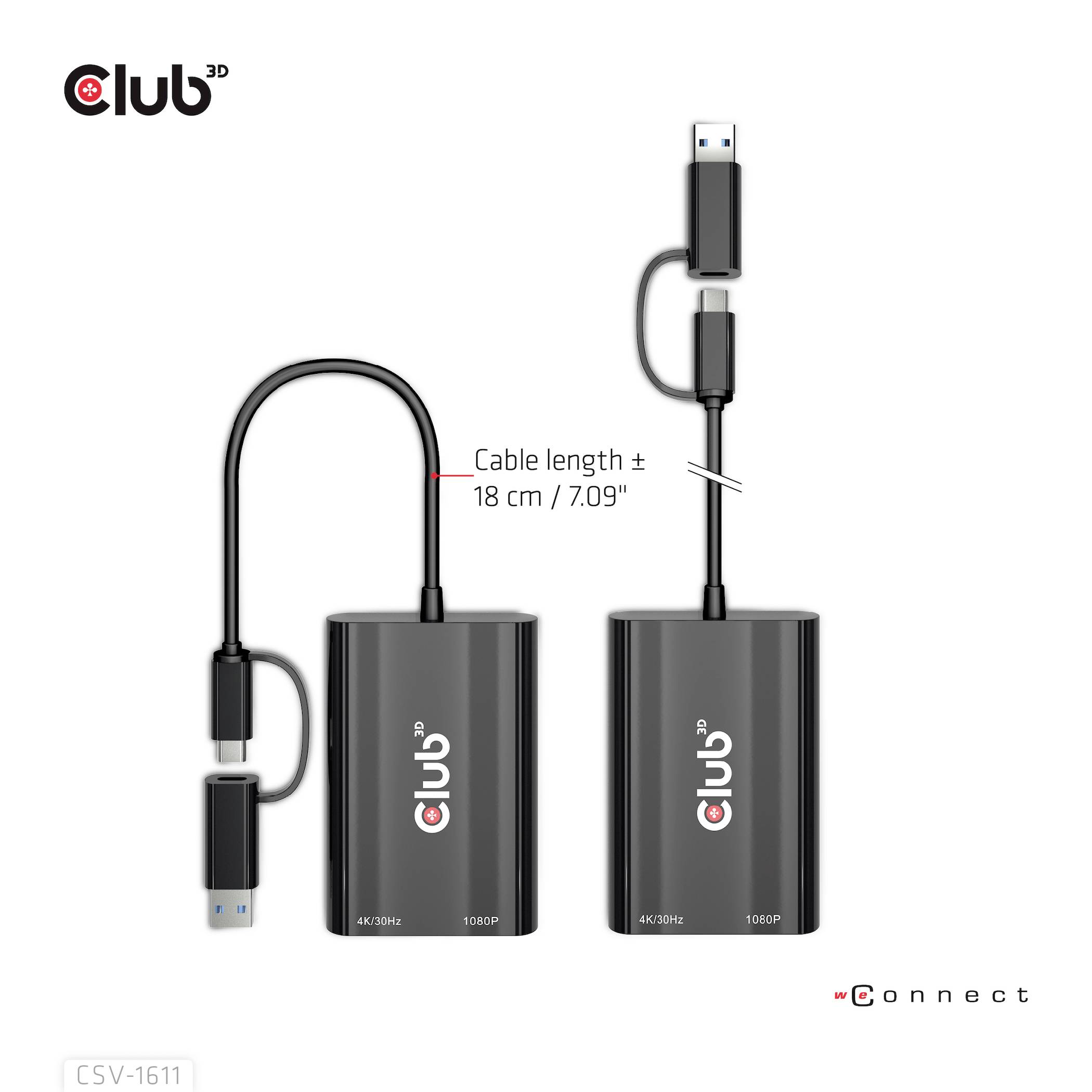

'Two black adapters with USB ports; connection cable length approximately 18 cm. Labelled with 4K30Hz, 1080P.'

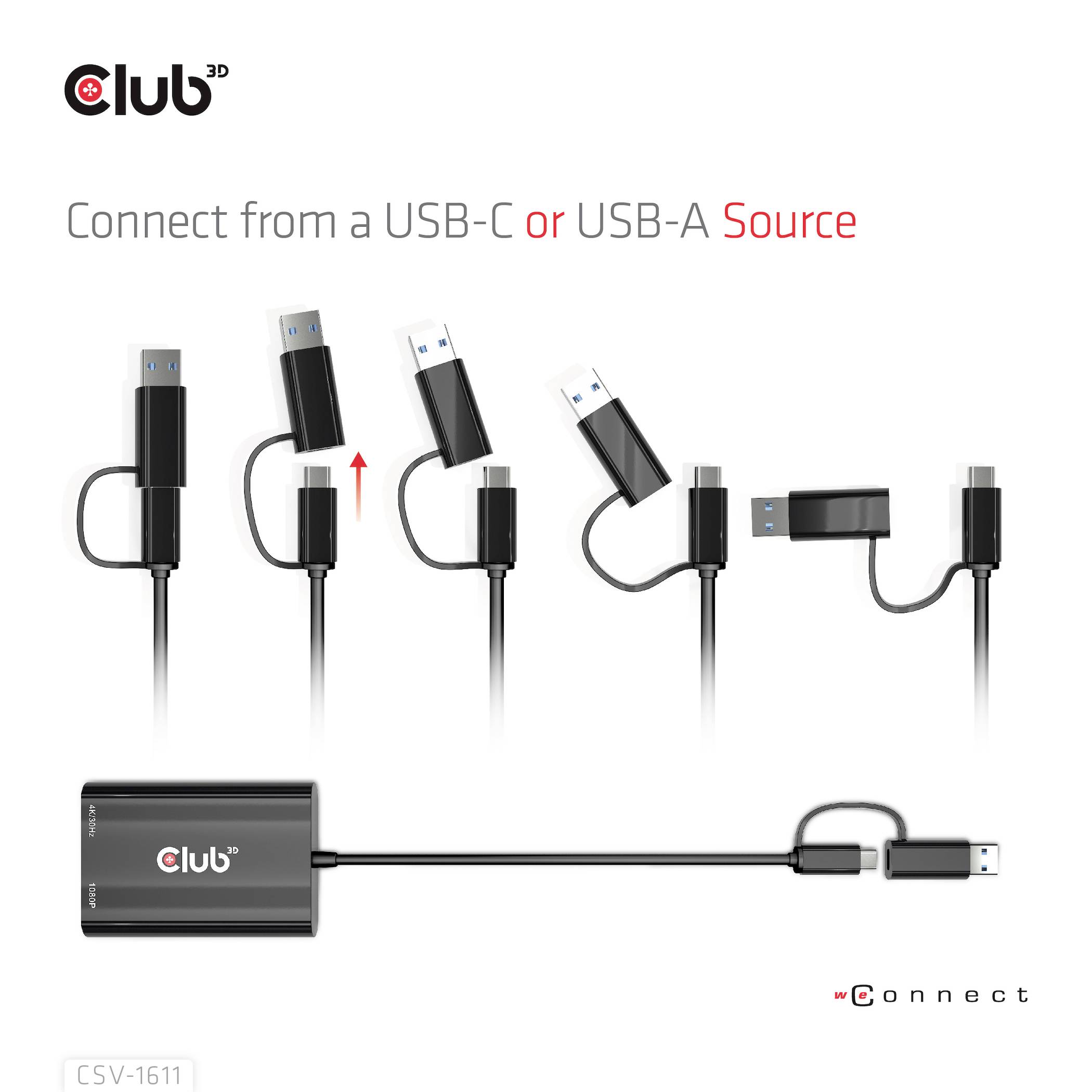

'Club 3D Converter' with USB-C and USB-A ports demonstrates how connections are established. The adapter easily connects different devices.

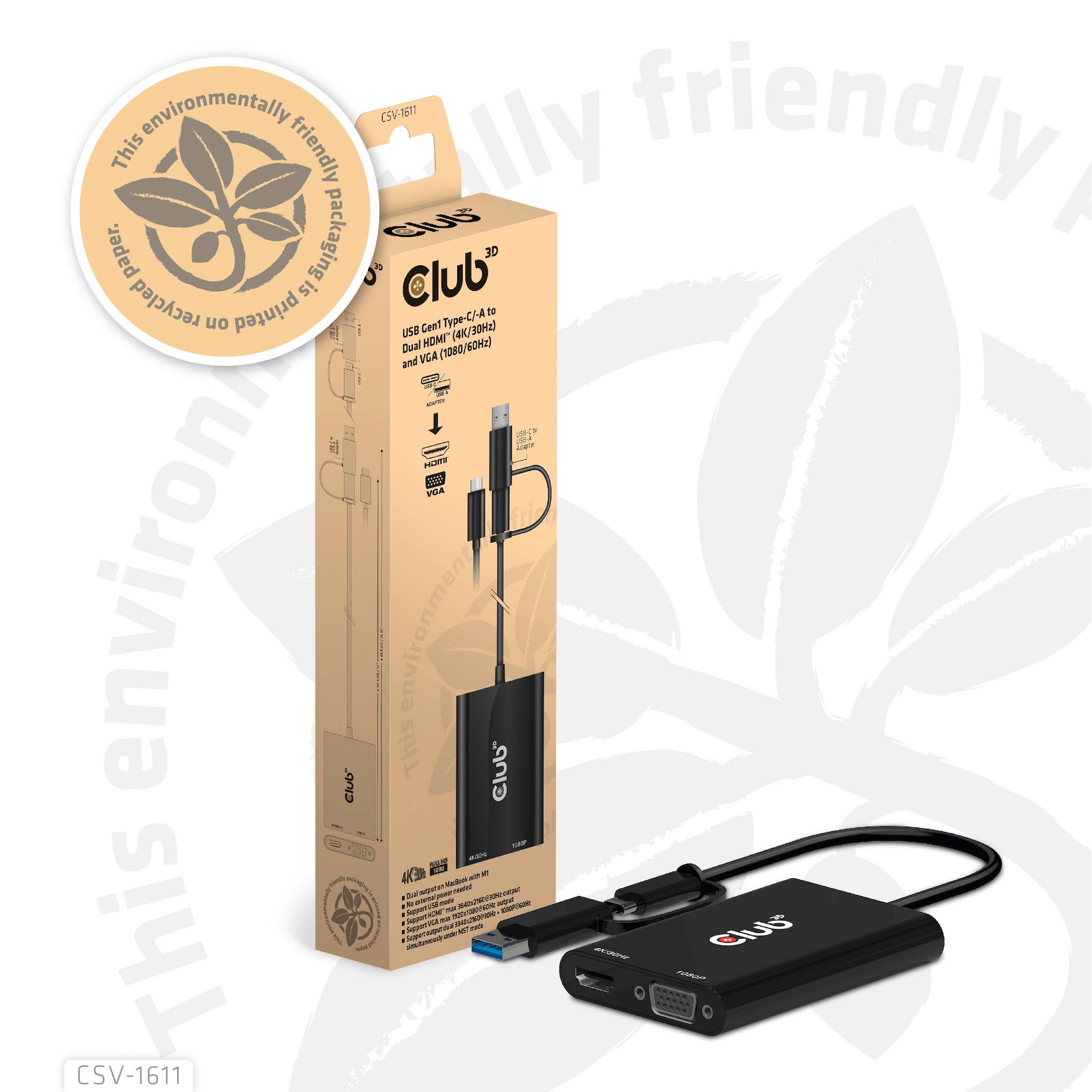

USB-C adapter with HDMI and USB ports in an environmentally friendly package. Suitable for connecting devices to laptops.

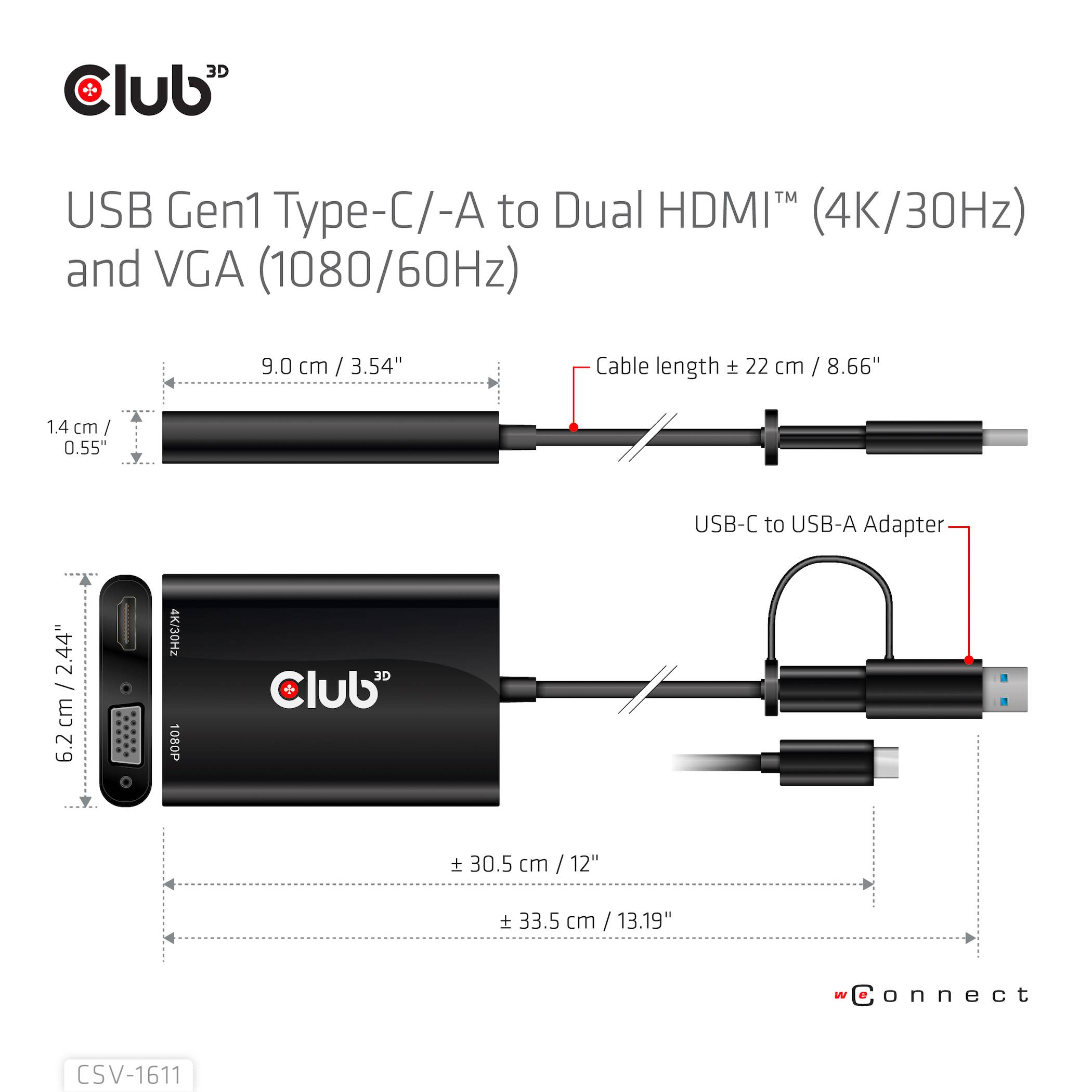

'Adapter by Club3D: USB Gen1 Type-C/-A to Dual HDMI (4K/30Hz) and VGA (1080/60Hz). Cable length: 22 cm, Adapter length: 33.5 cm.'

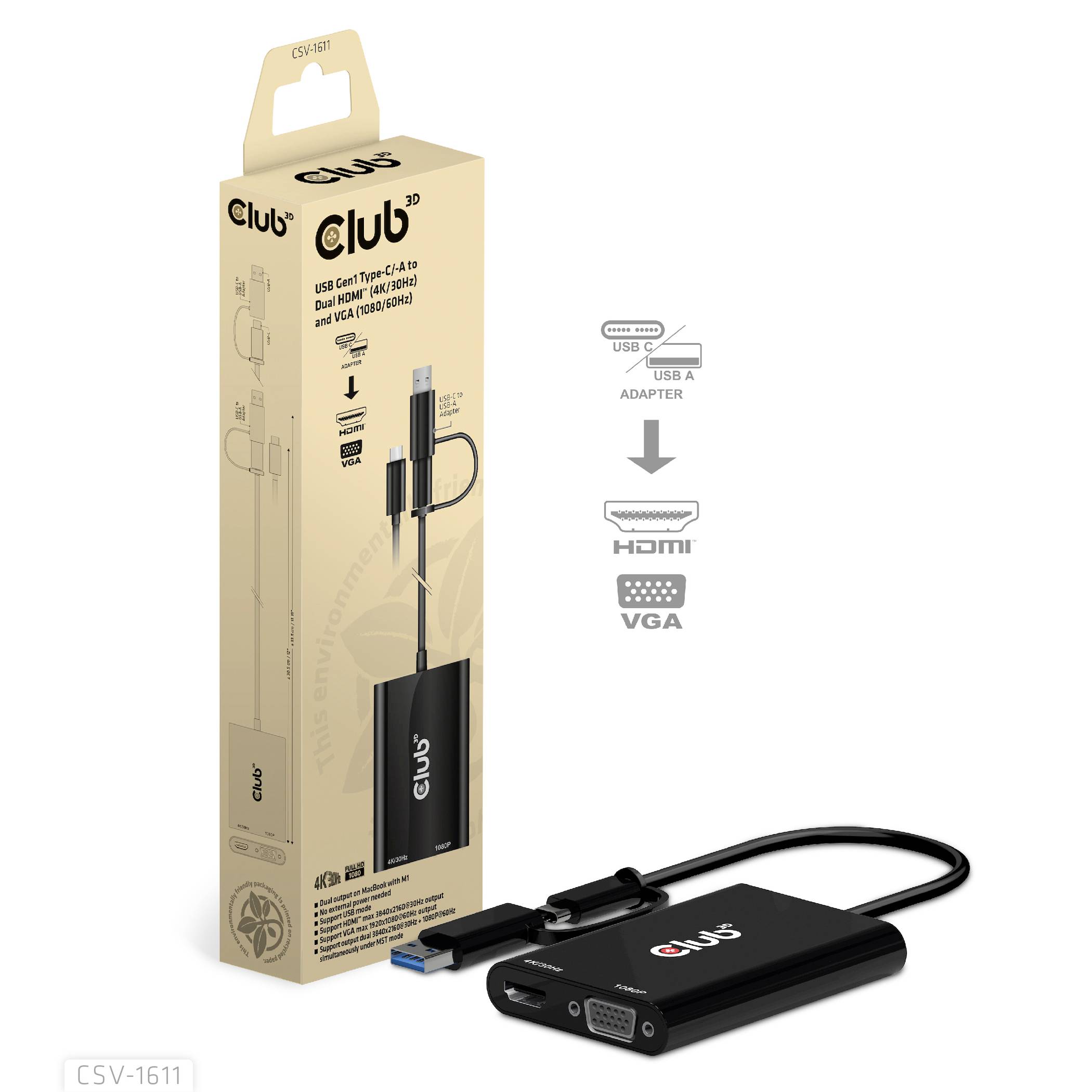

'Club 3D' USB 3.0 to HDMI and VGA Adapter with Packaging. Enables connection of HDMI or VGA devices to a USB port.

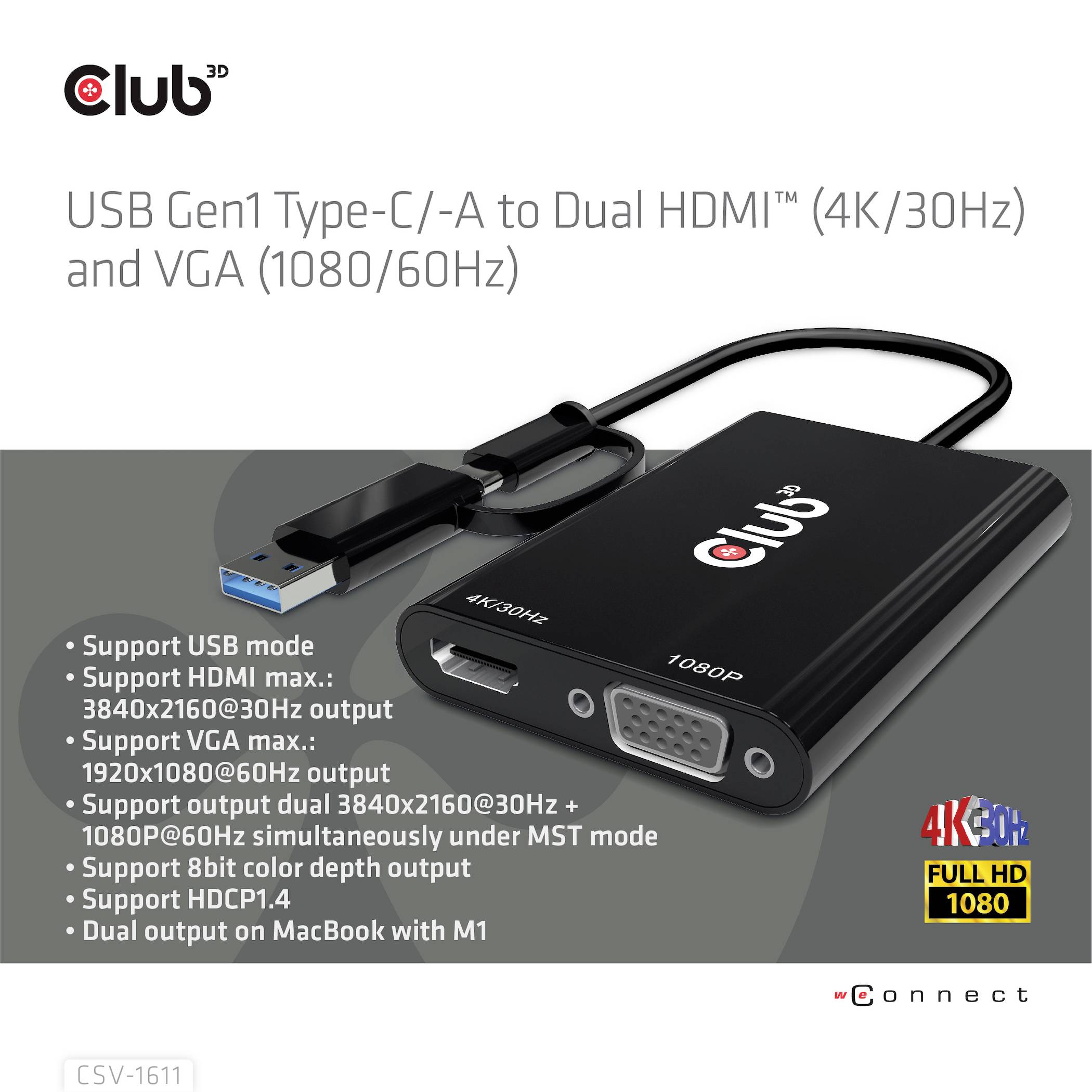

USB-C adapter with USB-C plug and ports for dual HDMI (4K/30Hz) and VGA (1080p/60Hz), suitable for MacBook with M1.

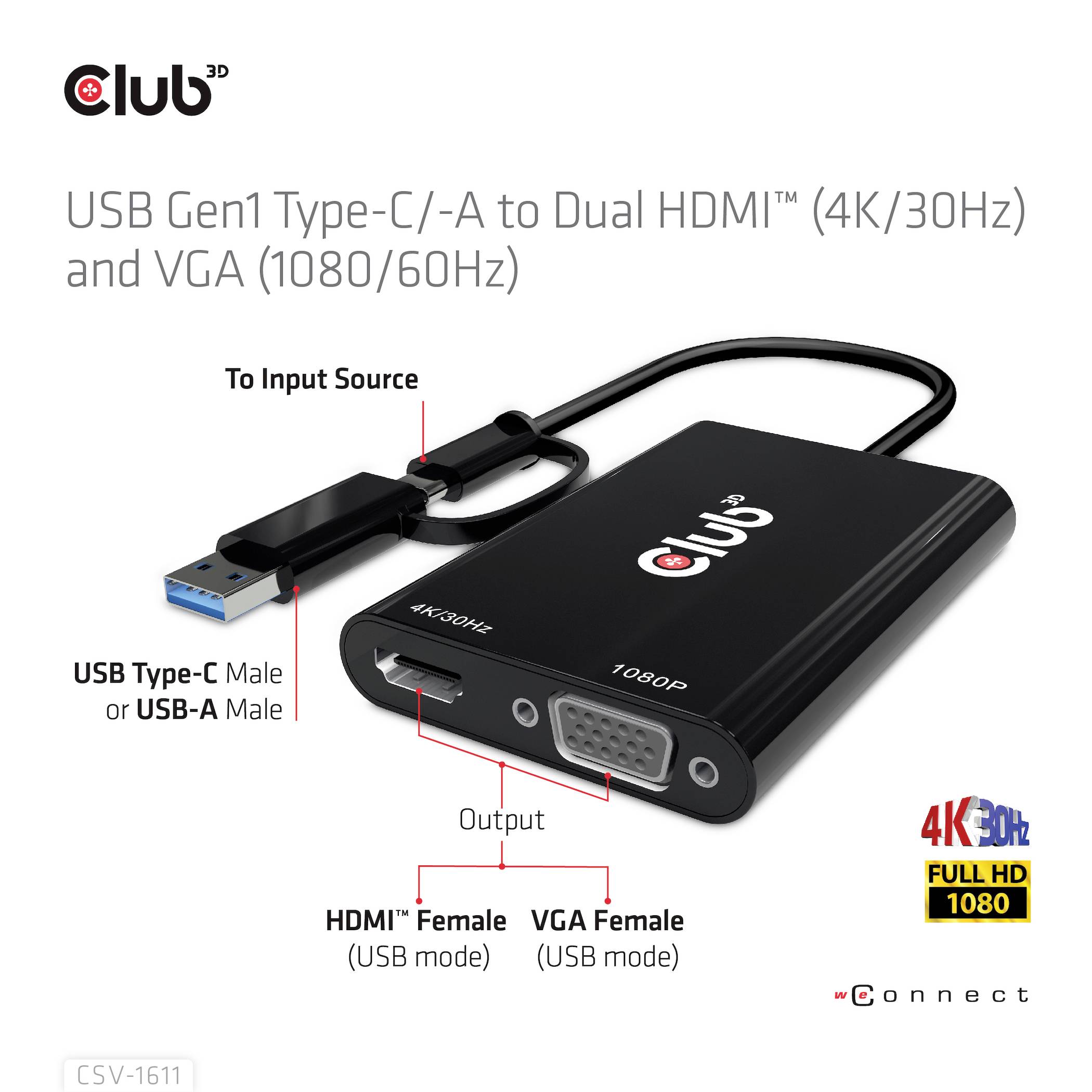

USB-C to HDMI and VGA Adapter: black device with cable, showing HDMI and VGA ports. Text describes compatibility and specifications.

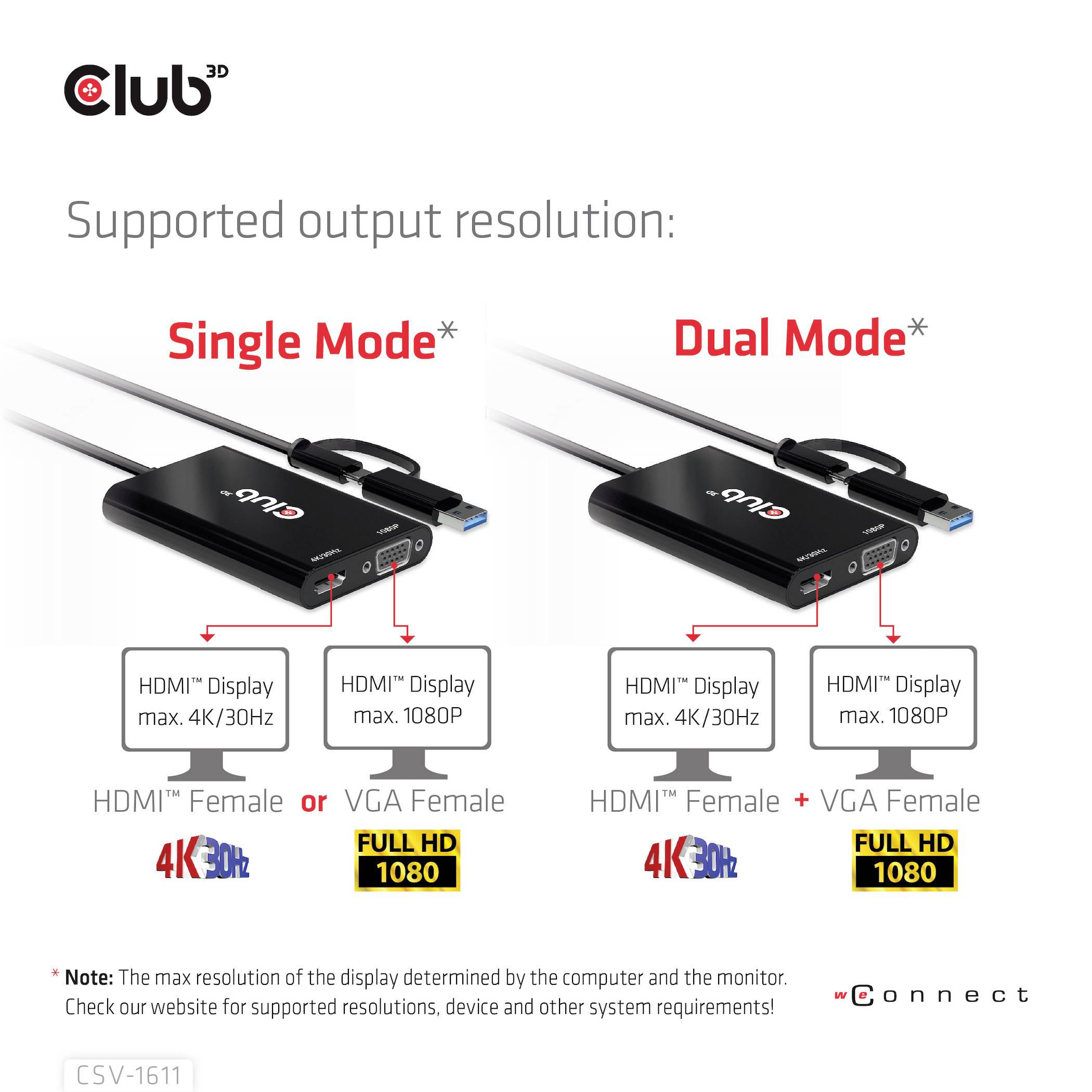

'Club 3D' Monitor Adapter shows two modes: Single mode supports max resolution of 4K at 30Hz, Dual mode max 1080p at 60Hz.

'USB-C/USB-A to HDMI and VGA Adapter' diagram shows connectivity from USB-C or USB-A to HDMI and VGA. Adapters and cables displayed.

USB-C to DisplayPort cable adapter with USB-A adapter and 22 cm length. For simple computer connection and flexible use.

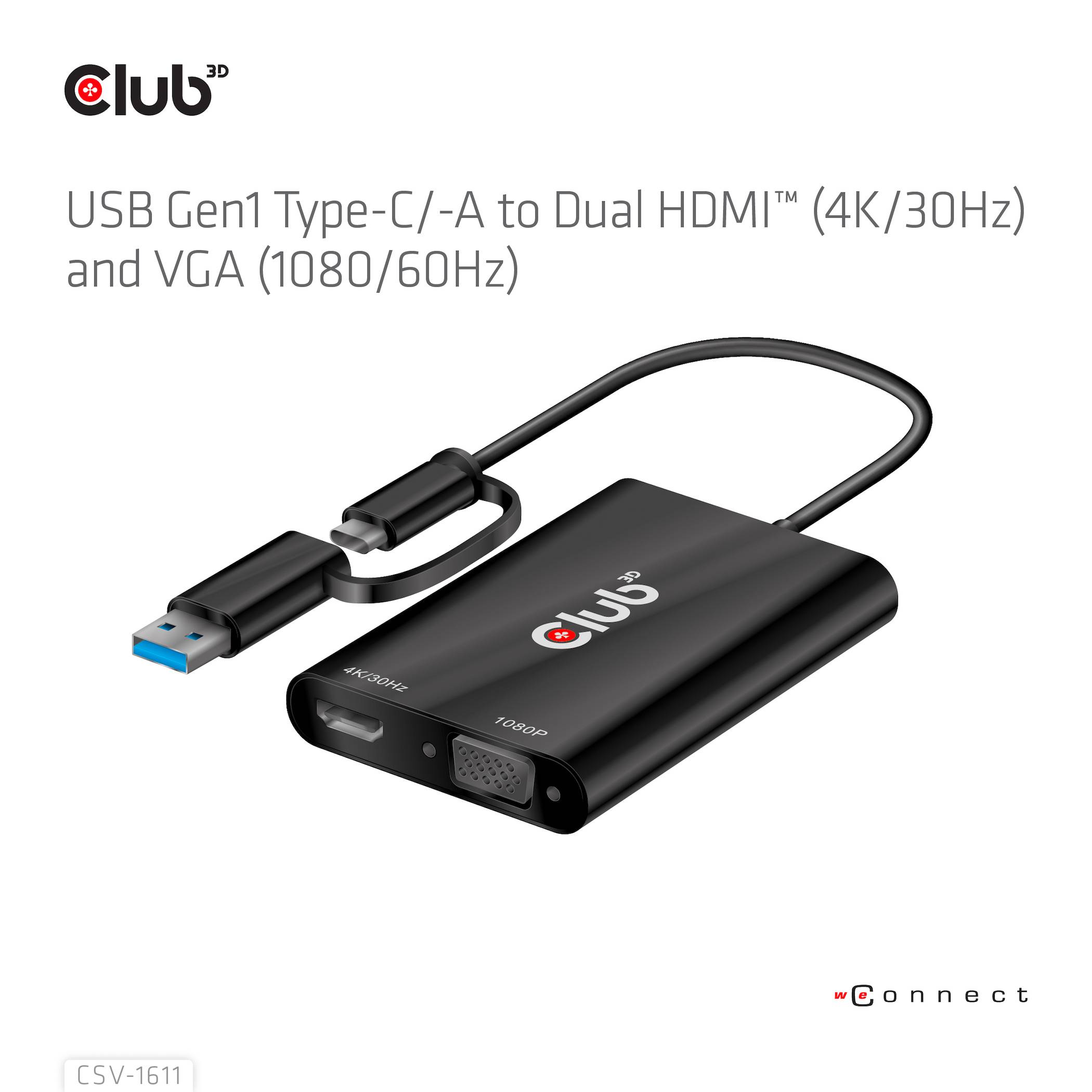

'USB Gen1 Type-C/-A to Dual HDMI (4K/30Hz) and VGA (1080/60Hz)' Adapter by Club, with cable and USB port.

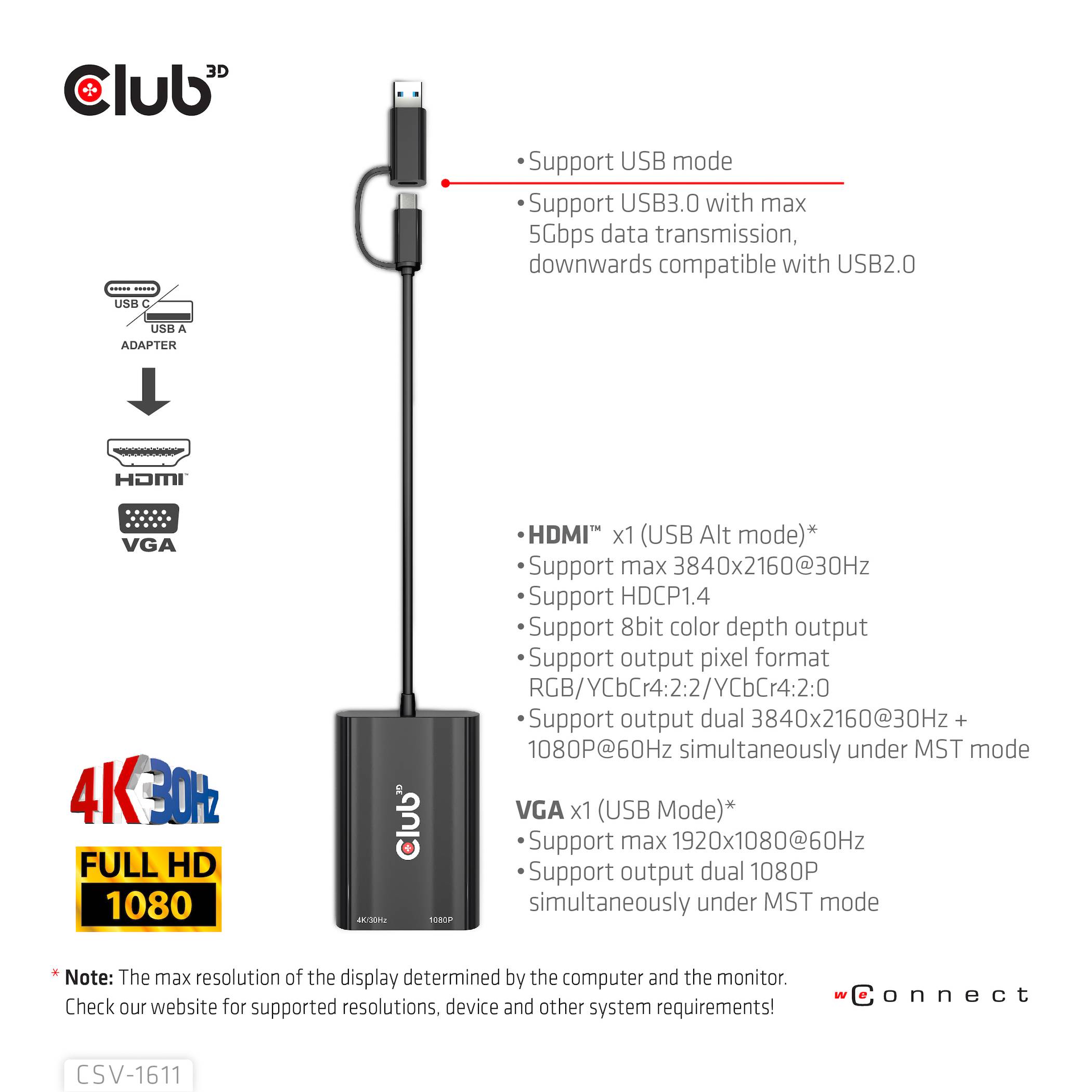

USB Adapter with HDMI and VGA Ports. Supports USB 3.0, HDMI up to 4K, VGA up to 1080p. Compatible with USB 2.0.

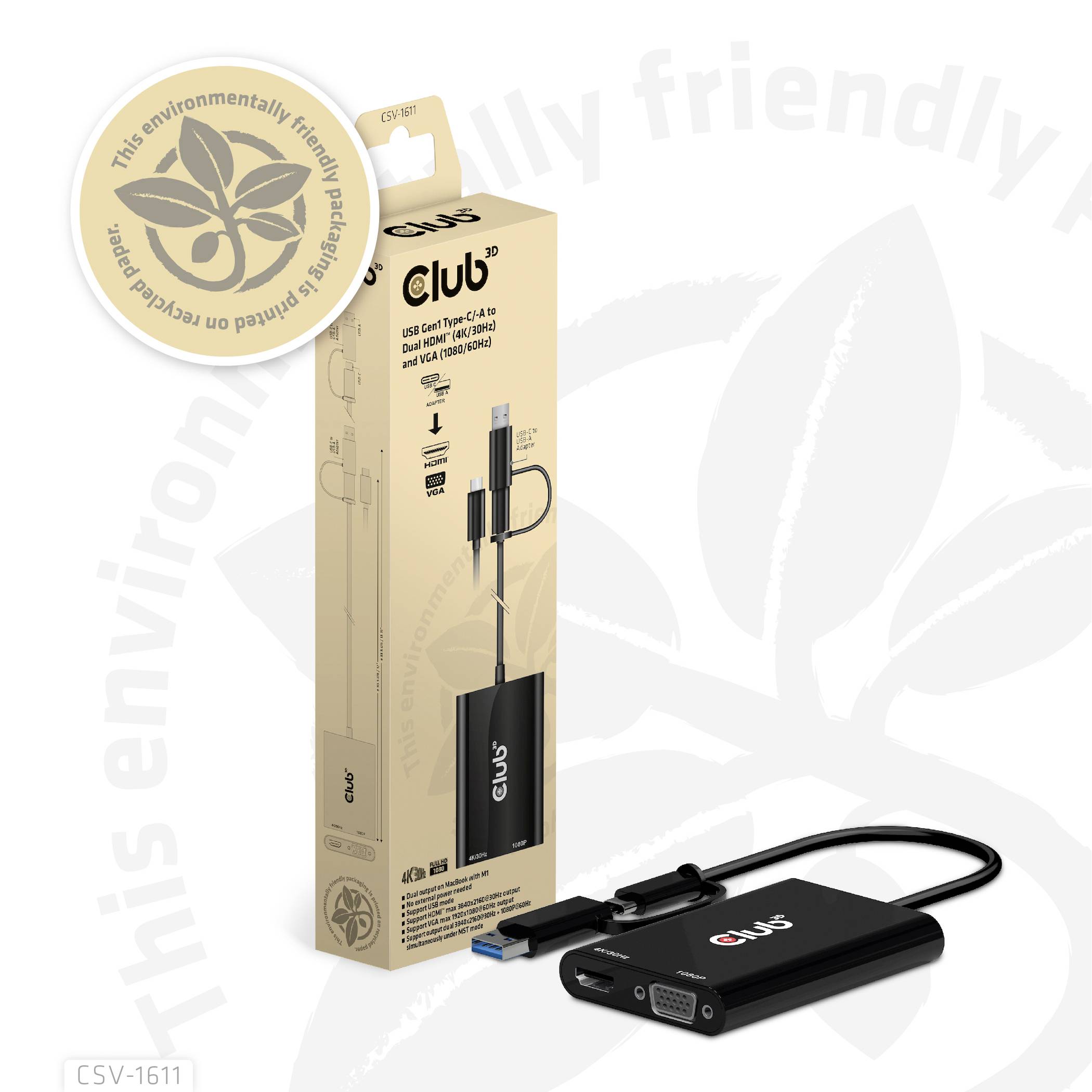

'Club' USB-C Multiport Adapter in Packaging, Compatible with 4K HDMI, USB-A and VGA. Environmentally Friendly Packaging.

1/16

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

club3D USB 1st Gen type C/A to Dual HDMI (4K/30Hz)/VGA (1080/60Hz)

Works with USB Gen1 type A and Type C input
No external power supply required
Supports USB mode
Supports USB Gen1 with max. 5 Gbps data transfer
Double output on MacBook with M1
Supports HDMI™ output at max. 3840x2160@30Hz
Supports the output pixel format RGB/YCbCr4:2:2/YCbCr4:2:0
Supports VGA-output upto 1920x1080@60Hz
Supports the output of Dual 3840x2160@30Hz + 1080P@60Hz simultaneously in the MST mode
Supports the output with 8 bit color depth
Supports HDCP1.4

Technical specifications

Product type: USB 3.2 1st Gen (USB 3.0) Adapter

Connection type: USB-C®
HDMI
VGA

No. of A connectors: 1 x

Type A: USB-A
USB-C®

No. of B connections: 1 x

Type B: HDMI socket
VGA socket

Cable length: 0 mm

Factory colour: Black

Connector version: straight

Cable use: USB 3.2 1st Gen (USB 3.0)

Version: Adapter

Range of use: USB adapters

Cable design: Round

Transfer rate (max.): 5 GBit/s

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3190659 club3D USB 3.2 1st Gen (USB 3.0) Adapter [1x USB-A, USB-C® - 1x HDMI socket, VGA socket] Adapter USB Typ C/A - HDMI / VG

Description

USB Gen1 Type C/-A to Dual HDMI(4K/30Hz) / VGA (1080/60Hz)
The CLUB 3D CSV-1611 USB Gen1 Type-C/-A to Dual HDMI™ (4K/30Hz) and VGA (1080/60Hz) adapter is a Dual display adapter that offers the most advanced and efficient solution for extending a single USB Type-C or Type-A port to HDMI™ and VGA displays. It supports single HDMI™ 4K/30Hz and VGA 1080P/60Hz or dual 4K/30Hz + VGA 1080P/60Hz simultaneous output of various videos. It can work in USB mode and DP Alt mode and supports Type C and USB-A devices. Dual video output on MacBook with M1. Supports USB Gen1 with max. 5 Gbps data transfer. The device is powered via the USB Type-A or Type-C host connection. Do not Require external current supply
