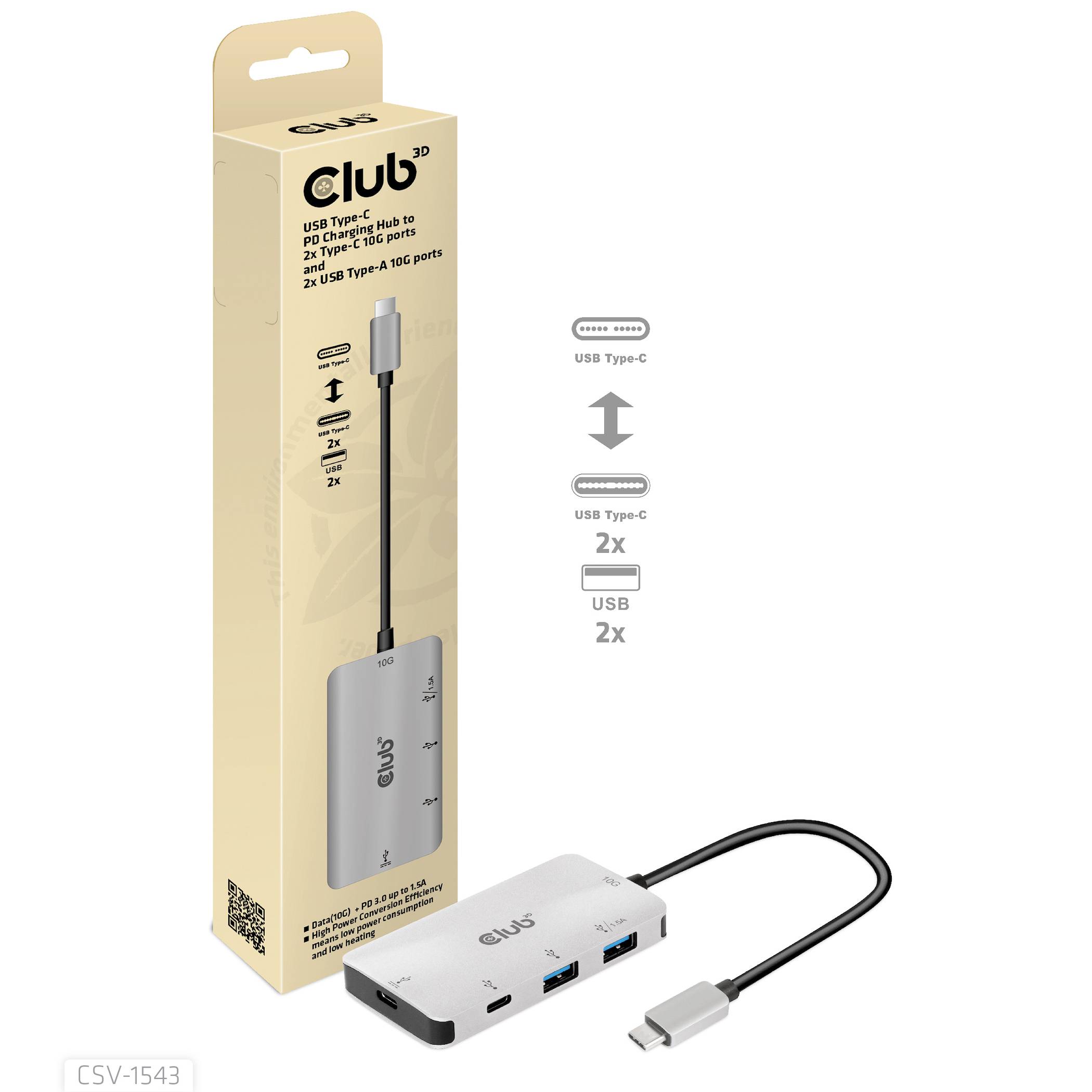

Club 3D USB Type-C Hub with USB Type-A Ports, Supporting Power Delivery up to 100W. Product is Made of Metal, Packaging Displays Specifications.

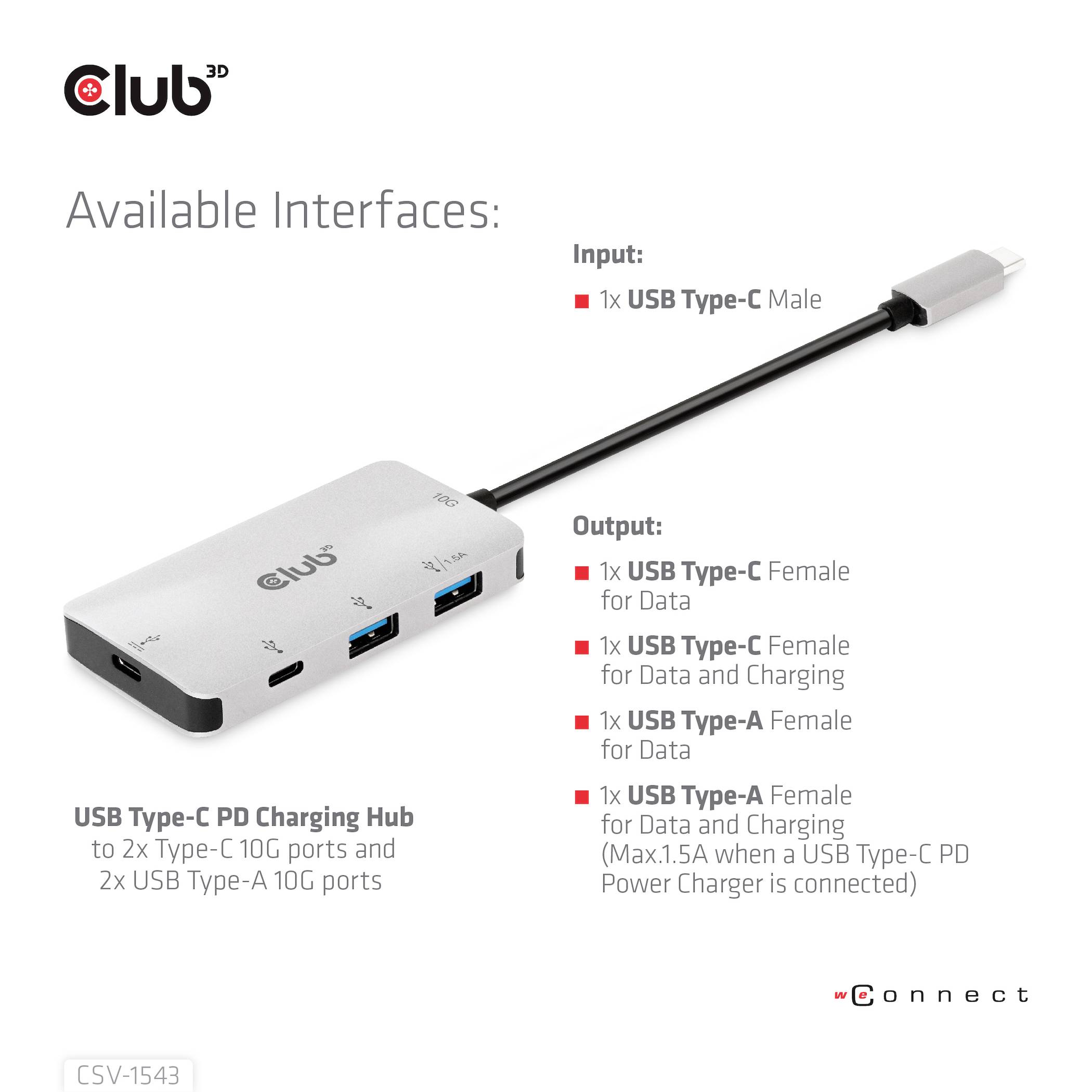

'USB Type-C PD Charging Hub with 2x USB-C 10G and 2x USB-A 10G Ports. Inputs and outputs listed. Suitable for data and charging.'

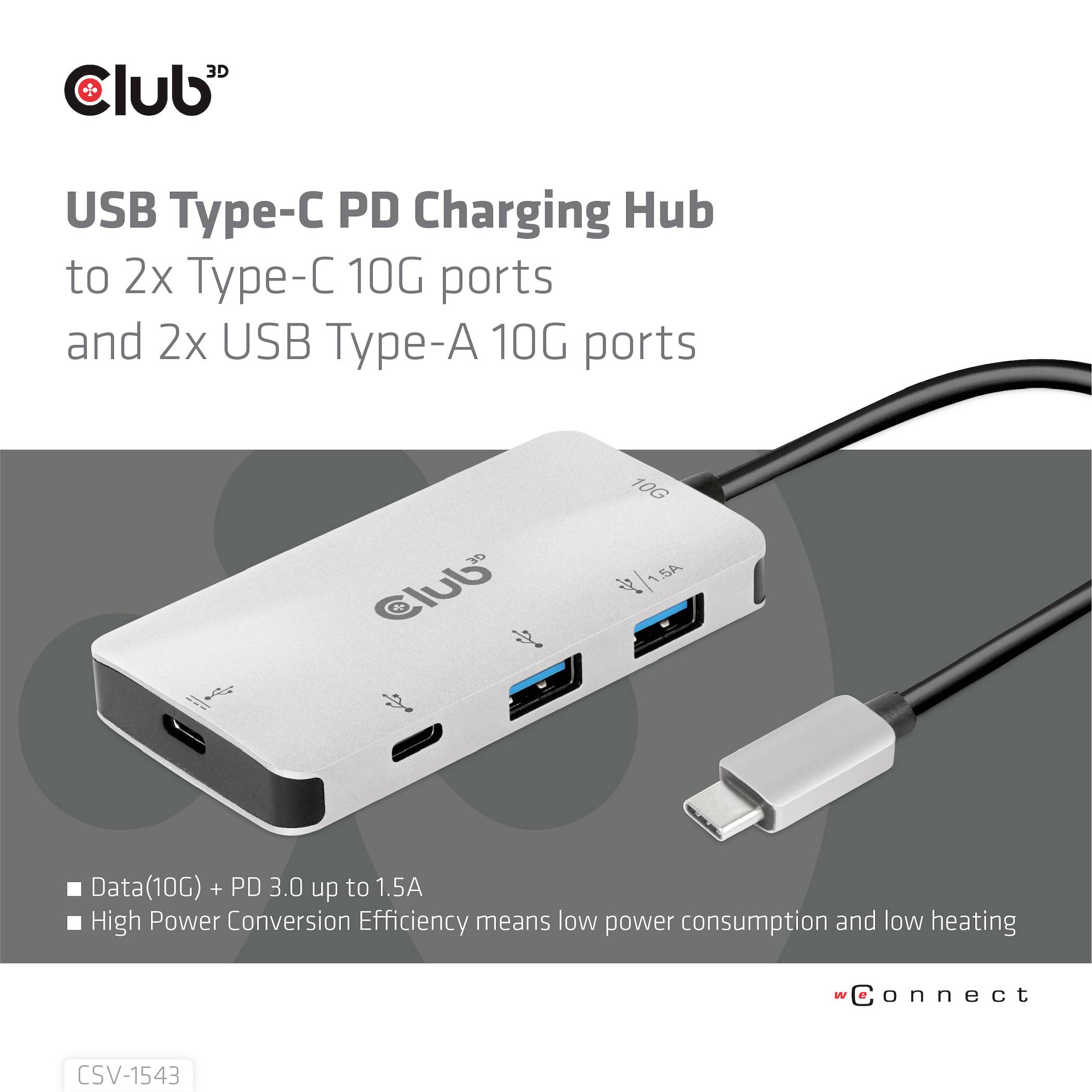

'USB Type-C PD Charging Hub with 2 Type-C and 2 USB Type-A 10G Ports. Offers fast data transfer and efficient power consumption.'

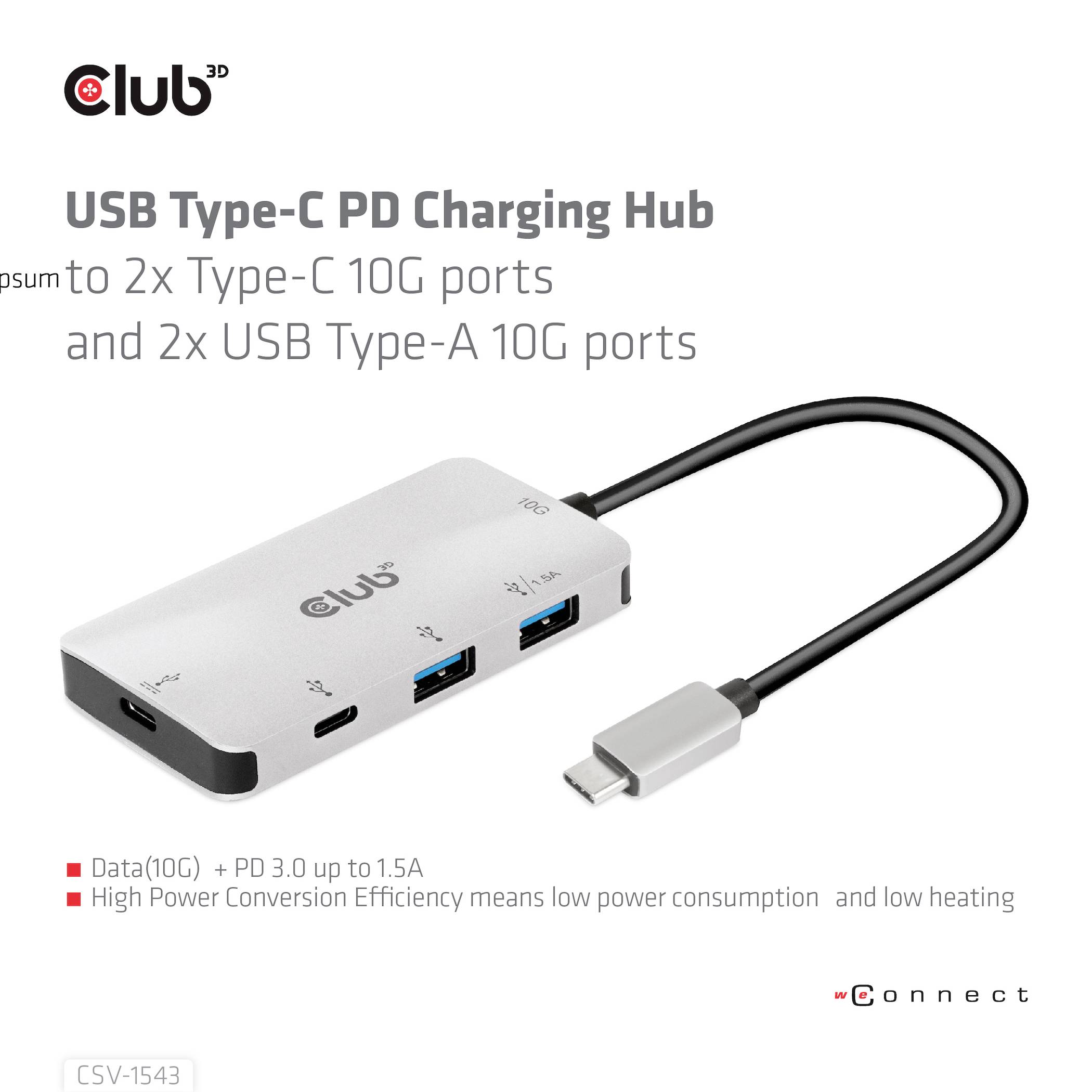

USB-C 10Gbps Charging Hub with two Type-C and two Type-A Ports. Supports fast charging and low heat generation. Grey design.

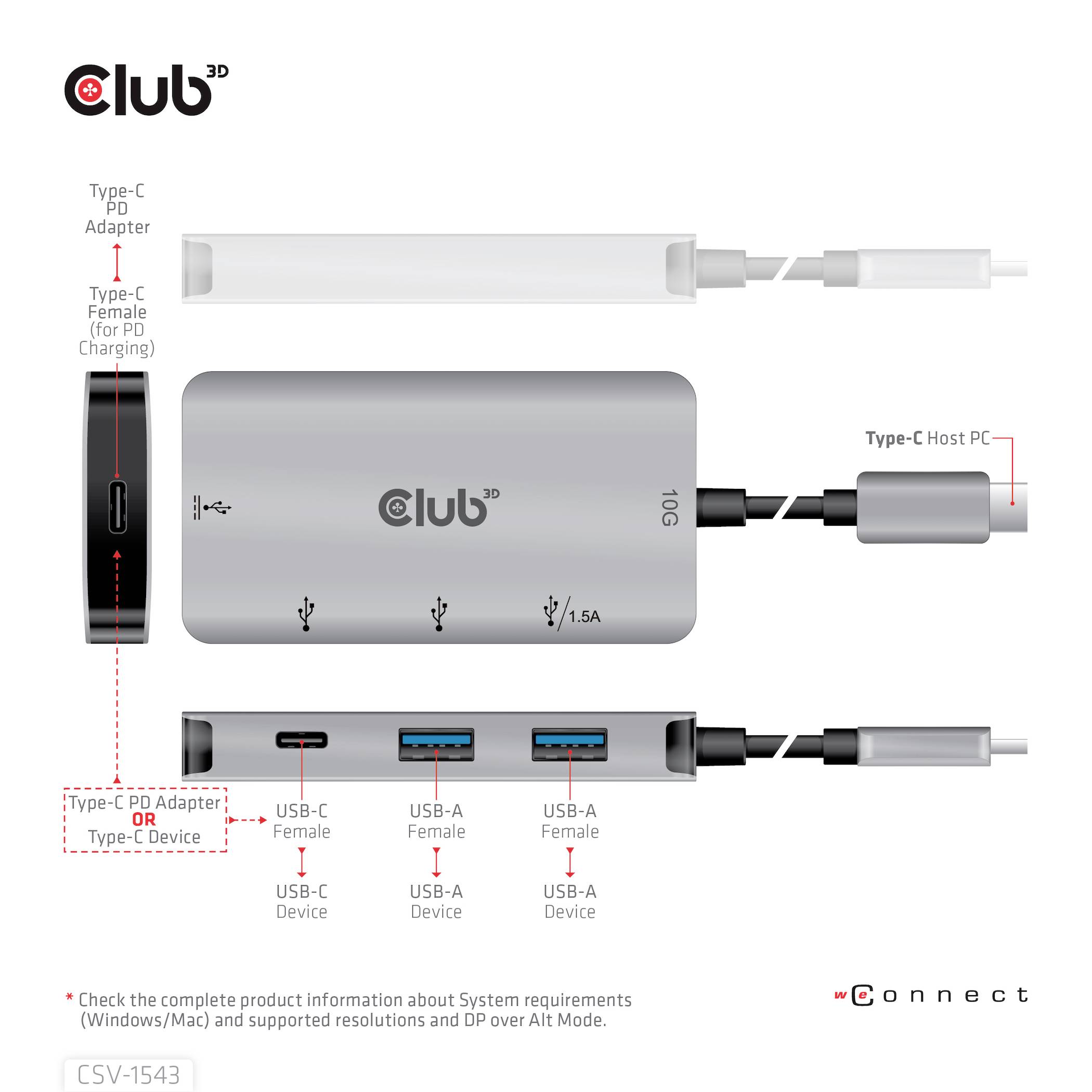

Multi-port adapter for laptops showing USB-C, USB-A, HDMI ports and charging options. Compatible with Windows and Mac.

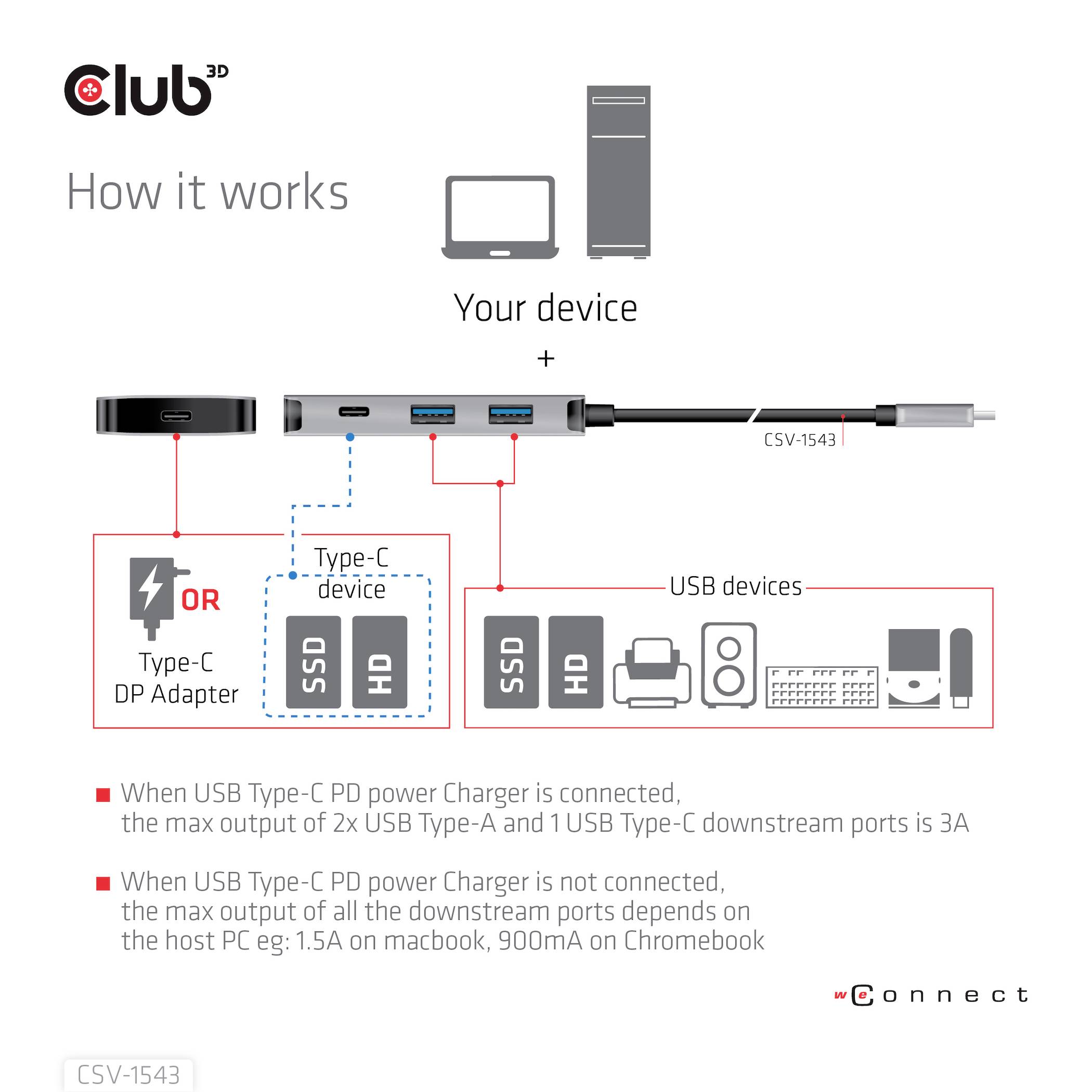

'How it works': Connection of USB Type-C PD Power Charger and Devices (Laptop, Mobile Phone, SSD). Current varies depending on the device.

1/6

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

club3D USB Gen2 Type-C PD Charging Hub to 2x Type-C 10G ports and 2x USB Type-A 10G ports

Highlights & Details

Host interface USB 3.2 1st Gen 2 (3.1 Gen 2) Type-C
USB Power Delivery
Plug & Play

Technical specifications

Product type: USB 3.2 1st Gen (USB 3.0) Adapter

Connection type: USB-C®
USB 3.2 Gen 2 (USB 3.1)

No. of A connectors: 1 x

Type A: USB-C® plug

No. of B connections: 2 x

Type B: USB-C®
USB 3.2 2nd Gen (USB 3.1)

Cable length: 0 mm

Factory colour: Grey

Connector version: straight

Cable use: USB 3.2 1st Gen (USB 3.0)

Version: Adapter

Range of use: USB adapters

Cable design: Round

Transfer rate (max.): 10 GBit/s

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3190647 club3D USB 3.2 1st Gen (USB 3.0) Adapter [1x USB-C® plug - 2x USB-C®, USB 3.2 2nd Gen (USB 3.1)] Adapter USB 3.1 Typ C 0

Description

USB Gen2 Type-C PD Hub at 2x Type-C 10G Ports and 2x USB Type-A 10G Ports
The Club 3D CSV-1543 is a USB Gen2 Type-C PD charging hub on 2x Type-C 10G ports and 2x USB Type-A 10G ports. The two type A ports are intended for data transfer and one of them can charge the connected USB type A devices (mobile phones, tablets, U-disc, etc.) with 1.5 A. One of the two USB-C ports is designed for data transfer and charging of the connected USB-type-C device. The other USB-type C port supports both data transfer and PD3.0 charging. It can be used on any type C USB host (PC, notebook, tablet, mobile phone, etc.) that supports Power delivery 3.0.
High power conversion efficiency means low power consumption and low heating 98.2%@Vin=5V; 92.5% @Vin=20V.
Advanced Power management. The power supply via the outputs will guarantee continuous operation of USB-Type-A SSD and U-Disk if the Vin is between 5;20V, so that the connected USB product is not disconnected when the PD charger is plugged into the USB Type-C charging port and removed.
The supported USB device power is 1.5A @PD3.0 product

This text is machine translated.

Features

High power conversion efficiency, means low power consumption and low heating , 98.2%@Vin=5V, 92.5% @Vin=20V
Advanced Power management
Supports fast role swap (roll exchange) in PD 3.0
Supports USB-Type-C input, 2x USB-Type-C + 2x USB-Type-A output
Compliant with USB 3.1 specification and backward compatible with older versions

Hints

Note:

1) If the power of the connected USB device is higher than the current listed above, the USB device is disconnected and reconnected in a few seconds when the PD charger is connected.

2) When working on a PD 2.0 supported host PC, the connected USB type A device is disconnected when the USB type C-PD charger is disconnected and reconnected in a few seconds.

Support for Fast Role Swap (roll replacement) on PD 3.0:

The connected device is not disconnected when connecting and disconnecting the PD charger when working on a PD 3.0 device
