club3D USB 3.2 1st Gen (USB 3.0) Adapter [1x USB-C® plug - 4x USB-C® socket] USB-Hub Typ C 0 cm Slimline
EAN:
Part number:
Item no:
Highlights & Details
club3D CSV-1548 interface hub
- 1x USB Type-C connection (with RED lining) supports 10Gbps data transfer and PD3.0 charging max. 100 watts (20V/5A)
- 3x USB type-C supports:
- USB3.1 Gen2 10 Gbps data transfer
- Supports max. 5V/1.5A(7.5Watt) downstream charging, total for these 3 ports 5V/2.4A(12Watt)

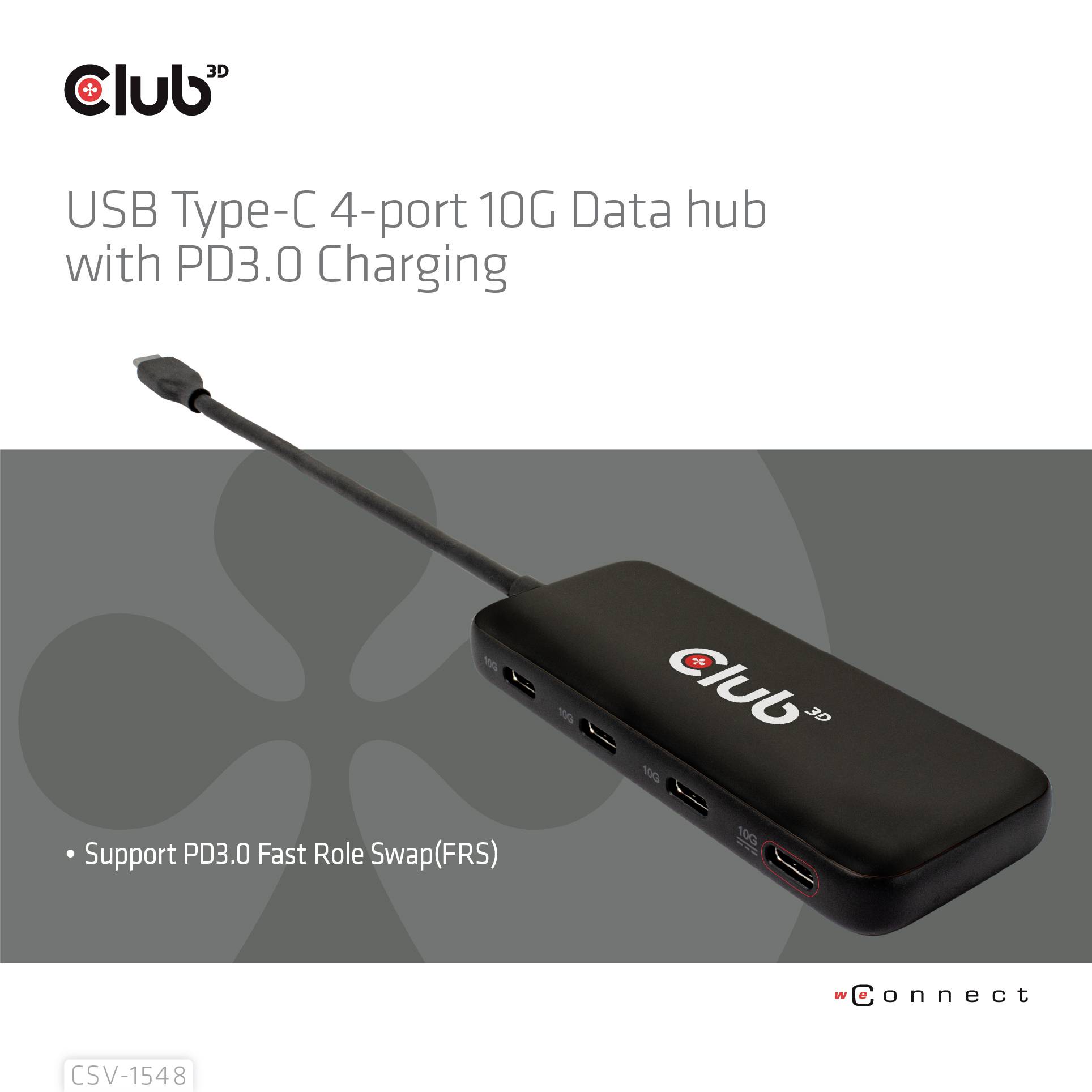

- Supports PD3.0 Fast Role Swap (FRS)
- Supports Plug & Play
- DOES NOT support video
- Compact & slim design
Technical specifications
- Product type
USB 3.2 1st Gen (USB 3.0) Adapter
- Connection type
USB-C®
- No. of A connectors
1 x
- Type A
USB-C® plug
- No. of B connections
4 x
- Type B
USB-C® socket
- Cable length
0 cm
- Factory colour
Black
- Connector version
straight
- Cable features
Slimline
- Cable use
USB 3.2 1st Gen (USB 3.0)
- Version
Adapter
- Range of use
USB adapters
- Cable design
Round
- Max. power
100 W @ 20 V / 5.0 A
- Transfer rate (max.)
10 GBit/s
- Video transmission possible
No
- Weight
0.089
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3190673 club3D USB 3.2 1st Gen (USB 3.0) Adapter [1x USB-C® plug - 4x USB-C® socket] USB-Hub Typ C 0 cm Slimline
Description
USB Type-C 4-Port 10G Data Hub with PD3.0 charging function
The Club 3D CSV-1548 USB Type-C 4-port 10G data with PD3.0 charging hub is compact and enables extremely fast data to be connected via virtually all peripheral devices for data transfer, including phones/tablets. The hub is backward compatible with both new Gen2 USB peripherals and older USB devices, maximum data transfer rates up to 10Gbps (1280MB/s). Extended connection for existing devices, such as hard disk, SSD, USB flash, mouse, keyboard and/or printer. The hub also supports charging with Power delivery 3.0 via 1 port.
This text is machine translated.
Hints
This hub ONLY supports data and PD3.0 load
