club3D USB Adapter [1x HDMI socket, Micro USB - 1x USB-C® socket] Adapter HDMI + MicroUSB - USB-C 1 m
EAN:
Part number:
Item no:
Highlights & Details
club3D HDMI + Micro USB to USB Type-C 4K120Hz or 8K30Hz M/F Active Adapter
- 1 m).
- HDMI + USB Straight Male
- USB Type-C Straight Female
- 7680 x 4320 pixels 30 Hz
- Black
- 1 pieces(s)
Technical specifications
- Product type
USB Adapter
- Connection type
HDMI
USB-C®
- No. of A connectors
1 x
- Type A
HDMI socket
Micro USB
- No. of B connections
1 x
- Type B
USB-C® socket
- Cable length
1 m
- Factory colour
Black
- Connector version
straight
- Cable use
USB
- Version
Adapter
- Range of use
USB adapters
- Cable design
Round
- Weight
0.093
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3190661 club3D USB Adapter [1x HDMI socket, Micro USB - 1x USB-C® socket] Adapter HDMI + MicroUSB - USB-C 1 m
Description

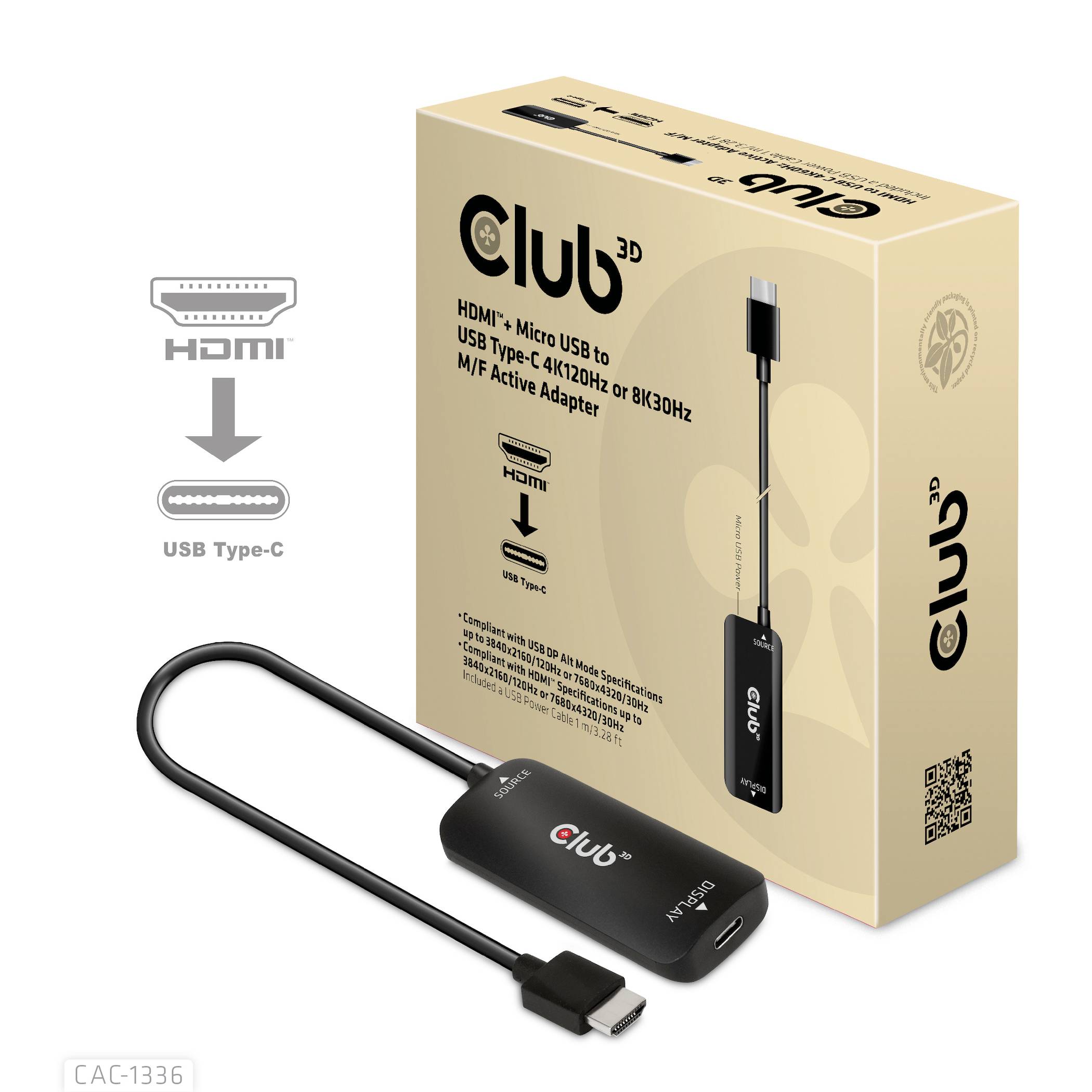

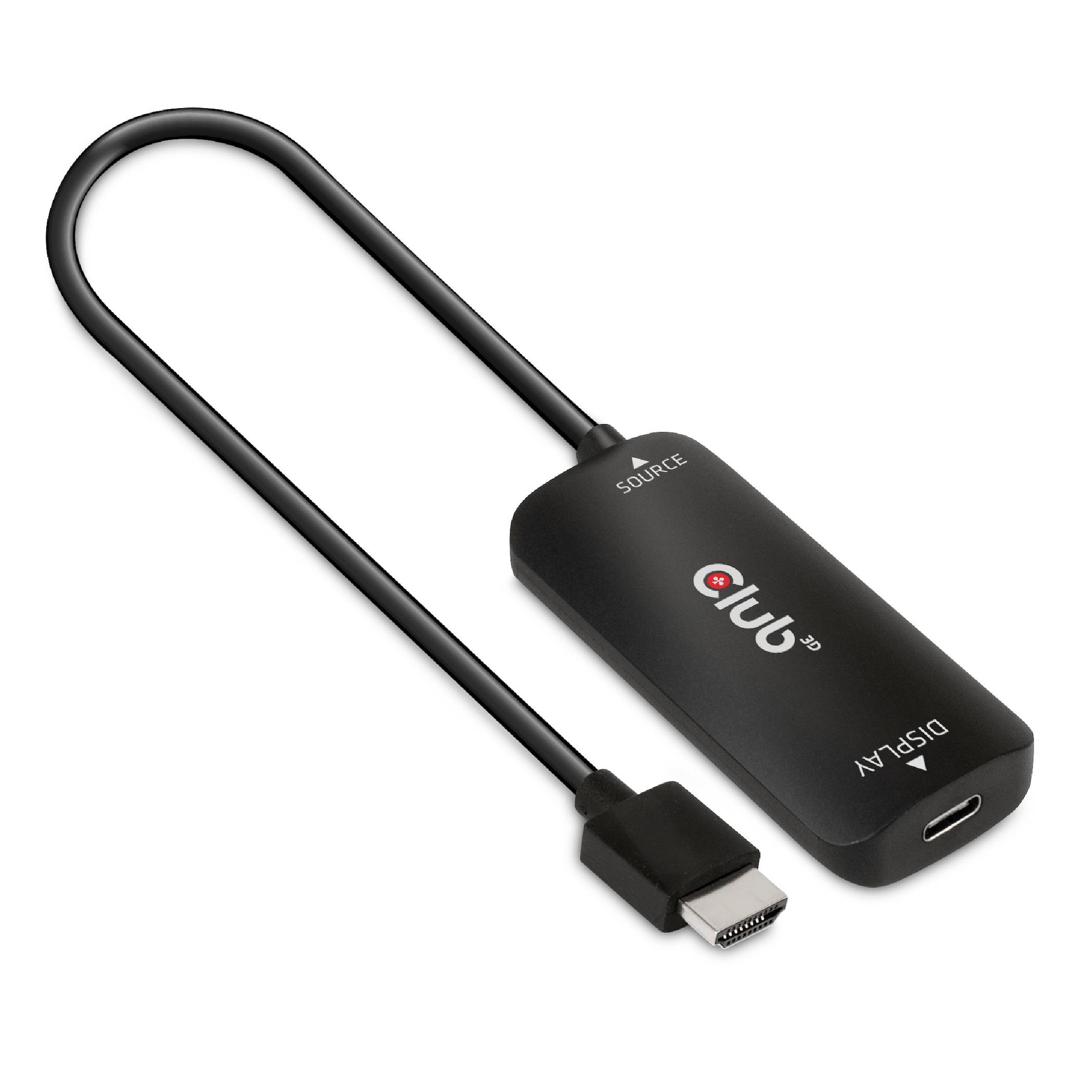

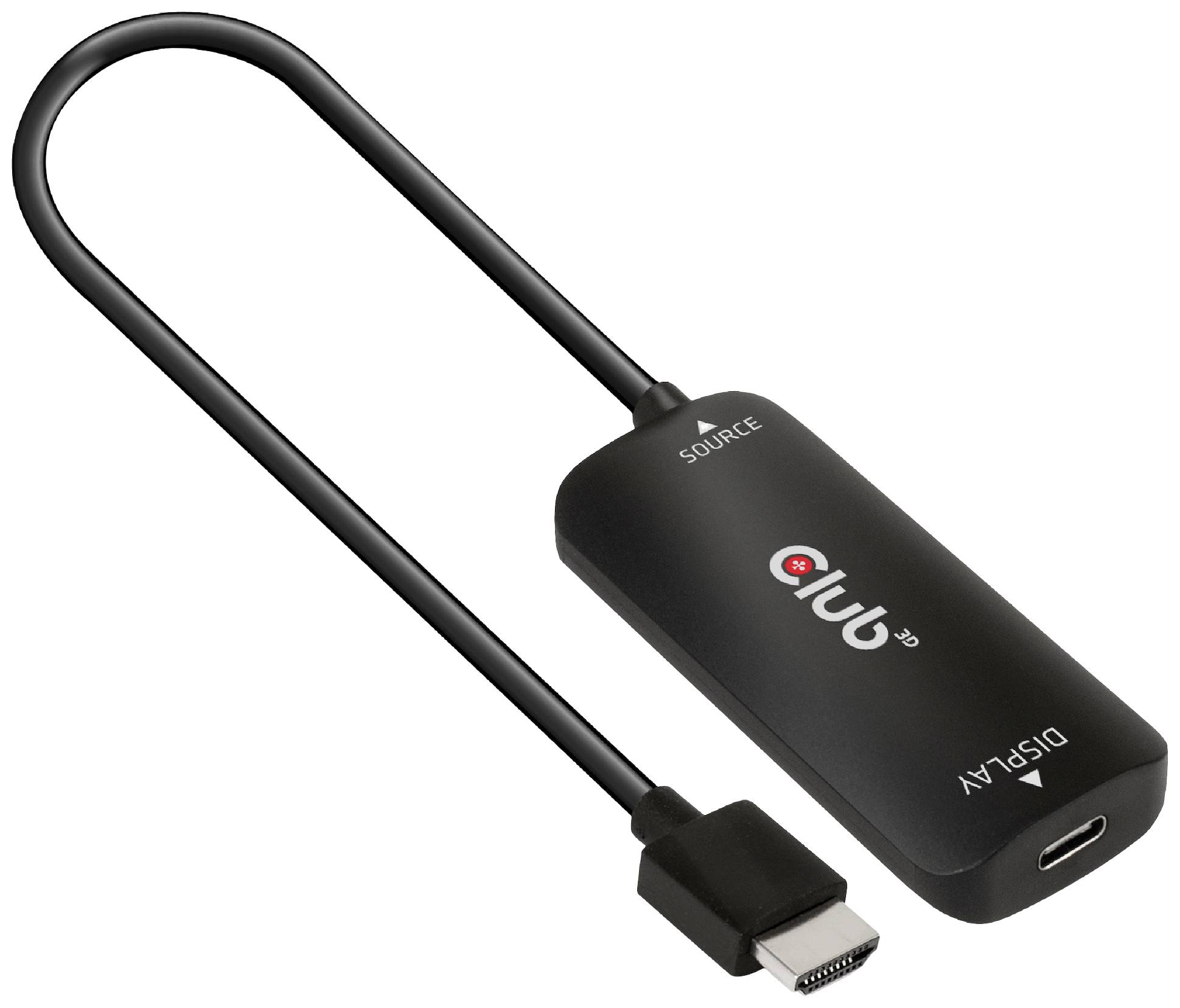

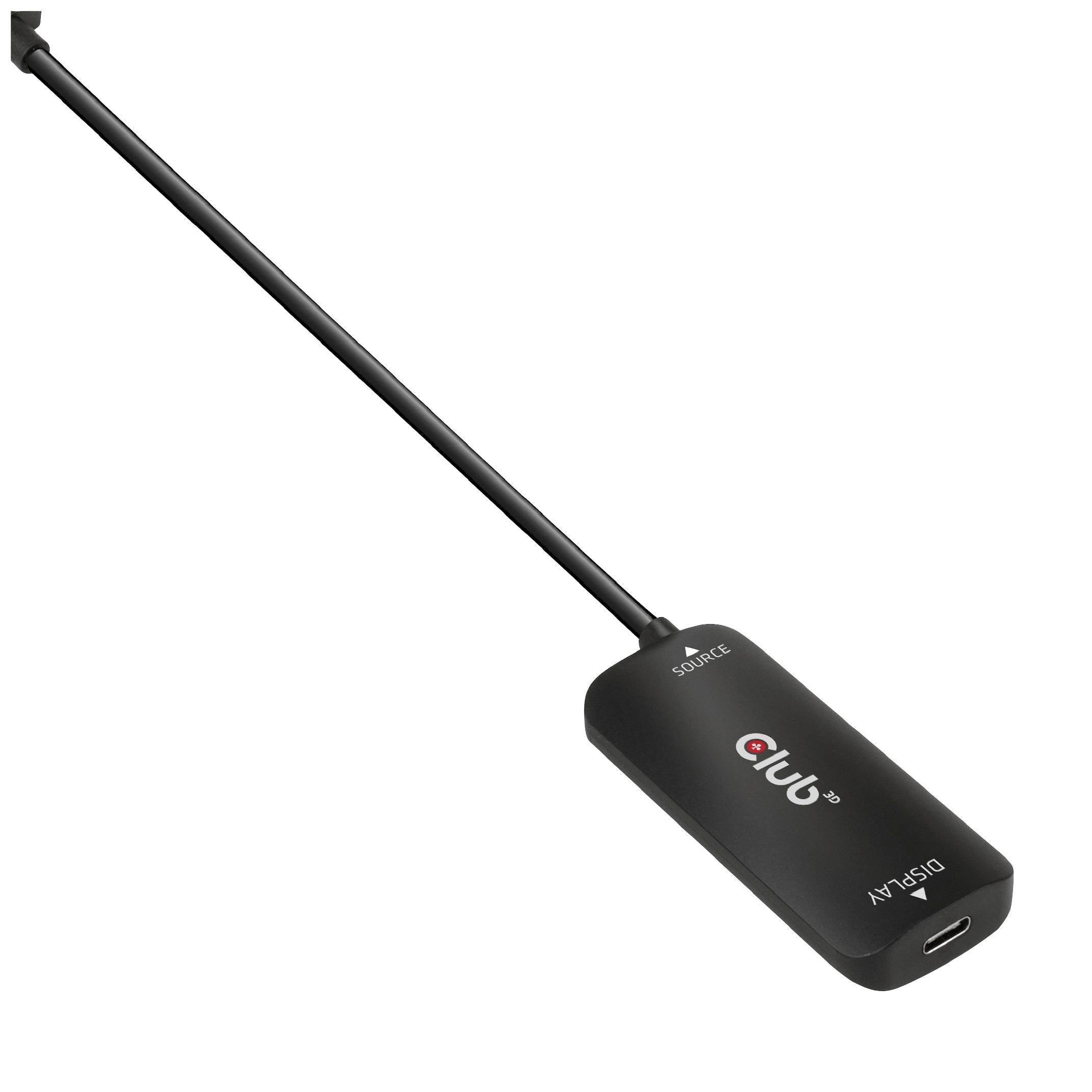

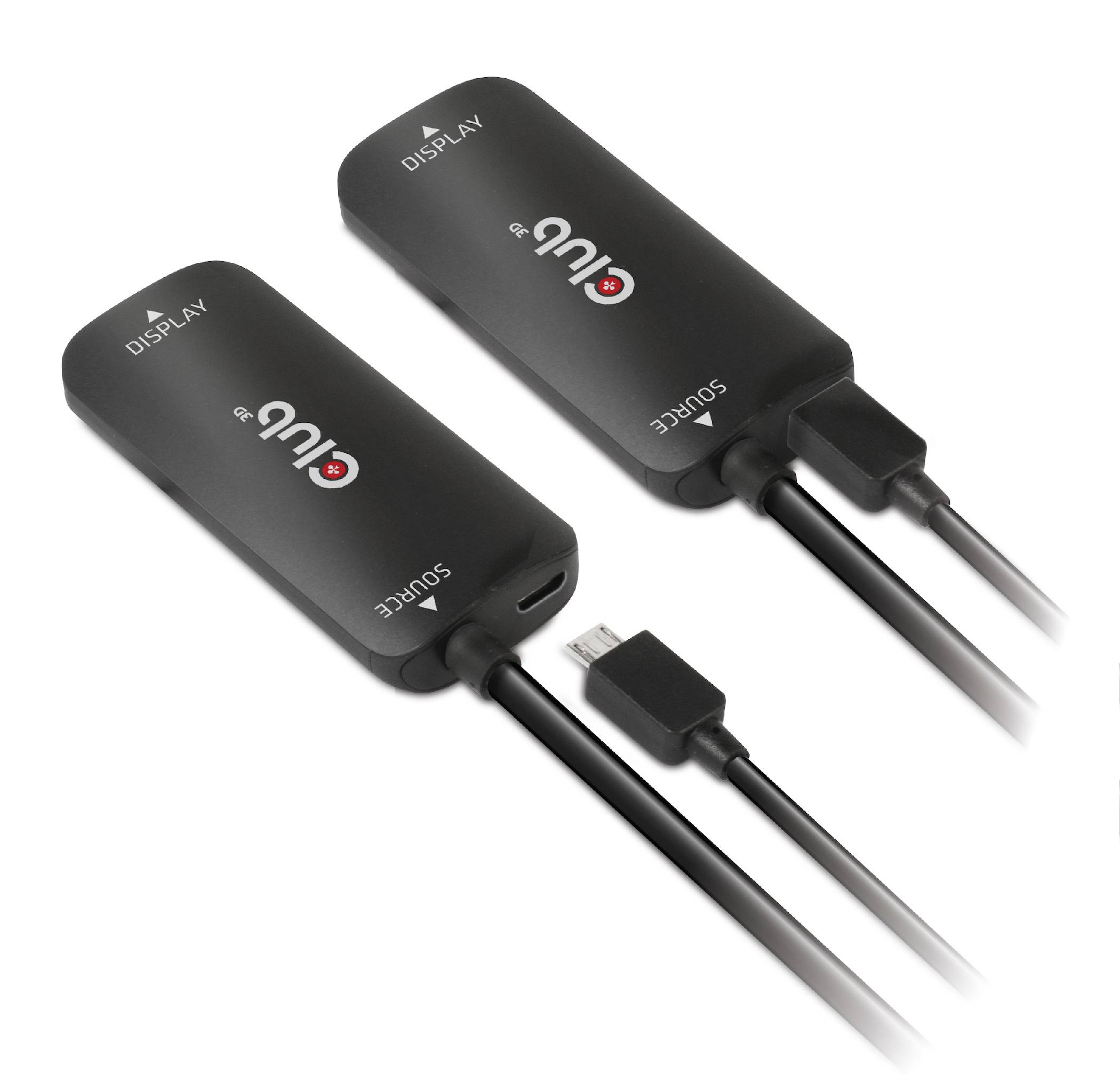

HDMI + Micro USB to USB Type-C 4K120Hz or 8K30Hz M/F Active Adapter
The Club 3D CAC-1336 is the perfect solution for connecting a USB Type C 8K30Hz or 4K120Hz capable display from an HDMI™ source that supports these resolutions/specifications.
If you have a PC or other device that does not support the new USB Type-C 8K30Hz or 4K120Hz specifications, the club3D CAC-1336 is the easy way to connect an HDMI source device to a USB Type-C 4K120Hz or 8K30Hz display (provided the source supports these resolutions).

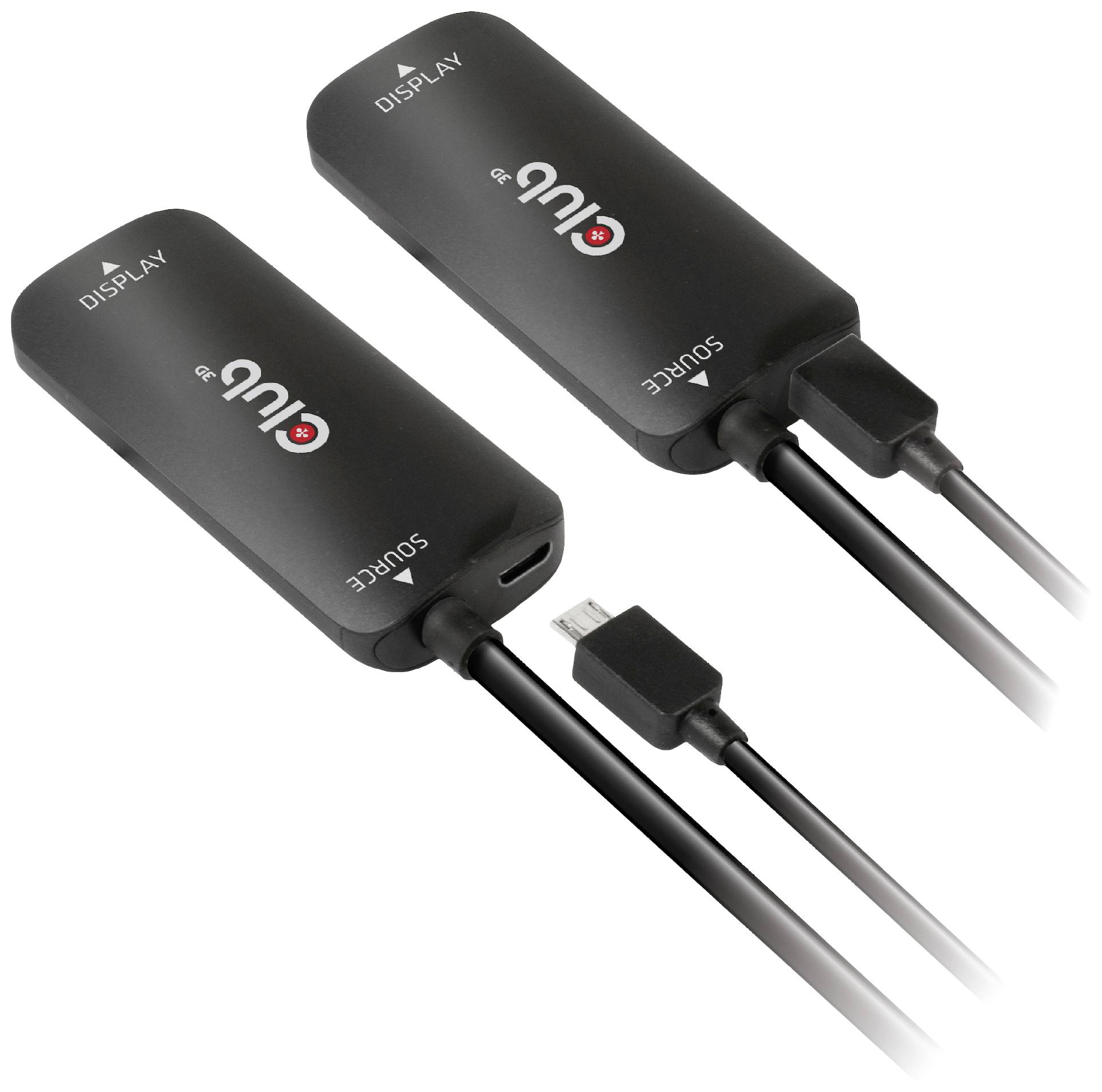

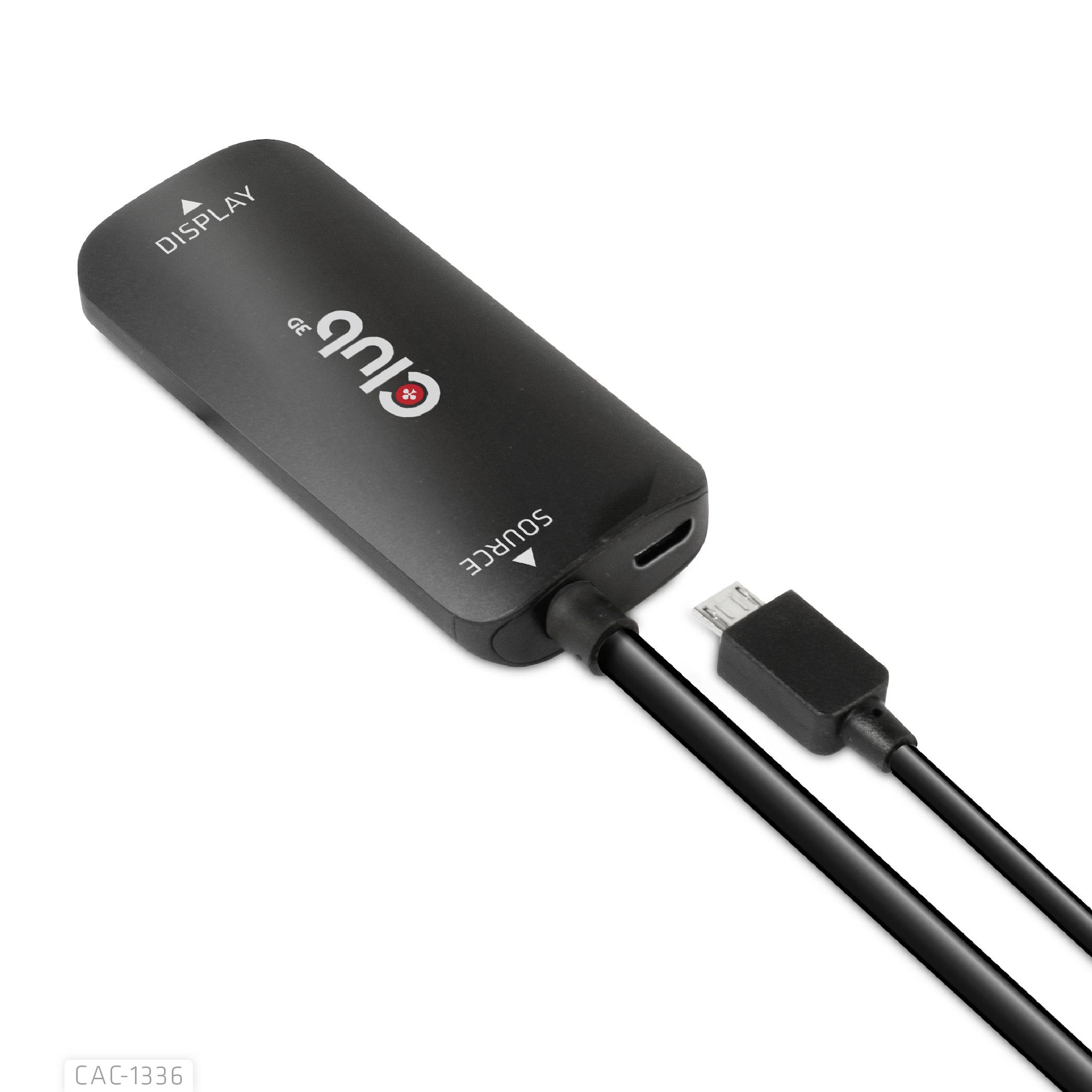

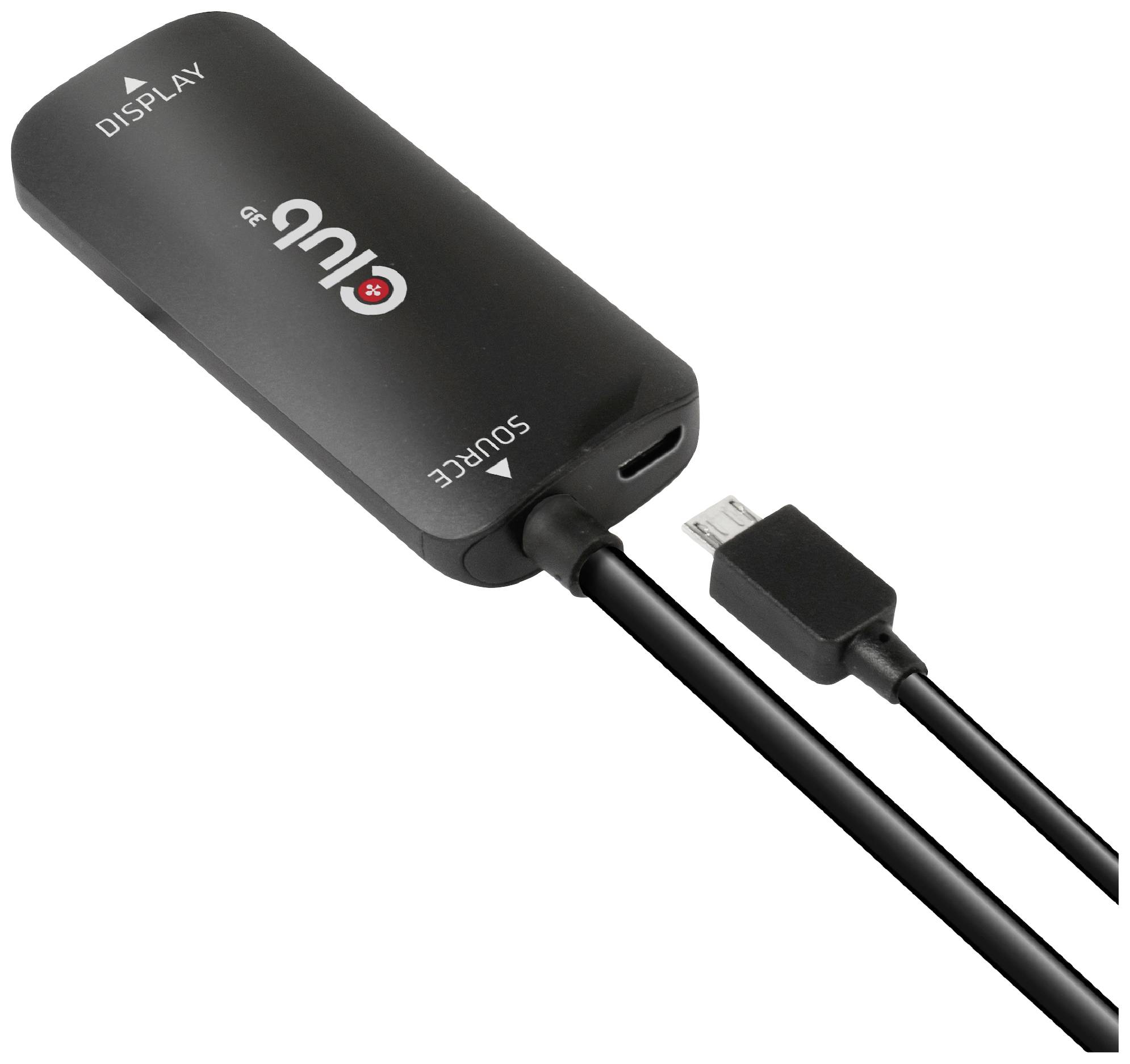

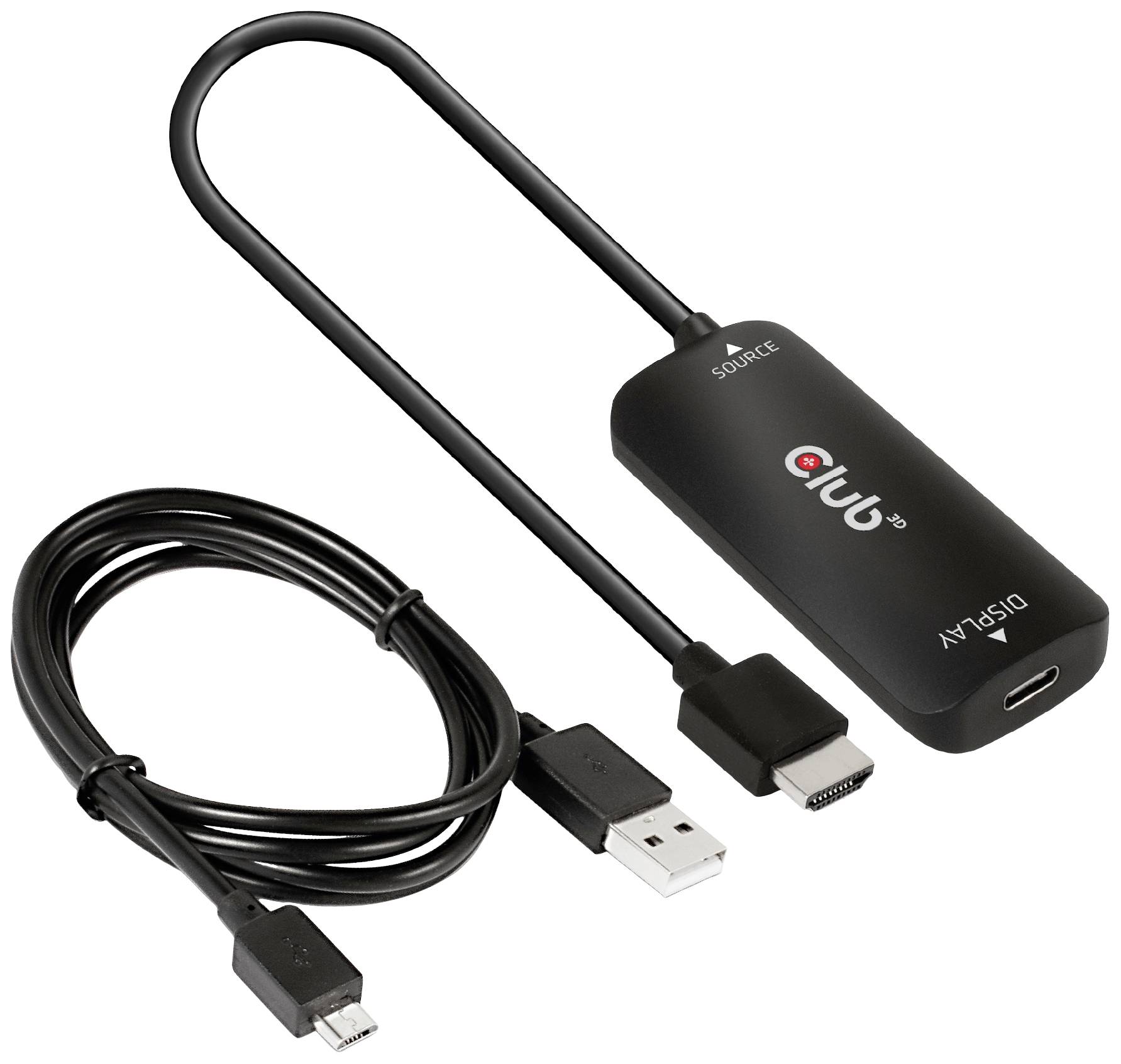

The adapter is powered by a micro USB connection (5V/1.5A). A USB type-A to Micro USB St/St 1m is included in the box.
This text is machine translated.
Features
- Compliant with USB DP Alt Mode Specifications up to 3840x2160/120Hz or 7680x4320/30Hz
- Compliant with HDMI™ specifications up to 3840x2160/120Hz or 7680x4320/30Hz
- Supports maximum resolutions/refresh rates up to 4K120Hz or 8K30Hz
- The adapter is supplied with power separately via a micro USB connection, 7.5 W (5V/1.5A)

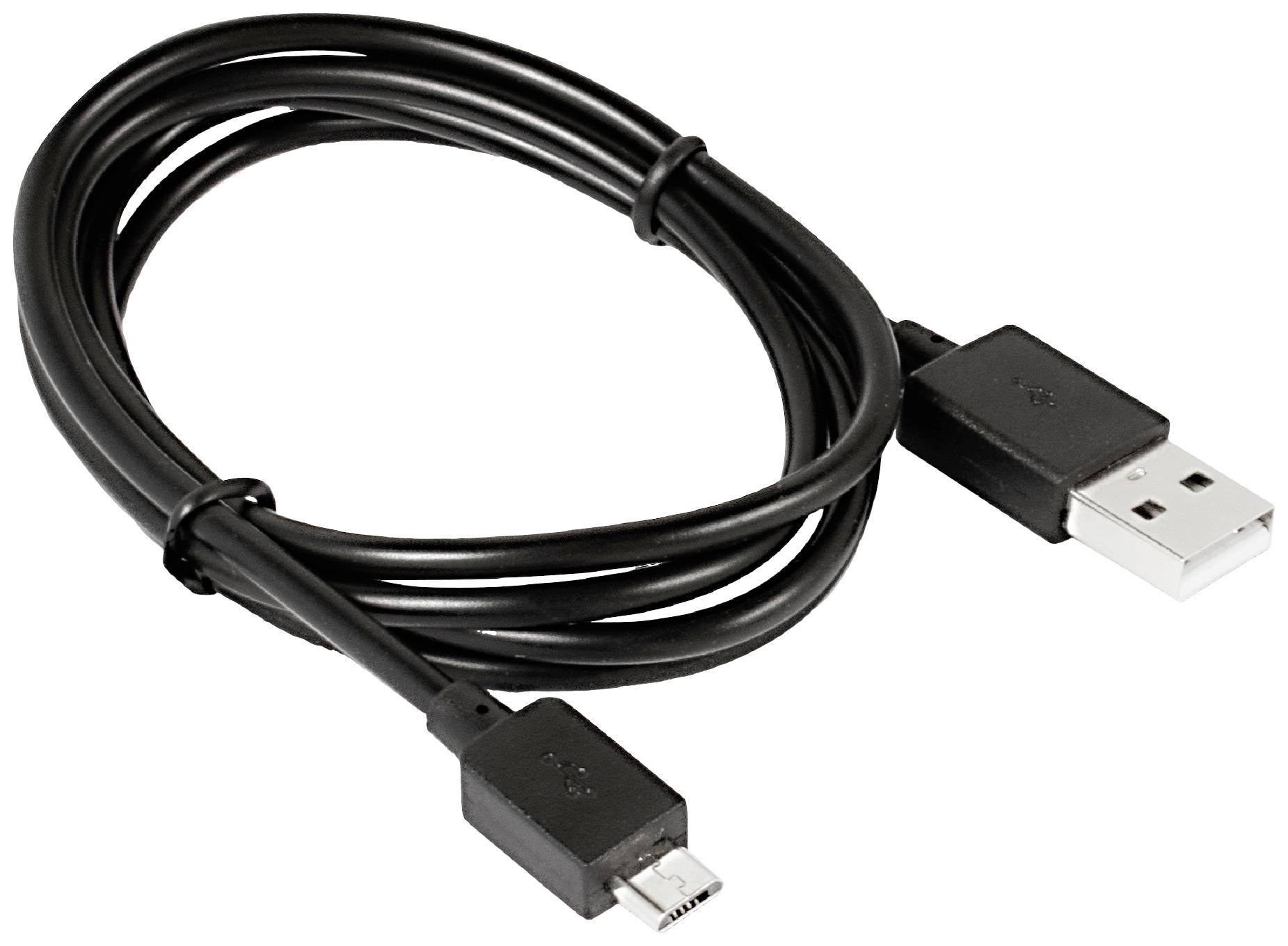

- USB type A to micro USB M/M cable (1 m) is included
Hints
Note: This adapter only works with USB type C displays with their own power supply!
Please use one of the certified Club 3D extension/adapter cables to connect to your devices. For optimal use of this adapter, we strongly recommend using the CAC-1576 or CAC-1571 cables.
