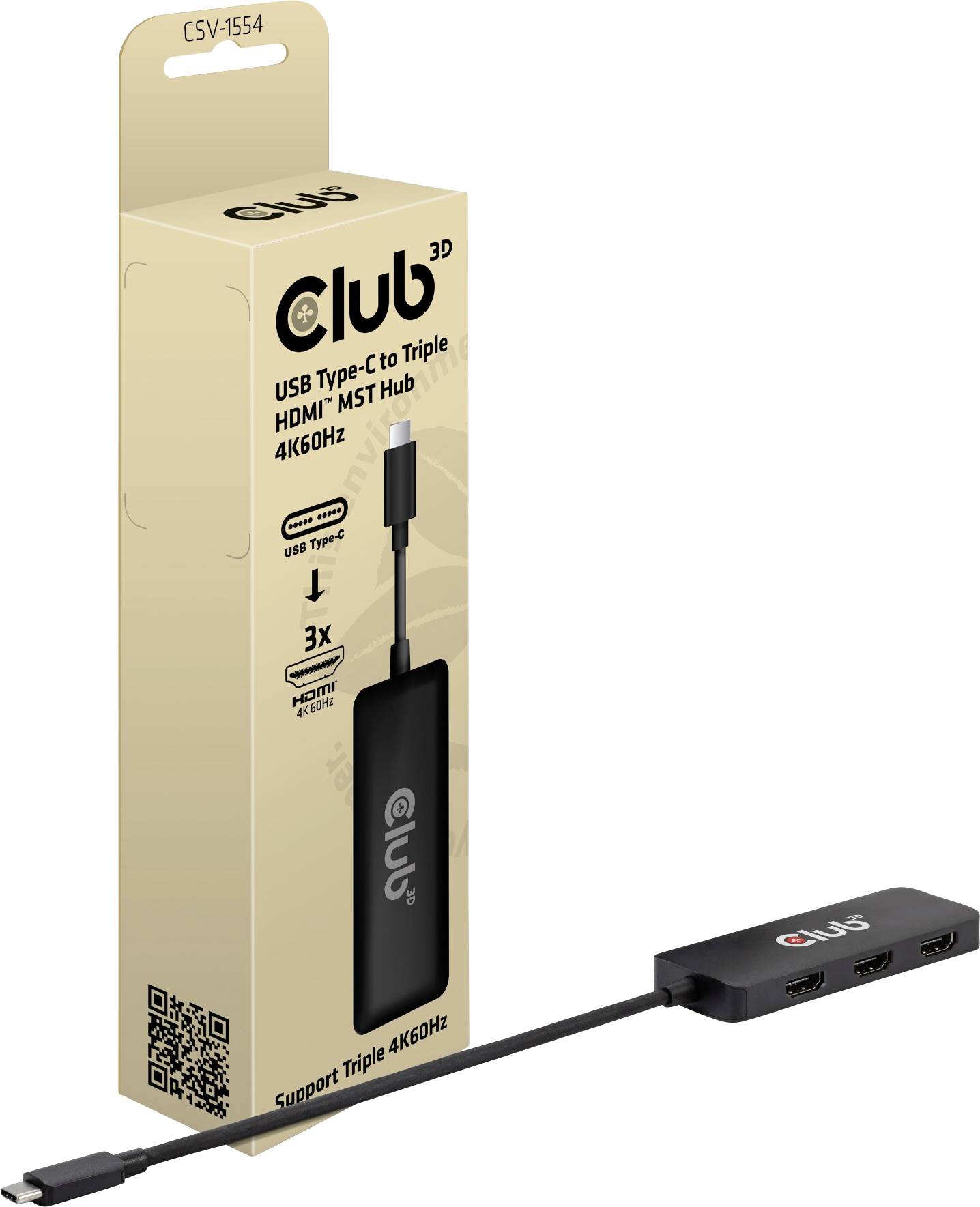

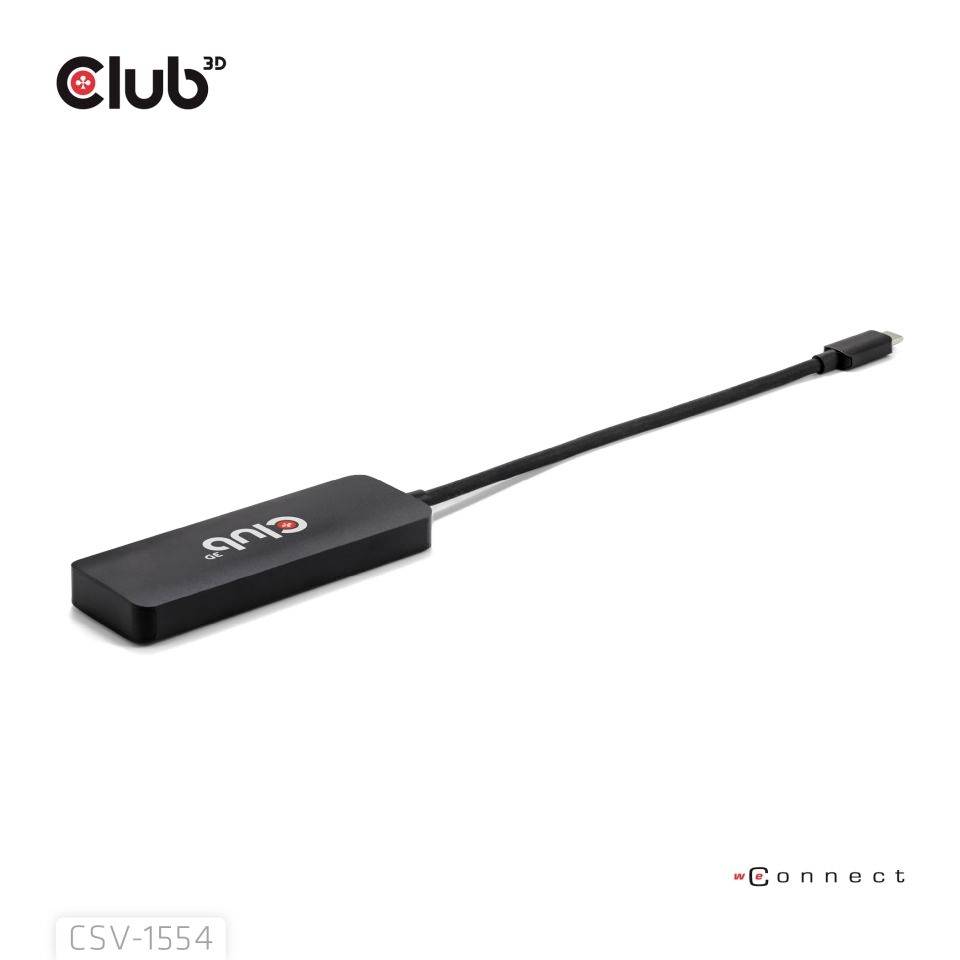

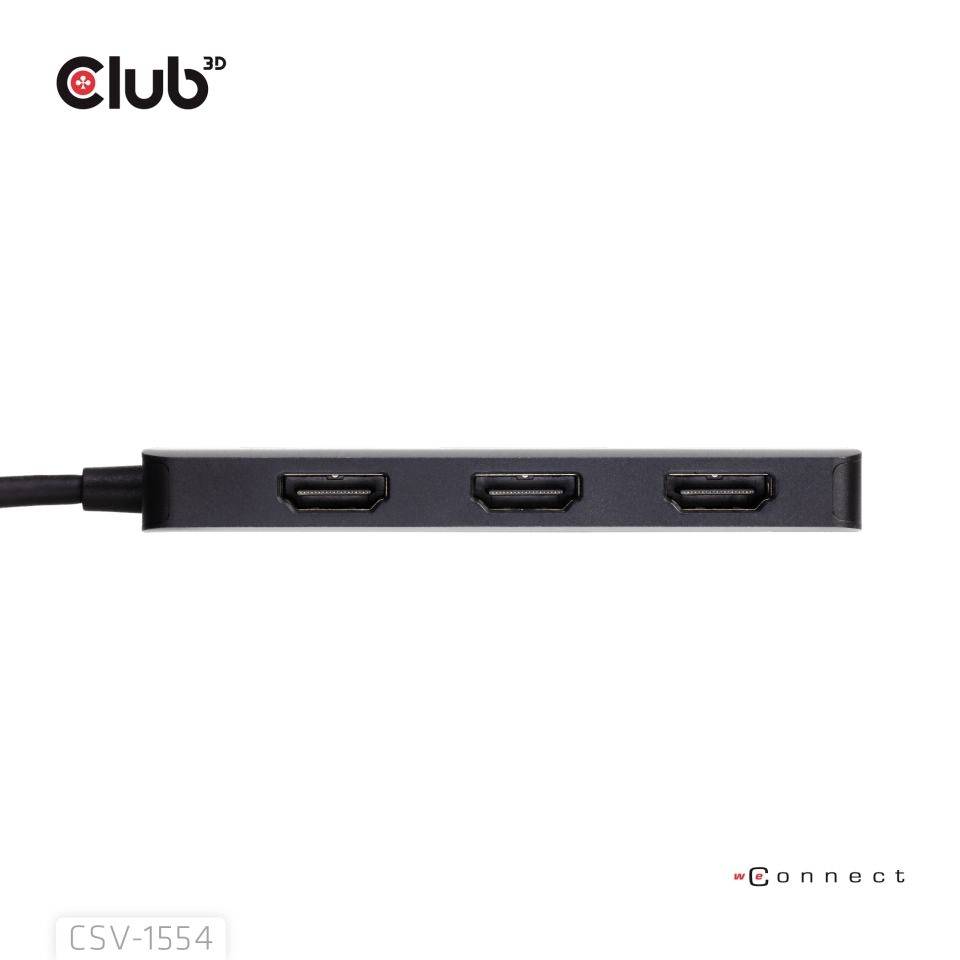

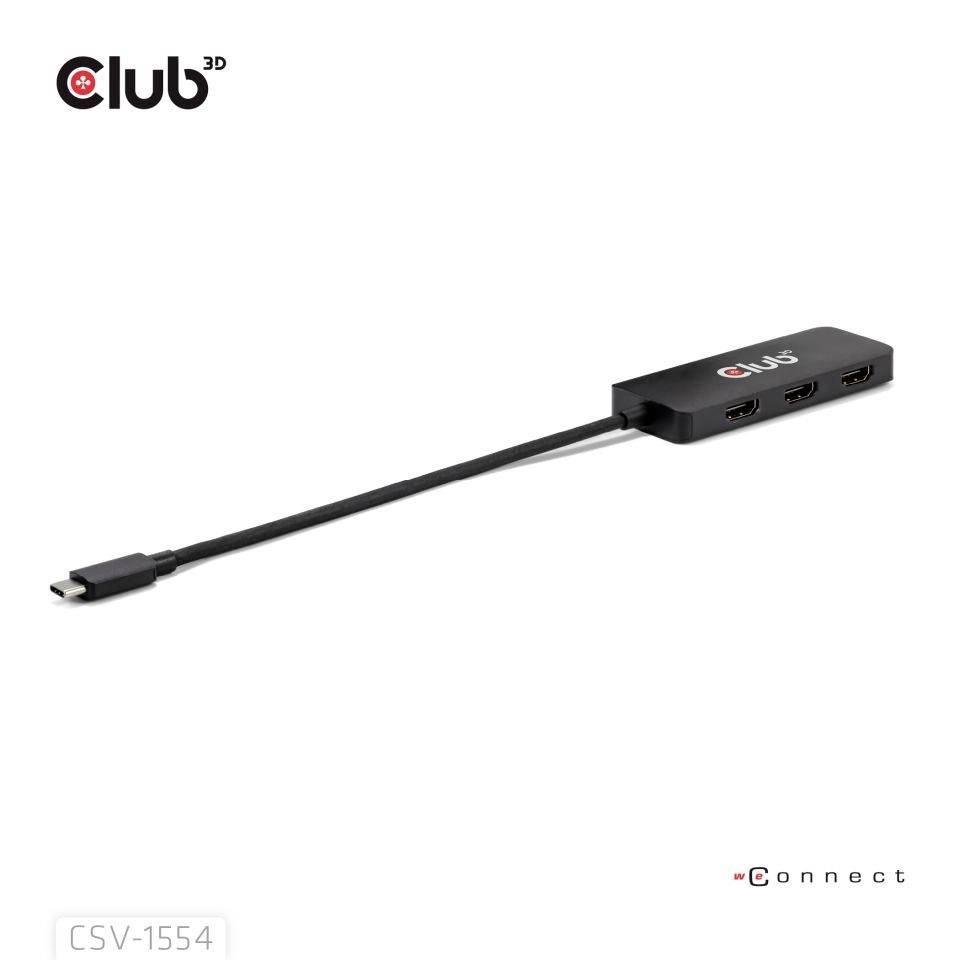

club3D USB-C® Adapter [1x USB-C® plug - 3x HDMI socket] CSV-1554 0.17 m
EAN:
Part number:
Item no:
club3D CSV-1554 interface hub USB Type-C black
Highlights & Details
- Host interface: USB Type-C.
- Hub interfaces: HDMI
- Number of connections: 3
- HD type 8K ultra HD 144 Hz
Technical specifications
- HD type 8K Ultra HD
- Cable type: Round cable
- Other operating systems support: ChromeOS
- Product type
USB-C® Adapter
- Connection type
USB-C®
- No. of A connectors
1 x
- Type A
USB-C® plug
- No. of B connections
3 x
- Type B
HDMI socket
- Cable length
0.17 m
- Factory colour
Black
- Cable use
USB-C®
- Version
Adapter
- Range of use
USB adapters
- Frame rate
144 Hz
- No. of HDMI ports
3 x
- HDR support
Yes
- Supported monitors
3
- Weight
53 g
- UKCA
yes
- Ports quantity
3
- Maximum resolution (HDMI)
7680 x 4320 p
- USB Type-C DisplayPort Alternate Mode
yes
- HDCP
yes
- Package weight
103 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3361842 club3D USB-C® Adapter [1x USB-C® plug - 3x HDMI socket] CSV-1554 0.17 m
Description
The CSV-1554 is an MST hub for HDMI™. This USB-C MST hub is designed to meet your most versatile connectivity requirements, such as mobile phone, tablet, laptop, etc. with a USB Type-C output that supports DP™ Alt Mode as host to 3 HDMI ports with Ultra High Definition support. It supports DP2.1 old mode and enables you to output a display with the maximum capacity of a single 8K30Hz or two displays with 8K30Hz + 4K144Hz support or three displays, each with 4K60Hz. It supports all DisplayPort Alternate Mode supported USB Type-C or ThunderboltTM 4 compatible devices.
Give your phone, Ultrabook more displays. Telephones, ultrabooks and notebooks are becoming more powerful and smaller in the physical form factor. With a single USB Type-C DisplayPort-supported connection you can now operate up to 3 HDMI screens at the same time. All WAS needs is a free USB Type-C with DP™ Alt mode on your phone, laptop or Ultrabook to connect to the MST hub and offers you unparalleled connectivity for Triple 4K60Hz displays. The setup is easy and straightforward, if your system supports this feature.
This text is machine translated.
Give your phone, Ultrabook more displays. Telephones, ultrabooks and notebooks are becoming more powerful and smaller in the physical form factor. With a single USB Type-C DisplayPort-supported connection you can now operate up to 3 HDMI screens at the same time. All WAS needs is a free USB Type-C with DP™ Alt mode on your phone, laptop or Ultrabook to connect to the MST hub and offers you unparalleled connectivity for Triple 4K60Hz displays. The setup is easy and straightforward, if your system supports this feature.
This text is machine translated.
Features
- Supports DP2.1 Alternate Mode USB Type-C devices
- Supports SST mode on MAC OS®
- Supports MST mode under Windows®
- Supports a maximum of 8K30Hz for a video output
- Support for the output of two displays 8K30Hz + 4K144Hz
