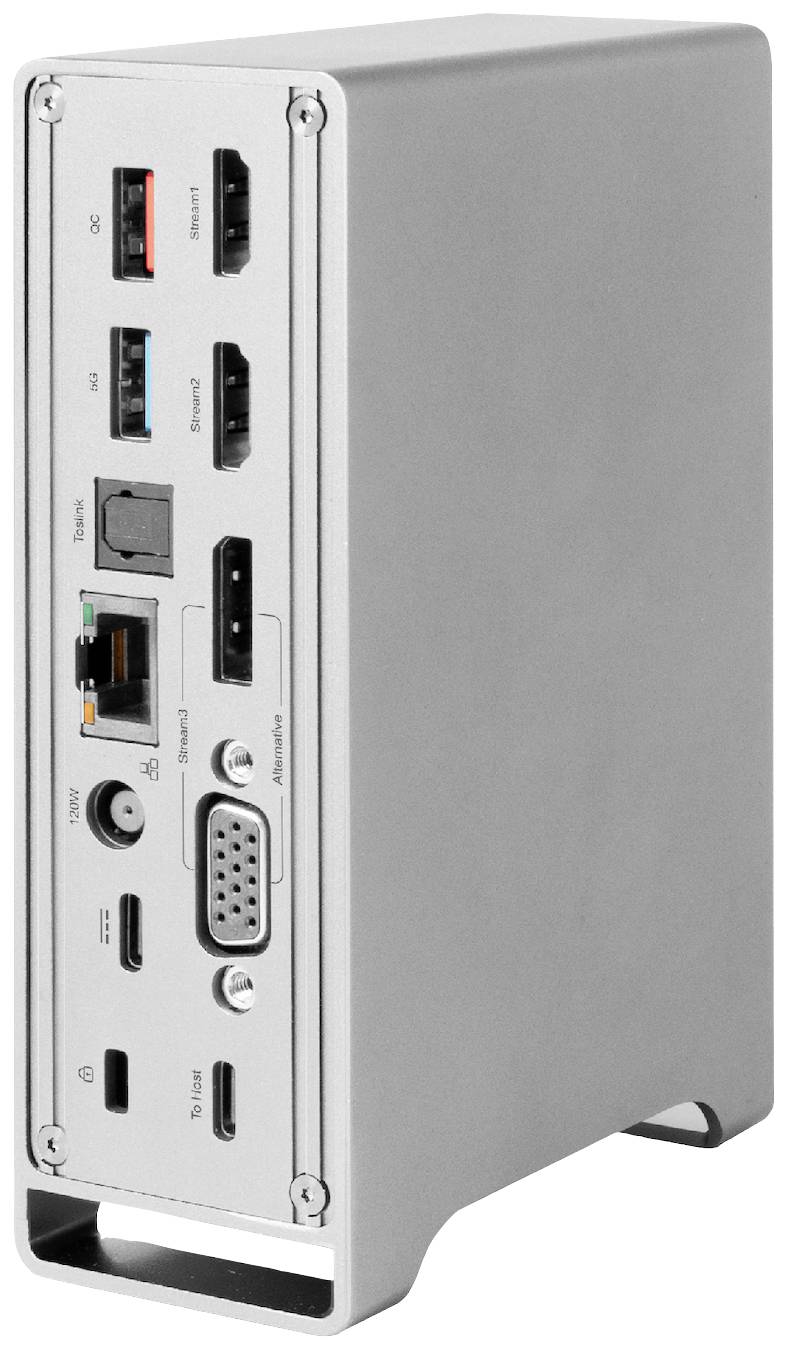

A grey docking station with multiple ports: HDMI, USB, Thunderbolt, Ethernet and VGA.

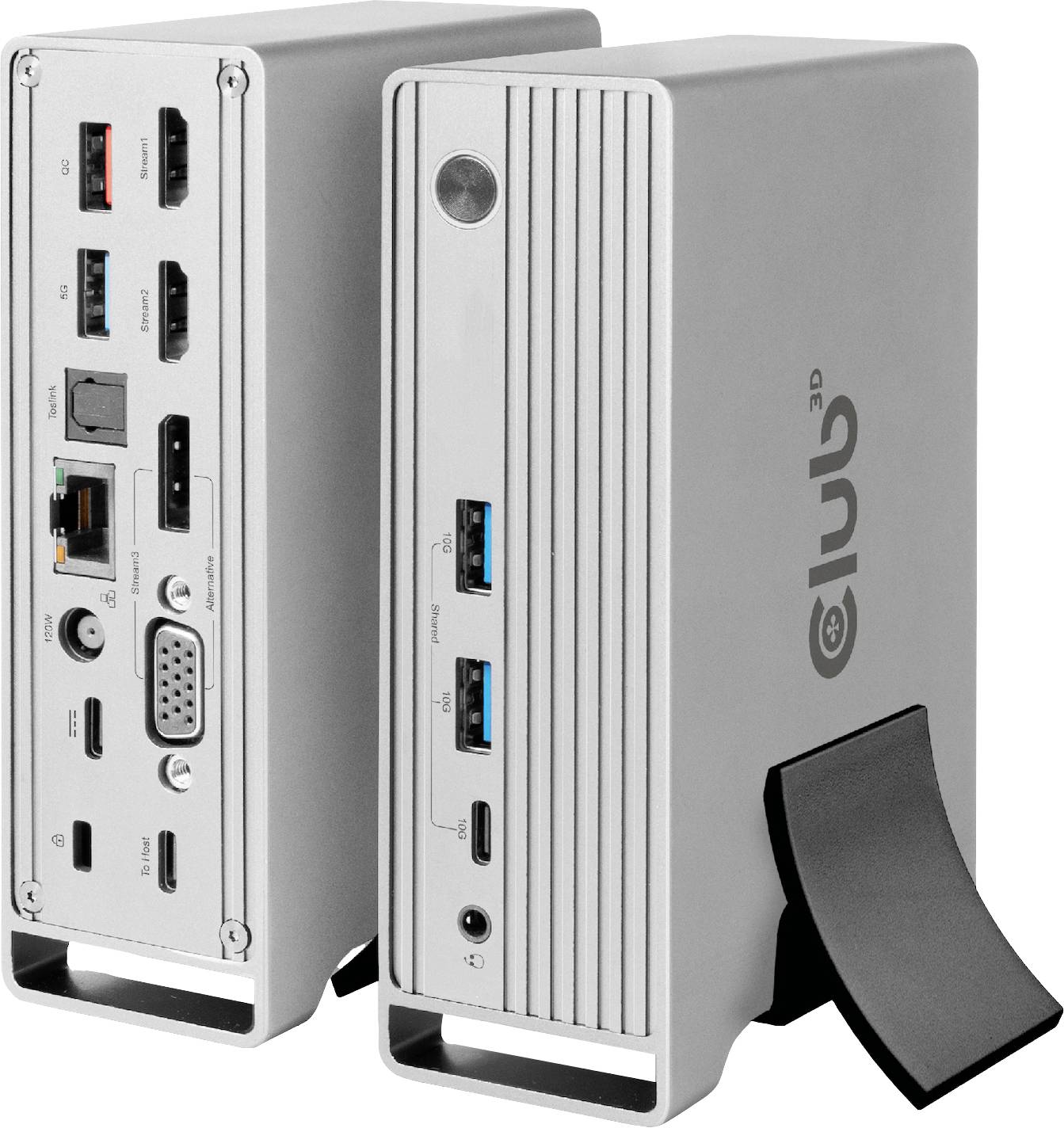

Two grey computer docking stations with multiple ports, including USB, HDMI, and Ethernet connections. One docking station is upright, the other shows its ports.

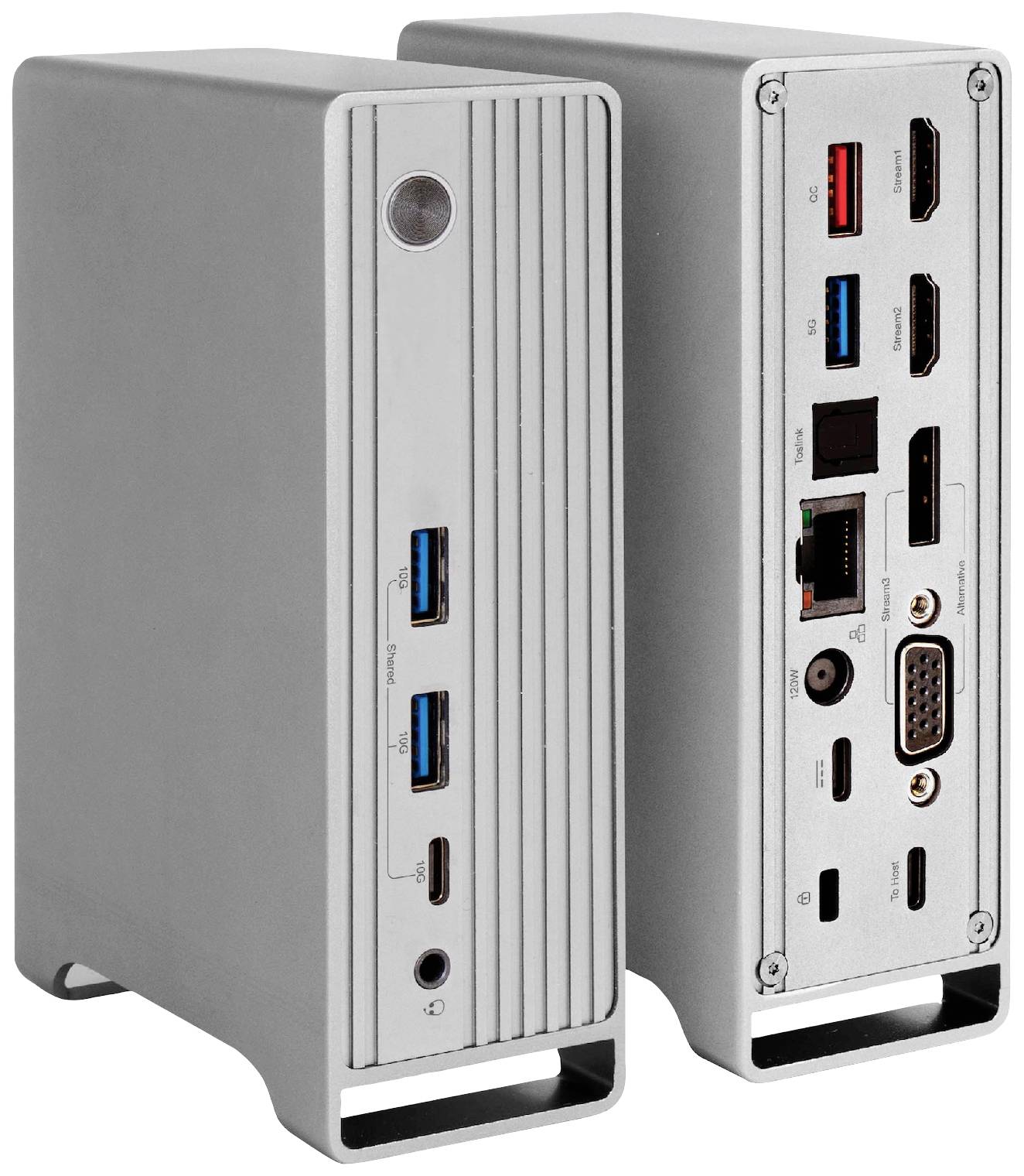

Silver docking station with USB and HDMI ports, front featuring USB ports, rear showing additional connections such as Ethernet and VGA.

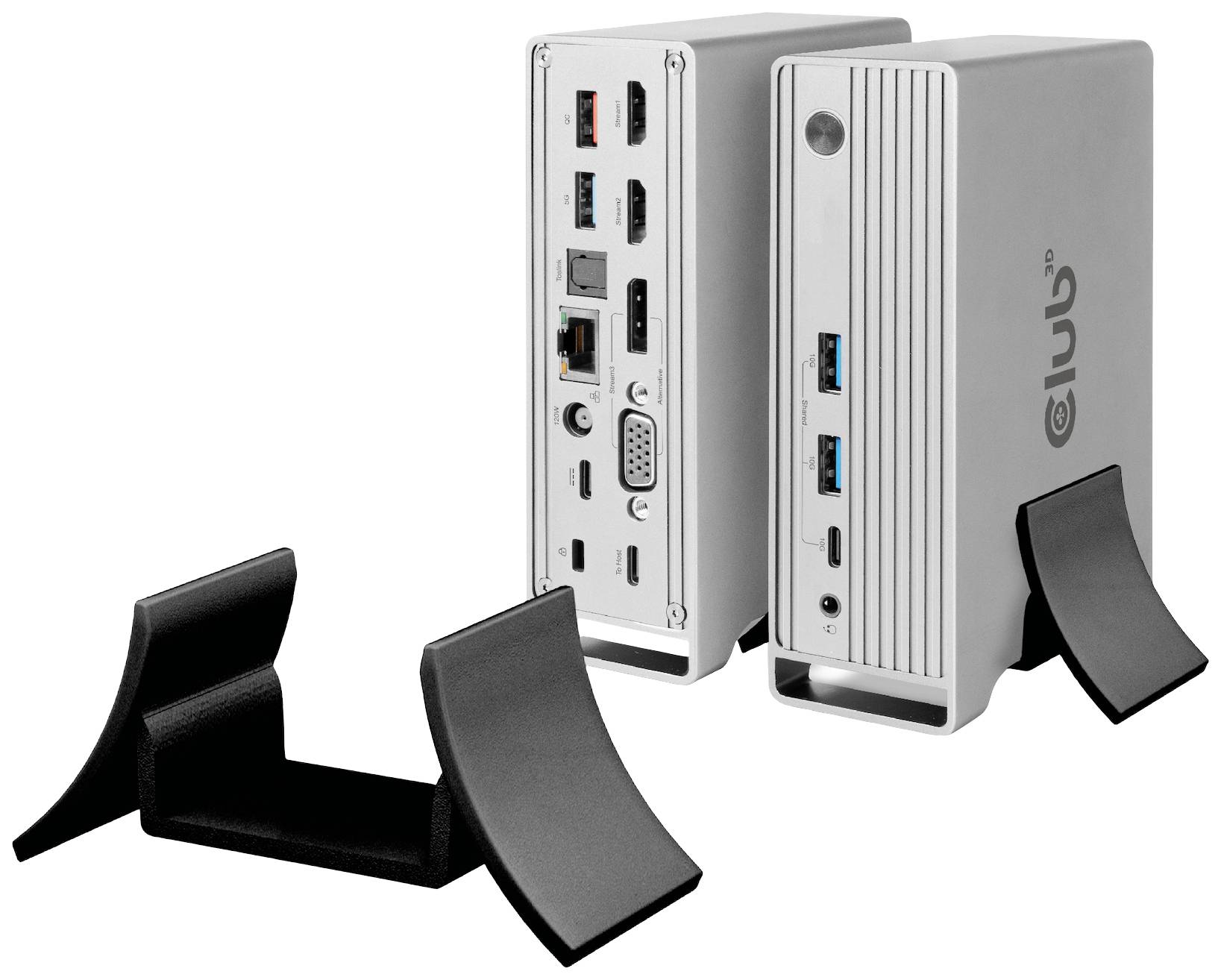

A silver computer docking station with multiple ports for USB, Ethernet, HDMI and VGA. The device stands on black supports.

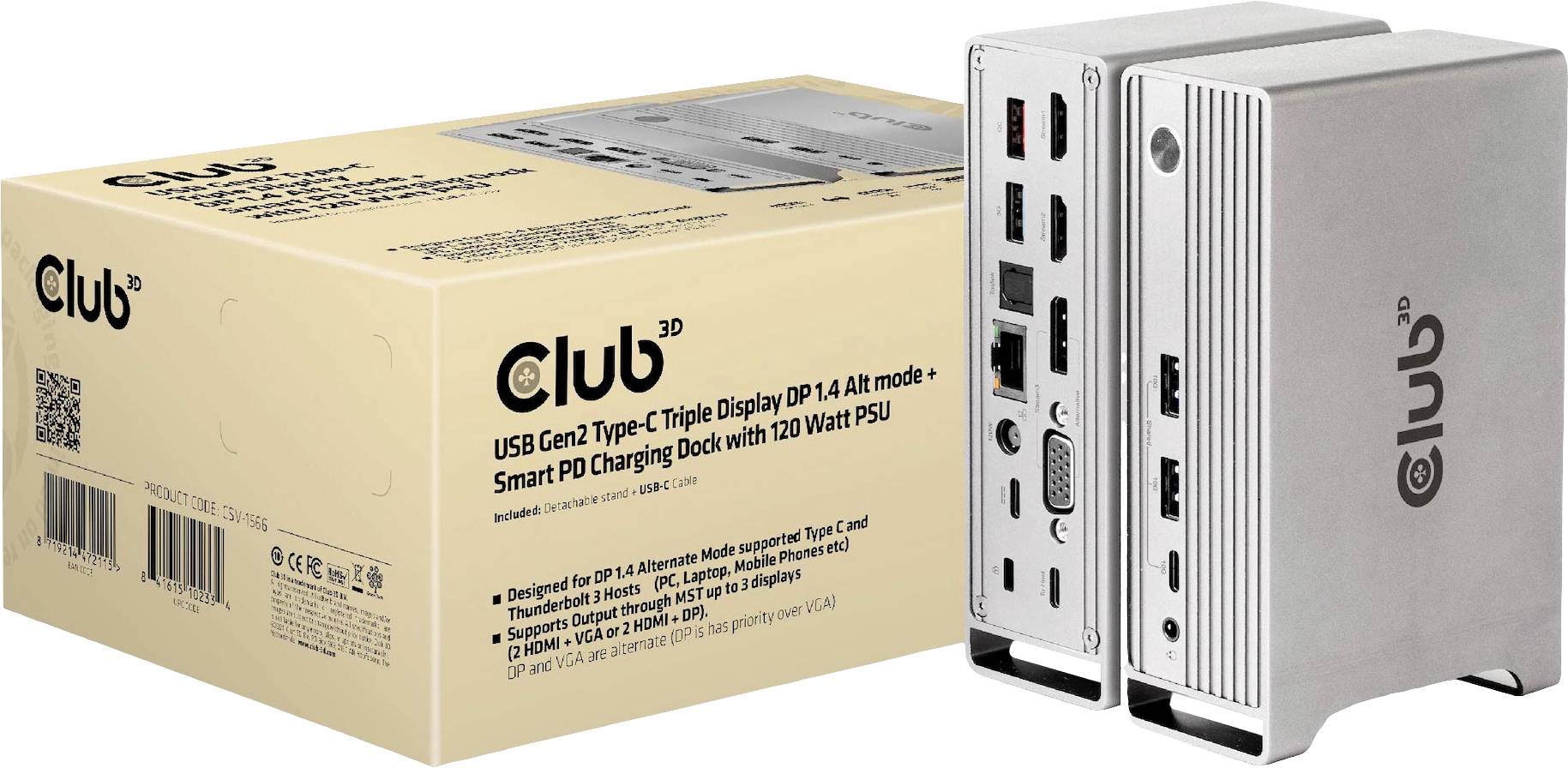

Two grey USB-C docking stations are positioned next to packaging. The stations feature multiple ports and support triple display.

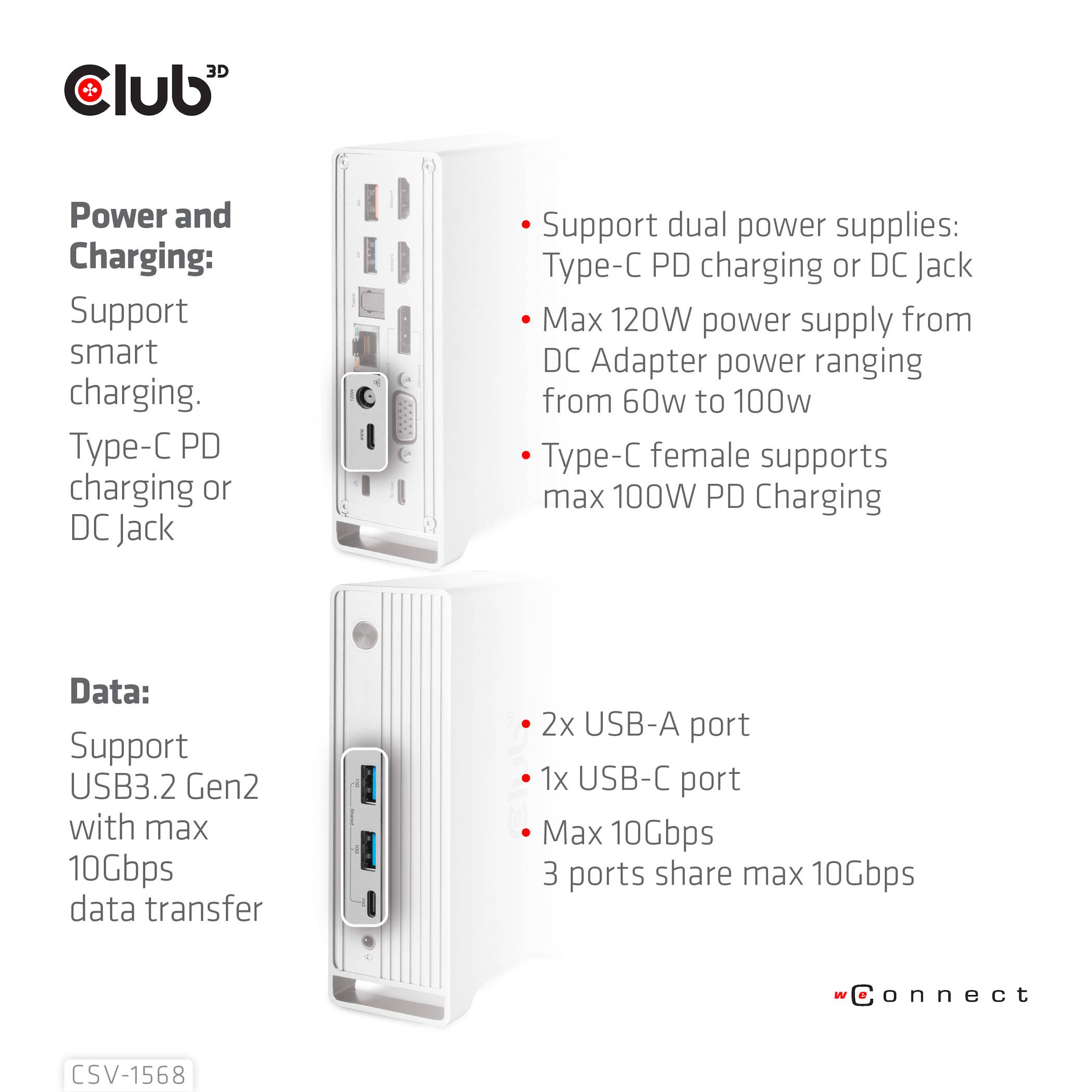

'Image of a USB-C Docking Station Product. Details: Dual power supply, USB-C and DC Jack, maximum power 120W, various ports for data transfer.'

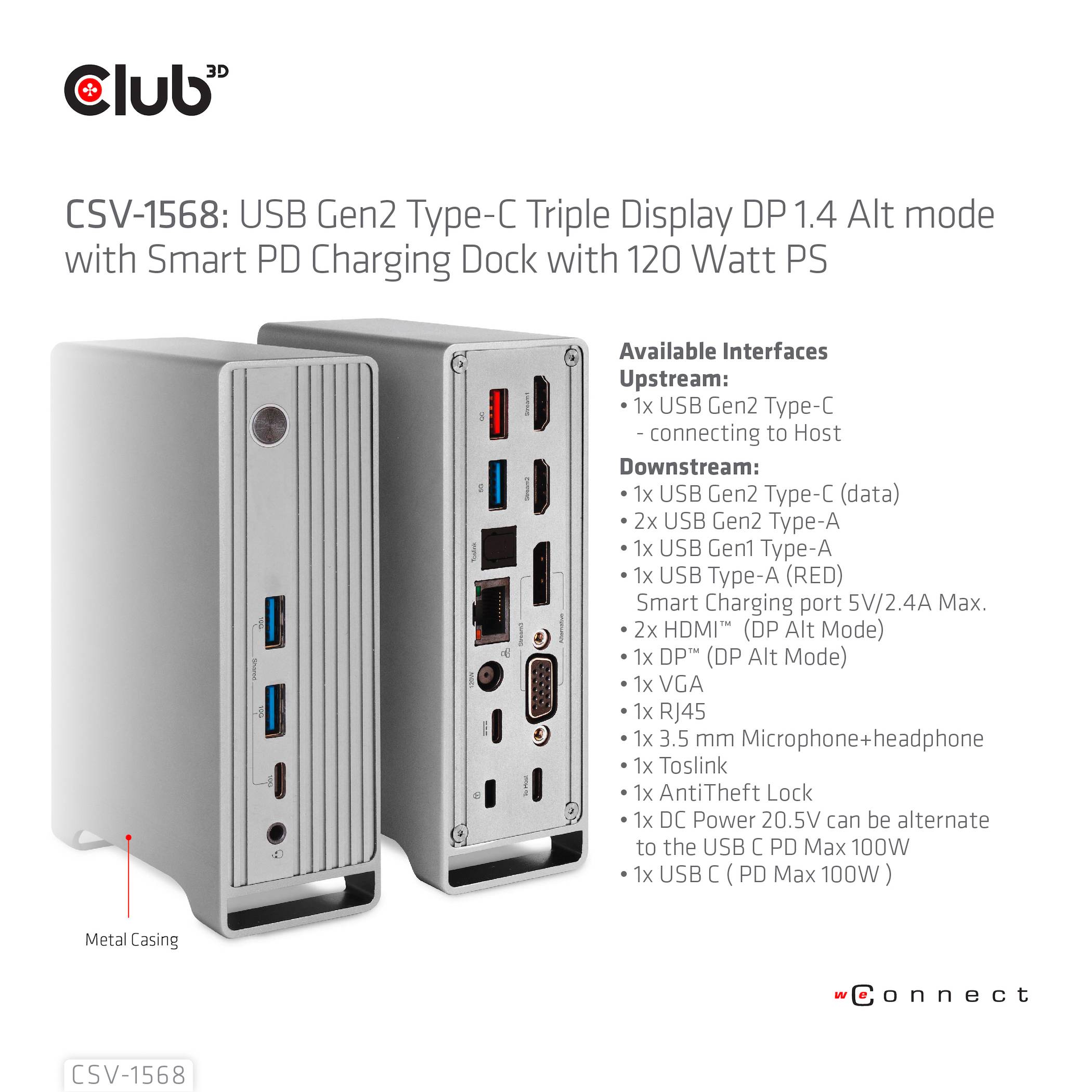

'CSV-1568: USB Gen2 Type-C Dock with 120W. Available Ports: 1x USB Gen2 Type-C, 4x USB-A 3.2, 2x HDMI, 1x Ethernet, 1x Audio, 1x DP 1.4.'

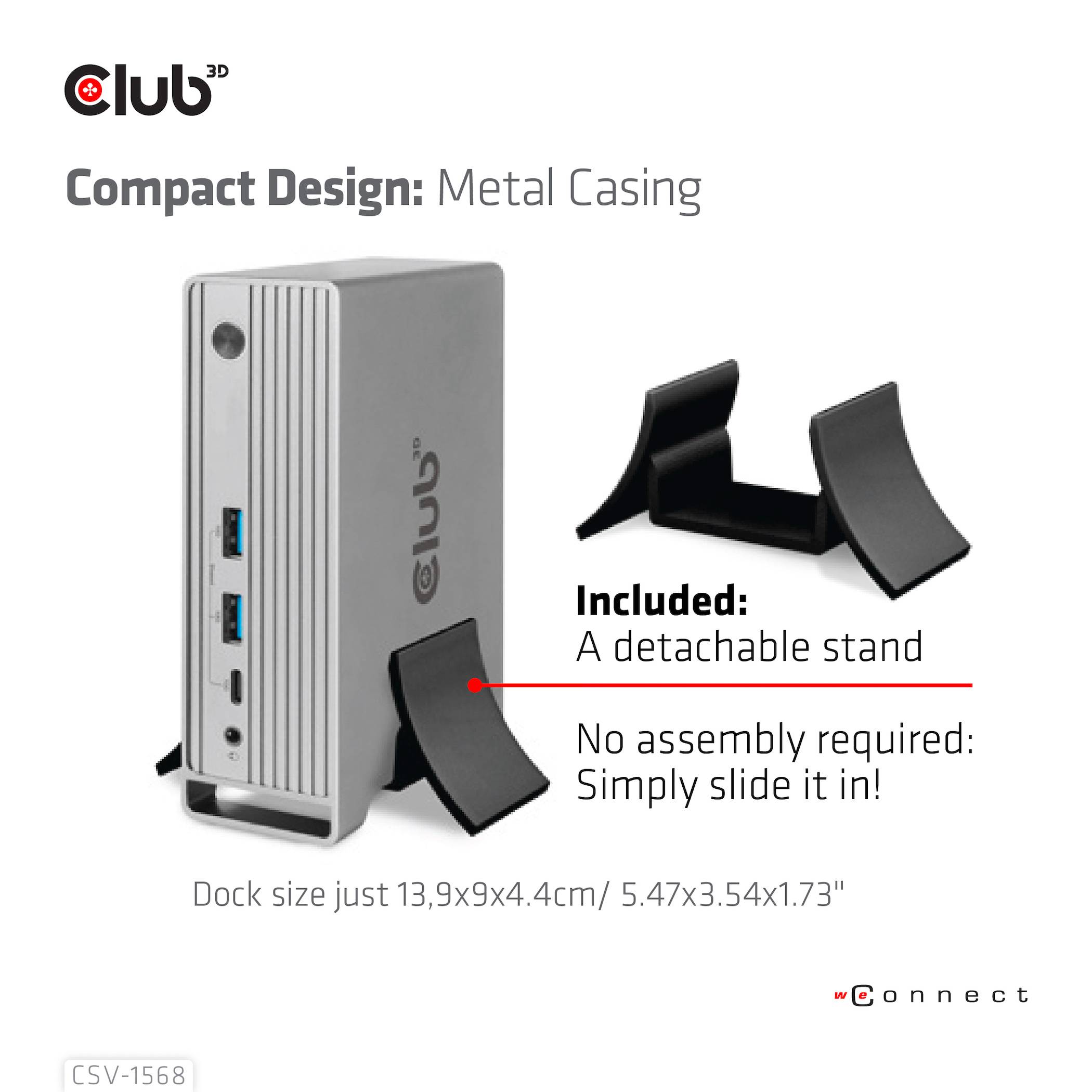

'A compact metal dock with a removable stand. No assembly required, simply slide in. Dimensions: 13.9x9x4.4 cm.'

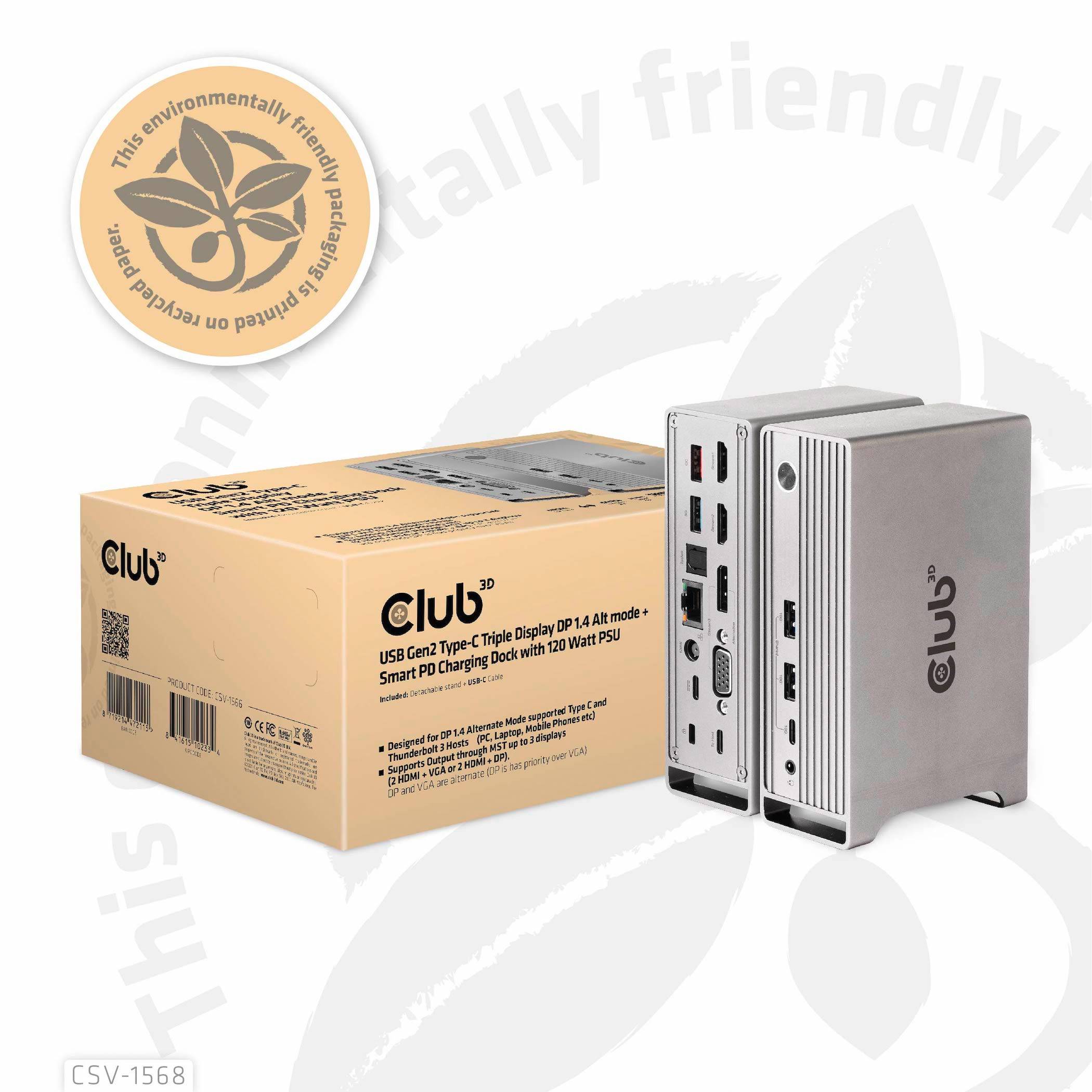

'USB-C to Triple Display Docking Station with 100W PD and PSU'. Packaging and device with various ports and environmental certification.

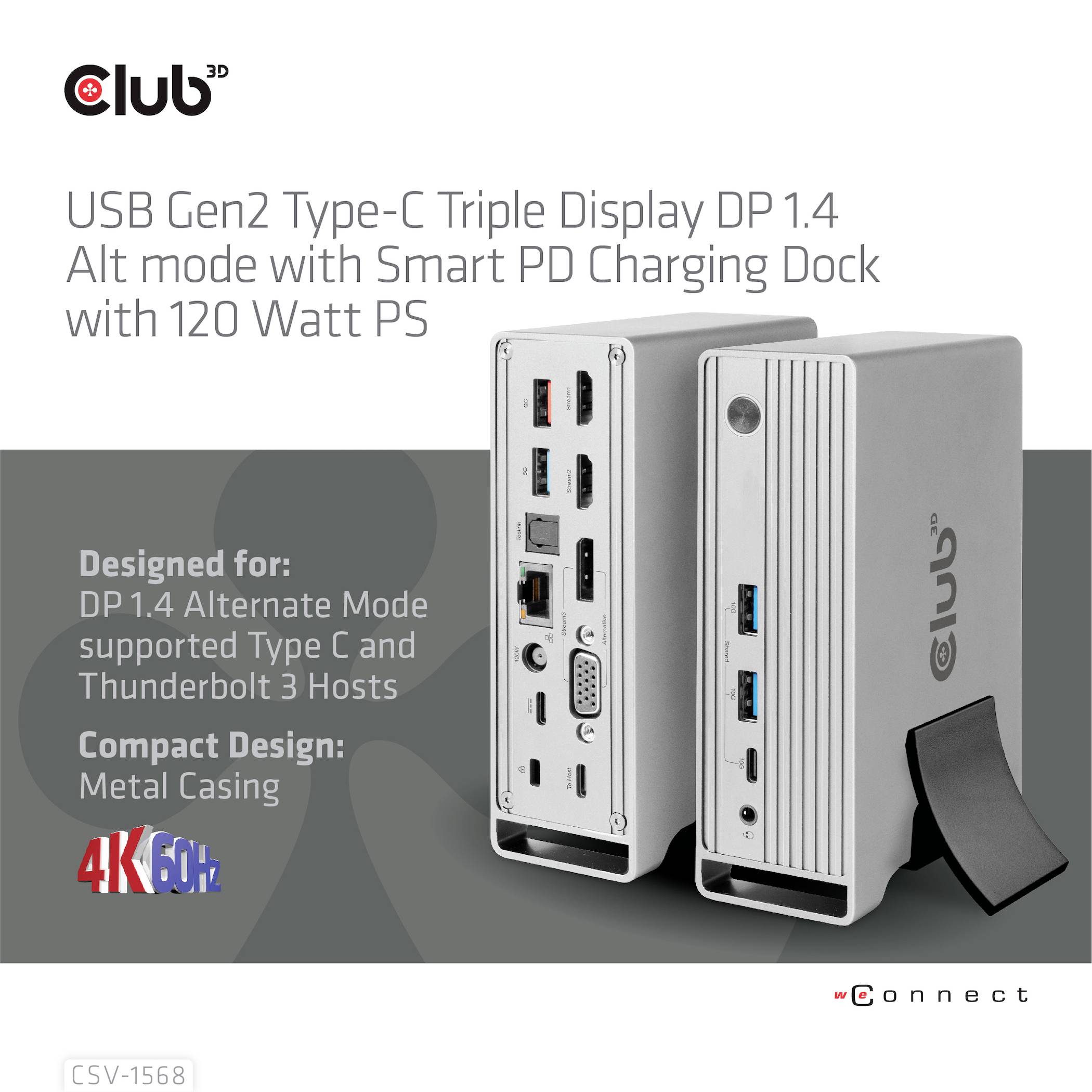

'USB Gen2 Type-C Triple Display Docking Station' with triple display, Smart PD charging dock, 120W power. Metal enclosure, 4K 60Hz support. Designed for DP 1.4 Alt Mode, Thunderbolt 3 hosts.

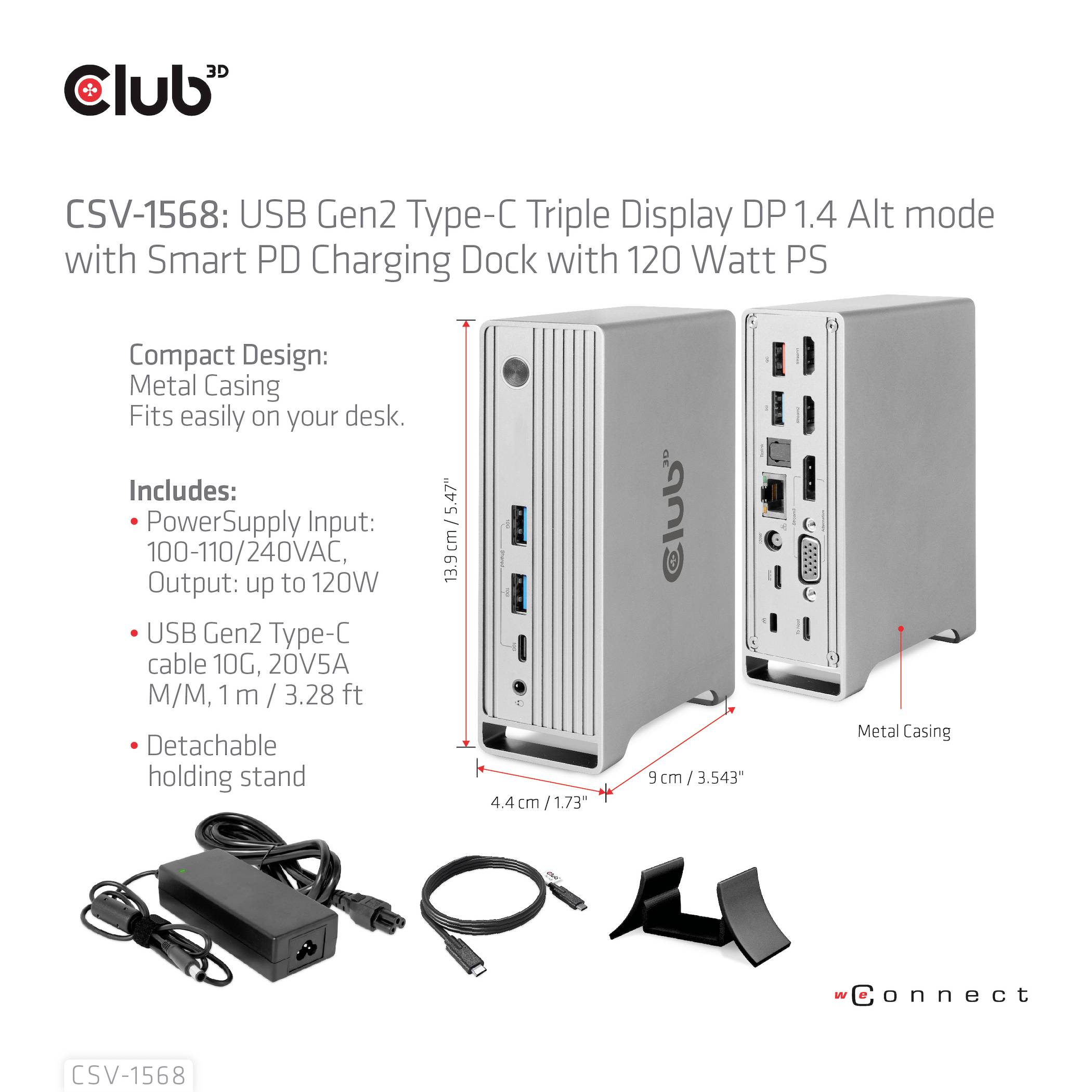

Vertical USB Gen2 Docking Station with Multiple Ports, Metal Enclosure, 120W Power Supply, Compatible for Laptop Connection.

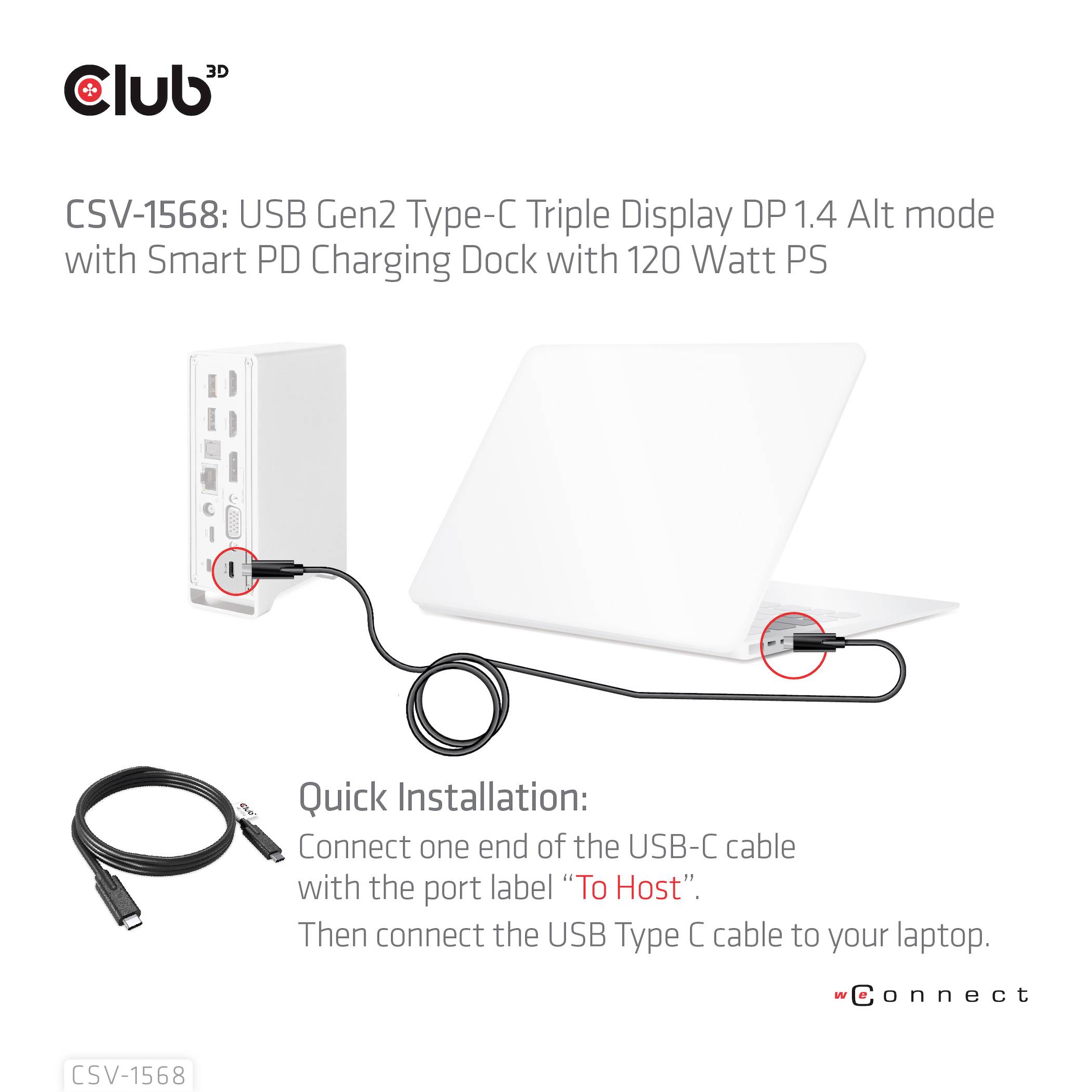

A USB-C hub with multiple ports connects a laptop to a power source. Connection instructions are visible.

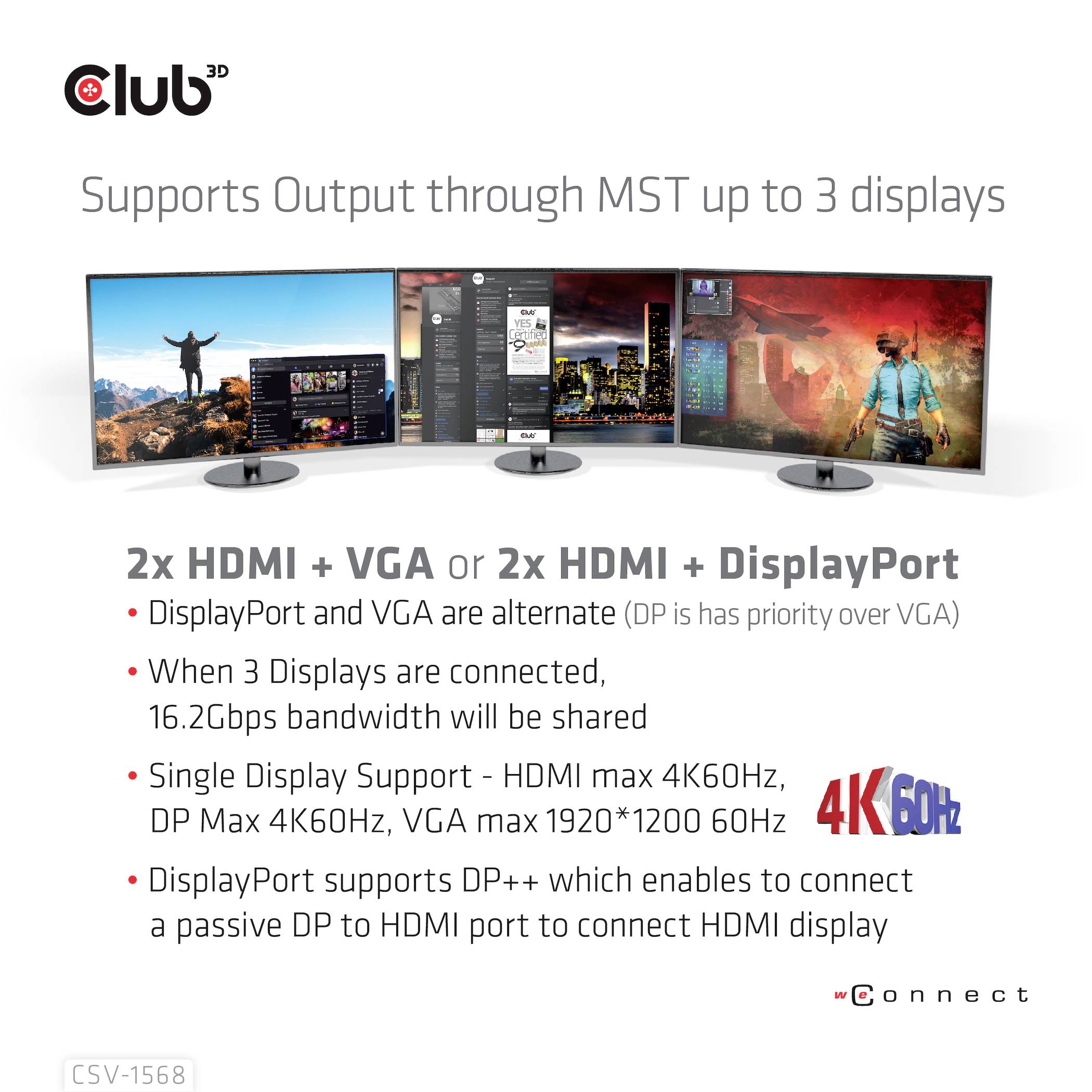

'Club 3D' Adapter can support up to 3 displays: 2x HDMI + VGA or 2x HDMI + DisplayPort. Bandwidth sharing when used simultaneously. Single display up to max 4K60Hz.

1/15

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

club3D CSV-1568 USB-C® docking station

Highlights & Details

Connection A (or inputs): USB-C®
Connecton B (or outputs): USB-C®, USB 3.2 2nd Gen (USB 3.1), USB 3.2 1st Gen (USB 3.0), HDMI®, DisplayPort, VGA, RJ45, Headphones/mic combo (3.5 mm jack), Toslink
No. of supported monitors: 3
Maximum resolution: 3840 x 2160 p
Key features: USB-C® powered

Technical specifications

Product type: USB-C® docking station

Type A: USB-C®

Type B: USB-C®
USB 3.2 2nd Gen (USB 3.1)
USB 3.2 1st Gen (USB 3.0)
HDMI®
DisplayPort
VGA
RJ45
Headphones/mic combo (3.5 mm jack)
Toslink

Suitable for: Notebook

Supported monitors: 3

Resolution (max.): 3840 x 2160 p

Cable length: 0 cm

Factory colour: Silver

Features: USB-C® powered

Width: 139 mm

Height: 90 mm

Depth: 44 mm

Weight: 558 g

Dim: (W x H x D) 139 x 90 x 44 mm

Compatible with (brand): Club 3D

Product type description: Zubehör PC

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3190685 club3D USB-C® docking station 4K ChargingDock USB-C Compatible with (brand): Club 3D USB-C® powered

Description

USB Gen2 Type-C Triple Display DP 1.4 Alt Mode Smart PD Charging Station with 120 Watt PS
The Club 3D CSV-1568 USB Gen2 Type-C Triple Display DP™ Alt Mode + Smart PD Charging Dock with 120 Watt power supply is an integrated solution that combines video, data, power, Ethernet and audio. The docking station features 4 video ports (simultaneous output of 3 videos in MST mode) for video transfer, 4 USB data ports (2 USB-A 10G, 1 Type-C 10G, 1 USB-A 5G) for data transfer, 1 USB-A smart charging port for fast charging, 1 Gigabit Ethernet for super fast Ethernet, 2 audio ports (3.5 mm Audio, Toslink) for enjoying music. In addition, this docking station is equipped with two power connectors (Type-C PD Charging and 120W DC power supply).

This docking station supports all DP Alt Mode 1.4/1.2, Type-C and Thunderbolt™ 3 hosts (PC, laptop, mobile phone, etc.) On Windows and Mac OS™ based on Intel, you only get limited SST or single display.

This text is machine translated.

Scope of delivery

CSV-1568 Docking station
Power supply input:100-110/240VAC, output: Up to 120W
USB Gen2 type C cable 20G, 20V5A St/St, 1 m
Quick installation guide
