club3D USB-C® docking station 4K ChargingDock USB-C Compatible with (brand): Club 3D USB-C® powered
EAN:
Part number:
Item no:
club3D CSV-1565 USB-C® docking station
Highlights & Details
- Connection A (or inputs): USB-C®
- Connecton B (or outputs): USB-C®, USB 3.2 1st Gen (USB 3.0), USB 2.0, HDMI®, DisplayPort, VGA, RJ45, SD, microSD, Headphones/mic combo (3.5 mm jack)
- No. of supported monitors: 3
- Maximum resolution: 3840 x 2160 p
- Key features: USB-C® powered
Technical specifications
- Product type
USB-C® docking station
- Type A
USB-C®
- Type B
USB-C®
USB 3.2 1st Gen (USB 3.0)
USB 2.0
HDMI®
DisplayPort
VGA
RJ45
SD
microSD
Headphones/mic combo (3.5 mm jack)
- Suitable for
Notebook
- Supported monitors
3
- Resolution (max.)
3840 x 2160 p
- Cable length
0 cm
- Factory colour
Black
- Features
USB-C® powered

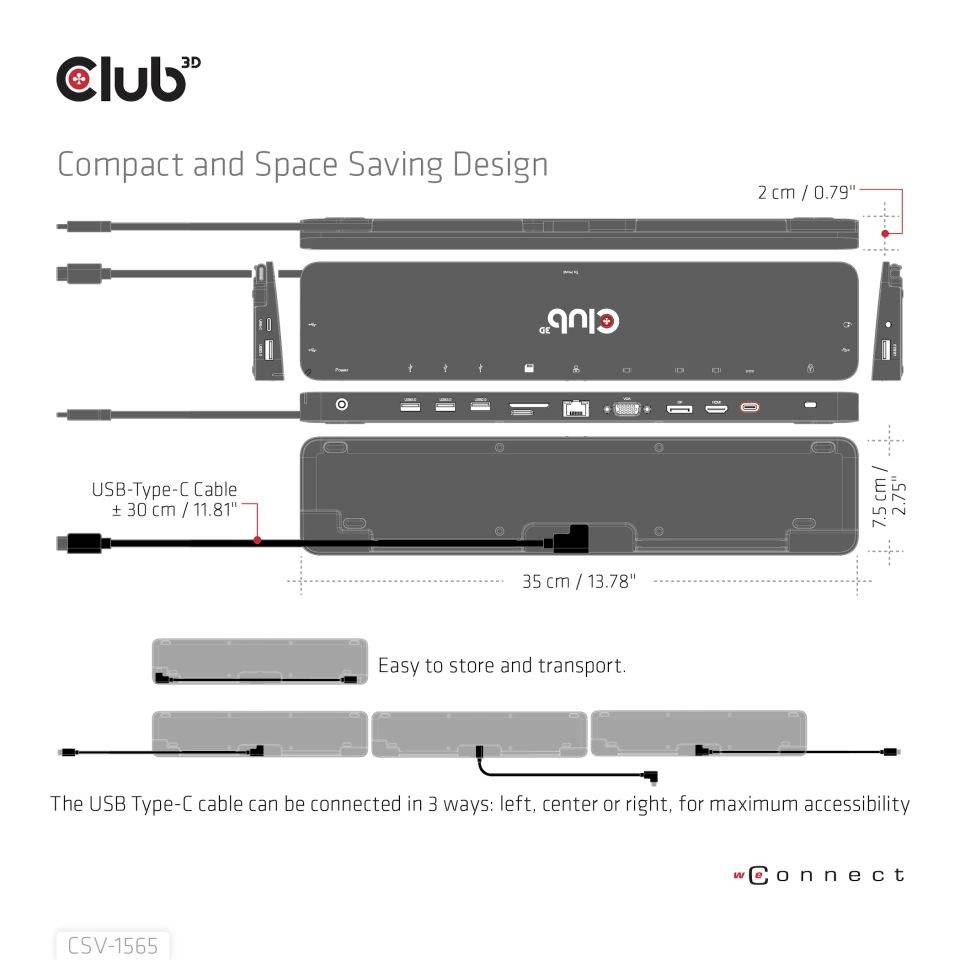

- Width
367 mm
- Height
79 mm
- Depth
109 mm
- Weight
250 g
- Dim
(W x H x D) 367 x 79 x 109 mm
- Compatible with (brand)
Club 3D
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3190686 club3D USB-C® docking station 4K ChargingDock USB-C Compatible with (brand): Club 3D USB-C® powered
Description

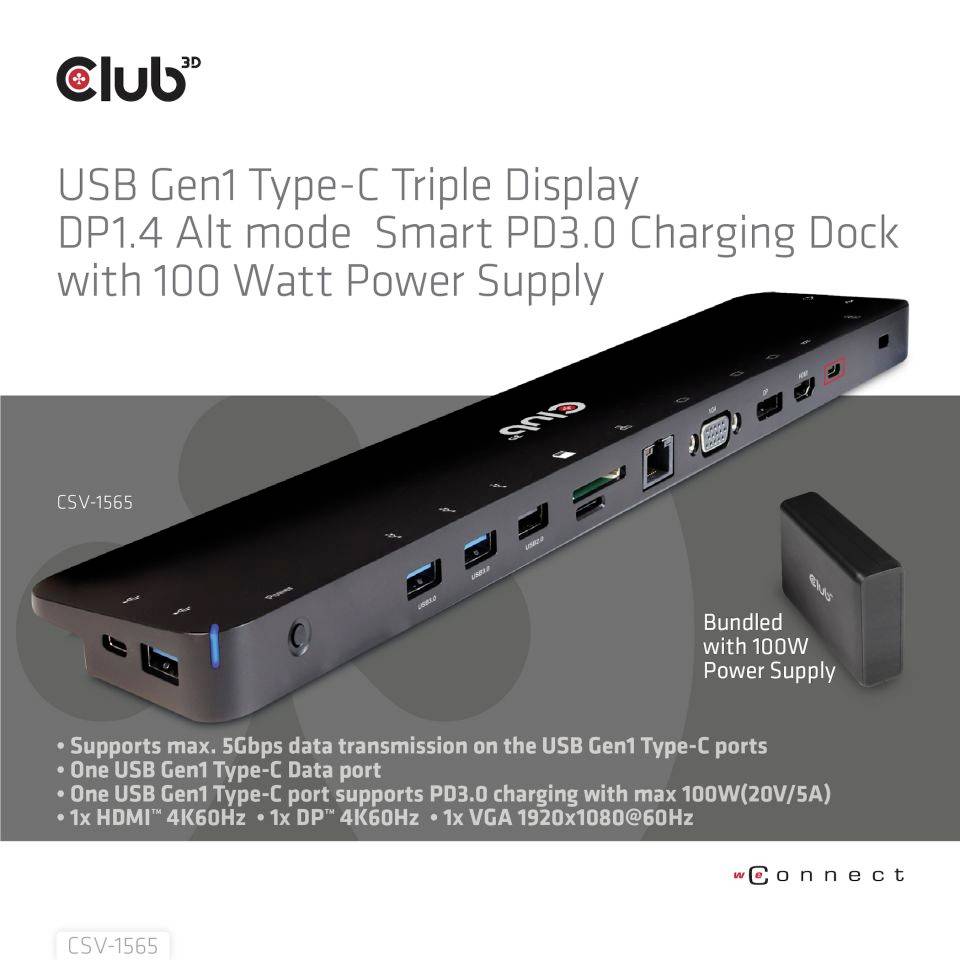

Docking Station USB Gen1 Type-C Triple Display DP1.4 Alt Mode Smart PD3.0 with 100 Watt power supply

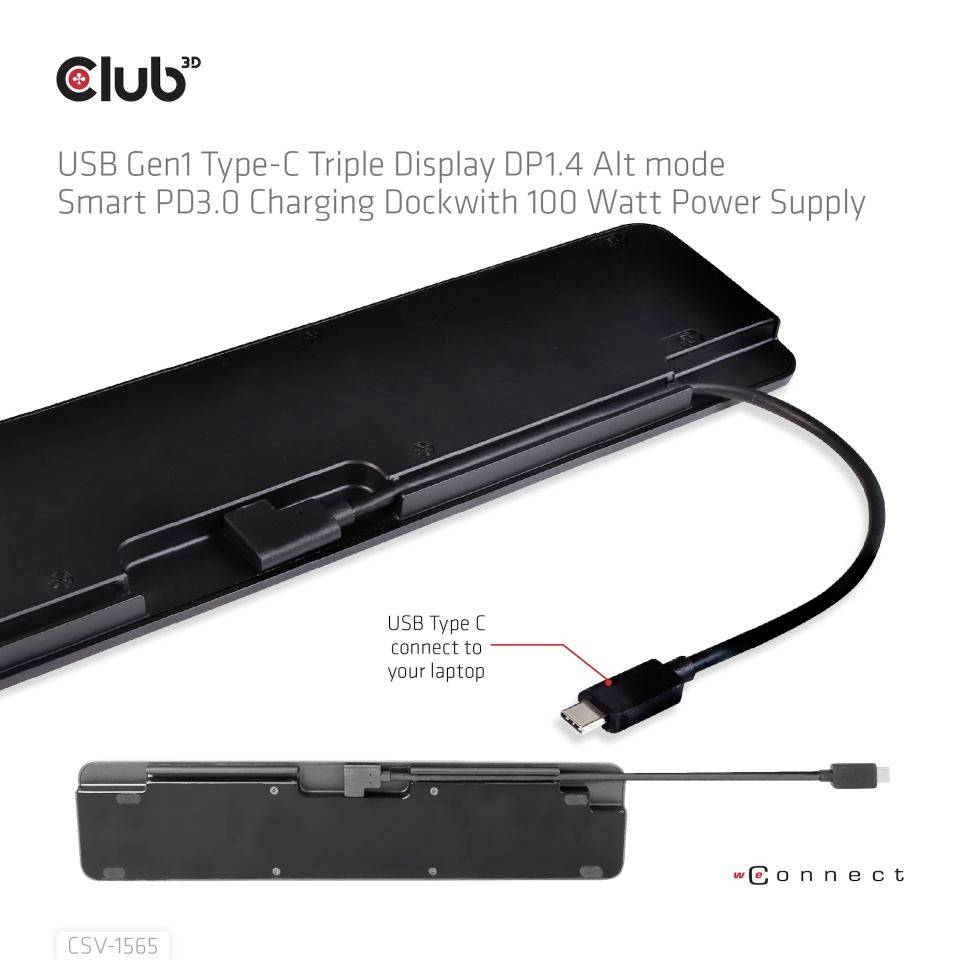

The Club 3D CSV-1565 USB Gen1 Type-C Triple Display DP1.4 Alt Mode Smart PD3.0 charging dock is an integrated solution that combines video, data, power, Ethernet and audio specifically for frequent travellers. The three different video ports (HDMI™, DisplayPort™, VGA) enable you to enjoy 3 different images (1x HDMI™ 4K60Hz or 1x DP™ 4K60Hz or 1x VGA 1920x1080@60Hz) or videos on 3 different displays (1x 4K30Hz+2x1080p@60Hz) simultaneously in MST mode. The USB type A ports and USB type C data port allow you to connect multiple USB devices to the host. The USB Type-C charging port allows you to power the dock and charge the host PC at the same time by connecting a PD3.0 mains adapter, without having to carry your notebook power adapter with you. This makes it easier for the user to travel. The micro SD and SD/MMC ports allow you to read information from the memory card to the host PC. The 3.5-mm audio connection enables the music enjoyment via a headset. You can also use high-speed Ethernet on the host via the Gigabit Ethernet connection. It supports all DP1.4 Alt mode supported hosts. (PC, laptop, mobile phone, etc.) Dynamic current detection and current distribution, the product no longer captures the fixed current from the external PD3.0 power supply, but intercepts it depending on the actually consumed power, so that the PC can be charged dynamically with more current. The source device must support DisplayPort™1.4 Alt Mode for the video signal.
This text is machine translated.
Features
- Supports DP1.4 old mode and PD 3.0
- Supports up to 5 Gbps data transfer to USB Gen1 Type-C ports
- One USB Gen1 type-C data port

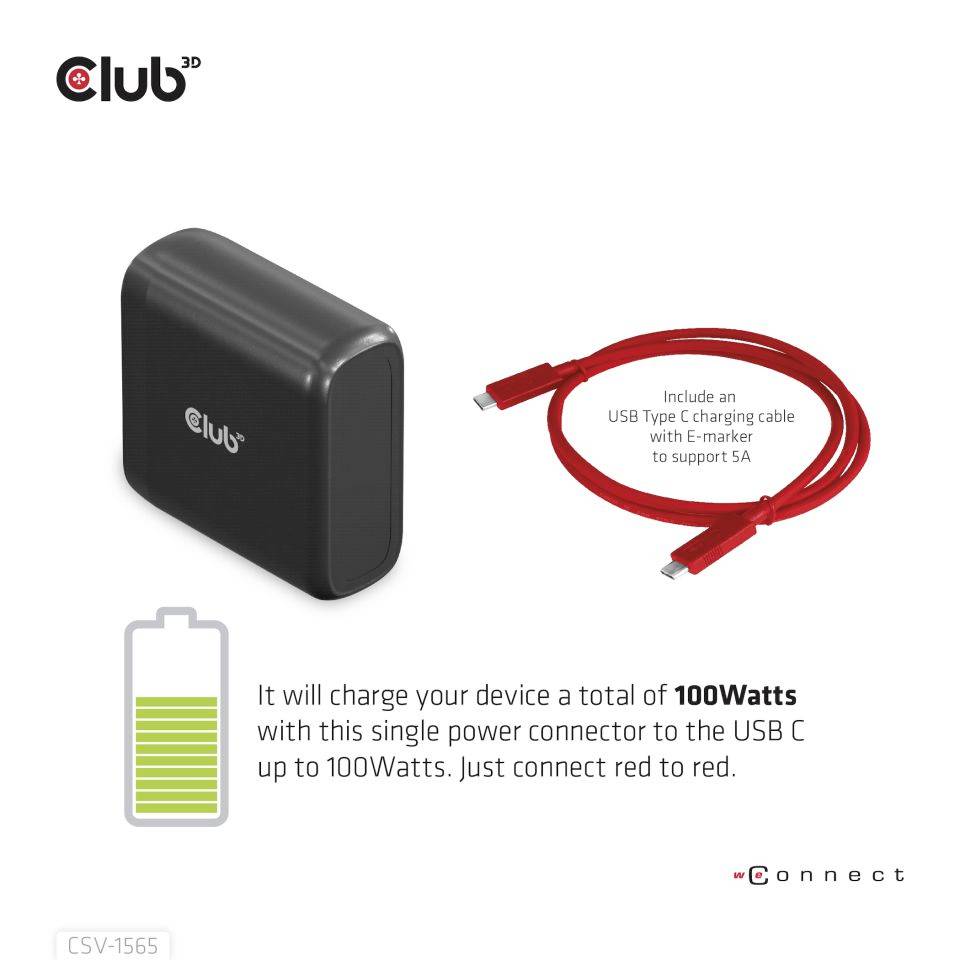

- A USB Gen1 Type-C port supports PD3.0 charging with a maximum of 100W (20V/5A) A 100W power supply is included
- 3x USB Gen1 type A socket
- 2x USB 2.0 type A socket
- 1x HDMI 4K60HZ
- 1x DP 4K60HZ
- 1x VGA 1920x1080@60Hz
- Three-fold display support (1x 4K30Hz+2x1080p at 60Hz) outputs in MST mode
- One port IEEE 802.3 Ethernet support for 10M/100M/1000Mbps
- SD and micro-SD slots operate at the same time
- Audio connection (stereo), supports both microphone and headphones, max. 96kHz sampling rate
- Supports dynamic current detection and current distribution; the product no longer intercepts the fixed current from the external PD3.0 power supply unit; it intercepts it automatically according to the actually consumed power, so that the PC can be charged dynamically with more current.
