club3D USB-C® docking station ChargingDock USB-C Compatible with (brand): Club 3D Built-in card reader, USB-C® powered
EAN:
Part number:
Item no:
club3D CSV-1564W65 USB-C® docking station
Highlights & Details

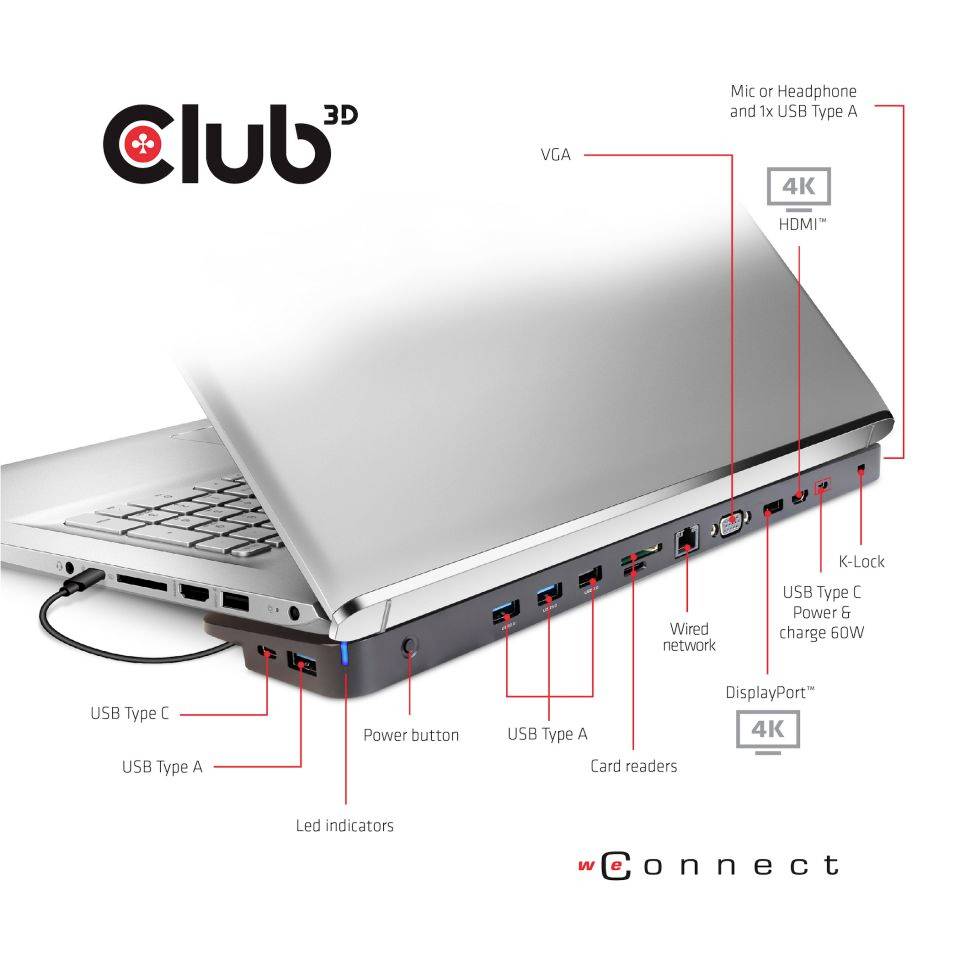

- Connection A (or inputs): USB-C®
- Connecton B (or outputs): USB-C®, USB 3.2 1st Gen (USB 3.0), USB 2.0, HDMI®, DisplayPort, VGA, RJ45, SD, microSD, Headphones/mic combo (3.5 mm jack)

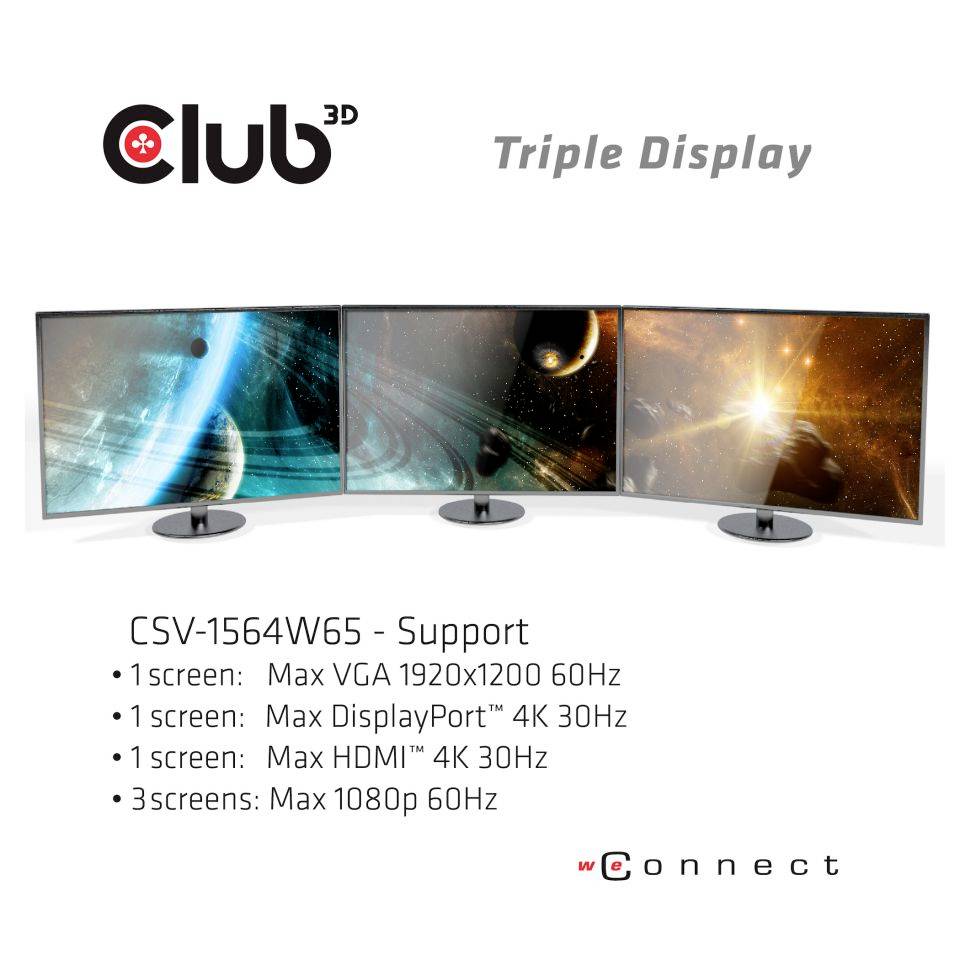

- No. of supported monitors: 3
- Maximum resolution: 3840 x 2160 p
- Key features: Built-in card reader, USB-C® powered
Technical specifications
- Product type
USB-C® docking station
- Type A
USB-C®
- Type B
USB-C®
USB 3.2 1st Gen (USB 3.0)
USB 2.0
HDMI®
DisplayPort
VGA
RJ45
SD
microSD
Headphones/mic combo (3.5 mm jack)
- Suitable for
Notebook
- Supported monitors
3
- Resolution (max.)
3840 x 2160 p
- Cable length
0 cm
- Factory colour
Black
- Features
Built-in card reader
USB-C® powered

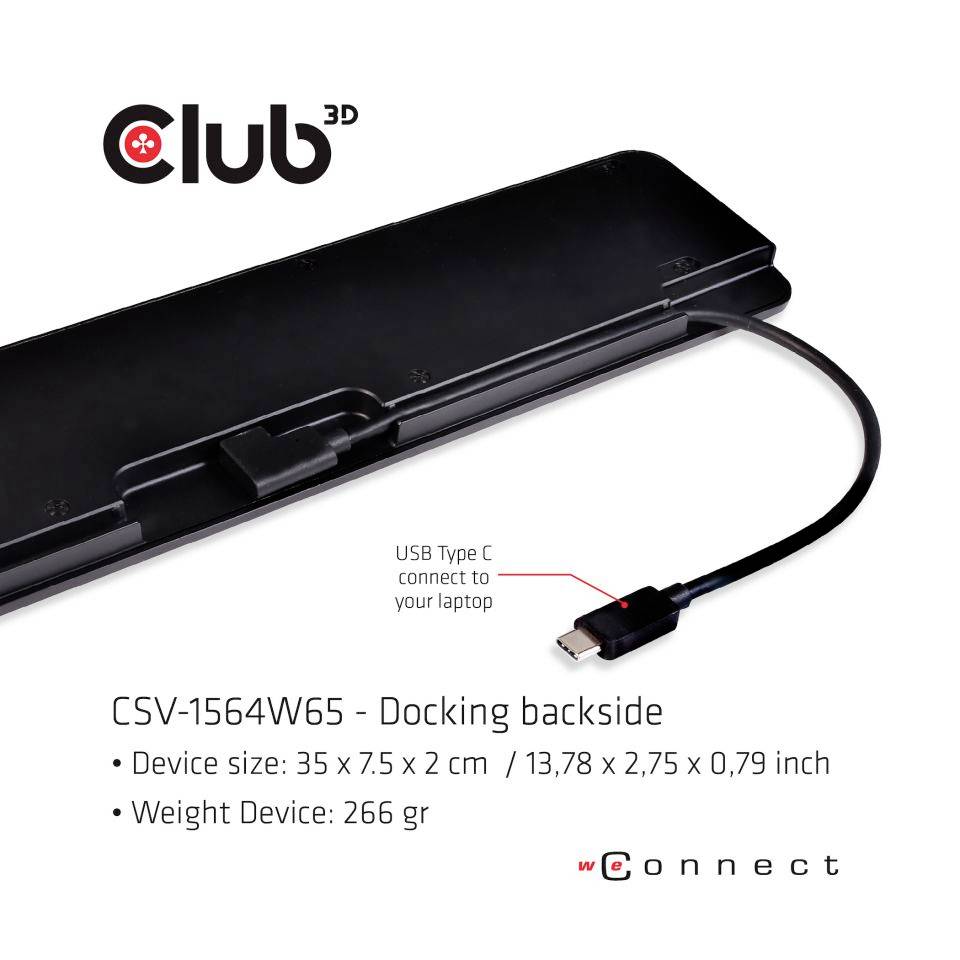

- Width
350 mm
- Height
75 mm
- Depth
20 mm
- Weight
250 g
- Dim
(W x H x D) 350 x 75 x 20 mm
- Compatible with (brand)
Club 3D
- Keyboard layout
German, QWERTZ
- Product type description
Zubehör PC
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3190683 club3D USB-C® docking station ChargingDock USB-C Compatible with (brand): Club 3D Built-in card reader, USB-C® powered
Description

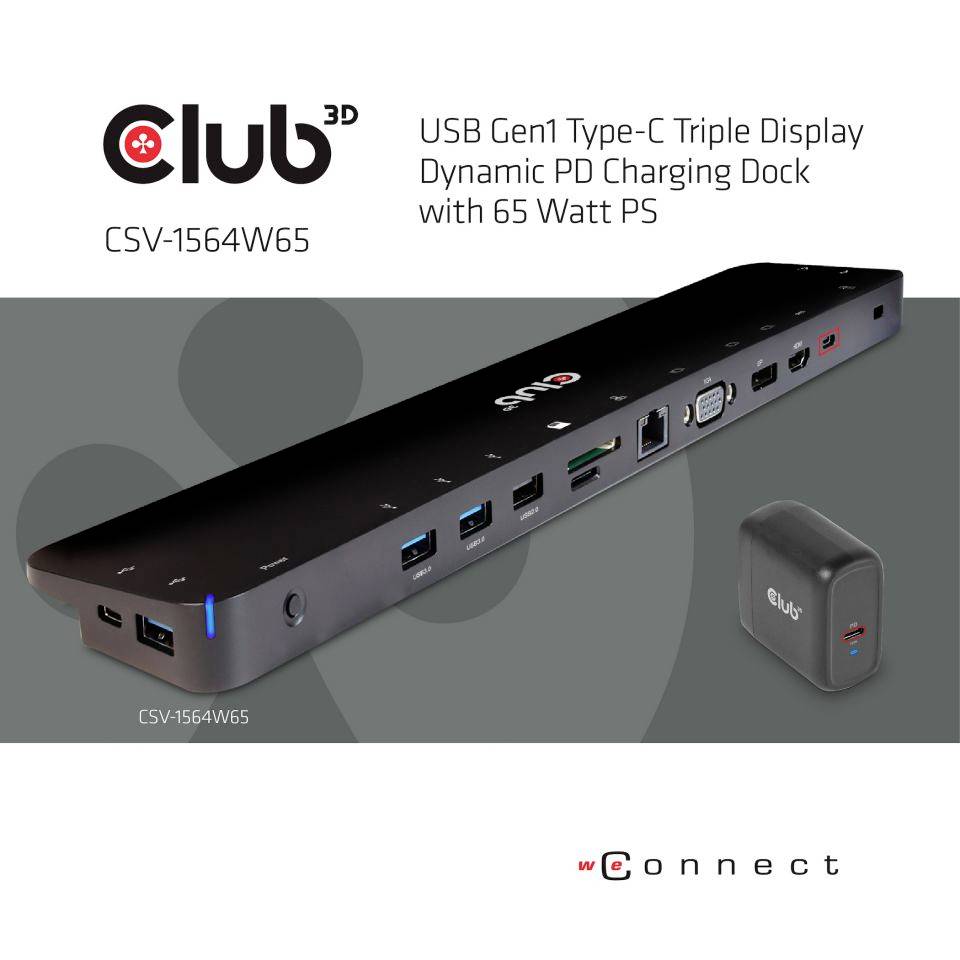

USB Gen1 Type-C Triple Display Dynamic PD Charging Dock with 65 watt charger

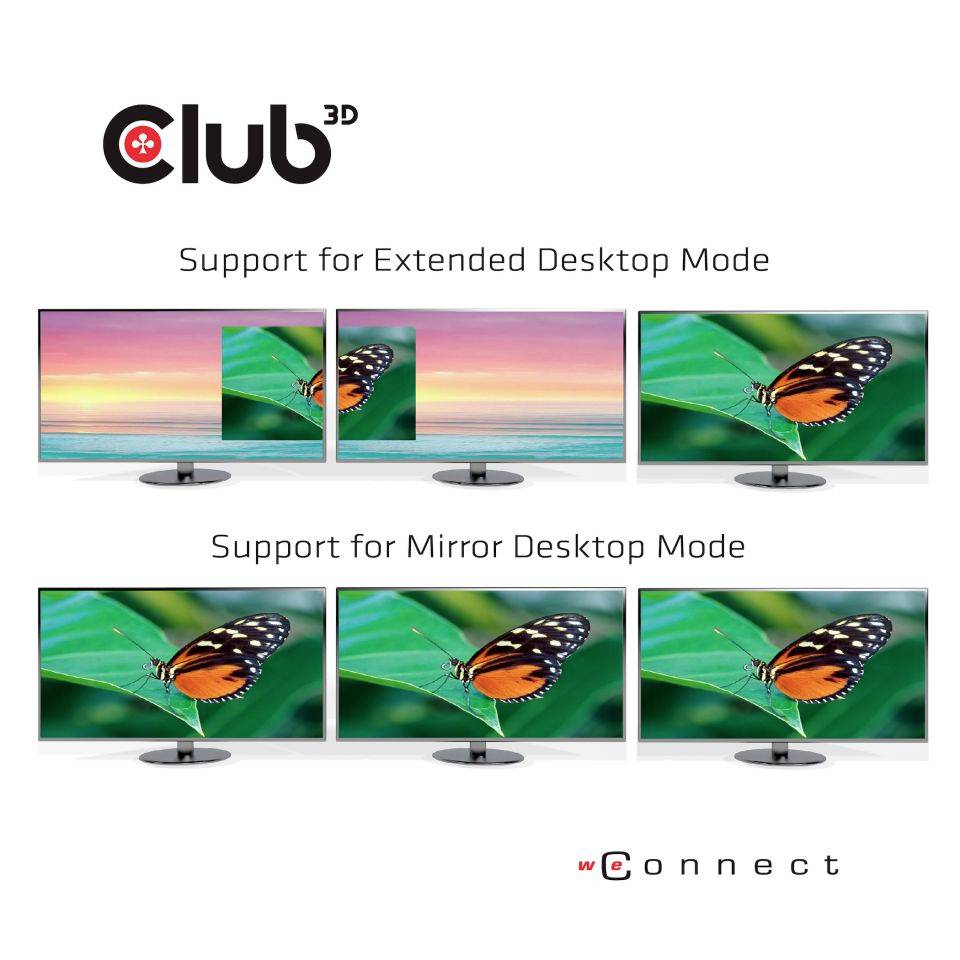

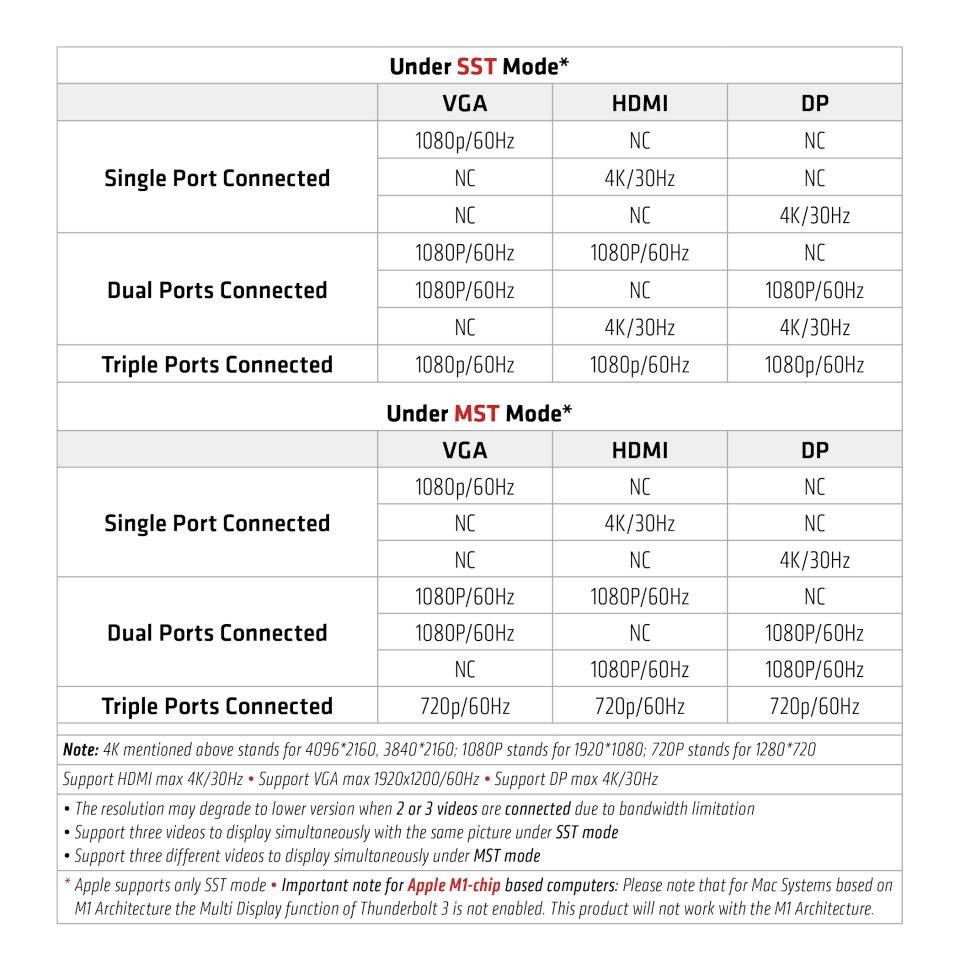

The Club 3D CSV-1564W65 USB Gen1 Type-C Triple Display Dynamic PD Dock with charging function including 65 watt charger is a versatile solution that combines video, data, power, Ethernet and audio and is specially designed for people who travel a lot. The three different video ports (HDMI™, DisplayPort™, VGA) allow you to use 3 different images or videos on 3 different displays simultaneously with the MST mode. The USB type-A ports and the USB type-C data port allow you to connect several USB products to the host.

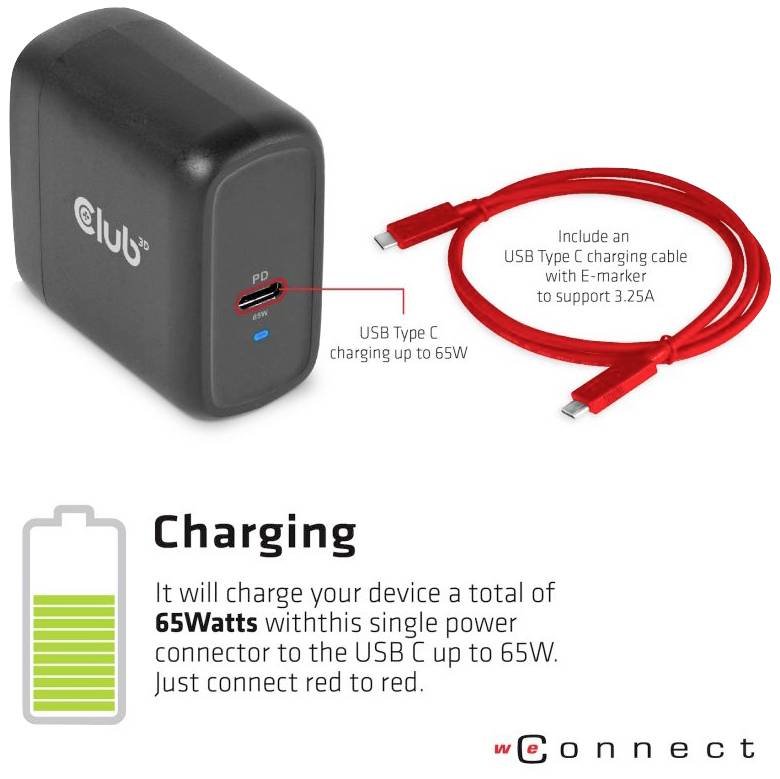

The USB Type-C charging port provides power for this docking station and can charge the host PC at the same time when it is connected to a PD charger. A special laptop power supply is not necessary, so that the user can travel with less weight. The micro SD and SD/MMC ports enable you to read information on the memory card via the host. You can listen to music from the host via headset via the 3.5mm audio connection. In addition, the host can be connected to fast Ethernet via the Gigabit Ethernet port.
All hosts equipped with DP Alt Mode are supported (PC, laptop, smartphone, etc.). Dynamic current detection and current distribution, the product no longer operates with a fixed current output from the external PD power supply, but only uses the actually consumed current itself, so that the PC can be dynamically charged with more current. For video signals, the source device must support DisplayPort™ Alt Mode.
