club3D USB-C® docking station CSV-2540 Built-in card reader, USB-C® powered
EAN:
Part number:
Item no:

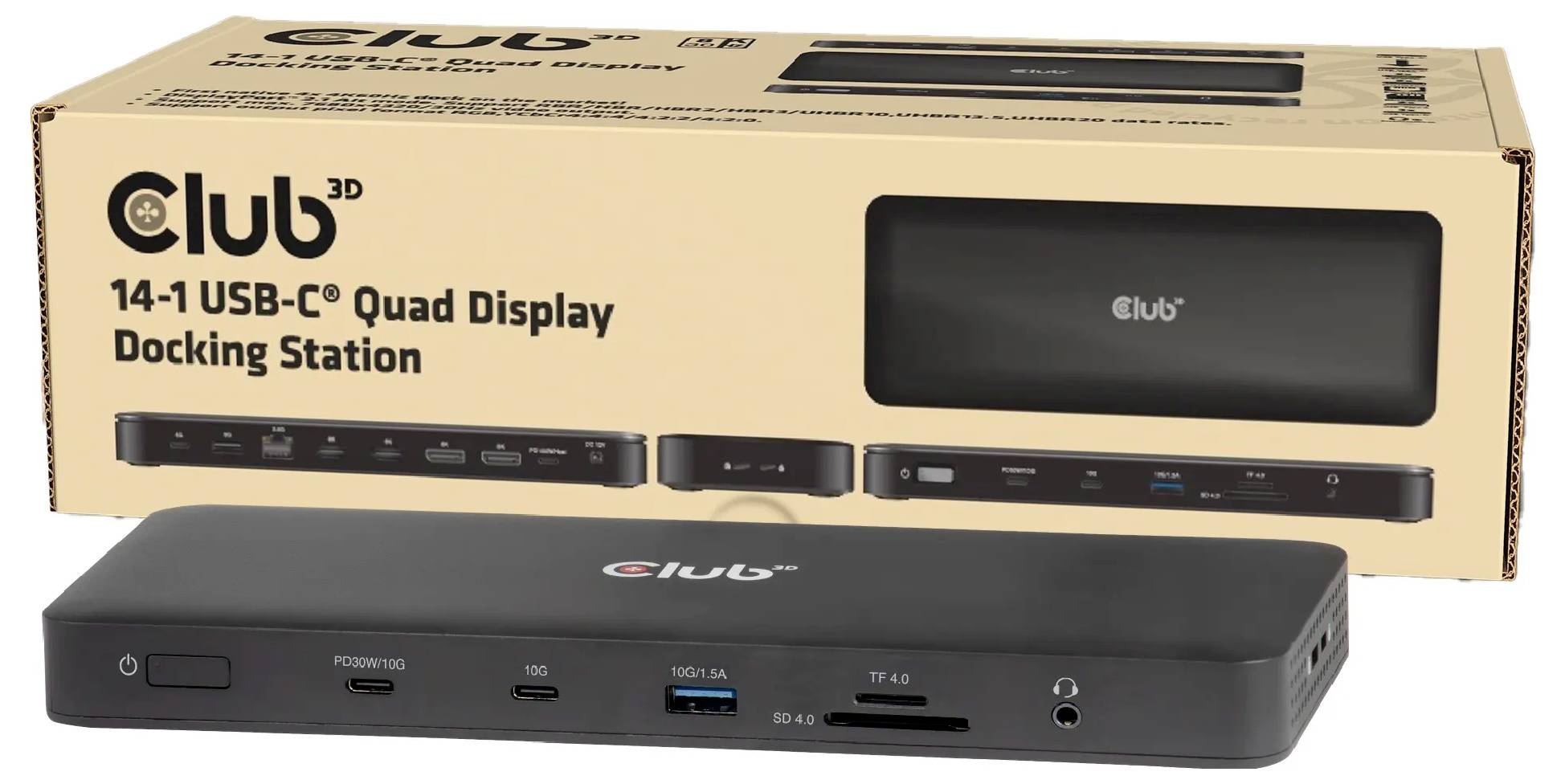

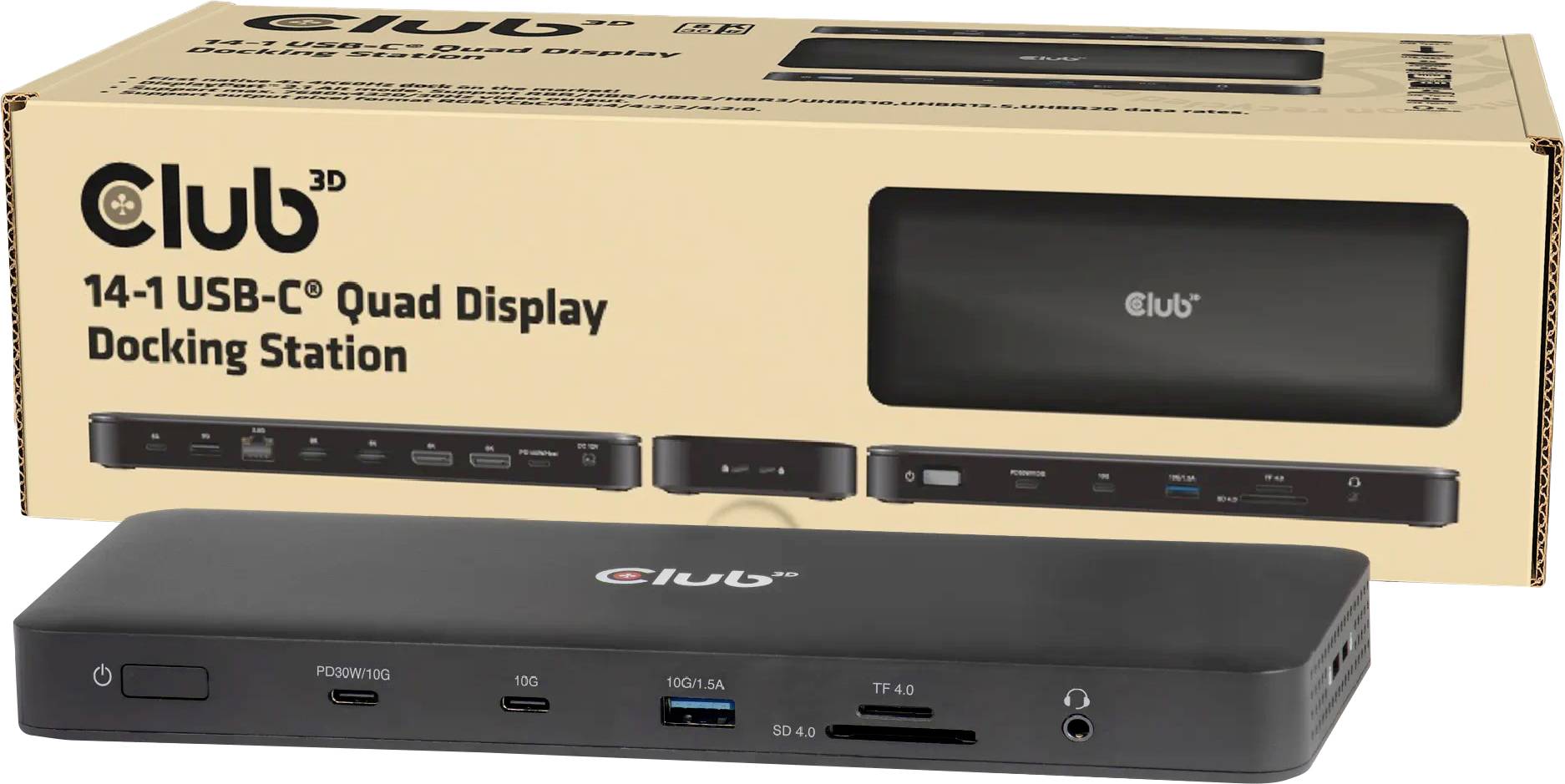

club3D CSV-2540 USB-C® docking station
Highlights & Details
- Connection A (or inputs): 1x USB-C®
- Connecton B (or outputs): USB-C® socket (Power Delivery), USB-C®, USB-C®, USB-C®, HDMI®, HDMI®, DisplayPort, DisplayPort, USB-A, USB-A, RJ45, microSD, SD
- No. of supported monitors:
- Maximum resolution: 7680 x 4320 p
- Key features: Built-in card reader, USB-C® powered
Technical specifications
- Connector dimensions: USB-C® 3.62 x 1.2 x 0.63cm
- Product type
USB-C® docking station
- Type A
1x USB-C®
- Type B
USB-C® socket (Power Delivery)
USB-C®
USB-C®
USB-C®
HDMI®
HDMI®
DisplayPort
DisplayPort
USB-A
USB-A
Show more
- Resolution (max.)
7680 x 4320 p
- Cable length
1 m
- Factory colour
Multicolour
- Features
Built-in card reader
USB-C® powered
- Width
22.5 cm
- Height
2.2 cm
- Depth
8.5 cm
- Weight
361 g
- Dim
(W x H x D) 22.5 x 2.2 x 8.5 cm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3443641 club3D USB-C® docking station CSV-2540 Built-in card reader, USB-C® powered
Description

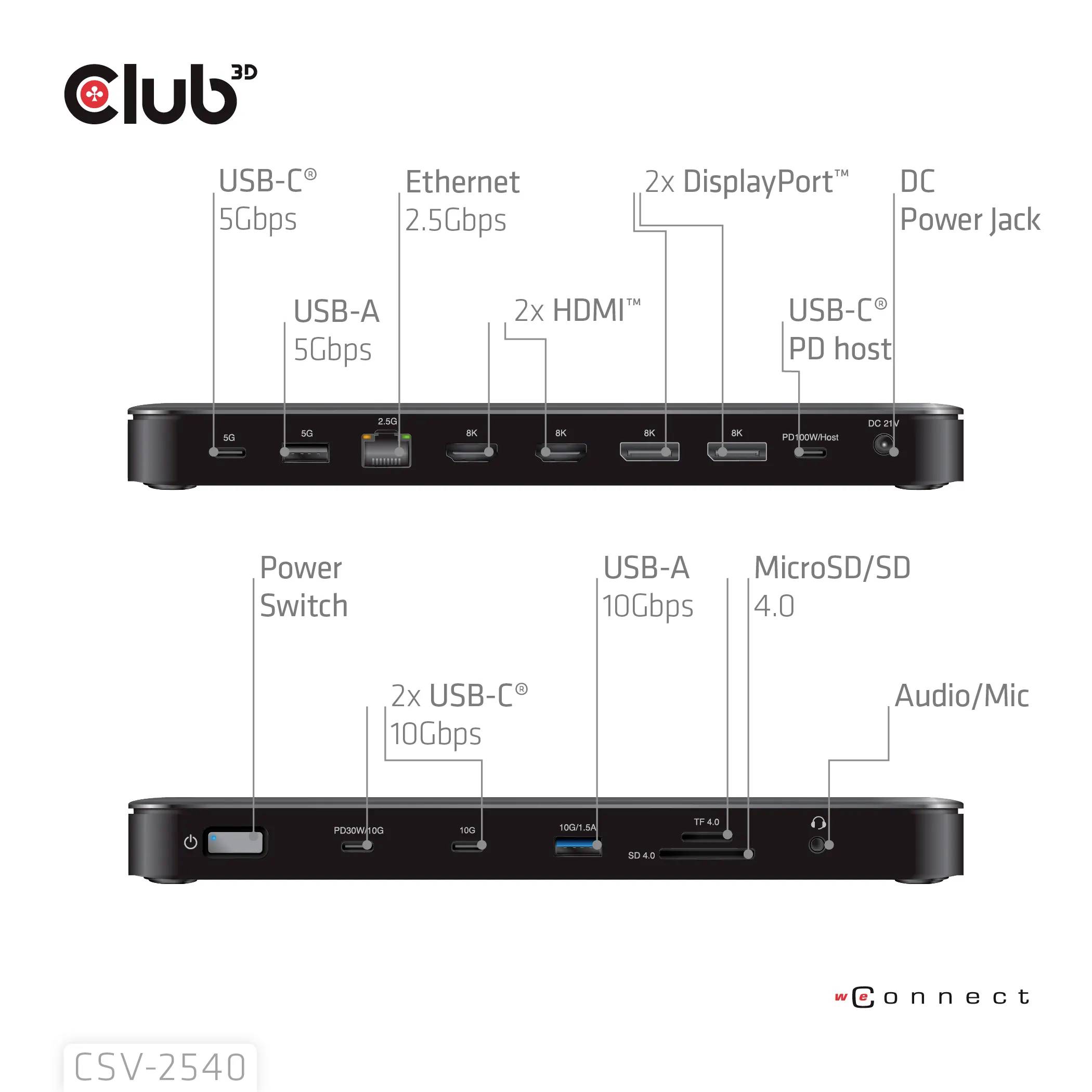

The CSV-2540 is a 14-in-1 portable docking station with Type C® 10 Gbps USB, quad displays and 2 lane DisplayPort™ 2.1 Alt mode that is used to extend a Type C connector to multiple video, data, audio, Ethernet and power connectors. The ideal solution for a comprehensive requirement profile. The dock has 4 video outputs (4x 4K/60Hz videos simultaneously, if the host supports both UHBR10 and DSC) and 5 USB ports for data transfer. In addition, 2.5 Gigabit for ultra fast Ethernet, microSD/SD card readers and 3.5 mm combi audio socket completes the functional scope. The dock is supplied with power through an accompanying 150 W DC power supply. Of these, max. 100 W are available for the host (PC/laptop), and max. 30 W for further USB-C mobile devices®. • Quad Displays Docking station with 2 lanes DisplayPort™ 2.1 Alt mode, OUTPUT: 2x HDMI™ + 2x DisplayPort™. Connect up to 4x 4K60Hz displays via a single USB-C input® and enjoy your immersive multi-monitor setup.
• 2.5BASE-T GIGABIT ETHERNET: Includes a 2.5 Gb/s network controller that provides speeds of 10/100/1000/2500 Mbps; For laptops/devices without Ethernet.
• 14 PORTS via a USB Type-C® connector: Expand the connectivity of your USB Type-C® computer with five USB ports (2x USB Type-A, 3x Type-C®) and a Power Delivery 3.0 USB Type-C® port with max. 100 watt upstream.
• 2 card slots (MicroSD/SD) work simultaneously and support SD4.0 (UHS-II) at max. 312 Mbit/s.
This text is machine translated.
• 2.5BASE-T GIGABIT ETHERNET: Includes a 2.5 Gb/s network controller that provides speeds of 10/100/1000/2500 Mbps; For laptops/devices without Ethernet.
• 14 PORTS via a USB Type-C® connector: Expand the connectivity of your USB Type-C® computer with five USB ports (2x USB Type-A, 3x Type-C®) and a Power Delivery 3.0 USB Type-C® port with max. 100 watt upstream.
• 2 card slots (MicroSD/SD) work simultaneously and support SD4.0 (UHS-II) at max. 312 Mbit/s.
This text is machine translated.
