club3D USB-C® docking station CSV-2552 Built-in card reader, USB-C® powered
EAN:
Part number:
Item no:
club3D CSV-2552 USB-C® docking station
Highlights & Details
- Connection A (or inputs): 1x USB-C®
- Connecton B (or outputs): USB-C® socket (Power Delivery), USB-C®, HDMI®, HDMI®, USB-A, USB-A, RJ45, microSD, SD
- No. of supported monitors:
- Maximum resolution:
- Key features: Built-in card reader, USB-C® powered
Technical specifications
- Connector dimensions: USB-C® 3.62 x 1.2 x 0.63cm
- Product type
USB-C® docking station
- Type A
1x USB-C®
- Type B
USB-C® socket (Power Delivery)
USB-C®
HDMI®
HDMI®
USB-A
USB-A
RJ45
microSD
SD
- Cable length
17 cm
- Factory colour
Multicolour
- Features
Built-in card reader
USB-C® powered
- Width
11.5 cm
- Height
1.4 cm
- Depth
5.9 cm
- Weight
121 g
- Dim
(W x H x D) 11.5 x 1.4 x 5.9 cm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3443640 club3D USB-C® docking station CSV-2552 Built-in card reader, USB-C® powered
Description

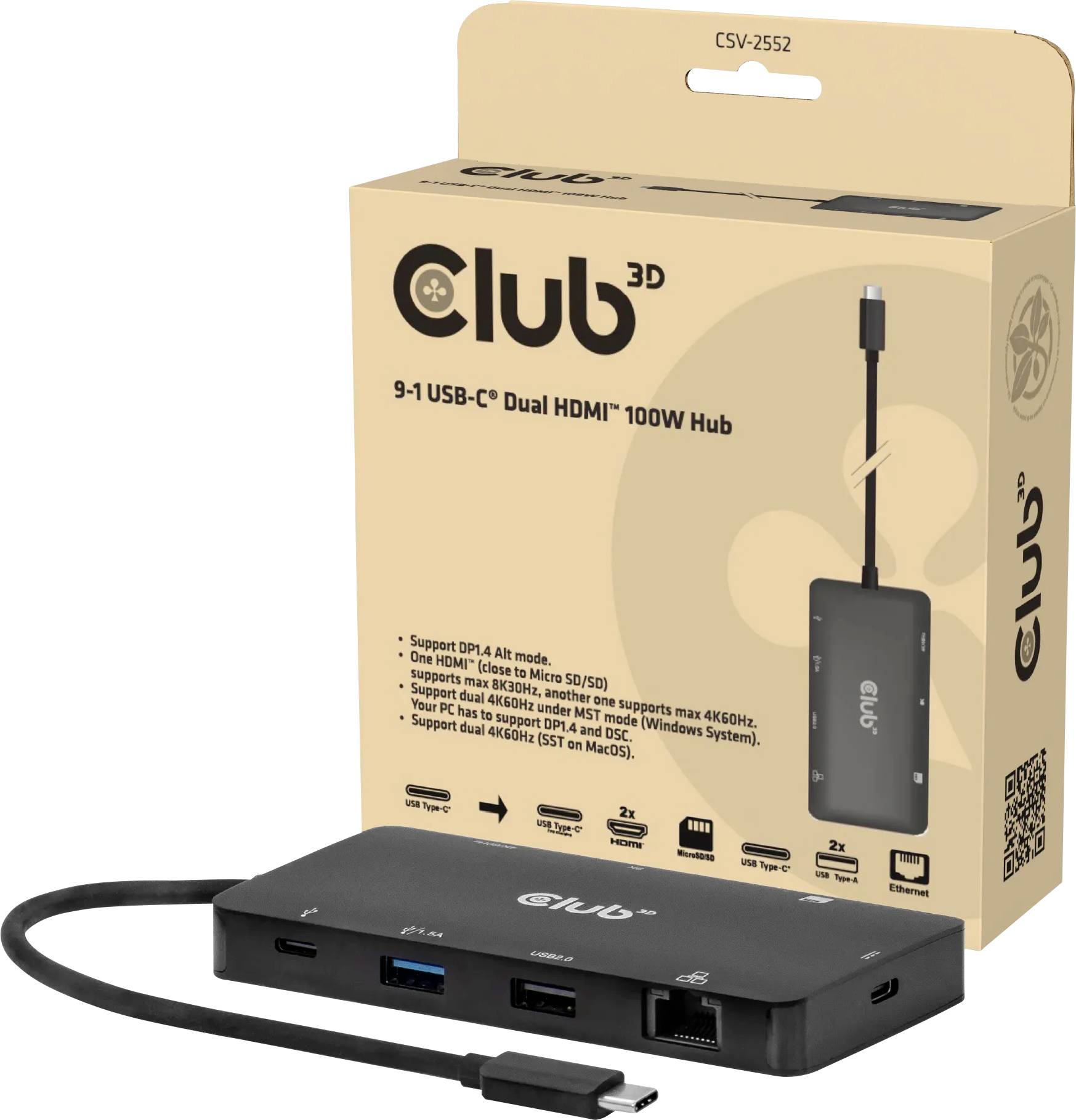

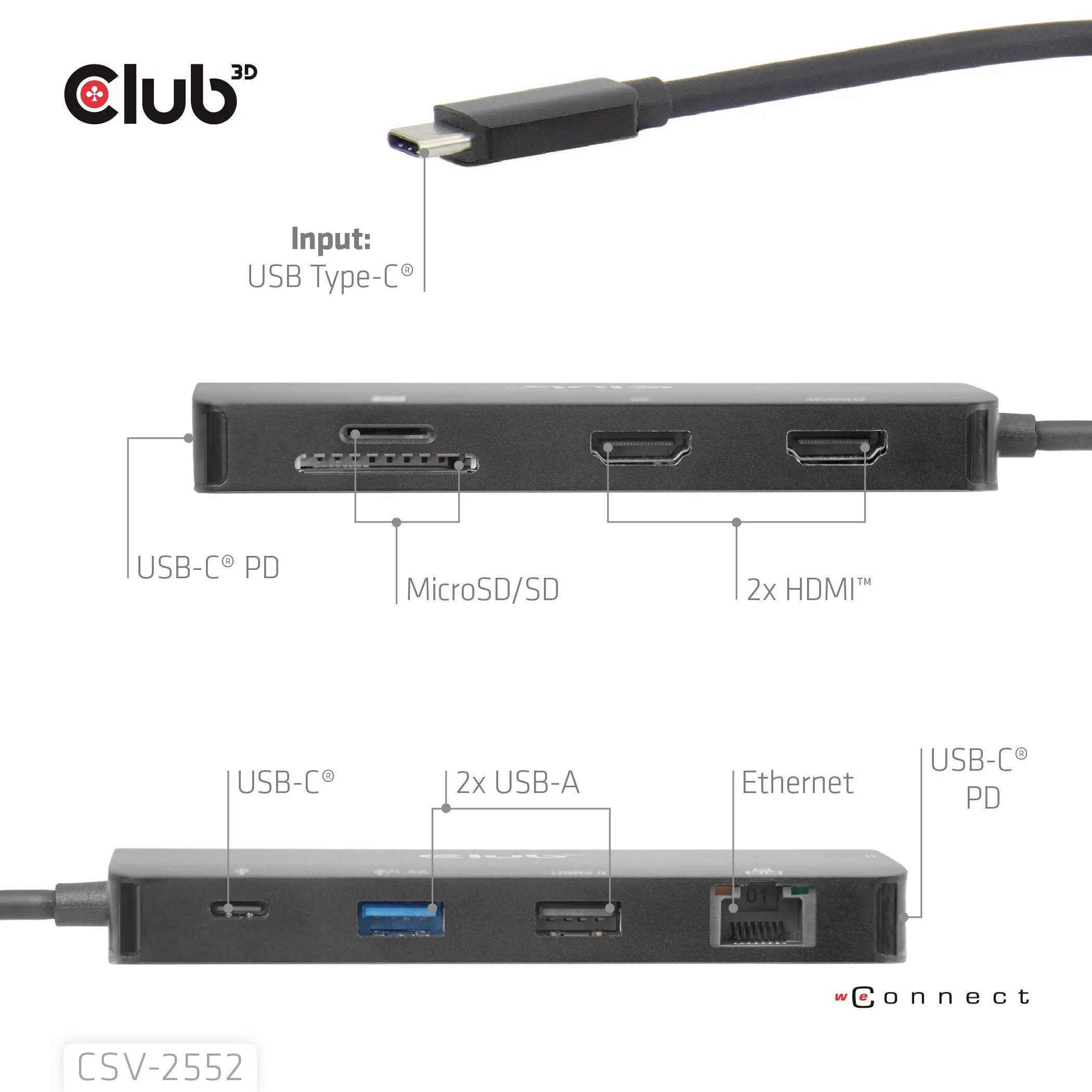

The Club 3D CSV-2552 is a USB-C® 9-1 hub with Dual HDMI™, 2x USB-A, 1x USB-C® data, RJ45, micro SD/SD card slots and USB-C® charging socket. It is an ideal solution for extending the USB-C® or Thunderbolt host (PC/laptop/mobile phone, etc.), especially for hosts with a single USB-C® port.
• Dual display hub with DP1.4 Alt mode, OUTPUT: 2x HDMI™ Connect up to 2 displays with a single USB-C input® and enjoy resolutions from up to two 4K60 Hz screens for an impressive multi-monitor setup.
• 1 GBASE-T GIGABIT ETHERNET: Includes a 1 Gb/s network controller that provides speeds of 10/100/1000 Mbps; For laptops/non-Ethernet devices such as MacBook/iPad Air/Pro; USB-C connectivity® with simultaneous power for charging with PD3.0.
• 1 PORT USB Type-C®: Expand the connectivity of a USB-C computer with 4x USB ports: 2x USB Type-A, 1x Type-C® and a Power Delivery 3.0 USB-C port® with max. 100 watts upstream.
• 2 dedicated card reader slots Micro SD/SD supports SD3.0 (UHS-II) with max. 104 Mbps (Card slots work simultaneously)
This text is machine translated.
• Dual display hub with DP1.4 Alt mode, OUTPUT: 2x HDMI™ Connect up to 2 displays with a single USB-C input® and enjoy resolutions from up to two 4K60 Hz screens for an impressive multi-monitor setup.
• 1 GBASE-T GIGABIT ETHERNET: Includes a 1 Gb/s network controller that provides speeds of 10/100/1000 Mbps; For laptops/non-Ethernet devices such as MacBook/iPad Air/Pro; USB-C connectivity® with simultaneous power for charging with PD3.0.
• 1 PORT USB Type-C®: Expand the connectivity of a USB-C computer with 4x USB ports: 2x USB Type-A, 1x Type-C® and a Power Delivery 3.0 USB-C port® with max. 100 watts upstream.
• 2 dedicated card reader slots Micro SD/SD supports SD3.0 (UHS-II) with max. 104 Mbps (Card slots work simultaneously)
This text is machine translated.
