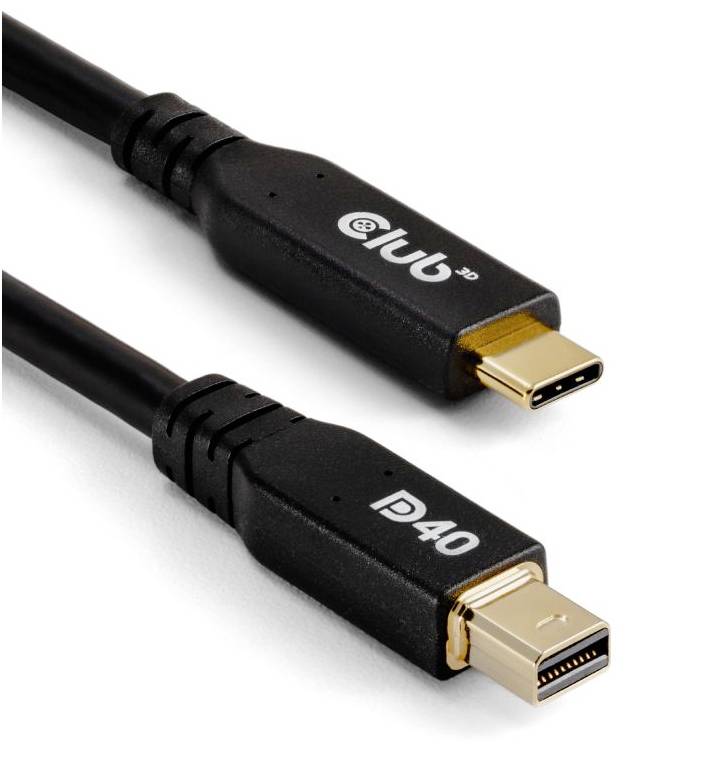

club3D USB-C® screen cable DisplayPort 2.1 USB-C® plug 2.00 m Black CAC-1561
EAN:
Part number:
Item no:
Product type
USB-C® screen cable
Cable specs
DisplayPort 2.1
Version
Adapter cable
Connection type
USB-C® to Mini DisplayPort
Connections
USB-C® plug
club3D CAC-1561 DisplayPort cable 2 m mini DisplayPort USB typ-C black
Highlights & Details
- Length 2 m
- Mini DisplayPort Straight Male
- USB Type-C Straight Male
- Display Ports Version: 2.1
- 7680 x 4320 pixels 240 Hz 40 Gbit/s
Technical specifications
- Connection1 Form factor: Straight
- Connection2 Form factor: Straight
- Connection 1: Mini DisplayPort
- Connection 2 USB Type-C
- Data transfer rate 40 Gbps
- Cable type: Round cable
- Product type
USB-C® screen cable
- Cable specs
DisplayPort 2.1
- Version
Adapter cable
- Connection type
USB-C® to Mini DisplayPort
- Connections
USB-C® plug
- Factory colour
Black
- Cable length
2.00 m
- Signal flow
Unidirectional (A→B)
- Cable design
Round
- Connector version
straight
- Transfer rate (max.)
40 GBit/s
- Connection type
USB-C®
- Cable type
USB cable
- Type A
USB
- Type B
USB
- Frame rate
240 Hz
- Cable use
USB-C®
- Weight
79 g
- UKCA
yes
- Maximum resolution
7680 x 4320 p
- Channels quantity
32 Kanäle
- Connector 1 dimensions (WxDxH)
43 x 19 x 8 mm
- Connector 2 dimensions (WxDxH)
47 x 12 x 6 mm
- Package weight
129 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3361837 club3D USB-C® screen cable DisplayPort 2.1 USB-C® plug 2.00 m Black CAC-1561
Description
The Club 3D CAC-1561 USB TYE-C to MiniDisplayPort™ 2.1 bi-directional DP40™ coaxial cable, 4K240Hz, 8K30Hz M/M 2m allows you to connect your USB type C enabled (gaming) PC or laptop to a (ultra) high resolution monitor or other MiniDisplayPort™ capable device. DisplayPort™ 2.1 UHBR10 up to 40 Gbps, also supports display stream compression 1.2 (DSC), forward error correction, and extends the maximum number of inLine audio channels to 32. It features a MiniDisplayPort™ connector with NEW contact fingers designed specifically for these high speeds. The soft UltraFlex sheath protects the cable from bending and deformation damages.
This text is machine translated.
This text is machine translated.
Features
- Support for Display Stream Compression (DSC) 1.2
- Support for forward error correction
- Support for up to 32 inLine audio channels
- New DP2.1 specification connector
