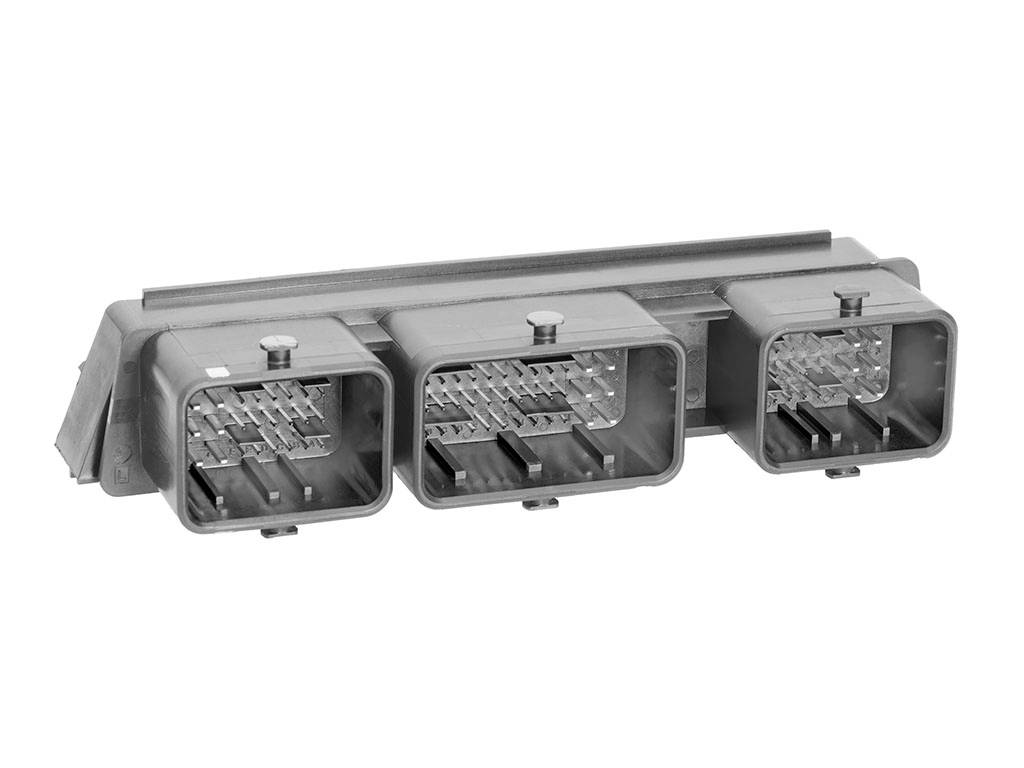

CMC header 643330100 Molex MOL Automotive Black Molex Content: 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Tray
Product type
Power connector
Connector type
Socket, right angle
Connection
Soldering
Rated voltage
14 V DC
Datasheet (PDF)
Number
Total (€ 15.12 / piece)
€ 18.48
-18 %
€ 15.12
plus VAT.
14-day return policy included
Highlights & Details
CMC header
- CMC Header 112-circuit, 3-pocket, Solder Tail
- This text is machine translated.
Our service for you
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Tray
- Product type
Power connector
- Connector type
Socket, right angle
- Connection
Soldering
- Rated voltage
14 V DC
- Test current
12 A;6 A
- Case material
Nylon (NL)
- Total no. of pins
112
- Manufacturer part #
643330100
- Factory colour
Black
- Content
1 pc(s)
- Number of pins
112
- RoHS-compliant
Yes
- Type
Molex MOL Automotive
- Seal
Lock for counterpart
- Engineering Part No
64333-0100
- Engineering Series Name
CMC Header Generic
- Engineering Series No
64333
- Total number of pins
112
- Contact surface
Brass tin plated
- Connector orientation
Parallel (to the PCB)
- Nominal current
12 A
- Nominal voltage
14 V DC
- No. of rows
4
- Min. temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 2449842 CMC header 643330100 Molex MOL Automotive Black Molex Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2449842 CMC header 643330100 Molex MOL Automotive Black Molex Content: 1 pc(s)
Circuit diagramm
Circuit diagramm 2449842 CMC header 643330100 Molex MOL Automotive Black Molex Content: 1 pc(s)
Description
CMC Header 112-circuit, 3-pocket, Solder Tail
