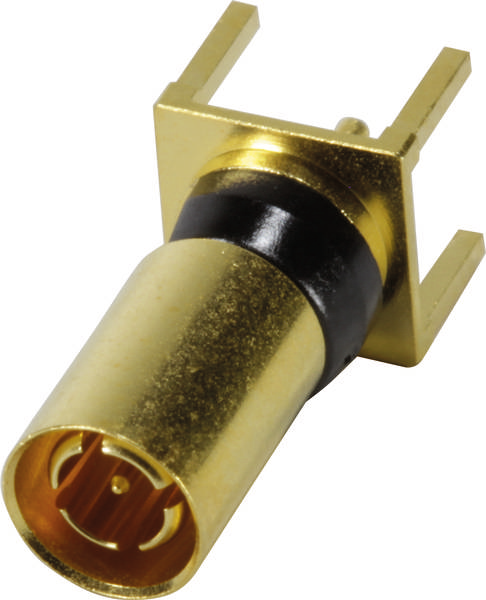

Coaxial connector 09030006165 HARTING Content: 1 pc(s) Coaxial connector
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Coaxial connector
Type
09 03 000 6165
Manufacturer part #
09030006165
Connection
Soldering
Datasheet (PDF)
Technical specifications
- DIN 41612 series
- Contact description: Straight
- Connection type: PCB soldering connection
- Type of connection: Motherboard to Daughtercard;Mezzanine; PCB to cable
- Rated current ≤ 1.5 A
- Insulation resistance >109 Ω
- ≤10 mΩ for internal conductor;≤3 mΩ for external conductor
- Temperature limit: -55 ... +125 °C
- Mating cycles ≥ 500
- Test voltage Ueff 0.75 kV
- Material contacts: Copper alloy
- Contact surface: Precious metal via Ni connector side
- DIN 41626 standard
- Net weight: 1.4 g
- Features: Lead-free
- Rated voltage: 250 V
- Plug-in force ≤ 10 N
- Pull force ≥ 1 N
- Contact type: Coaxial contact
- Contacts for: DIN 41612 design M;DIN 41612 design M 0+2
- Gender: Blade contact for female multipoint sockets
- Production process: Turned contacts
- Material locking: Copper alloy
- Wave impedance: 50 ohms
- Reflection attenuation: >32 dB @ 1 GHz;>30 dB @ 2 GHz;>28 dB @ 4 GHz;>24 dB @ 6 GHz
- Frequency: 6 GHz
- Packaging type
Piece
- Type
09 03 000 6165
- Product type
Coaxial connector
- Manufacturer part #
09030006165
- Connection
Soldering
- Content
1 pc(s)
- Material
Copper alloy
- Max. temperature
125 °C
Pin
-55-125 °C
Other
Other
1.5 A
Other copper alloys
500
Documents & Downloads
Datasheet
Datasheet 3000871 Coaxial connector 09030006165 HARTING Content: 1 pc(s) Coaxial connector
Datasheet 3000871 Coaxial connector 09030006165 HARTING Content: 1 pc(s) Coaxial connector
User & Safety Instructions
User & Safety Instructions 3000871 Coaxial connector 09030006165 HARTING Content: 1 pc(s) Coaxial connector
Description
Coaxial contact, straight, operating current: 1.5 A, blade contact for female multipoint connectors, copper alloy, Precious metal over Ni connector side, wave resistance: 50
