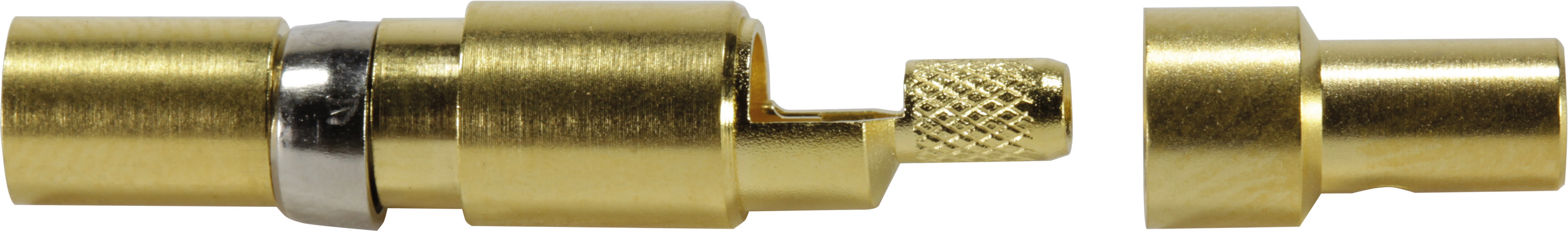

Coaxial connector 09030006181 HARTING Content: 1 pc(s) Coaxial connector
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Coaxial connector
Type
09 03 000 6181
Manufacturer part #
09030006181
Connection
Soldering
Crimp
Datasheet (PDF)
Technical specifications
- DIN 41612;har-modular®
- Contact description: Straight
- Connection type: Soldering / crimp connection
- Type of connection: Motherboard to Daughtercard;Mezzanine; PCB to cable
- Rated current ≤ 0.4 A
- Insulation resistance >109 Ω
- ≤10 mΩ for internal conductor;≤3 mΩ for external conductor
- Temperature limit: -55 ... +125 °C
- Mating cycles ≥ 500
- Test voltage Ueff 0.75 kV
- Material contacts: Copper alloy
- Contact surface: Precious metal via Ni connector side
- DIN 41626 standard
- Net weight: 33.84 g
- Features: Lead-free
- Rated voltage: 250 V
- Plug-in force ≤ 10 N
- Pull force ≥ 1 N
- Contact type: Coaxial contact
- Contacts for: DIN 41612 design M;DIN 41612 design M inverse;DIN 41612 construction MH 21+5;DIN 41612 design M 0+2;har-modular® M module, spring, straight
- Gender: Blade contact for female multipoint sockets
- Production process: Turned contacts
- Material locking: Copper alloy
- Wave resistance 75 Ω
- Reflection attenuation >19 dB @ 1 GHz;>14 dB @ 2 GHz
- Frequency: 2 GHz
- Packaging type
Piece
- Type
09 03 000 6181
- Product type
Coaxial connector
- Manufacturer part #
09030006181
- Connection
Soldering
Crimp
- Content
1 pc(s)
- Material
Copper alloy
- Max. temperature
125 °C
Pin
-55-125 °C
Other
Other
0.4 A
Other copper alloys
500
Documents & Downloads
Datasheet
Datasheet 3000868 Coaxial connector 09030006181 HARTING Content: 1 pc(s) Coaxial connector
Datasheet 3000868 Coaxial connector 09030006181 HARTING Content: 1 pc(s) Coaxial connector
User & Safety Instructions
User & Safety Instructions 3000868 Coaxial connector 09030006181 HARTING Content: 1 pc(s) Coaxial connector
Description
Coaxial contact, straight, operating current: 0.4 A, blade contact for female multipoint connectors, copper alloy, Precious metal over Ni connector side, wave resistance: 75
