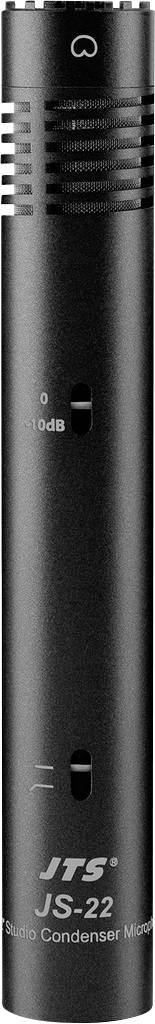

Condenser microphone JTS JS-22 Transfer type (details):Corded incl. hard case
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 0.615 kg
- Dimensions 20 x 150 mm
- Ass. Operating temperature 0-40 °C
- Weight 130 g
- Gross weight: 0.866 kg
- Max. Sound pressure 140 dB
- Connection: XLR, balanced
- Characteristic: Kidney
- Sensitivity 15.8 mV/Pa
- Signal-to-noise ratio 78 dB
- Type: Condenser microphone
- Transmission type: Cable
- System: Capacitor
- Audio frequency range 20-20000 Hz
- Supply: DC 48 V, Phantom
- Nominal impedance 100 Ω
- Housing material: Brass
- Product type
Condenser microphone
- Transfer type
Corded
- Characteristics
Cardioid
- Impedance
100 Ω
- Features
incl. hard case
- Connector
XLR balanced
- Weight
130 g
- Length
150 mm
- (Ø)
20 mm
- Dim
(Ø x L) 20 mm x 150 mm
- Frequency range
20-20000 Hz
Documents & Downloads
Datasheet
Datasheet 3340614 Condenser microphone JTS JS-22 Transfer type (details):Corded incl. hard case
User & Safety Instructions
User & Safety Instructions 3340614 Condenser microphone JTS JS-22 Transfer type (details):Corded incl. hard case
Description
Professional condenser microphone
For studio and live applications. Ideal for direct or overhead recording of acoustic instruments, percussion and vocals or 2 x JS-22 for high-quality stereo recordings.
Extremely thin, gold-coated 1.25 cm diaphragm (½") Low-cut switch (80 Hz) Switchable 10 dB attenuation 48 V phantom power High-quality, stable brass housing Supplied accessories: Robust hard-shell case, microphone wind protection and microphone holder
This text is machine translated.
For studio and live applications. Ideal for direct or overhead recording of acoustic instruments, percussion and vocals or 2 x JS-22 for high-quality stereo recordings.
Extremely thin, gold-coated 1.25 cm diaphragm (½") Low-cut switch (80 Hz) Switchable 10 dB attenuation 48 V phantom power High-quality, stable brass housing Supplied accessories: Robust hard-shell case, microphone wind protection and microphone holder
This text is machine translated.
Features
- Type: Condenser microphone
- Transmission type: Cable
- Characteristic: Kidney
- System: Capacitor
- Audio frequency range 20-20000 Hz
- Nominal impedance 100 Ω
- Sensitivity 15.8 mV/Pa
- Signal-to-noise ratio 78 dB
- Max. Sound pressure 140 dB
- Supply DC 48 V
- Phantom
- Housing material: Brass
- Ass. Operating temperature 0-40 °C
- Dimensions: Ø 20 mm x 150 mm
- Weight 130 g
- XLR connection
- balanced
- Packaging dimensions (W x H x L) 0.172 x 0.09 x 0.37 m
- Gross weight: 0.866 kg
- Net weight: 0.615 kg
