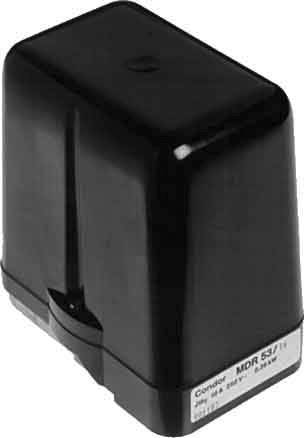

Condor Pressure sensor 1 pc(s) MDR 53/3 #213130 0.25 bar up to 3 bar Screw-fit
EAN:
Part number:
Item no:
Product type
Pressure sensor
Connector
Screw-fit
Pressure reading range (max.)
3 bar
Max. operating voltage
250 V AC
Type
MDR 53/3 #213130
Technical specifications
- Product type
Pressure sensor
- Type
MDR 53/3 #213130
- Connector
Screw-fit
- Pressure reading range (min.)
0.25 bar
- Pressure reading range (max.)
3 bar
- Pressure reading range
0.25 bar up to 3 bar
- Max. operating voltage
250 V AC
- Operating voltage
250 V AC (max)
IP54
- Min. temperature
-5 °C
- Max. temperature
80 °C
- Height
110 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2747207 Condor Pressure sensor 1 pc(s) MDR 53/3 #213130 0.25 bar up to 3 bar Screw-fit
Description
Form part arc 90° horizontal for all wide-range cable conductors with the side height 110 mm.
