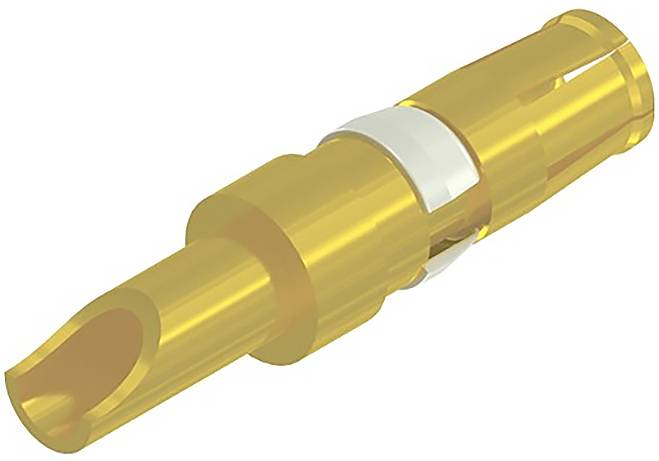

A golden electrical contact plug with a grooved tip and a silver ring-shaped marking in the centre.

A golden electrical contact plug with a grooved tip and a silver ring-shaped marking in the centre.

An orange cable plug with a white border in the middle. The plug is cylindrical in shape and made of plastic.

A yellow, round object with a symmetrical, recessed pattern in the centre. The design appears abstract and metallic.

1/3

Product type

Socket pin

AWG max.

12

Contact material

Copper alloy

Content

1 pc(s)

AWG (min.)

14

Datasheet (PDF)

European union

Conec

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Total (€ 2.34 / piece)

€ 2.34

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Conec socket contact 132A10029X

Our service for you

Technical specifications

Product type: D-SUB combination contacts
Contact type: Socket
IP protection class IP20
Standard current carrying capacity IEC 60807-2
Standard electrical strength IEC 60807-2
Standard operating voltage IEC 60807-2
Lower operating temperature: -55° C.
Grade: Grade 3
Mating cycles 50
Insertion force 7 N
Pull force 5 N
Standard mating cycles IEC 60807-2
Standard plug-in-pulling forces:IEC 60807-2
Standard protection class IEC 60807-2
Voltage resistance Power 1000 V
Operating voltage Power 250 V
Current carrying capacity Power 20 A
Connection type Power: Hand-soldering
High current contacts for wire cross-section AWG 12- 14
Contact resistance Power:1 mOhm
High current contacts material: Copper alloy
High current contacts surface: Plug side: Gold on nickel
High current contacts surface Connection side: Gold over nickel

Product type: Socket pin

AWG max.: 12

Contact material: Copper alloy

Content: 1 pc(s)

AWG (min.): 14

Connection: Soldering

Mating cycles: 50

Manufacturer part #: 132A10029X

Contact surface: Gold on nickel

Nominal current: 20 A

RoHS-compliant: Yes

Type: 132A10029X

: IP20

Documents & Downloads

Datasheet

European union

Datasheet 3374456 Conec 132A10029X 132A10029X Socket pin AWG (min.): 14 AWG max.: 12 Copper alloy 20 A 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3374456 Conec 132A10029X 132A10029X Socket pin AWG (min.): 14 AWG max.: 12 Copper alloy 20 A 1 pc(s)

Description

Conec D-SUB combination contacts, socket

This text is machine translated.
