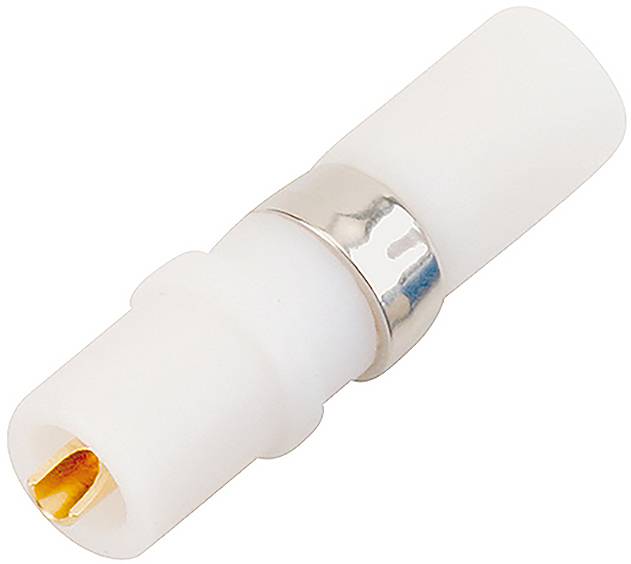

Conec 132J14019X 132J14019X Socket pin 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket pin
Content
1 pc(s)
Mating cycles
500
Manufacturer part #
132J14019X
Contact surface
Gold on nickel
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
200
-
€ 5.03
600
6% = € 0.32
€ 4.71
1000
9% = € 0.46
€ 4.57
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 200
Multiple: 200
Total (€ 5.03 / piece)
€ 1,006.00
plus VAT.
Highlights & Details
Conec socket contact 132J14019X
Our service for you
Technical specifications
- Product type: D-SUB combination contacts
- Contact type: Socket
- IP protection class IP20
- Standard current carrying capacity IEC 60807-2
- Standard electrical strength IEC 60807-2
- Standard operating voltage IEC 60807-2
- Lower operating temperature: -55° C.
- Grade: Grade J
- Mating cycles: 500
- Insertion force 5 N
- Pull force 2.5 N
- Standard mating cycles IEC 60807-2
- Standard plug-in-pulling forces:IEC 60807-2
- Standard protection class IEC 60807-2
- Voltage resistance Power 3.8 kV
- Contact resistance HV 2.7 mOhm
- HV contact carrier material: PTFE
- HV contact carrier COLOR: White
- HV contact material conductor: Copper alloy
- HV Contact Surface: Gold over Nickel
- Product type
Socket pin
- Content
1 pc(s)
- Mating cycles
500
- Manufacturer part #
132J14019X
- Contact surface
Gold on nickel
- RoHS-compliant
Yes
- Type
132J14019X
IP20
Documents & Downloads
Datasheet
Datasheet 3374458 Conec 132J14019X 132J14019X Socket pin 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3374458 Conec 132J14019X 132J14019X Socket pin 1 pc(s)
Description
Conec D-SUB combination contacts, socket
