Conec 163A11089X 163A11089X D-SUB pin strip Number of pins: 25 Solder bucket 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
D-SUB pin strip
Number of pins
25
Connection
Solder bucket
Content
1 pc(s)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.03
5
7% = € 0.27
€ 3.76
10
9% = € 0.37
€ 3.66
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 4.03 / piece)
€ 4.03
plus VAT.
14-day return policy included

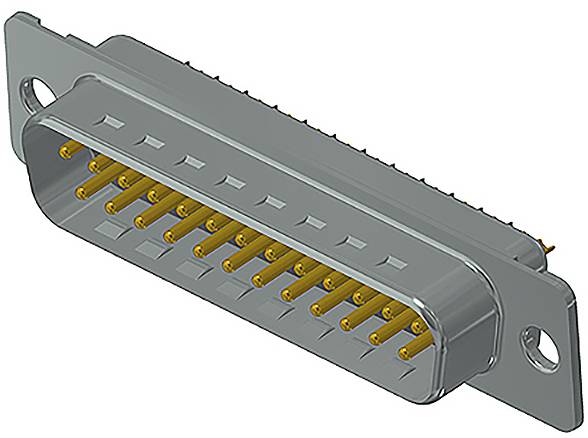

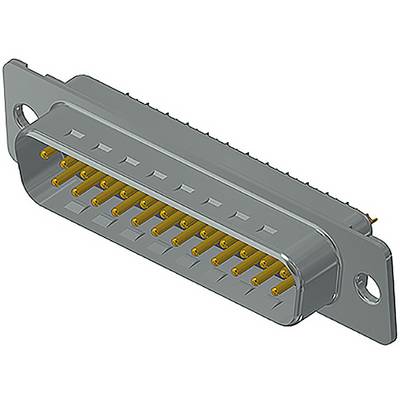

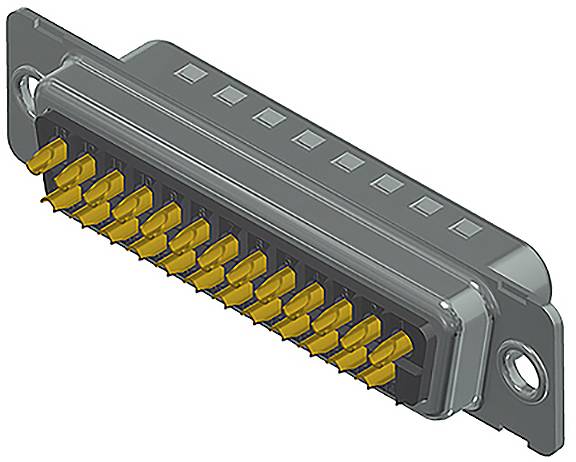

Conec D-SUB header 163A11089X
Highlights & Details
- D-SUB pin strip
- Number of pins: 25
Our service for you
Technical specifications
- Product type: D-SUB standard
- Contact type: Pin
- Signal type: Solder cup
- Signal strength 1000 V
- Operating voltage signal 125 V
- IP protection class IP20
- Ampacity signal 7.5 A
- Insulation body material PBT GF UL 94 V-0
- Insulation body material color: Black
- Shell material: Steel
- Shell surface: Tin
- Signal contact material: Copper alloy
- Signal contact surface (plug-in area): Gold over nickel
- Standard electrical strength IEC 60807-2
- Standard operating voltage IEC 664-1
- Lower operating temperature: -55° C.
- Upper operating temperature: +125° C.
- Contact contact resistance signal 10 mOhm
- PIN image/number of poles: 25-pin
- Mounting material: Steel
- Mounting type Surface: Nickel
- Mounting type Connection side: Through hole
- Grade: Grade 3
- Mating cycles 50
- Insertion force <83 N
- Signal contact surface Connection side: Gold over nickel
- Standard mating cycles IEC 60807-2
- Standard plug-in-pulling forces:IEC 60807-2
- Packaging type
Piece
- Product type
D-SUB pin strip
- Number of pins
25
- Connection
Solder bucket
- Content
1 pc(s)
- Mating cycles
50
- Manufacturer part #
163A11089X
- Factory colour
Black
- Contact material
Copper alloy
- Contact surface
Gold on nickel
- RoHS-compliant
Yes
IP20
- Type
163A11089X
- Nominal current
7.5 A
- Nominal voltage
125 V
Documents & Downloads
Datasheet
Datasheet 3374447 Conec 163A11089X 163A11089X D-SUB pin strip Number of pins: 25 Solder bucket 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3374447 Conec 163A11089X 163A11089X D-SUB pin strip Number of pins: 25 Solder bucket 1 pc(s) Piece
Description
Conec D-SUB standard, pin, 25-pin
