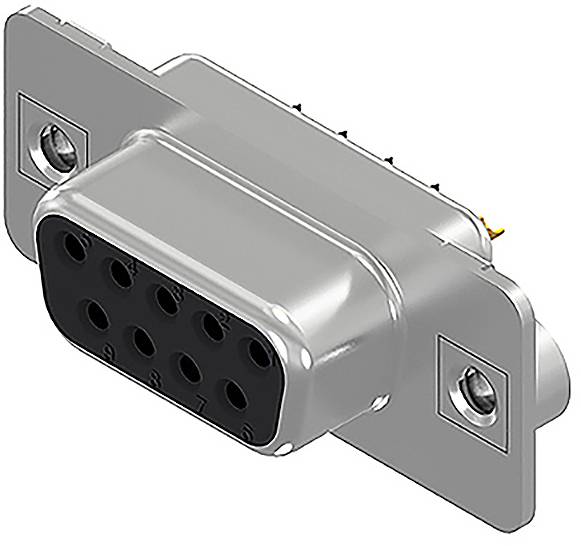

Conec 164A10219X 164A10219X D-SUB receptacles Number of pins: 9 Solder bucket 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
D-SUB receptacles
Connector type
Power strip
Number of pins
9
Connection
Solder bucket
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.61
10
7% = € 0.27
€ 3.34
25
11% = € 0.38
€ 3.23
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 3.61 / piece)
€ 3.61
plus VAT.
14-day return policy included
Highlights & Details
Conec D-SUB socket strip 164A10219X
- D-SUB receptacles
- Number of pins: 9
Our service for you
Technical specifications
- Product type: D-SUB standard
- Contact type: Socket
- Signal type: Solder cup
- Signal strength 1000 V
- Operating voltage signal 125 V
- IP protection class IP20
- Ampacity signal 7.5 A
- Insulation body material PBT GF UL 94 V-0
- Insulation body material color: Black
- Shell material: Steel
- Shell surface: Tin
- Signal contact material: Copper alloy
- Signal contact surface (plug-in area): Gold over nickel
- Standard electrical strength IEC 60807-2
- Standard operating voltage IEC 664-1
- Lower operating temperature: -55° C.
- Upper operating temperature: +125° C.
- Contact contact resistance signal 10 mOhm
- PIN image/number of poles: 9-pin
- UNC 4-40 thread
- Mounting material: Steel
- Mounting type Surface: Nickel
- Mounting type Plug-side: Inner thread
- Mounting type Connection side: Thread insert
- Grade: Grade 3
- Mating cycles 50
- Insertion force <30 N
- Pull force <30 N
- Signal contact surface Connection side: Gold over nickel
- Standard mating cycles IEC 60807-2
- Standard plug-in-pulling forces:IEC 60807-2
- Packaging type
Piece
- Product type
D-SUB receptacles
- Connector type
Power strip
- Number of pins
9
- Connection
Solder bucket
- Content
1 pc(s)
- Mating cycles
50
- Manufacturer part #
164A10219X
- Factory colour
Black
- Contact material
Copper alloy
- Contact surface
Gold on nickel
- RoHS-compliant
Yes
IP20
- Features
+ 4-40 internal thread
- Type
164A10219X
- Nominal current
7.5 A
- Nominal voltage
125 V
Documents & Downloads
Datasheet
Datasheet 3374429 Conec 164A10219X 164A10219X D-SUB receptacles Number of pins: 9 Solder bucket 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3374429 Conec 164A10219X 164A10219X D-SUB receptacles Number of pins: 9 Solder bucket 1 pc(s) Piece
Description
Conec D-SUB standard, socket, 9-pin
