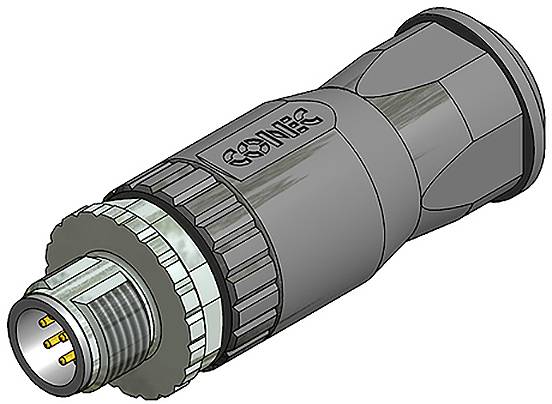

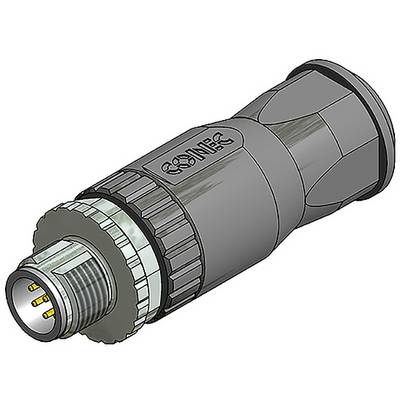

Conec 43-00132 Sensor/actuator connector No. of pins (RJ): 8 1 pc(s)
Part number:
Item no:
Product type
Sensor/actuator connector
Connection side A
M12 plug, straight
No. of pins
8
Nominal voltage
30 V
Nominal current
2 A
Datasheet (PDF)
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
Highlights & Details
Conec sensor/actuator connector, unassembled 43-00132
Our service for you
Technical specifications
- Product type: Connector ready for assembly
- Design: Plug connectors ready for assembly
- Contact type: Plug Axial
- Type of locking: Screw able
- Signal type: Screw terminals
- Shielding: Unshielded
- Operating voltage signal 30 V
- IP protection class IP67
- Ampacity signal: 2 A at +40°C
- Seal material: Elastomers
- Insulation body material PA6, UL94
- Insulation body material color: Black
- Signal contact material: Copper alloy
- Signal contact surface (plug-in area): Gold over nickel
- Standard current carrying capacity IEC 61076-2-101
- Lower operating temperature: -30° C.
- Upper operating temperature: +80° C.
- PIN image/number of poles: 8-pin
- Mating cycles: 100
- Standard plug-in cycles IEC 60512-9a
- Standard protection class IEC 60529
- Size A-side: M12x1
- Coding: A-coded
- Pollution level 3/2
- Insulation resistance >=100M Ohm
- Standard insulation resistance IEC 60512
- Standard degree of contamination IEC 60664-1
- Standard rated voltage IEC 61076-2-101
- Standard ambient temperature: IEC 60664-1
- Wire cross-section: Max. 0.5 mm²
- Material nut / screw: Die cast zinc
- Surface Lock nut/screw: Nickel
- Type
43-00132
- Product type
Sensor/actuator connector
- Connection side A
M12 plug, straight
- No. of pins
8
- Nominal voltage
30 V
- Nominal current
2 A
- Nominal current - rounded value
2 A
- Connector cross-section (max.)
0.5 mm²
- Connection
Screws
- Coding
A
- Contact surface
Gold on nickel
IP67
- Seal type
Screw-on
- Manufacturer part #
43-00132
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
Plug connector pre-fabricated
- Mating cycles
100
Documents & Downloads
Datasheet
Datasheet 3374475 Conec 43-00132 Sensor/actuator connector No. of pins (RJ): 8 1 pc(s)
Datasheet 3374475 Conec 43-00132 Sensor/actuator connector No. of pins (RJ): 8 1 pc(s)
Datasheet 3374475 Conec 43-00132 Sensor/actuator connector No. of pins (RJ): 8 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3374475 Conec 43-00132 Sensor/actuator connector No. of pins (RJ): 8 1 pc(s)
Description
Conec M12x1, ready-to-assemble plug connector, ready-to-fit connector, Axial plug connector, 8-pin
