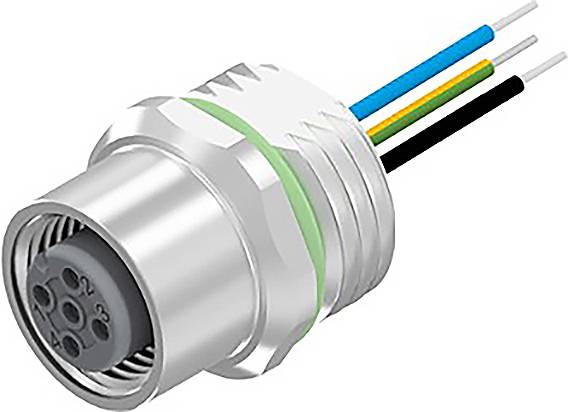

Conec 43-01001 Cable gland M12 x 1 Sleeve socket 0.5 m No. of pins (RJ): 5 1 pc(s) Piece
EAN:
Part number:
Item no:
Product type
Cable gland
Connector type
Sleeve socket
Connection side A
M12 socket, straight
Connection side B
Cable, open end
No. of pins
5
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
14-day return policy included
Highlights & Details
Conec flange socket 43-01001
Our service for you
Technical specifications
- Design: Flange
- Contact type: Clutch Axial
- Type of locking: Screw able
- Mounting type: Front mounting
- Connection type signal: Stranded wire
- Shielding: Unshielded
- Operating voltage signal 60 V
- IP protection class IP67
- Ampacity signal: 4 A at +40°C
- Seal material FPM
- Case material: Copper alloy
- Insulation body material TPU GF, UL94
- Insulation body material color: Black
- Signal contact material: Copper alloy
- Signal contact surface (plug-in area): Gold over nickel
- Standard current carrying capacity IEC 61076-2-101
- Lower operating temperature: -30° C.
- Upper operating temperature: +85° C.
- Housing color: Nickel
- PIN image/number of poles: 5-pin
- Mating cycles: 100
- Standard plug-in cycles IEC 60512-9a
- Standard protection class IEC 60529
- Size A-side: M12x1
- Coding: A-coded
- Thread type M16x1.5
- Pollution level 3/2
- Tightening torque 0.6 Nm
- Insulation resistance >=100M Ohm
- Cast material: Polyurethane resin, UL94
- Cast material color: Black
- Standard insulation resistance IEC 60512
- Standard degree of contamination IEC 60664-1
- Standard rated voltage IEC 61076-2-101
- Standard ambient temperature: IEC 60664-1
- Line-/wire length 0.5 m
- Wire cross-section: AWG24
- Wire insulation material PVC
- Packaging type
Piece
- Type
43-01001
- Product type
Cable gland
- Connector type
Sleeve socket
- Connection side A
M12 socket, straight
- Connection side B
Cable, open end
- No. of pins
5
- Cable length
0.5 m
- Jacket material
PVC
- Nominal voltage
60 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connection
Braid
- Factory colour
Nickel
- Thread type connection side
M12 x 1
- Thread type (wiring and installation)
M16
- Coding
A
- Contact material
Copper alloy
- Contact surface
Gold on nickel
- Sensor/actuator connectivity fittings
Front panel fitting
IP67
- Min. temperature
-30 °C
- Max. temperature
+85 °C
- Seal type
Screw-on
- Manufacturer part #
43-01001
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
Flange
- Number of pins
5
- Mating cycles
100
Documents & Downloads
Datasheet
Datasheet 3374463 Conec 43-01001 Cable gland M12 x 1 Sleeve socket 0.5 m No. of pins (RJ): 5 1 pc(s) Piece
Datasheet 3374463 Conec 43-01001 Cable gland M12 x 1 Sleeve socket 0.5 m No. of pins (RJ): 5 1 pc(s) Piece
Datasheet 3374463 Conec 43-01001 Cable gland M12 x 1 Sleeve socket 0.5 m No. of pins (RJ): 5 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3374463 Conec 43-01001 Cable gland M12 x 1 Sleeve socket 0.5 m No. of pins (RJ): 5 1 pc(s) Piece
Description
Conec M12x1, flange, Axial coupling, 5-pin
