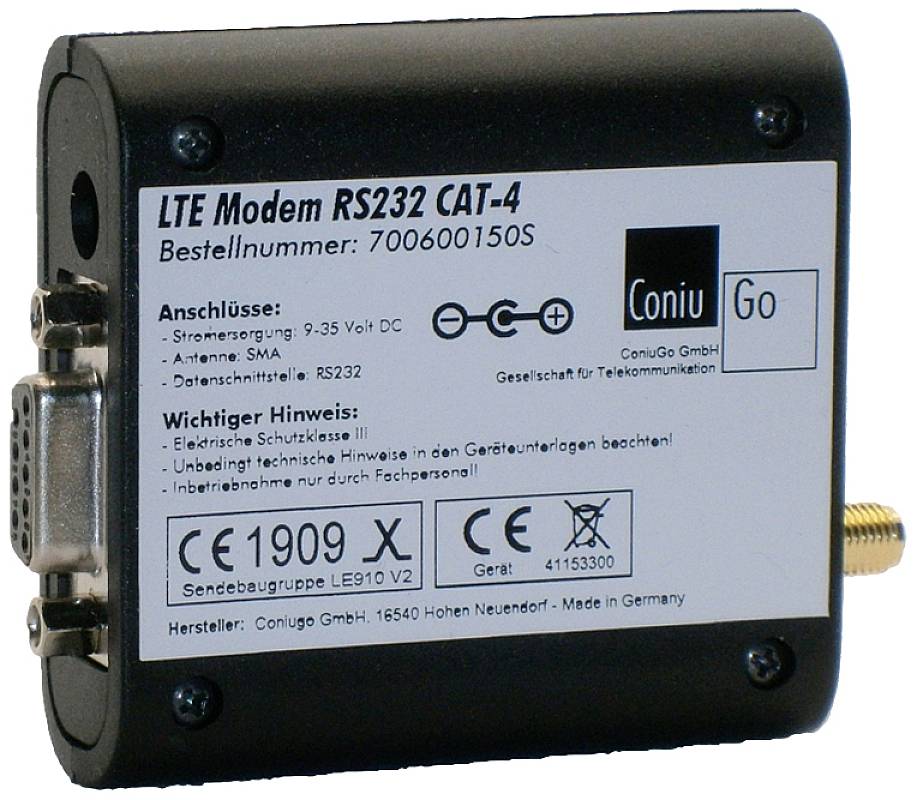

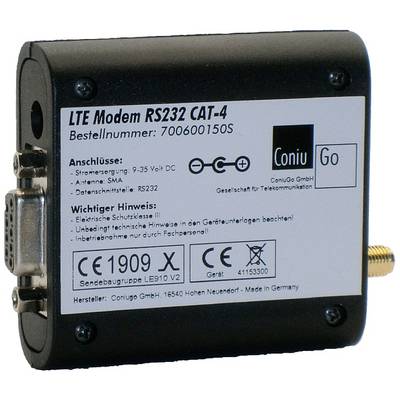

ConiuGo 700600150S LTE modem 12 V DC Function (GSM): Read
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 352.10 / piece)
€ 352.10
plus VAT.
14-day return policy included
Highlights & Details
LTE GSM quad band modem RS232
- Use of all LTE/GSM services (voice call possible without voice transmission), data, Tele.)
Technical specifications
- Data transfer rate: 50 Mbps up to 100 Mbps Down (LTE), 5.76 Mbps up to 42.0 Mbps Down (HSPA+).
- Type
700600150S
- Product type
LTE modem
- Operating voltage
12 V DC
- Function
Read
- Interfaces
D-SUB socket 9-pin
- GSM frequency
1800 MHz
2100 MHz
2600 MHz
800 MHz
900 MHz
- Depth
20 mm
- Length
62 cm
- Width
59 cm
- Dim
(L x W) 62 cm x 59 cm
- Suitable for
ConiuGo
- Manufacturer part #
700600150S
- Max. temperature
65 °C
- Min. temperature
-30 °C
Documents & Downloads
Datasheet
Datasheet 1515891 ConiuGo 700600150S LTE modem 12 V DC Function (GSM): Read
Datasheet 1515891 ConiuGo 700600150S LTE modem 12 V DC Function (GSM): Read
Description
Industrial standard interfaces and integrated SIM card reader make the LTE GSM quad band modem the ideal LTE GSM terminal for universal use in data communication and facilitate the rapid implementation of new applications in areas such as telemetry and telematics.Can be used on Windows and Linux systems · Use of all LTE/GSM services (voice call possible without voice transmission), data, Tele.) · IP with TCP and UDP protocol, FTP, SMTP, SMS · Small design for integration in applications.To use the LTE GSM modem, you need:PC with RS232, USB or LAN interface, antenna, mains adapter or alternative power supply · SIM card with data activation (prepaid or fixed contract).Application areas Data transfer from:Remote measurement applications · PLC-controlled systems · Computer systems · RAS applications · Vending machines · Wind power plants.
