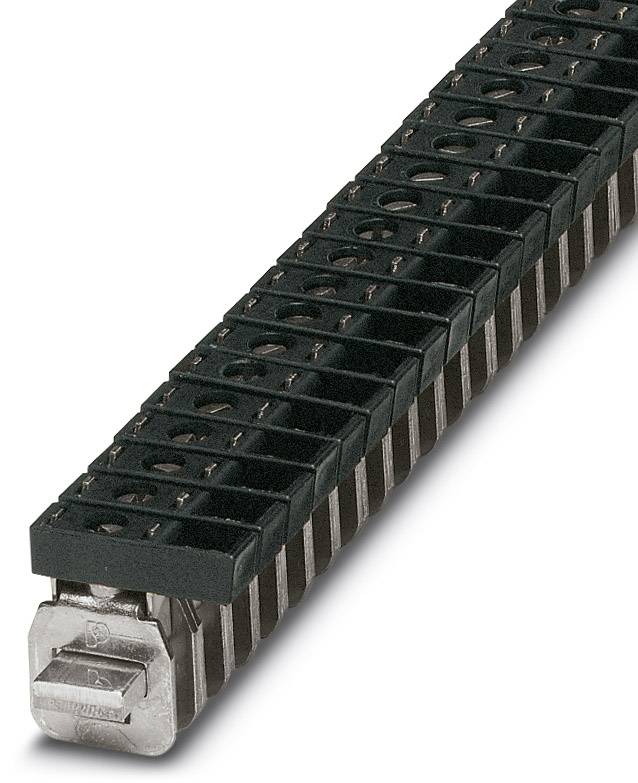

Connection terminal block AKG 4 GN 3062935 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Terminal
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
41 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 0.71 / piece)
€ 35.29
plus VAT.
14-day return policy included
Highlights & Details
Connection terminal block AKG 4 GN
- AKG 4 GN
Technical specifications
- Product type
Terminal
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
20
- AWG max.
10
- Clamp width
7 mm
- Factory colour
Green
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Nominal voltage
300 V
- Stripping length (max.)
16 mm
- Manufacturer part #
3062935
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
AKG 4 GN
- Dim
(L x W) 23.7 mm x 7 mm
- Width
7 mm
- Length
23.7 mm
- Flammability rating
V2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 589534 Connection terminal block AKG 4 GN 3062935 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 589534 Connection terminal block AKG 4 GN 3062935 Phoenix Contact
Description
Connection terminal block, Connection method Screw connection, Load current : 41 A, Cross section: 0.5 mm² - 6 mm², Width: 7 mm, Color: green
Hints
Special order, no right of withdrawal.
