Connector bracket 09140241716 HARTING Content: 1 pc(s) Connector bracket
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Connector bracket
Type
09 14 024 1716
Manufacturer part #
09140241716
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Series: Han-Modular®
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 500
- Standards IEC 60664-1; IEC 61984
- Net weight: 220 g
- Features: The docking frame does not have a PE contact because in many plug-in applications the grounding is done separately.;Suitable for Han-Modular® modules with the exception of HAN® megabit module, HAN® RJ45 module, optical and pneumatic modules.
- Notes: Rated voltage ≤630 V;Rated surge voltage ≤6 kV;Pollution degree 2;For a complete plug connector the specified rated voltage is the maximum permissible value of the can be reached. In cases where the modules used have lower voltages, the lower rated voltage is the maximum permissible value. Higher voltage specifications can be released for individual applications in coordination with Harting.
- Material: Zinc-Druckguss
- Accessories type: Docking frame
- Accessory description: Fixed;for 6 modules;A ... F
- Mating cycles with other HMC components: ≥ 10,000
- Floating play: ± 2 mm
- Catch range ± 4 mm
- Packaging type
Piece
- Type
09 14 024 1716
- Product type
Connector bracket
- Manufacturer part #
09140241716
- Content
1 pc(s)
- Material
Zinc (die-cast)
- Max. temperature
125 °C
- Leading contact (PE)
No
Other
500
Documents & Downloads
Datasheet
Datasheet 3005624 Connector bracket 09140241716 HARTING Content: 1 pc(s) Connector bracket
Datasheet 3005624 Connector bracket 09140241716 HARTING Content: 1 pc(s) Connector bracket
User & Safety Instructions
User & Safety Instructions 3005624 Connector bracket 09140241716 HARTING Content: 1 pc(s) Connector bracket
Description

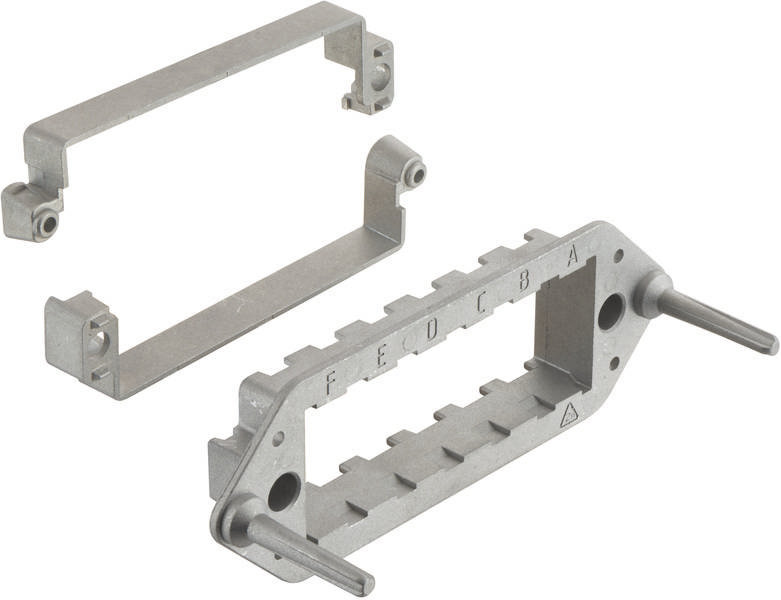

Docking frame, fixed, for 6 modules, A ... F
