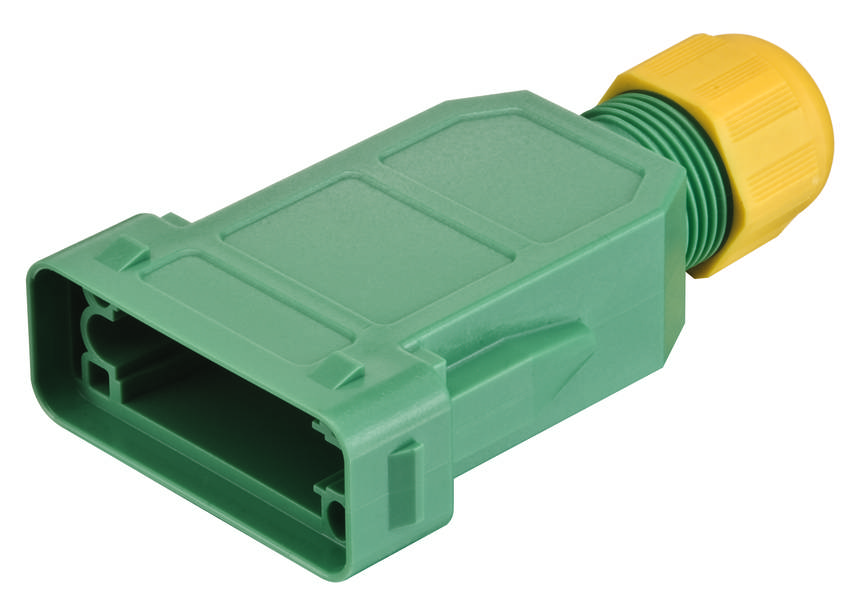

Connector enclosure 09 14 001 0730 09140010730 HARTING 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector enclosure
Case material
Polycarbonate
Type
09 14 001 0730
Manufacturer part #
09140010730
Features
straight cable input
Datasheet (PDF)
Technical specifications
- Locking type: Locking latch
- Temperature limit: -40 ... +85 °C
- Mating cycles ≥ 500
- Material flammability class acc. To UL 94: V-0
- Standards IEC 60664-1; IEC 61984
- Net weight: 37 g
- Protection class according to IEC 60529: IP65
- Casing type: Clutch housing
- Design: Straight cable input
- Cable input: 1x built-in
- Housing series: HAN® GND
- Material housing: Polycarbonate (PC)
- Colour of housing: Green
- Cable diameter: 7.5 ... 14 mm
- Limit temperature note: When used as a connector in accordance with IEC 61984.
- Material screwed cable glands: Polyamide (PA)
- Colour screwed cable gland: Yellow
- Type
09 14 001 0730
- Product type
Connector enclosure
- Manufacturer part #
09140010730
- Features
straight cable input
- Type
Straight cable input
- Case material
Polycarbonate
- Mating cycles
≥ 500
- Series
Han® GND
- Content
1 pc(s)
- Terminal Ø (max.)
14 mm
- Clamp Ø
7.5 mm
IP65
- Max. temperature
+85 °C
- Min. temperature
-40 °C
FALSE
FALSE
Green
Snap
1
FALSE
FALSE
Plastic
Other
-40-85 °C
V0
FALSE
FALSE
Coupling housing
IP65
Above
None
Other
Documents & Downloads
Datasheet
Datasheet 3002207 Connector enclosure 09 14 001 0730 09140010730 HARTING 1 pc(s)
Datasheet 3002207 Connector enclosure 09 14 001 0730 09140010730 HARTING 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3002207 Connector enclosure 09 14 001 0730 09140010730 HARTING 1 pc(s)
Description
Coupling casing, lock, straight cable input, 1x integrated, material housing: Polycarbonate (PC), green, yellow
