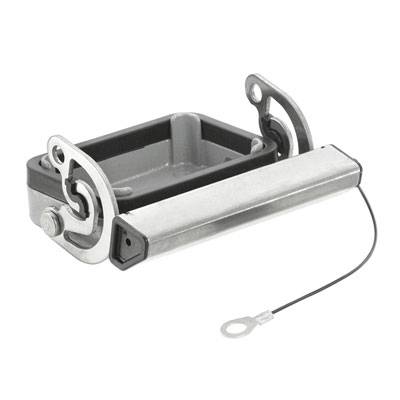

Connector housing HDC 06B DMDL 1LB Weidmüller Content: 1 pc(s) Connector housing
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Connector housing
Type
HDC 06B DMDL 1LB
Manufacturer part #
1665210000
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
Connector housing
- DMDL HDC06B 1 LB
Technical specifications
- Tightening torque: 1.2 Nm
- Size: 3
- Width: 43 mm
- EMC Housing: No
- Height: 18 mm
- Cable input: For upper parts of housing
- Surface: Powder coating
- Depth: 72 mm
- Packaging type
Piece
- Type
HDC 06B DMDL 1LB
- Product type
Connector housing
- Manufacturer part #
1665210000
- Content
1 pc(s)
- Material
Aluminium (die-cast)
IP65
- Max. temperature
+125 °C
- Height
18 mm
- Length
72 mm
- Width
43 mm
- Features
+ longitudinal brace on the bottom part
- Case material
Aluminium, die cast
- Min. temperature
-40 °C
- Weight
92 g
43
FALSE
18 mm
72 mm
Grey
Single locking lever
FALSE
TRUE
Aluminium
Powder coating
-40-125 °C
Other
TRUE
Other
IP65
Aluminium
Other
Base unit
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 203036 Connector housing HDC 06B DMDL 1LB Weidmüller Content: 1 pc(s) Connector housing
User & Safety Instructions
User & Safety Instructions 203036 Connector housing HDC 06B DMDL 1LB Weidmüller Content: 1 pc(s) Connector housing
Description
Connector housing. HDC-housing, size: 3, protection class IP65, cover for housing upper part, longitudinal brace on the bottom part, Standard. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
