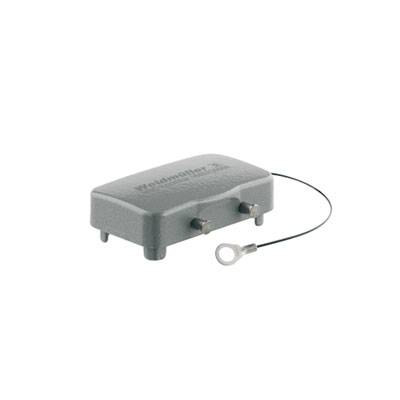

Connector housing HDC 10B DODQ 4BO Weidmüller Content: 1 pc(s) Connector housing
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Connector housing
Type
HDC 10B DODQ 4BO
Manufacturer part #
1665230000
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC10B DODQ 4 BO
Technical specifications
- Tightening torque: 1.2 Nm
- Size: 4
- Width: 58.5 mm
- EMC Housing: No
- Height: 17 mm
- Cable input: For housing lower parts
- Surface: Powder coating
- Depth: 73 mm
- Packaging type
Piece
- Type
HDC 10B DODQ 4BO
- Product type
Connector housing
- Manufacturer part #
1665230000
- Content
1 pc(s)
- Material
Aluminium (die-cast)
- Suitable for
HD
IP65
- Max. temperature
+125 °C
- Height
17 mm
- Length
73 mm
- Width
58.5 mm
- Features
+ transverse brace on the bottom part
for enclosure bottom parts
- Case material
Aluminium, die cast
- Weight
65 g
58.5
FALSE
17 mm
73 mm
Grey
Double locking levers
FALSE
TRUE
Aluminium
Powder coating
-40-125 °C
Other
Other
IP65
Aluminium
Other
Base unit
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 203037 Connector housing HDC 10B DODQ 4BO Weidmüller Content: 1 pc(s) Connector housing
User & Safety Instructions
User & Safety Instructions 203037 Connector housing HDC 10B DODQ 4BO Weidmüller Content: 1 pc(s) Connector housing
Description
Connector housing. HDC-casing, size: 4, protection class IP65, cover for enclosure bottom parts, cross brace on the bottom part, Standard. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
