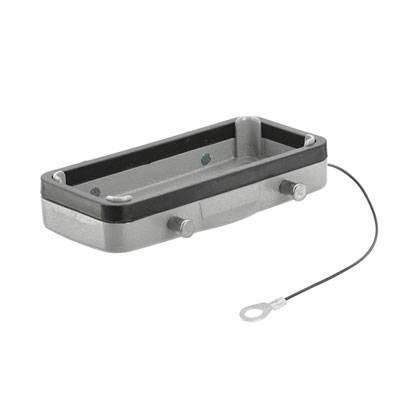

Connector housing HDC 16B DMDQ 4BO Weidmüller Content: 1 pc(s) Connector housing
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Connector housing
Type
HDC 16B DMDQ 4BO
Manufacturer part #
1665620000
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC16B DMDQ 4 BO
Technical specifications
- Tightening torque: 1.2 Nm
- Size: 6
- Width: 59 mm
- EMC Housing: No
- Height: 18 mm
- Cable input: For upper housing
- Surface: Powder coating
- Depth: 93.3 mm
- Packaging type
Piece
- Type
HDC 16B DMDQ 4BO
- Product type
Connector housing
- Manufacturer part #
1665620000
- Content
1 pc(s)
- Material
Aluminium (die-cast)
IP65
- Max. temperature
+125 °C
- Height
18 mm
- Length
93.3 mm
- Width
59 mm
- Features
+ transverse brace on the top part
- Case material
Aluminium, die cast
- Min. temperature
-40 °C
- Weight
73 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 203046 Connector housing HDC 16B DMDQ 4BO Weidmüller Content: 1 pc(s) Connector housing
User & Safety Instructions
User & Safety Instructions 203046 Connector housing HDC 16B DMDQ 4BO Weidmüller Content: 1 pc(s) Connector housing
Description
Connector housing. HDC-casing, size: 6, protection class IP65, cover for housing upper part, transverse brace on the top part, Standard. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
This text is machine translated.
