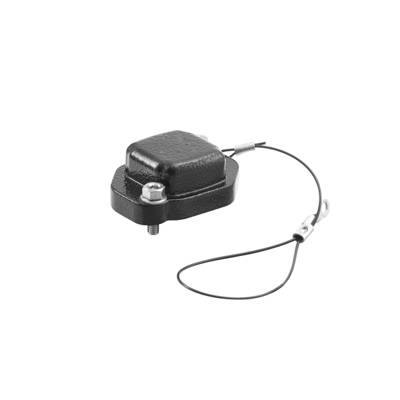

Connector housing HDC IP68 04A COVER Weidmüller Content: 1 pc(s) Connector housing
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Connector housing
Type
HDC IP68 04A COVER
Manufacturer part #
1083110000
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC IP68 04A COVER
Technical specifications
- Size: 1
- Width: 37 mm
- EMC Housing: Yes
- Height: 18.7 mm
- Surface: Powder coating
- Depth: 50 mm
- Packaging type
Piece
- Type
HDC IP68 04A COVER
- Product type
Connector housing
- Manufacturer part #
1083110000
- Content
1 pc(s)
- Material
Aluminium (die-cast)
IP68
IP69K
- Max. temperature
+125 °C
- Height
18.7 mm
- Length
50 mm
- Width
37 mm
- Case material
Aluminium, die cast
- Min. temperature
-50 °C
- Weight
30.638 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 199776 Connector housing HDC IP68 04A COVER Weidmüller Content: 1 pc(s) Connector housing
User & Safety Instructions
User & Safety Instructions 199776 Connector housing HDC IP68 04A COVER Weidmüller Content: 1 pc(s) Connector housing
Description
Connector housing. HDC-housing, size: 1, protection class IP 68, cover for enclosure bottom parts, screw cap, Standard. The new seawater-resistant and highly impact-resistant rock star-housing in IP68 and IP69K are developed for use under extreme environmental conditions and for the high vibration requirements according to the DIN EN 61373 CAT2 (bogie). Thus, this family of cases well suited for interference-free and maintenance-free operation of heavy plug connectors in the transport and traffic technology as well as in the energy technology and in applications with extreme requirements.
