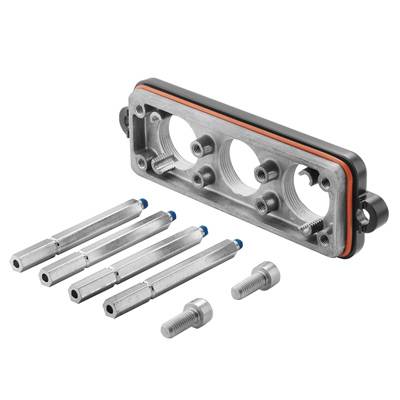

Connector housing HDC IP68 24B MD 3M40 Weidmüller Content: 1 pc(s) Connector housing
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Connector housing
Type
HDC IP68 24B MD 3M40
Manufacturer part #
1119970000
Connection
Connector
Datasheet (PDF)
Highlights & Details
Connector housing
- HDC IP68 24B MD3 M40
Technical specifications
- Number of cable inputs top: 3
- Torque: 11 Nm
- Size: 8
- Mounting dimensions Width: 164 mm
- Width: 57 mm
- EMC Housing: Yes
- Size of cable inputs: M 40
- Height: 19 mm
- Cable input: With thread
- Surface: Powder coating
- Depth: 181 mm
- Packaging type
Piece
- Type
HDC IP68 24B MD 3M40
- Product type
Connector housing
- Manufacturer part #
1119970000
- Connection
Connector
- Content
1 pc(s)
- Material
Aluminium (die-cast)
- Suitable for
HighPower
IP68
IP69K
- Max. temperature
+120 °C
- Height
19 mm
- Length
181 mm
- Width
57 mm
- Features
3x cable entry (straight)
+ thread
- Thread size
M40
- Case material
Aluminium, die cast
- Min. temperature
-50 °C
- Weight
406.92 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 200657 Connector housing HDC IP68 24B MD 3M40 Weidmüller Content: 1 pc(s) Connector housing
User & Safety Instructions
User & Safety Instructions 200657 Connector housing HDC IP68 24B MD 3M40 Weidmüller Content: 1 pc(s) Connector housing
Description
Connector housing. HDC-casing, size: 8, protection class IP 68, cover, screw cap, Standard, large cable inputs: M40. The Rock Star ® high-power housing are made of a high-strength aluminum casting and offer by a continuous optimization a perfect protection under adverse environmental conditions. Through the multi-piece housing, the user has the option to view work processes up to the last operation.
