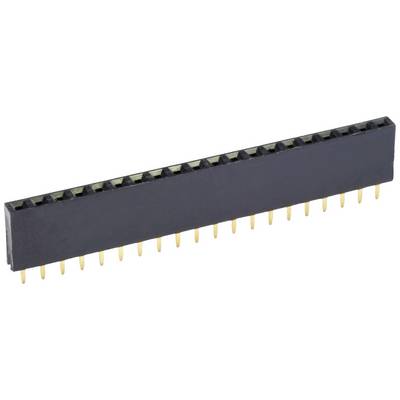

Connfly SIL socket (standard) No. of rows: 1 Pins per row: 22 DS1023-1*22SF11 1 pc(s) Tube
Part number:
Item no:
Packaging type
Tube
Connector type
Power strip, straight
Product type
SIL socket (standard)
No. of rows
1
Total number of pins
22
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 0.24
30
13% = € 0.03
€ 0.21
50
17% = € 0.04
€ 0.20
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 0.24 / piece)
€ 2.40
plus VAT.
14-day return policy included
Highlights & Details

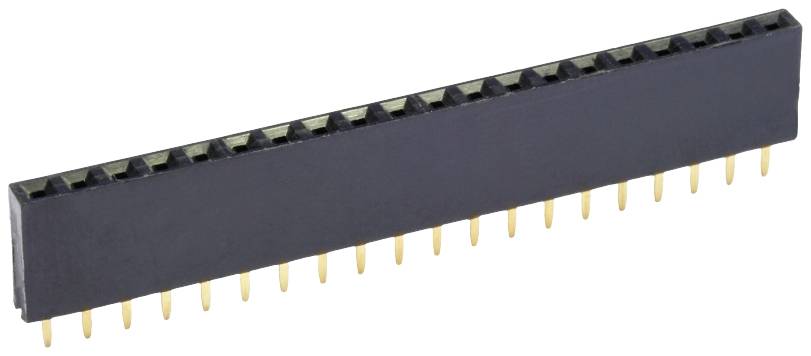

Socket board 1x22-pin straight 8mm
- Content 1 pc(s)
- No. of rows 1
- Pins per row 22
Technical specifications
- Packaging type
Tube
- Connector type
Power strip, straight
- Product type
SIL socket (standard)
- No. of rows
1
- Pins per row
22
- Total number of pins
22
- CS
2.54 mm
- Connection
Solder pins
- Factory colour
Black
- Pin shape
Rectangular
- Nominal current
1 A
- Nominal current - rounded value
1 A
- Contact surface
Gold plated
- Contact material
Copper alloy
- Case material
PBT
- Pin length (PCB)
3 mm
- Separable
No

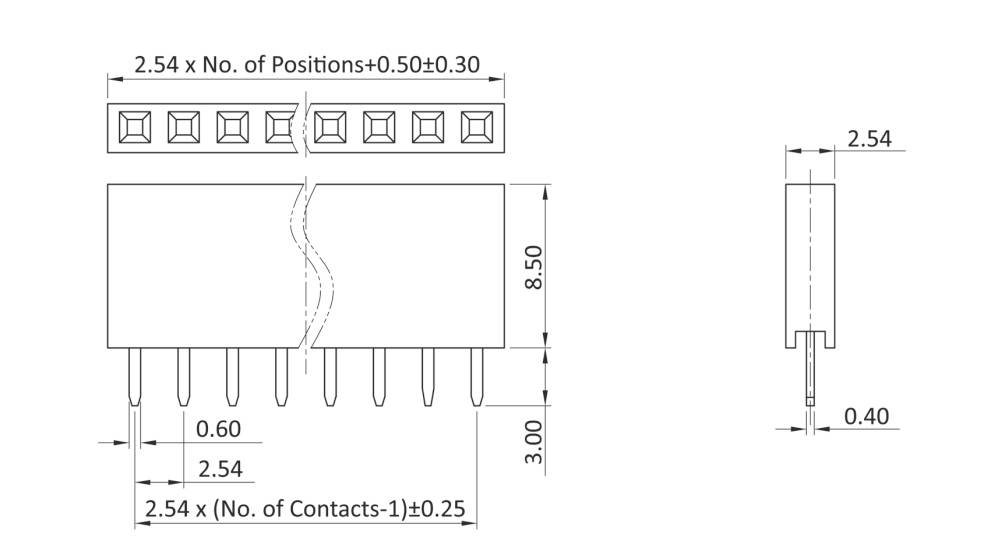

- Dim
(W x H) 2.54 mm x 8.5 mm
- Connector orientation
Perpendicular (to the PCB)
- Manufacturer part #
DS1023-1*22SF11
- Content
1 pc(s)
- Width
2.54 mm
- Height
8.5 mm
- Max. temperature
105 °C
- Min. temperature
-40 °C
- Type
DS1023-1*22SF11
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2859965 Connfly SIL socket (standard) No. of rows: 1 Pins per row: 22 DS1023-1*22SF11 1 pc(s) Tube
Description
Scope of delivery
- Content: 1 pcs.
