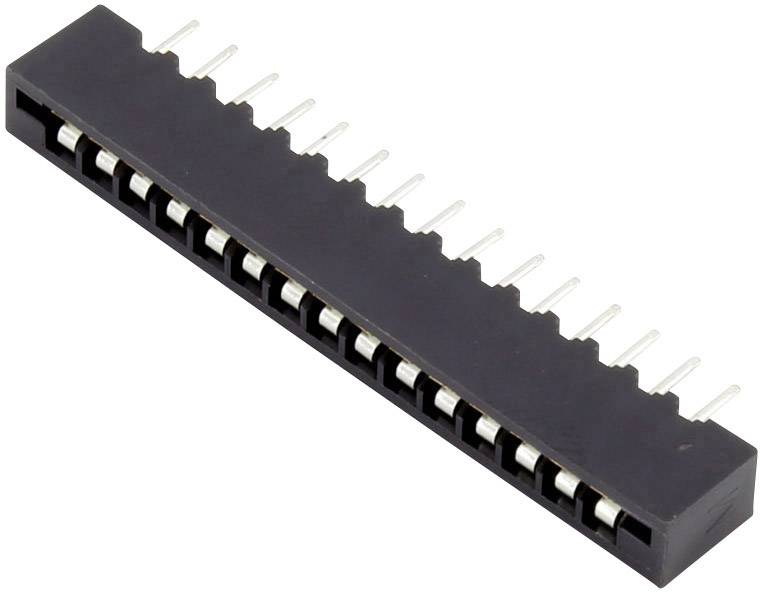

Connfly Socket housing PCB Total number of pins 15 Contact spacing: 2.54 mm DS1020-15ST1D 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket housing PCB
Connector type
Socket, vertical vertical
No. of rows
1
CS
2.54 mm
Total number of pins
15
Datasheet (PDF)
Number
Total (€ 0.22 / piece)
€ 0.22
plus VAT.
14-day return policy included
Highlights & Details
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 15
Our service for you
Technical specifications
- Product type
Socket housing PCB
- Connector type
Socket, vertical vertical
- No. of rows
1
- Connector system
wire-to-board
- CS
2.54 mm
- Pins per row
15
- Total number of pins
15
- Width
4.50 mm
- Pin Ø
0.60 mm
- Pin shape
Planar
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Content
1 pc(s)
- Dim
(L x W x H) 46.10 x 4.50 x 6.75 mm
- Connection
Print
- Case material
Thermoplastic UL94V-O
- Manufacturer part #
DS1020-15ST1D
- Factory colour
Black
- Industrial packaging
No
- Insulation material
Thermoplastic UL94V-O
- Contact material
Copper alloy
- Board contact surface
Tin plated
- Connector contact surface
Tin plated
- Height
6.75 mm
- Length
46.10 mm
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Type
DS1020-15ST1D
